Traxxas 58214-4 Slash 2WD Unassembled Kit
Couldn't load pickup availability
The Traxxas 58214-4 Slash 2WD Unassembled Kit puts you in control from the very beginning—letting you build your own 1/10 scale short course truck from the ground up. Designed for all skill levels, this kit combines hands-on assembly with the proven durability and performance of the Slash platform.
The kit includes pre-selected electronics, such as the waterproof XL-5™ ESC, Titan® 550 motor, and TQ™ 2.4GHz radio system, so once assembled, it’s ready to run with minimal additional setup.
Traxxas equips this version with Extreme Heavy Duty (EHD) components, including reinforced suspension arms, steering blocks, and drivetrain parts for improved durability on rough terrain.

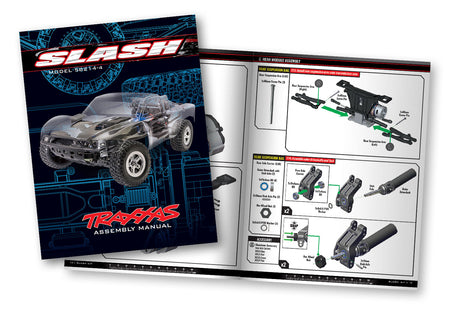

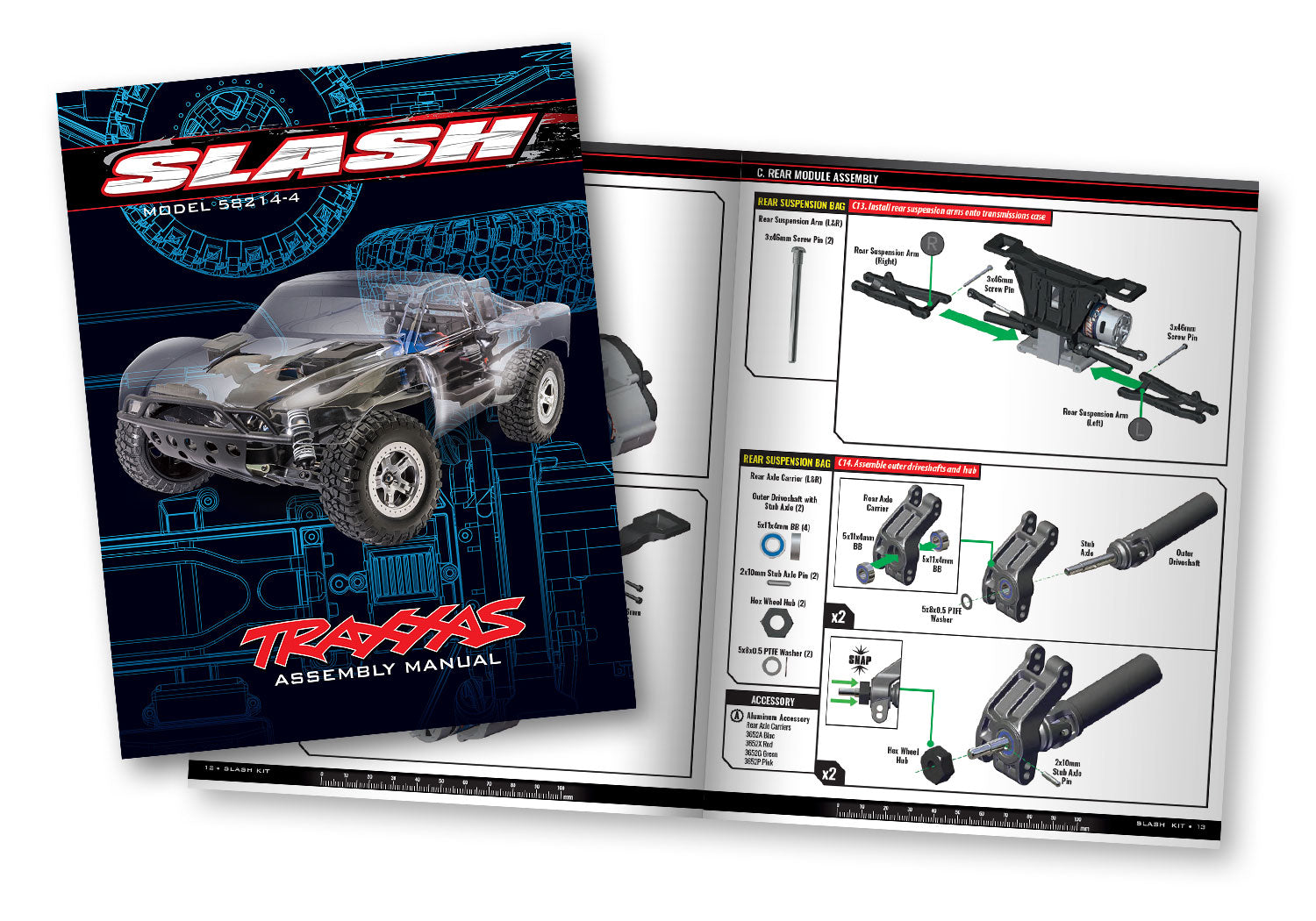

A clipless clear body is included, allowing you to fully customize your paint scheme while enjoying quick body removal without clips. The full-color instruction manual and labeled parts bags make the build process straightforward and rewarding.

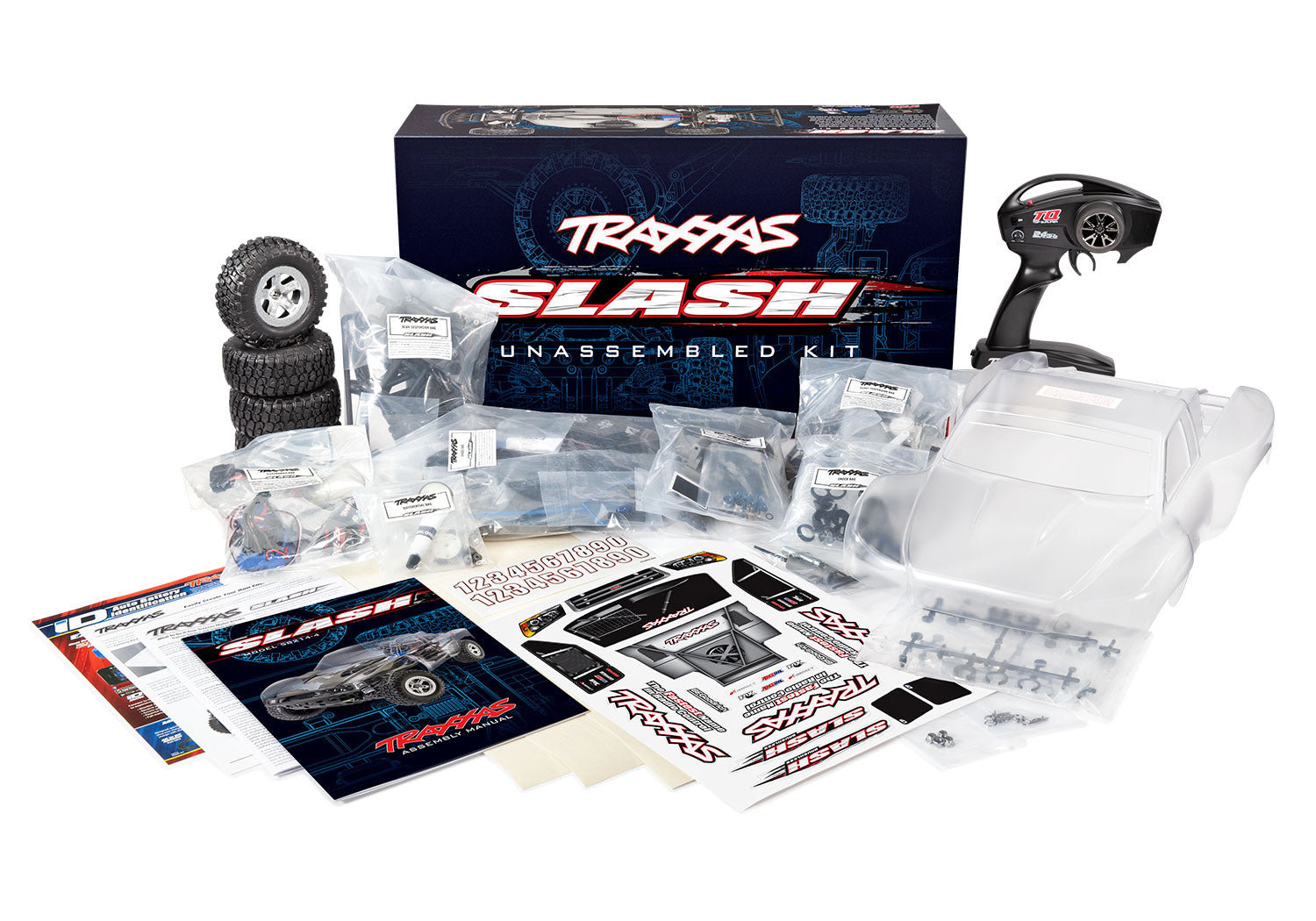

What’s Included

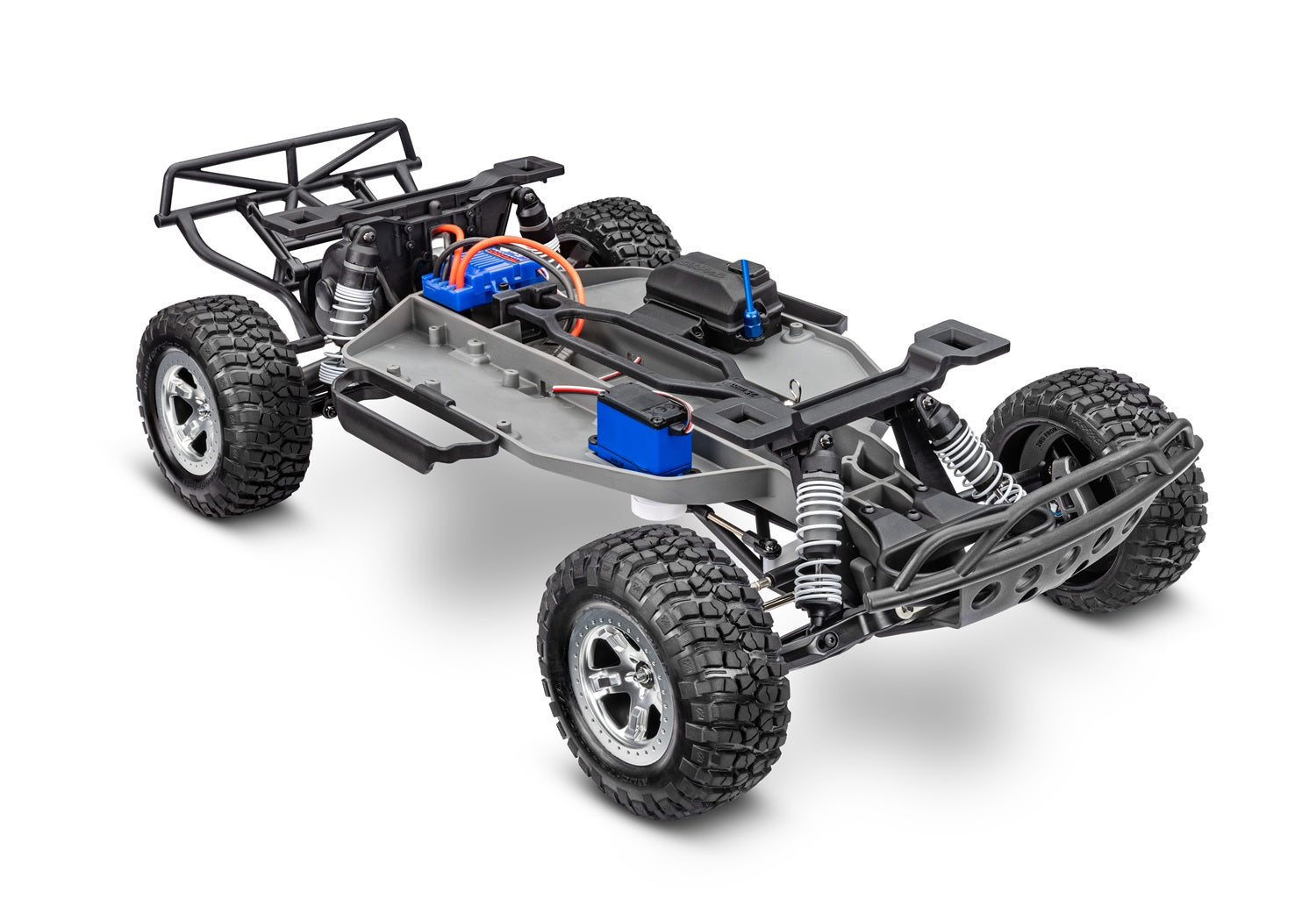

- Unassembled Slash 2WD chassis
- XL-5™ ESC and Titan® motor
- TQ™ 2.4GHz transmitter

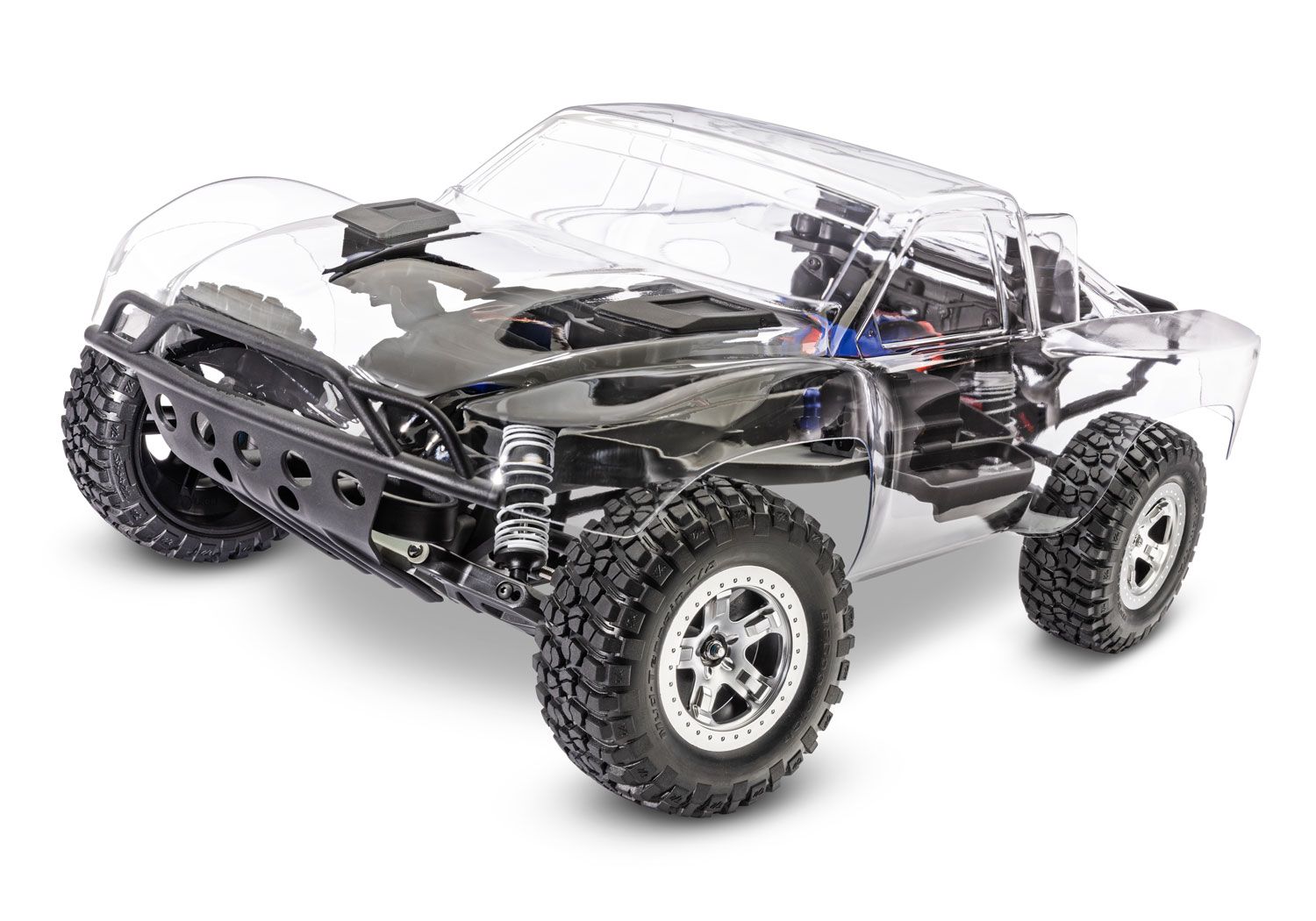

- Clipless clear body with decals & masks
- Full-color step-by-step assembly manual
- Basic tools
Required (Not Included)
- Battery (NiMH or 2S LiPo)
- Battery charger
- AA batteries for transmitter
| Name: | Slash 2WD XL-5 HD Kit |
|---|---|
| Type: | Short Course Truck |
| Speed: | 30+ mph with 7-cell NiMH battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.81 pounds (2.18 kg) |
| Length: | 22.8 inches (578 mm) |
| Width: | 11.65 inches (296 mm) |
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Height: | 7.60 inches (193 mm) |
| Name: | Titan® 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: |
14 gauge
|
- Clear Clipless Short Course Body
- Includes window masking, decals, and custom masking decals
- Tough front and rear tube-style bumpers
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Waterproof XL-5™ Electronic Speed Control
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Molded wire retainer keeps motor wires secure
- Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- Extreme heavy duty driveshafts
- Extra material for improved strength
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- O-ring sealed watertight receiver box keeps the receiver dry
- Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2S LiPo battery configurations
- Transmission and Driveline
- Velineon®-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
- Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ ground clearance
- Steering
- Digital High-torque waterproof Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer
- Suspension
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
- Wheels and Tires
- Pre-glued BFGoodrich® Mud Terrain™ T/A® tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels
- Includes Full-Color Step-By-Step Assembly Manual
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Battery and Charger Sold Separately
- Slash 2WD short course truck assembly kit
- XL-5 ESC and Titan® 550 Motor
- Clipless clear body with window masking, decals, and custom masking decals
- Full-color step-by-step assembly manual
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
- Batteries
Slash requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
