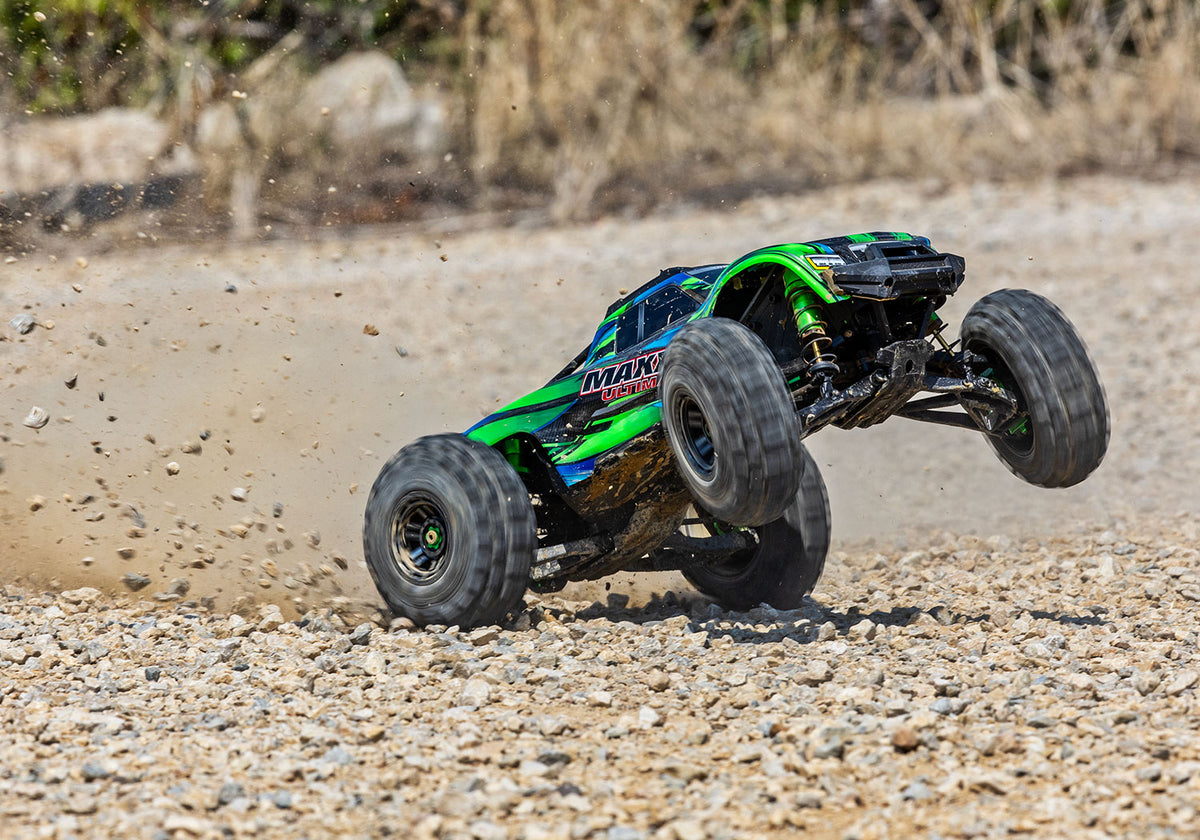

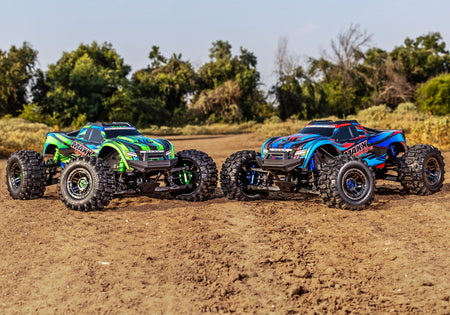

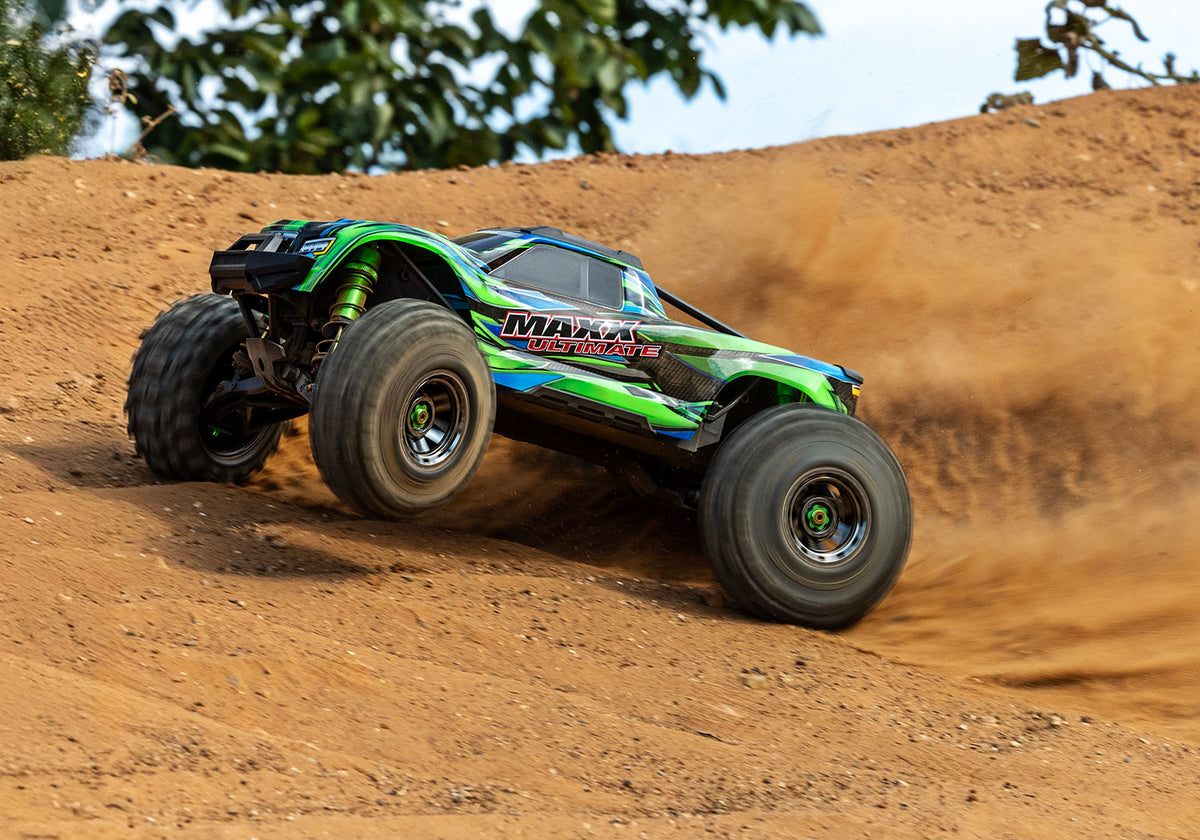

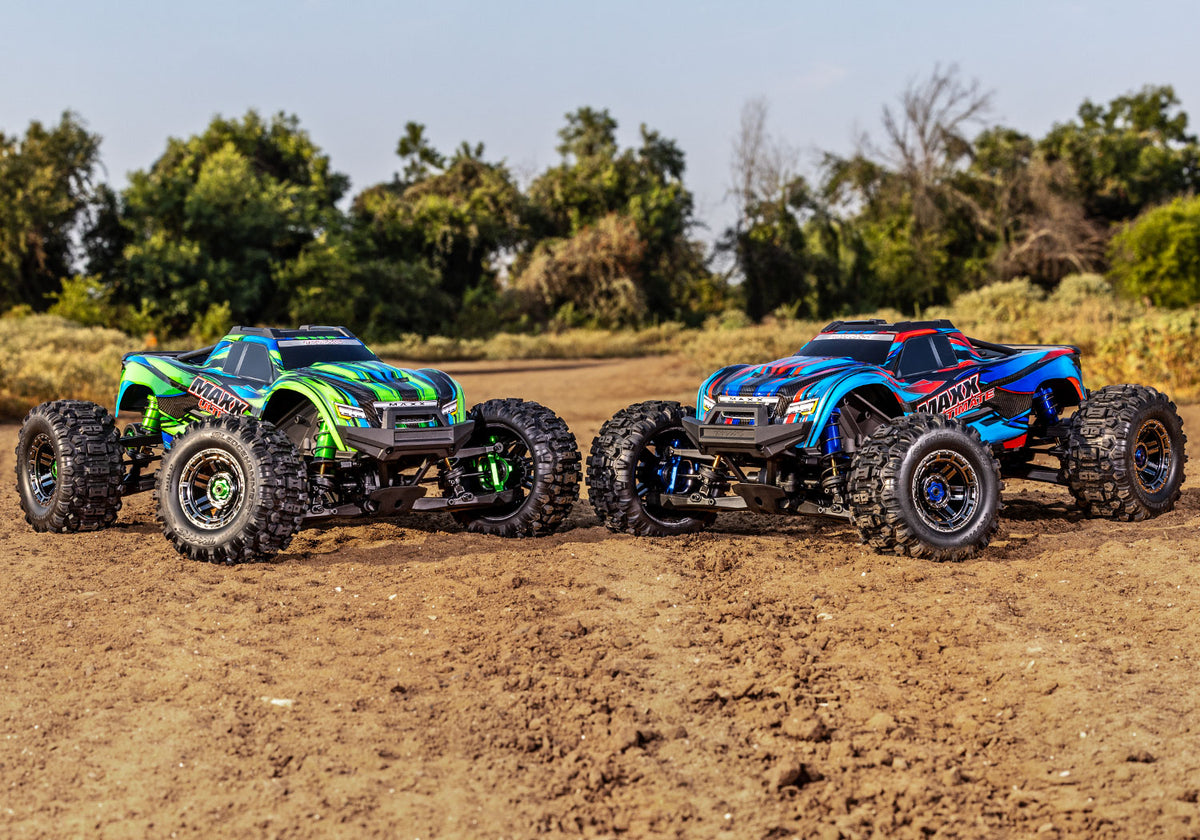

Traxxas 89087-4-GRN Maxx Ultimate 4S 4WD 1/10 Monster Truck Green

The Traxxas 89087-4-GRN Maxx Ultimate 4S 4WD Monster Truck in Green takes the proven power and durability of the Maxx platform to the next level with premium factory upgrades. Featuring a wide stance for stability, oversized tires, and a reinforced chassis, the Maxx Ultimate is engineered for extreme bashing, racing, and off-road adventure.

Powered by the VXL-4s brushless system, it delivers blistering speeds and massive torque on 4S LiPo power. Heavy-duty components like aluminum GT-Maxx shocks, steel CV driveshafts, and aluminum upgrades throughout give this truck unmatched strength and handling.

With a clipless body mounting system, TQi 2.4 GHz radio with TSM (Traxxas Stability Management), and waterproof electronics, the Maxx Ultimate is ready for anything, from backyard jumps to rocky trails.

Due to the online sales restrictions implemented by Traxxas, this item is only available for in-store pick-up.

In The Box

• Maxx Ultimate with Velineon 540XL brushless motor
• VXL-4s waterproof electronic speed control with integrated telemetry
• TQi 2.4 GHz radio system with factory-installed wireless module
• Quick Start Guide
• High quality maintenance tools

Needed to Complete

• LiPo battery: Traxxas recommends a 4-cell 14.8 volt Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
• Charger: LiPo Balance Charger with iD
• Four AA alkaline batteries for the transmitter
• Optional gearing for 60+ mph performance

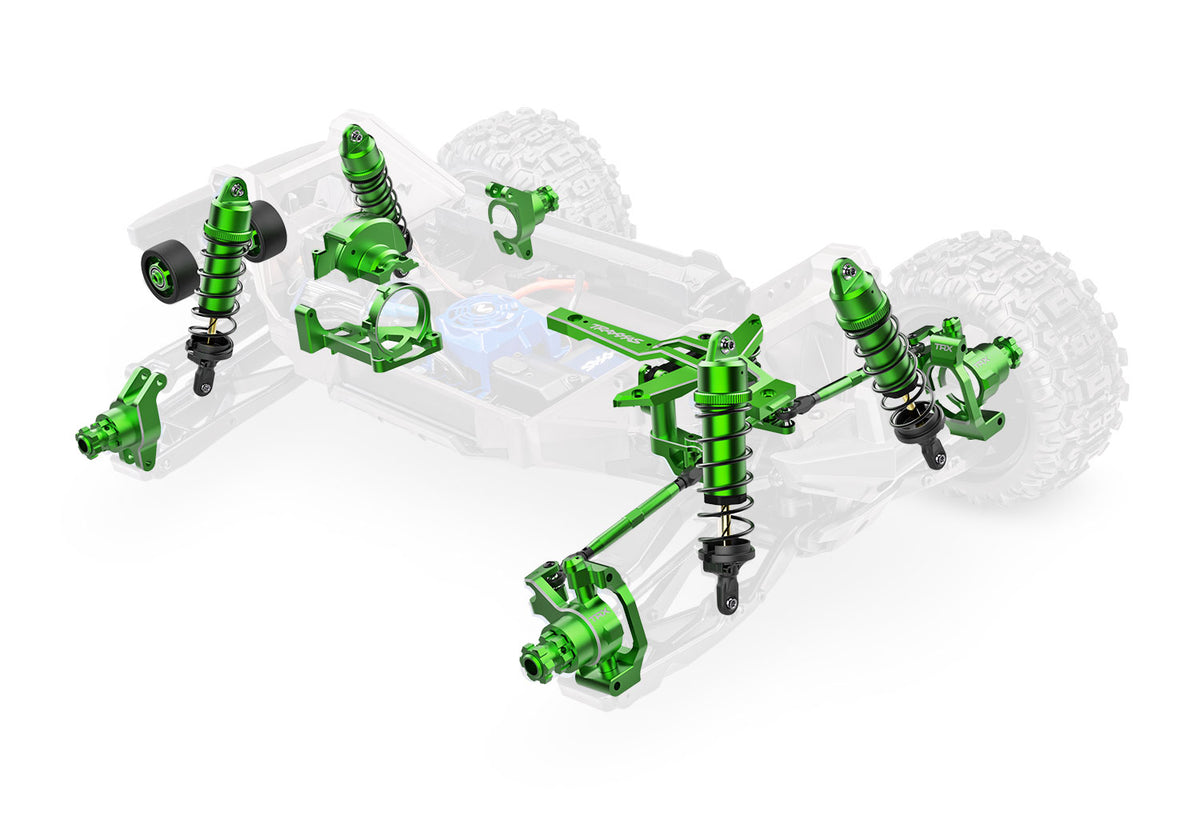

High Performance Aluminum Upgrades

• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks

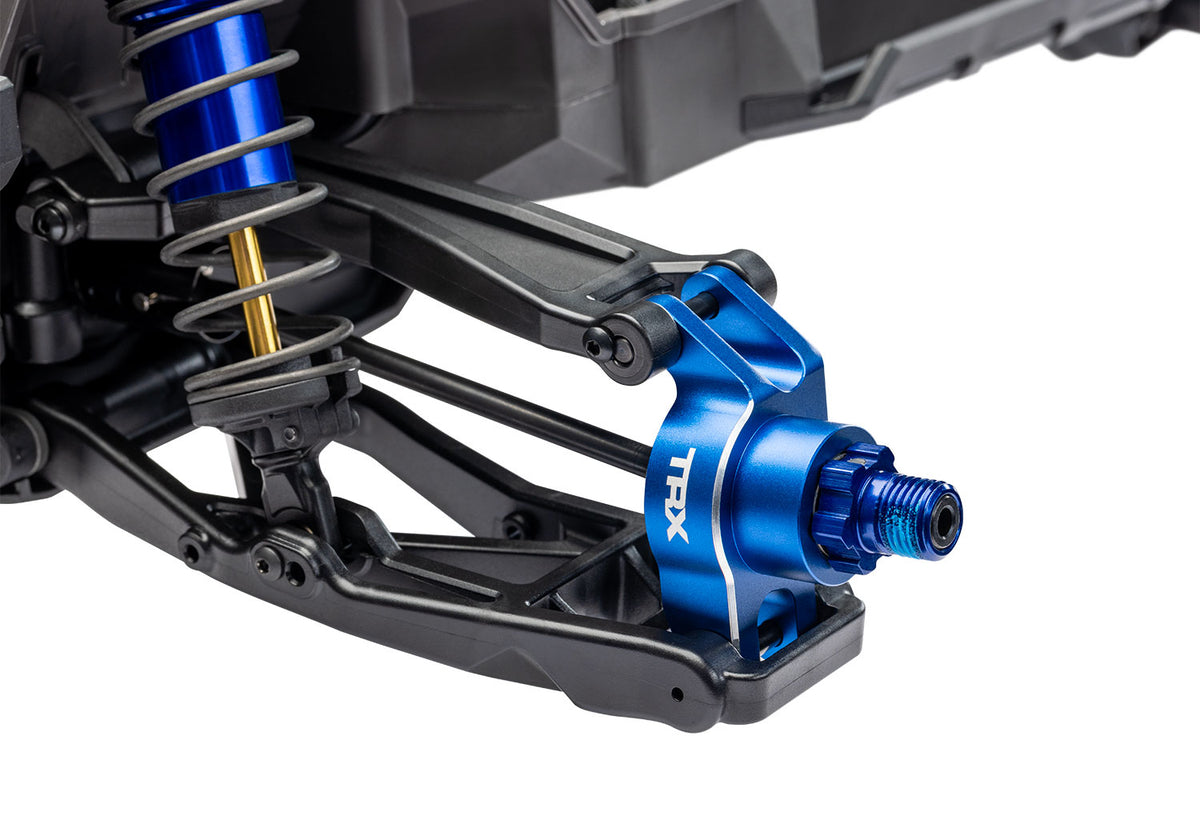

• 6061-T6 aluminum rear hub carriers
• 6061-T6 aluminum transmission cover
• 6061-T6 aluminum motor cradle

4S Performance

55 mph out of the box using a single 4S LiPo battery, sold separately. 60+ mph with optional gearing and a 4S LiPo battery, sold separately.

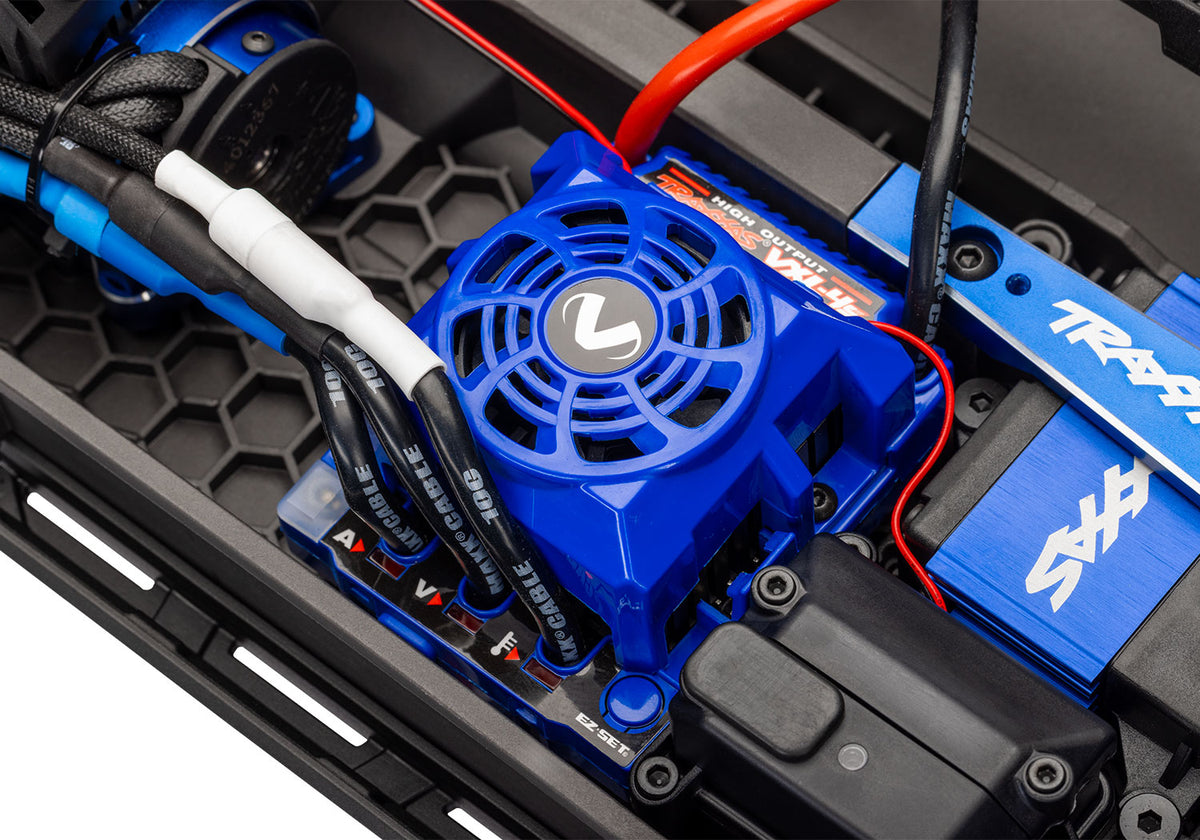

VXL-4s Waterproof Electronic Speed Control

• 3S–4S LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sinks
• 10 gauge silicone wire
• Integrated protection circuits
• LED status lights
• Waterproof

Velineon 540XL Brushless Motor

• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Aluminum heat sink
• Cooling fan

Traxxas Stability Management

Helps prevent spinouts and loss of control. Adjusts from off to 100% assistance from the transmitter.

TQi 2.4 GHz 2-Channel Radio System with Wireless Module

• Factory-installed telemetry through VXL-4s ESC
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Clipless Body Mount System

• Unique Maxx Ultimate graphics
• Quick one-hand installation and removal
• Uses pivoting rear latch mechanism
• Eliminates body posts and clips
• Molded body reinforcements for extra protection against tearing

Driveline

• Full-time shaft-driven 4-wheel drive
• Steel constant-velocity driveshafts
• Torque-Biasing Center Drive with aluminum housing
• 17 mm aluminum axle adapters and wheel nuts
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Heavy-duty Cush Drive with steel spur gear
• Splined aluminum center driveshaft

Secure Motor Mounting System

• Aluminum full-length motor cradle
• Precise, fixed gear mesh adjustments
• Motor retention separate from gear mesh

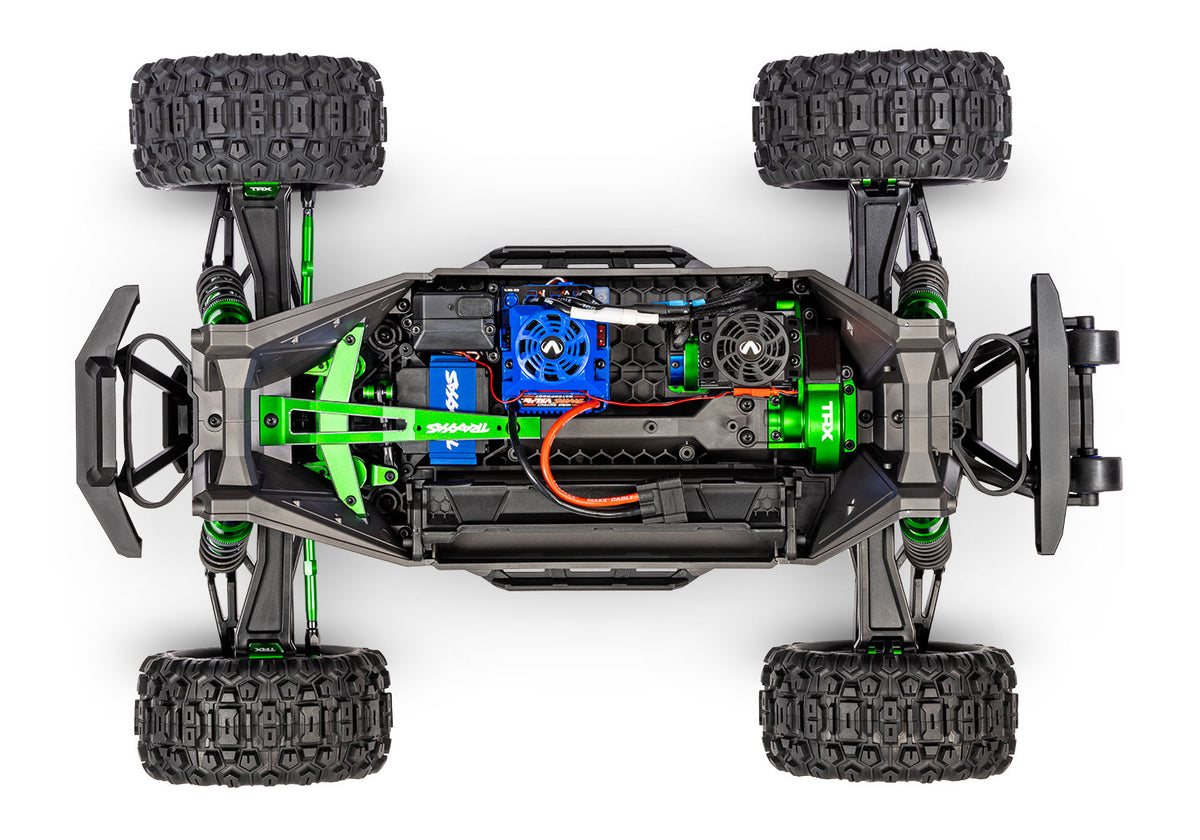

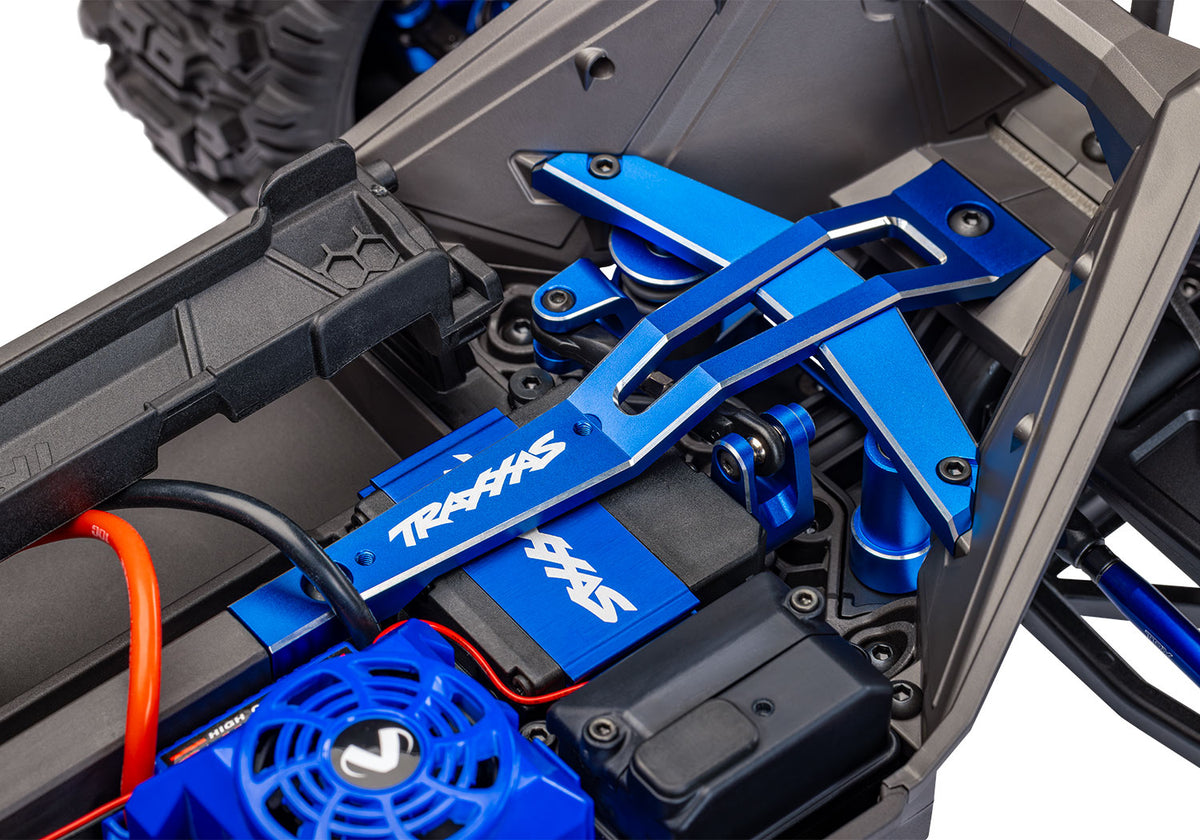

Modular Composite Chassis

• Extended modular chassis design interlocks with front and rear bulkheads
• Absorbs and distributes impact energy
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit

Easy Battery Access

• Extended battery tray accepts Traxxas’ largest 6700 mAh 4-cell LiPo battery
• Battery is protected deep in the chassis
• Battery hold-downs pivot for easy access
• More secure than conventional retention systems

Steering

• 6061-T6 aluminum steering bellcranks
• 2085RL high-output metal gear steering servo
• 650 oz-in torque at 6.0 volts
• 0.13 sec/60° at 6.0 volts
• Double-shear aluminum servo horn
• Heavy-duty servo saver spring

Suspension

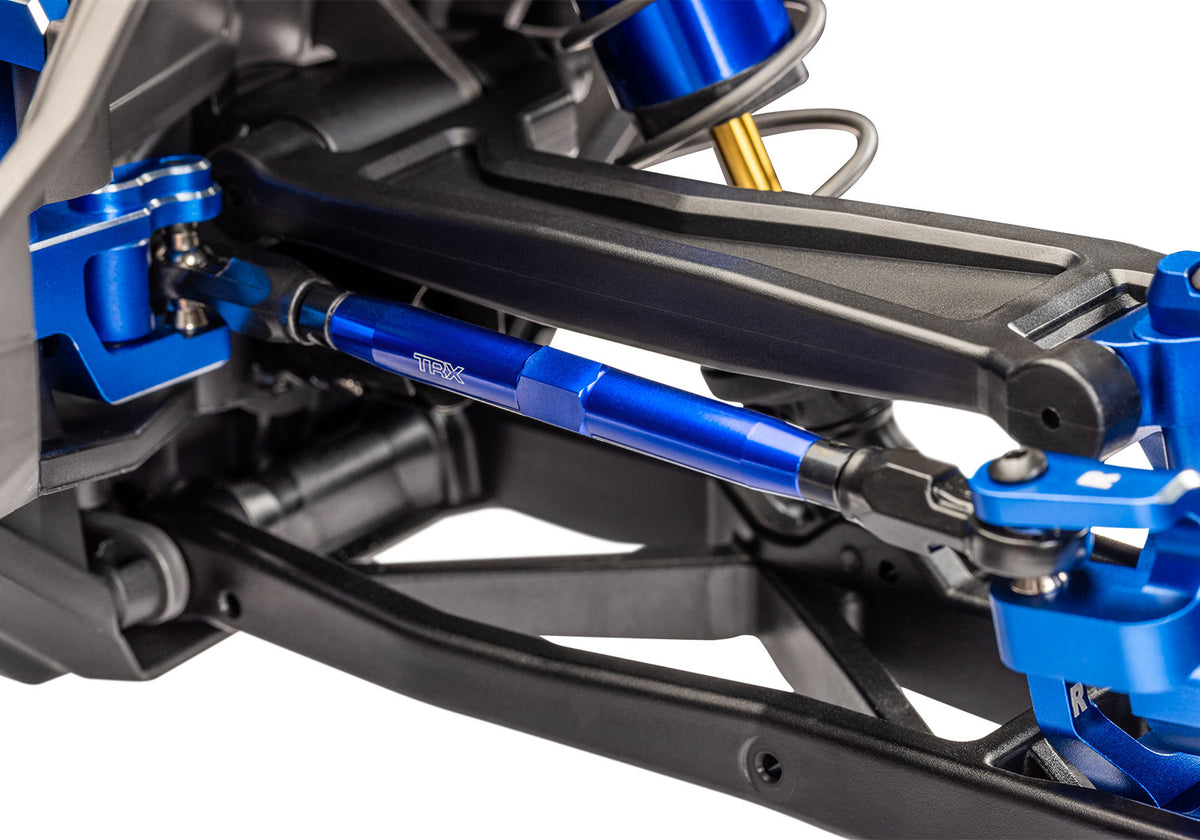

• TUBES 7075-T6 aluminum front toe links
• WideMaxx suspension arms
• Tough composite formula resists impact damage, even in cold weather
• All critical suspension points have double shear strength
• Aluminum suspension pin retainers
• Steel pivot balls

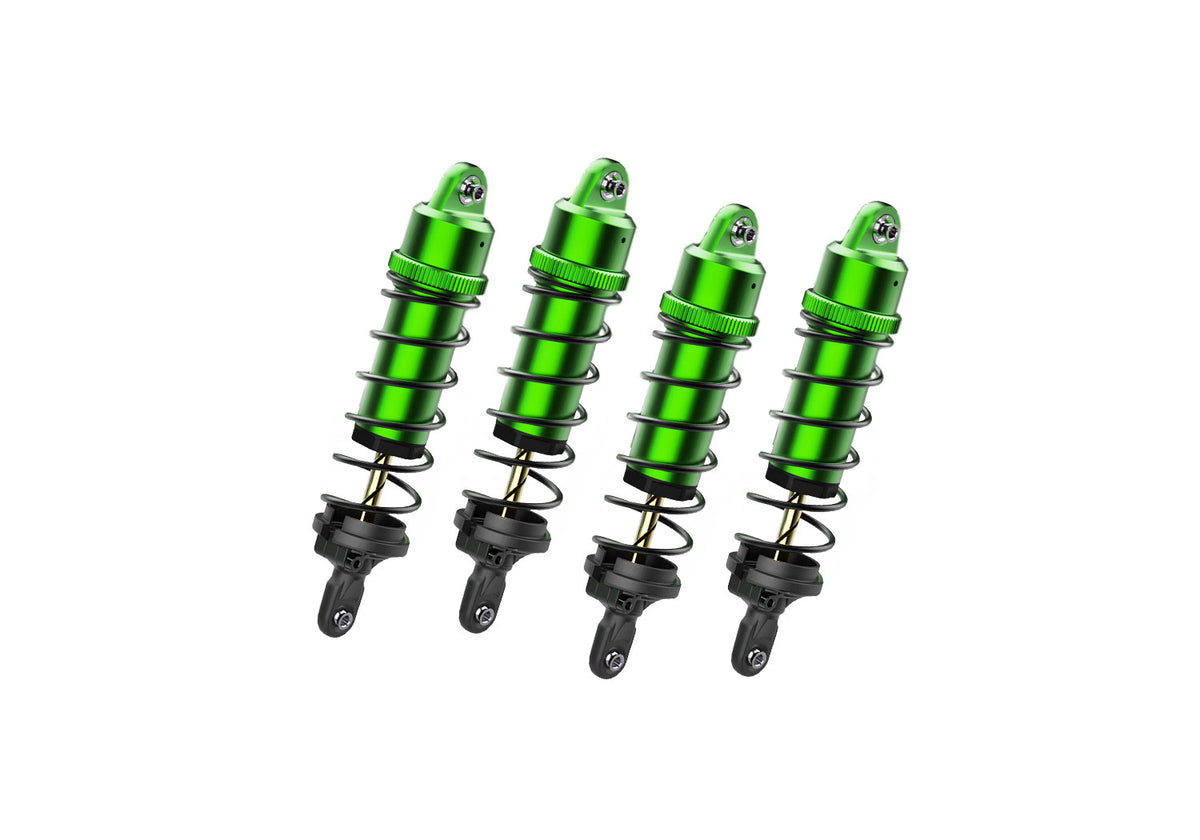

GT-Maxx Shocks

• Threaded aluminum body
• Aluminum shock caps with pivot balls
• Ultra-smooth TiN-coated damper shafts
• Adjustable aluminum upper spring retainer
• Lower seal cartridge with dual X-rings
• Lower spring perches bolted on

Bumpers

• Tough energy absorbing front and rear bumpers
• Lower front and rear skid plates for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Wheelie bar with aluminum wheels

Wheels and Tires

• 2.8-inch black chrome wheels with keyed 17 mm hex receptor
• Sledgehammer extreme tires for sure-footed traction
• 1-piece foam inserts
• Pre-glued, TSM rated

Ready-To-Race Model

MODEL 89087-4: Maxx Ultimate, 1/10 scale monster truck, fully assembled, Ready-To-Race, with TQi 2.4 GHz radio system, VXL-4s brushless power system, and ProGraphix painted body.

Specifications

Motor Specifications

ESC Specifications
