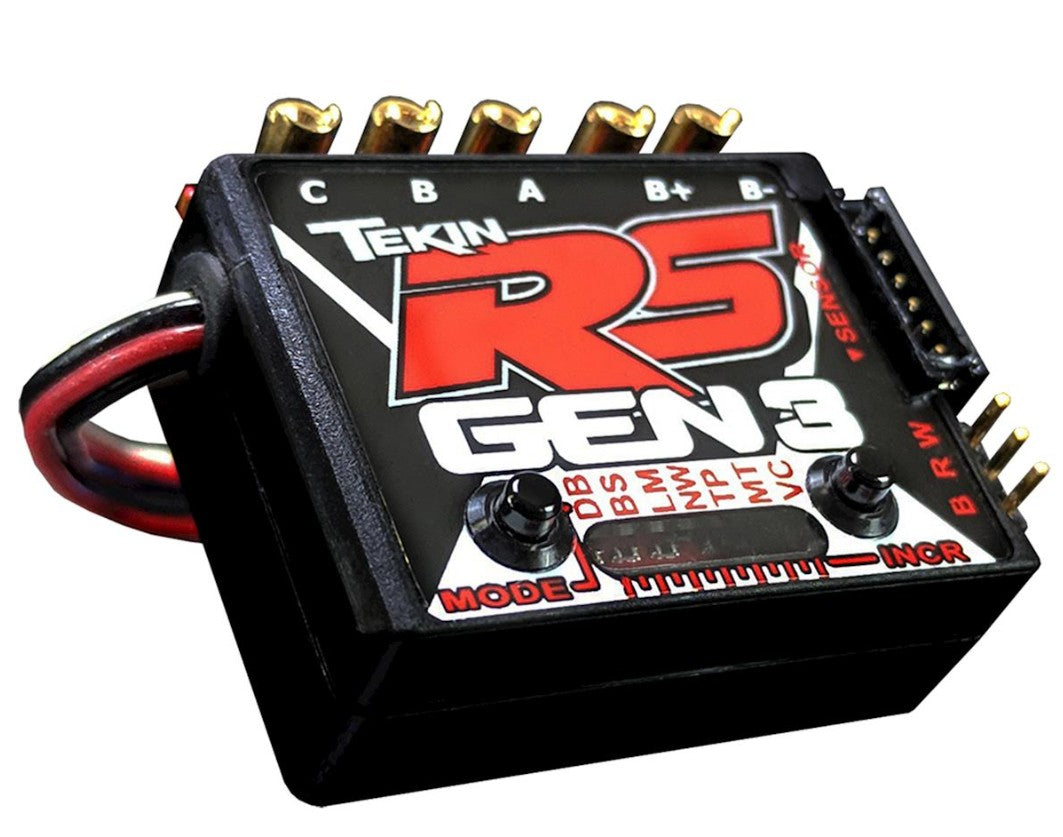

Tekin RS Gen3 Sensored Brushless ESC
Regular price
$ 169.99
Couldn't load pickup availability
If you Like it SHARE it
The Tekin RS Gen3 Sensored Brushless ESC brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!
Features:
- QuickTuneâ„¢ One Touch Programming
- New HD Solder Post Design
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments
- Adjustable Torque Control *
- Adjustable Throttle and Brake Frequencies *
- High Voltage Programmable BEC *
- HotWireâ„¢ Programming Port *
- Data Logging Capability *
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- Lightweight Chassis Design
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
*NOTE:Â Requires HotWireâ„¢ sold separately.Â
Specifications:
Controls:Â Forward/Brake/Reverse
Input Voltage:Â 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode:Â 2S - 8.5T 2-pole 36mm Can, 3S - 10.5T 2-pole 36mm Can
Motor Limit Brushed Mode:Â 2S - 10T 36mm Can, 3S - 20T 36mm Can
Max Current:Â 140amps per phase*
BEC:Â 6.0v / 7.4v @ 5.5amps
Dimensions:Â 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm
Weight:Â .83oz / 23.5g
