Spektrum Firma Sensored BL Motor/ESC 2-in-1 Combo, 2800Kv
Couldn't load pickup availability

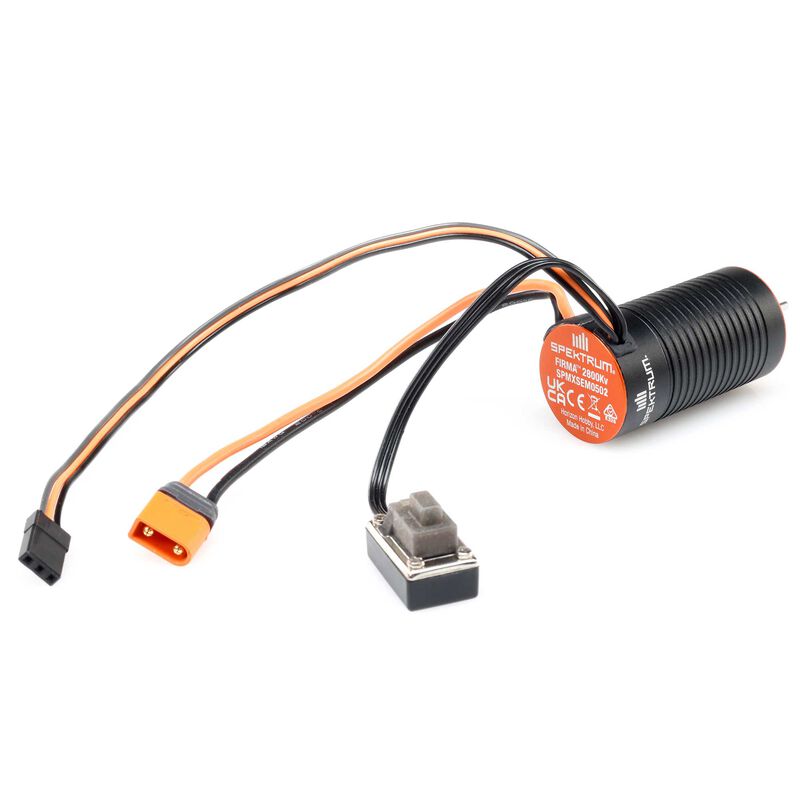

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. This ESC and motor combo will take your excitement to the next level!
Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo Overview
The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor’s RPM with unmatched precision.
This ESC and motor 2-in-1 combo is an excellent choice to upgrade your Axial UTB18 Capra 4WS, 1/18 4WD running 2S or 3S LiPo power. This combo is the perfect system whether you are adventuring on trails or entering in competition.
*See instructions for details.
Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo Features
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
- Multi-point protection: Over-current protection Automatic LiPo low-voltage cutoff Thermal protection Failsafe protection
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Includes high-performance Spektrum Firma 2800Kv Sensored Brushless Motor
- Waterproof* (See instructions for details)
- Compact for easy installation in most applications
- Ready to install - no soldering required
- Aluminum construction helps with heat dissipation
- Adjustable high-power BEC
Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo Product Specs
- Application1/16-1/18 Rock Crawler
- BEC Continous Current4A
- BEC Voltage6V/7.4V Adjustable
- Connector TypeIC2
- LiPo Compatibility2S, 3S
- Maximum Continuous Current30A /80A
- Motor SizeMotor Diameter: 24 mm Length: 45.8 mm
- Motor TypeBrushless
- Number of Cells2-3S LiPo, 6-9 Cells NiMH
- Number of Poles4
- Product ApplicationCrawling
- Product Height2" (51 mm)
- Product Length4.2" (107 mm)
- Product Weight2.7oz
- Product Width3" (76 mm)
- RPM/Volt (Kv)2800Kv
- SensoredYes
- Shaft Diameter2.3" (58 mm)
- Shaft Length0.54" (13.7 mm)
