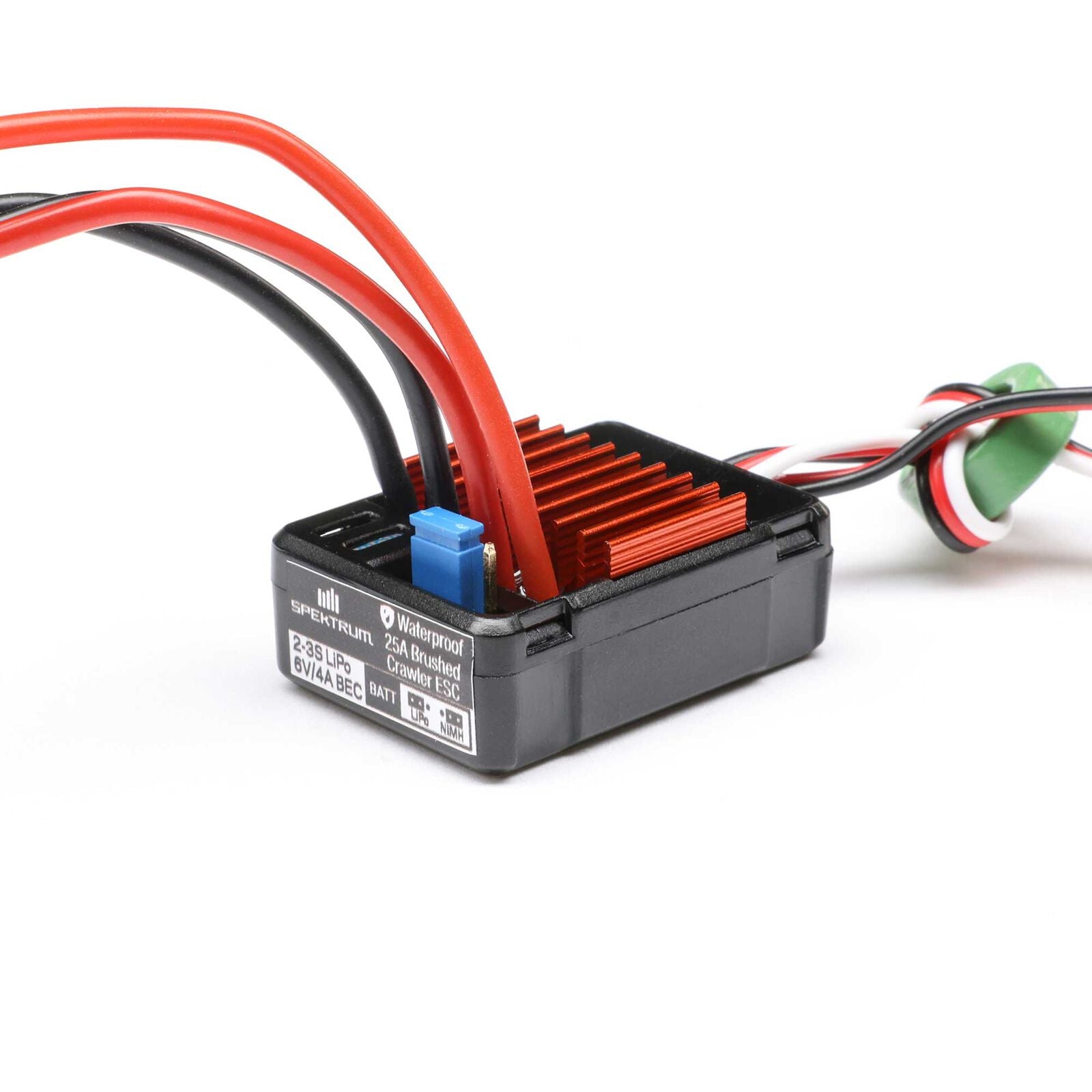

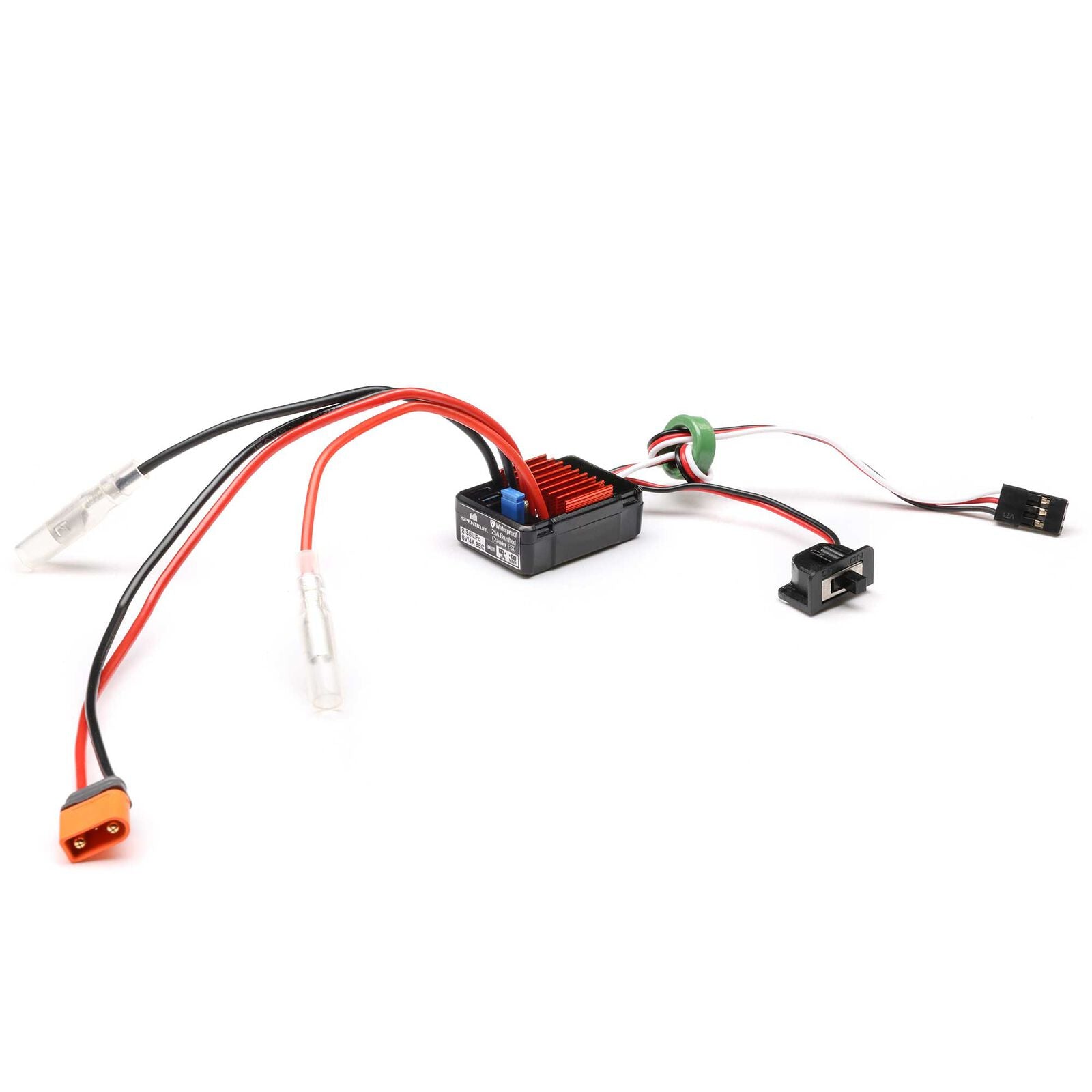

Feature-packed Firma™ Brushed ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 25A Brushed ESC drives your 1/16-1/18th scale crawler/scaler through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter!
- Ideal for 2WD and 4WD 1/16-1/18th scale crawlers/scalers running on 2S - 3S Lipo setups
- High current adjustable BEC (6v @ 4 Amps)
- Waterproof (see instructions for details)
- Multi-point protection
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case
- Aluminum heat sink for high efficiency
- High heat resistant IC™ connector, backward compatible with EC™ connectors
- Limited 1-year warranty
Firma 25A Brushed ESC Product Specs
- Amperage25A
- Battery ConnectorIC2
- BEC Continous Current4A (Switch mode)
- BEC Voltage6V
- Dimensions34.0 x 24.0 x 14.0 (mm)
- Input Voltage2-3S LiPo and 5-9 Cell NiMH
- Maximum Burst Current100A
- Motor Output Lead4mm Female Motor Bullets
- Motor TypeBrushed
- Overload ProtectionYes
