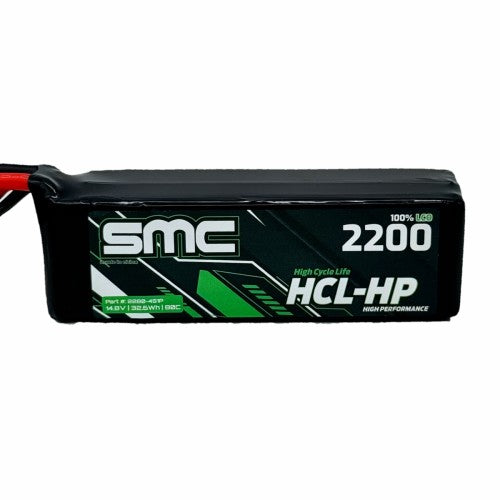

SMC Racing 2280-4S1P HCL-HP 14.8V 2200mAh 80C Flight Pack — EC3
Couldn't load pickup availability
The SMC Racing 2280-4S1P HCL-HP is a 14.8V 2200mAh 80C 4S flight pack LiPo battery purpose-built for smaller electric RC aircraft and weight-sensitive builds. Part of SMC's HCL-HP line, this pack uses 100% LCO cathodes for maximum cycle life and consistent performance. At 228g it is the lightest option in the HCL-HP 4S flight pack range, making it ideal for park flyers and smaller sport planes where minimizing battery weight is critical for flight performance and handling.
Note: standard LiPo cells — not LiHV. Must be charged at 4.20V per cell. G10 fiberglass top and bottom plates protect the cell stack without the full weight penalty of a hardcase.
Key Features
- 100% LCO cathode construction for maximum cycle life and sustained performance
- 80C continuous discharge for strong current delivery in smaller 4S brushless motor setups
- Lightweight 228g pack — ideal for smaller aircraft and weight-sensitive builds
- G10 fiberglass top and bottom protection plates
- EC3 connector for direct compatibility with EC3-equipped aircraft and ESCs
- Standard LiPo — charge at 4.20V per cell (not LiHV)
Specifications
| Part Number | 2280-4S1P | |
| Series | HCL-HP | |
| Voltage | 14.8V (4S) | |
| Capacity | 2200mAh (±5%) | |
| Discharge Rate | 80C | |
| Connector | EC3 | |
| Wire Gauge | 12AWG | |
| Protection | G10 top & bottom plates | |
| Dimensions | 29 x 34 x 109mm | |
| Weight | 228g | |
| Charge Rate | 1C–5C (higher rates reduce returned mAh and cycle life) | |
