REEFS RC SEHREEFS25 99micro High-Voltage Metal Gear Digital Micro Servo
Regular price
$ 59.99
Couldn't load pickup availability
If you Like it SHARE it

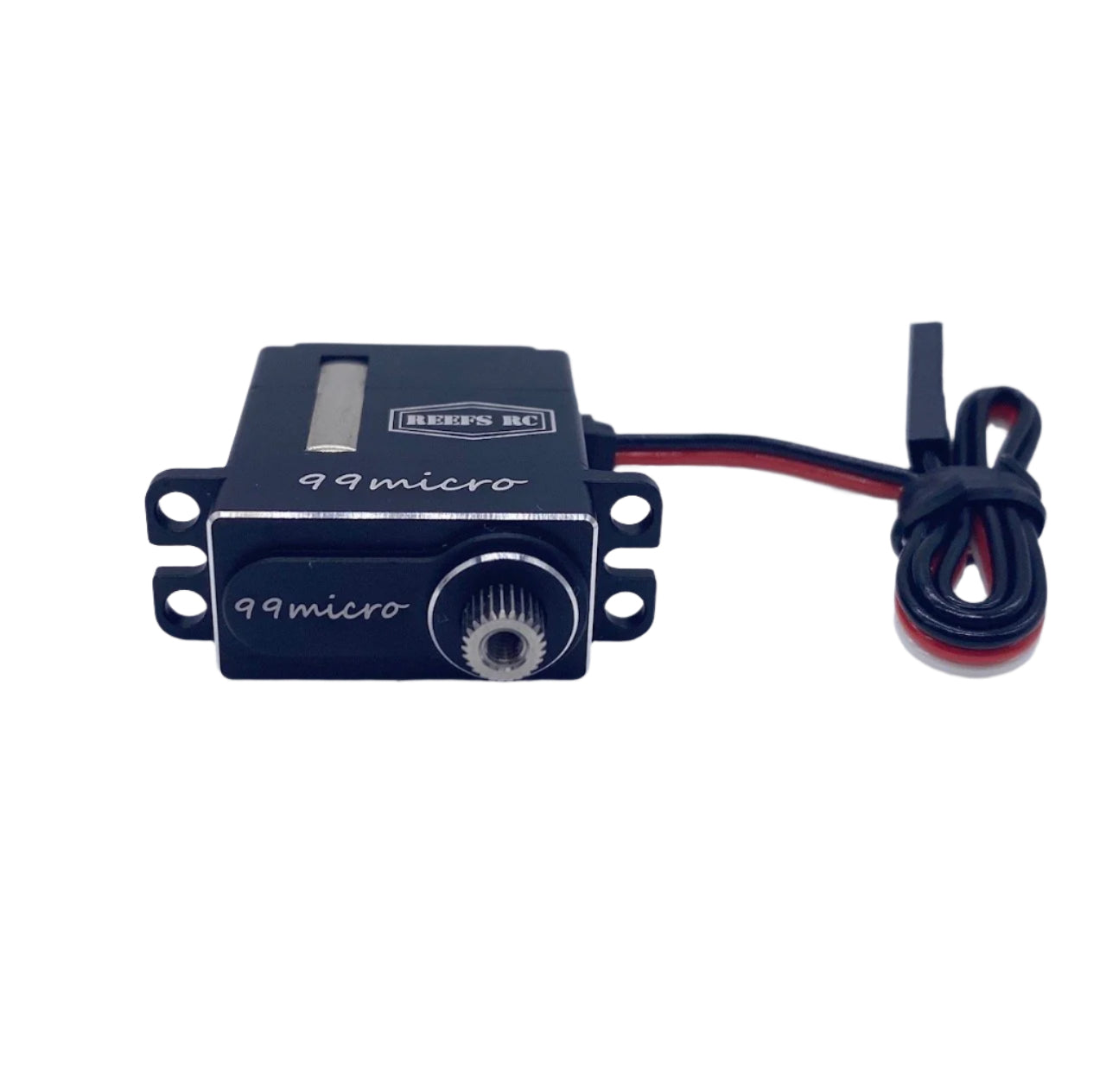

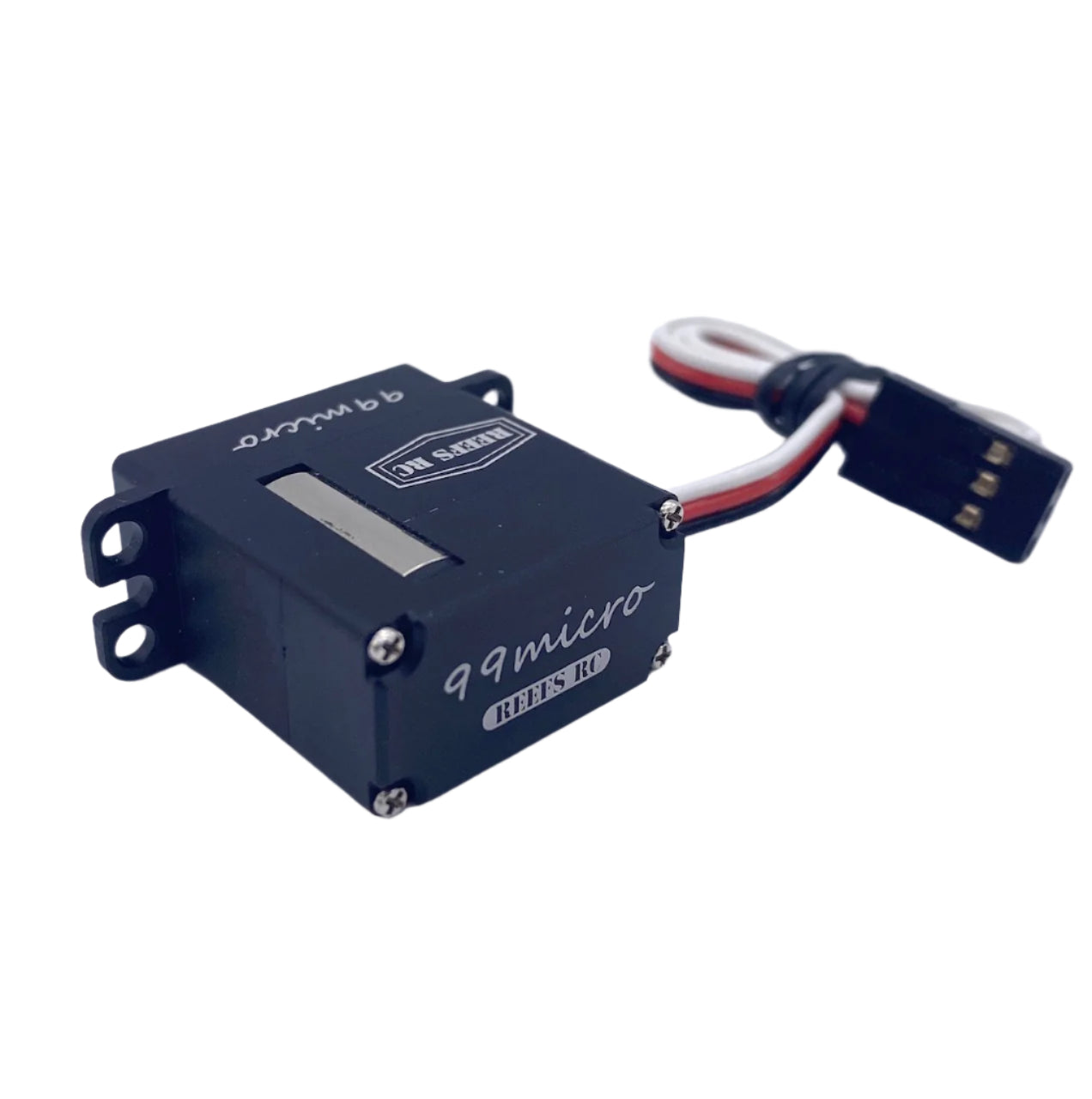

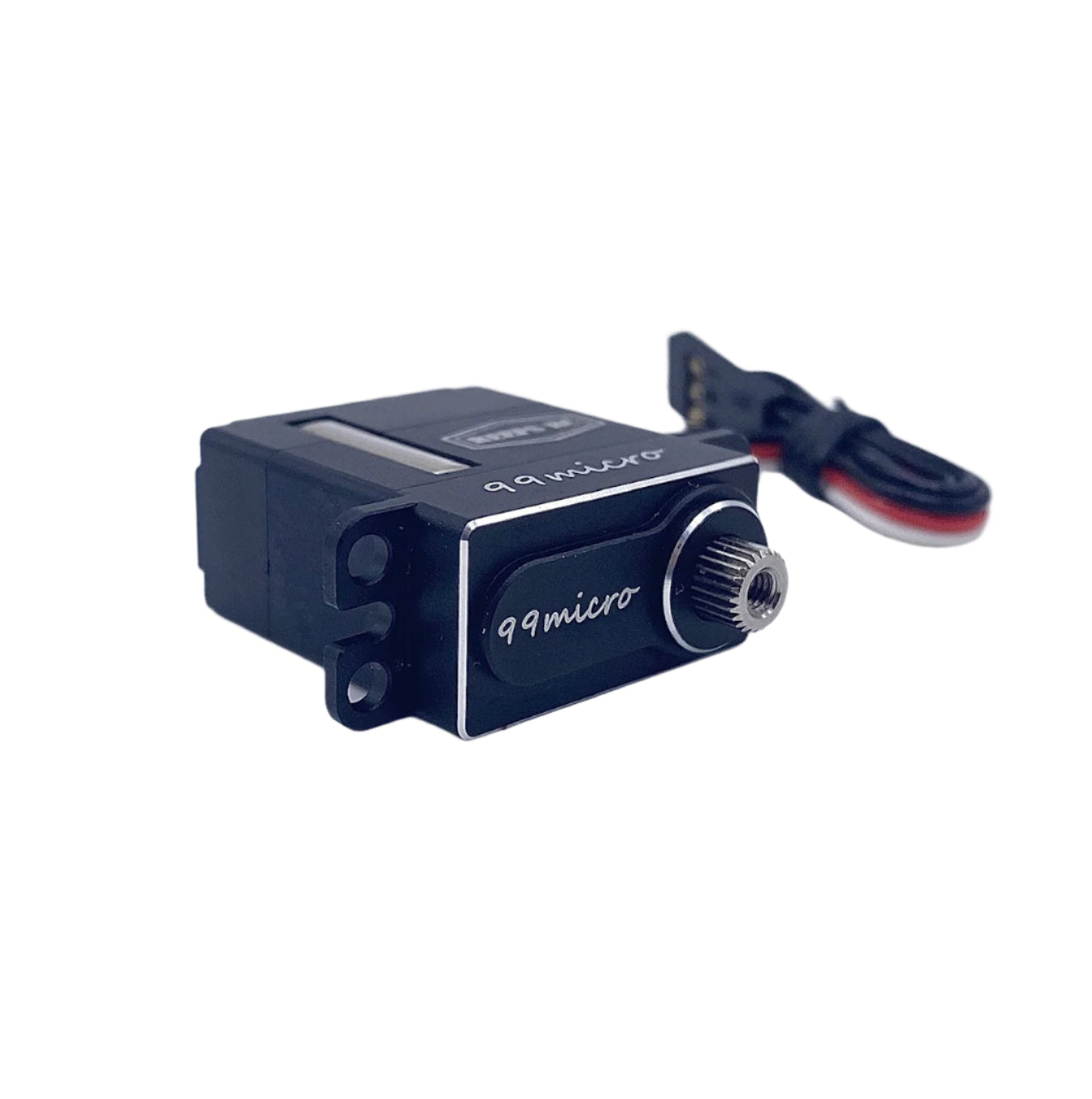

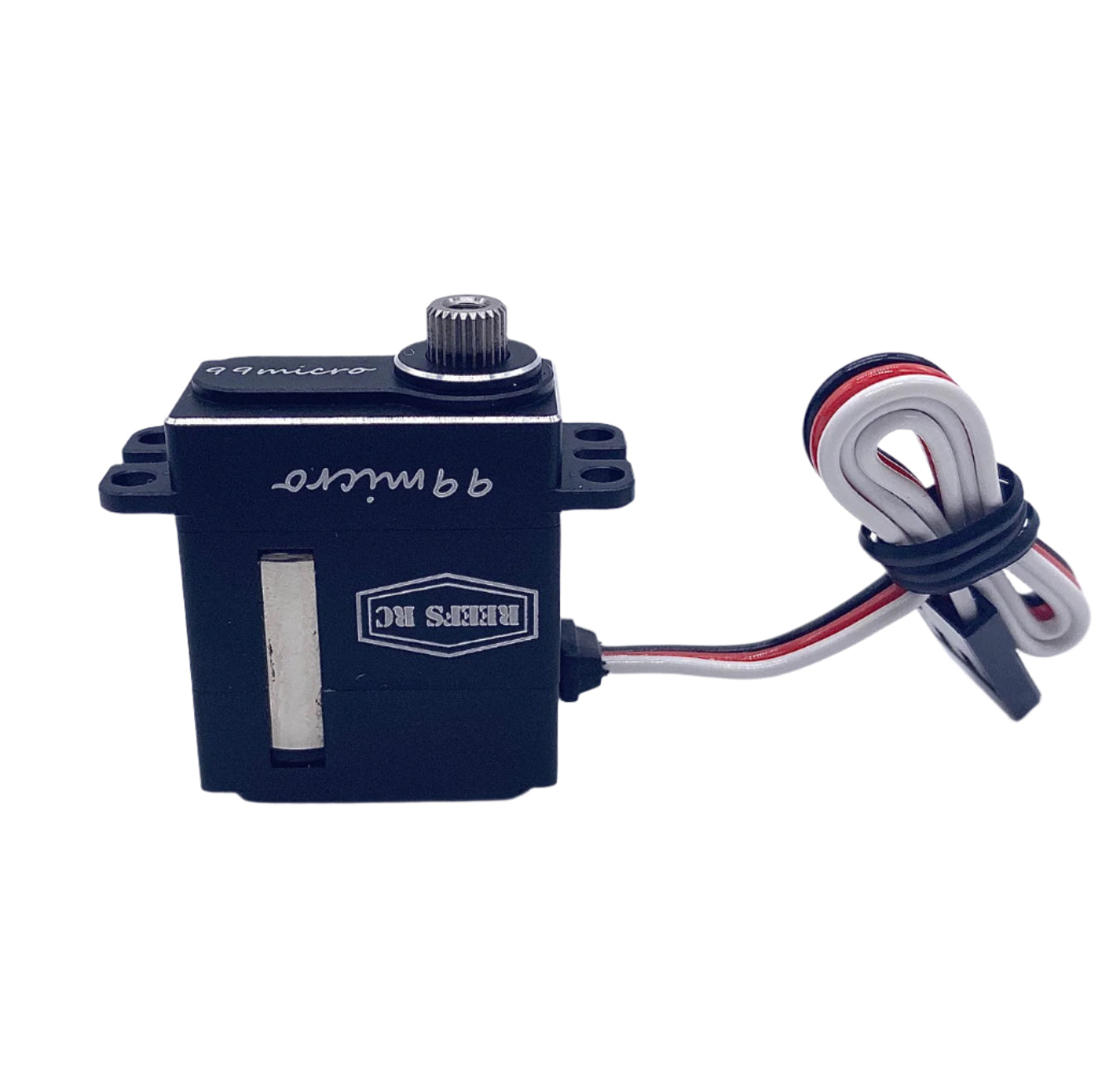

REEFS RC 99micro High-Voltage Metal Gear Digital Micro Servo combines precision metal gears with a CNC-machined aluminum case and waterproof construction. Its compact design delivers voltage-dependent torque and speed for compatible micro RC installations.
Key Features
- High-torque, high-speed digital micro servo
- Precision metal gears and CNC-machined aluminum case
- Waterproof design
- Dual ball bearings
- 6.0โ8.4V operating range
- Micro 25T output spline
Compatibility
- Listed for SCX24 and dig applications; verify the mounting arrangement, linkage, horn and electronics before installation.
- Requires a compatible micro 25T horn. Do not assume compatibility with standard-size 25T horns.
- Confirm the receiver or power supply provides voltage within the 6.0โ8.4V operating range.
Specifications
| Model | 99micro |
| Store SKU | SEHREEFS25 |
| Control | Digital |
| Waterproof | Yes |
| Input voltage | 6.0โ8.4V |
| Gears | Precision metal gears |
| Case | CNC-machined aluminum |
| Bearings | 2 ball bearings |
| Servo weight | 0.70 oz |
| Servo dimensions | 0.90 ร 0.47 ร 1.08 inches (L ร W ร H) |
| Torque at 6.0V | 89 oz-in |
| Torque at 7.4V | 99 oz-in |
| Torque at 8.4V | 115 oz-in |
| Listed speed at 6.0V | 0.11 sec |
| Listed speed at 7.4V | 0.09 sec |
| Listed speed at 8.4V | 0.08 sec |
| Spline | Micro 25T |
| Dead band width | 2 ยตs |
| External BEC | Listed as not required; installation must still supply compatible operating voltage. |
