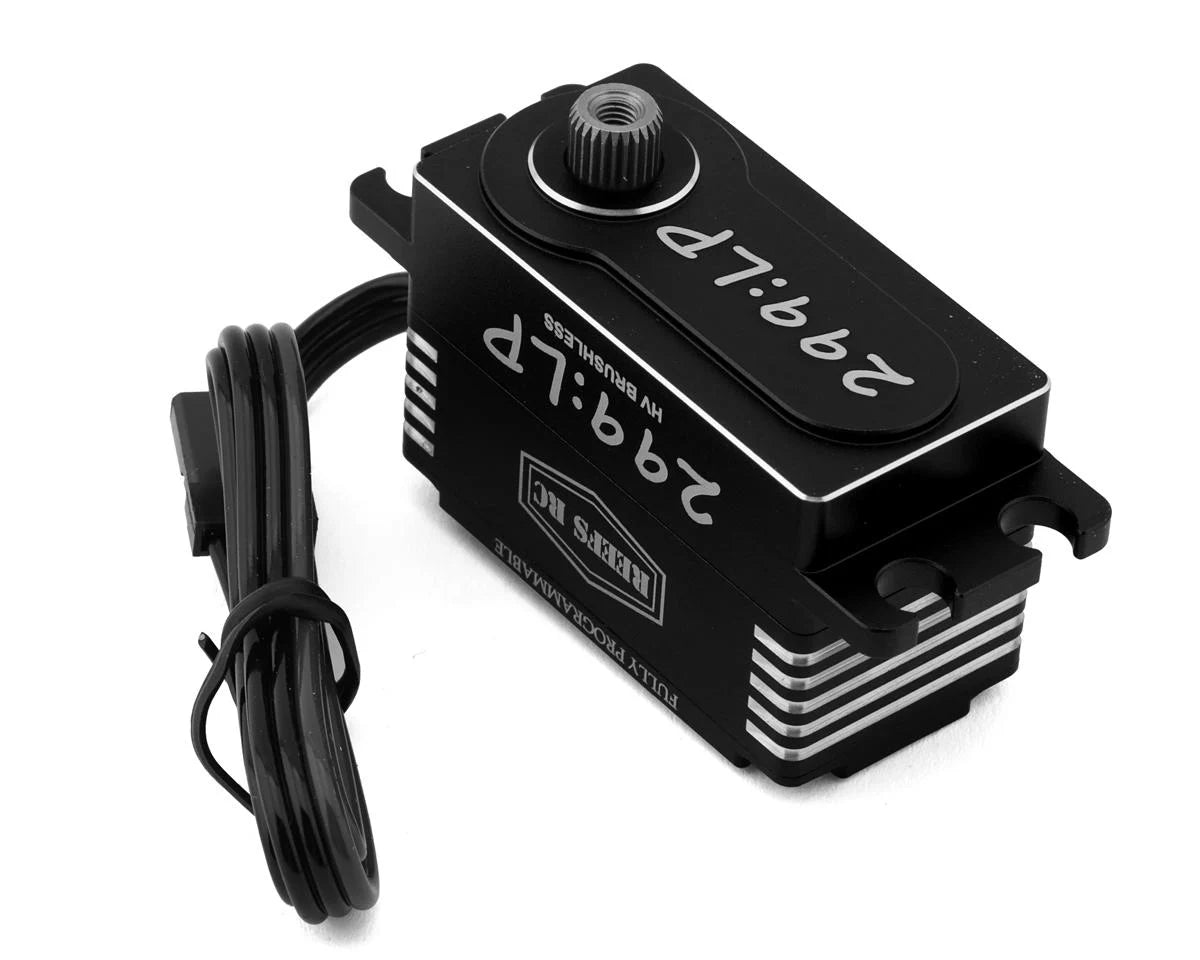

REEF 299LP High Speed High Torque Low Profile Brushless Servo .0.57/313 @8.4V

Only 1 left
SKU: SEHREEFS24 Barcode: 718879950103
Regular price $ 120.99

Reefs 299LP High Torque/Speed Brushless Low Profile High Voltage Servo. Available in multiple anodized colors with a beautiful aluminum case, this powerful racing servo features a water-resistant low-profile design with a magnetic angle sensor and is capable of putting out 313oz-in (22.5kg-cm) of torque and 0.05sec/60° of speed at (8.4V)! Providing racers and drifters the speed and power needed in a low-profile, lightweight sleek design!


Features:

  • Hi voltage capable
  • High torque high speed brushless motor
  • Water resistant low profile design
  • Magnetic angle sensor
  • Fully programmable with REEFS software (Reefs LINK required for programming)
  • All aluminum case with side fins to maximize heat dissipation
  • Anodized in multiple colors

Specifications:

  • Speed:
    • @6.0V: 0.07sec/60°
    • @7.4V: 0.06sec/60°
    • @8.4V: 0.05sec/60°
  • Torque:
    • @6.0V: 278oz-in (20kg-cm)
    • @7.4V: 299oz-in (21.5kg-cm)
    • @8.4V: 313oz-in (22.5kg-cm)
  • Motor: Brushless
  • Operating Voltage: 4.8V-8.4V
  • Dimensions(LxWxH): 1.6"x0.79"x1.0" (40.8x20.2x26.5mm)
  • Weight: 2.0oz (57.2g)
  • Operating Spline: 25T (ProTek/Futaba)

Includes:

  • (1) 299LP Low-Profile Racing Servo

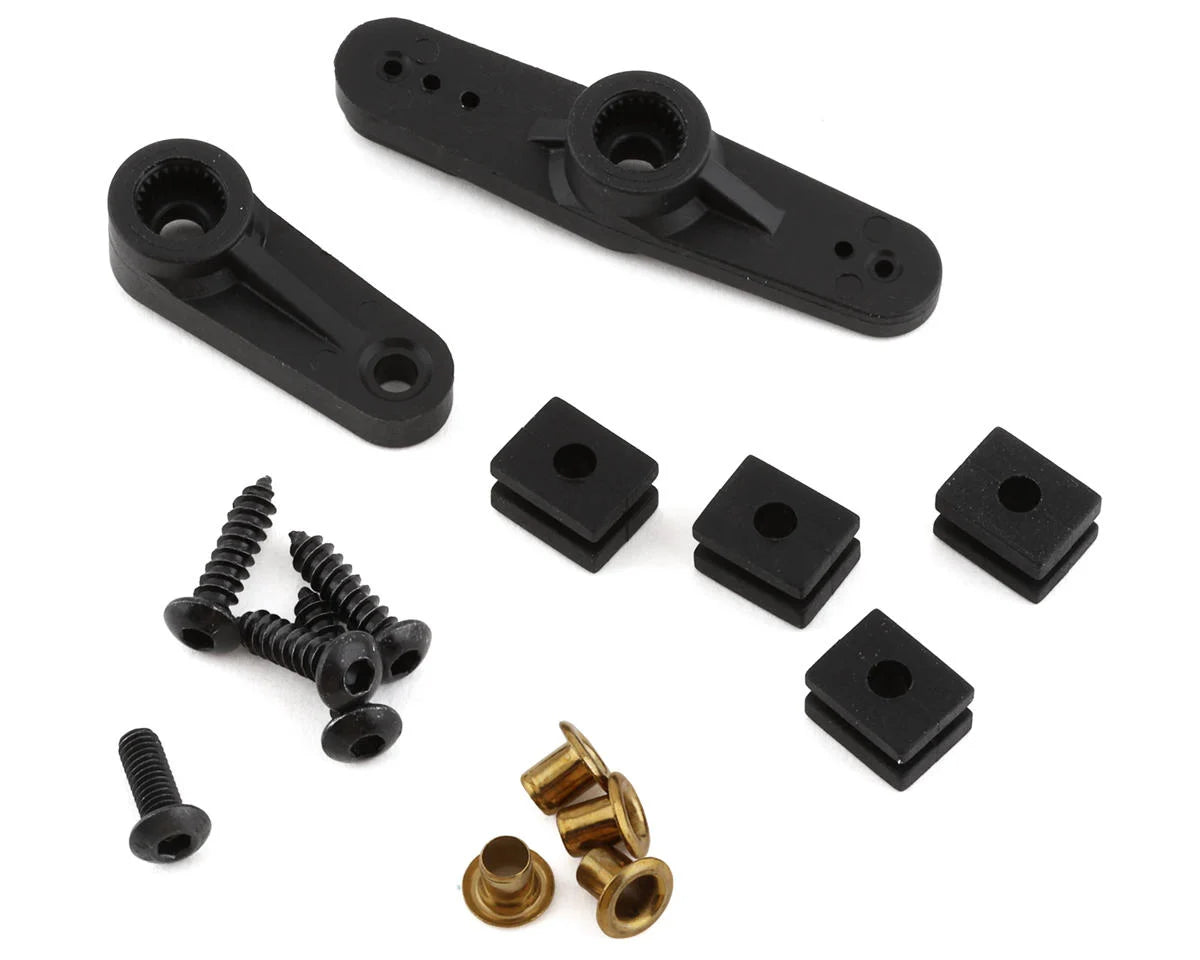

  • Servo Horns and Mounting Hardware
