REEFS RC RAW 100 Mini Black Servo Programmable

Only 2 left
SKU: SEHREEFS135 Barcode: 602024523574
Regular price $ 84.99

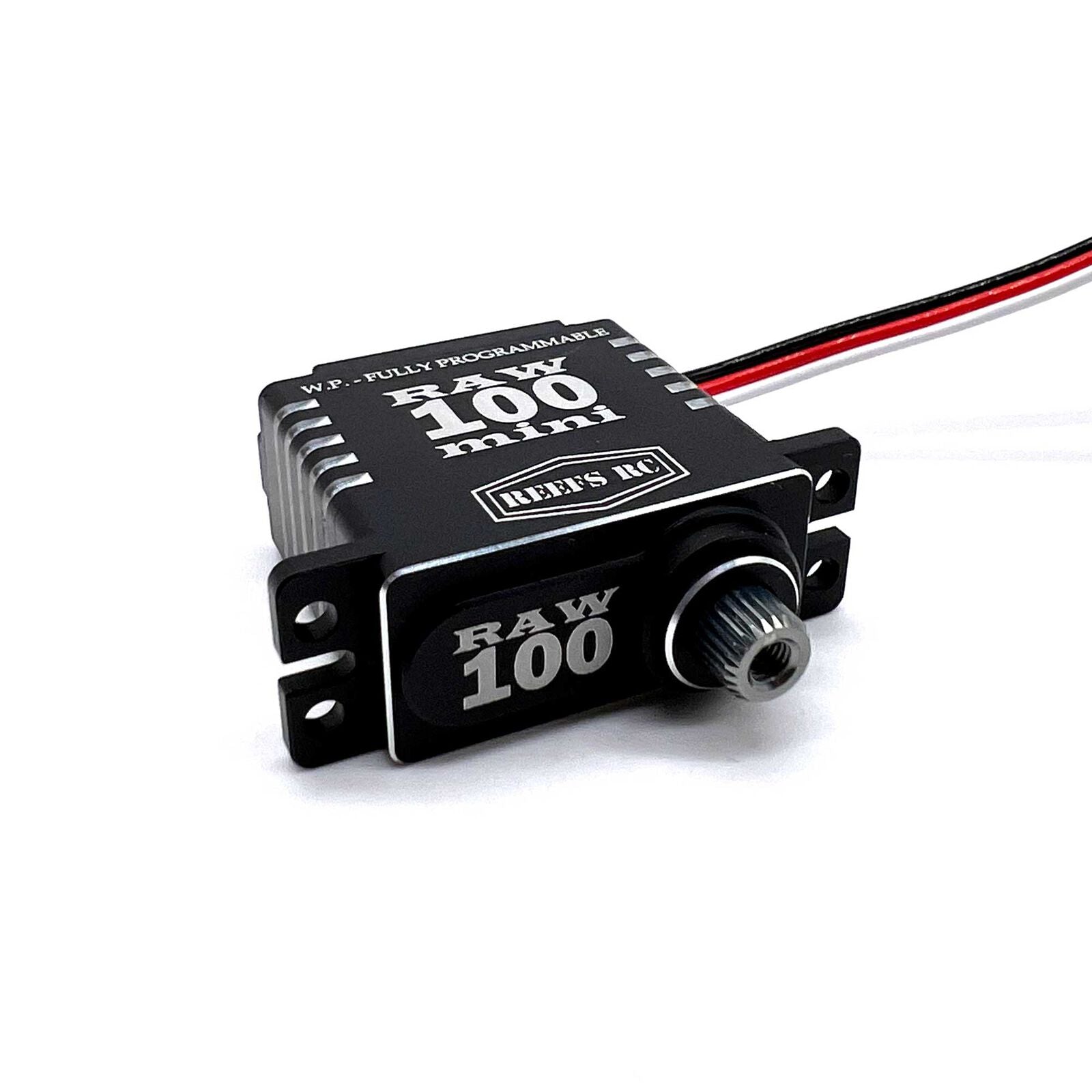

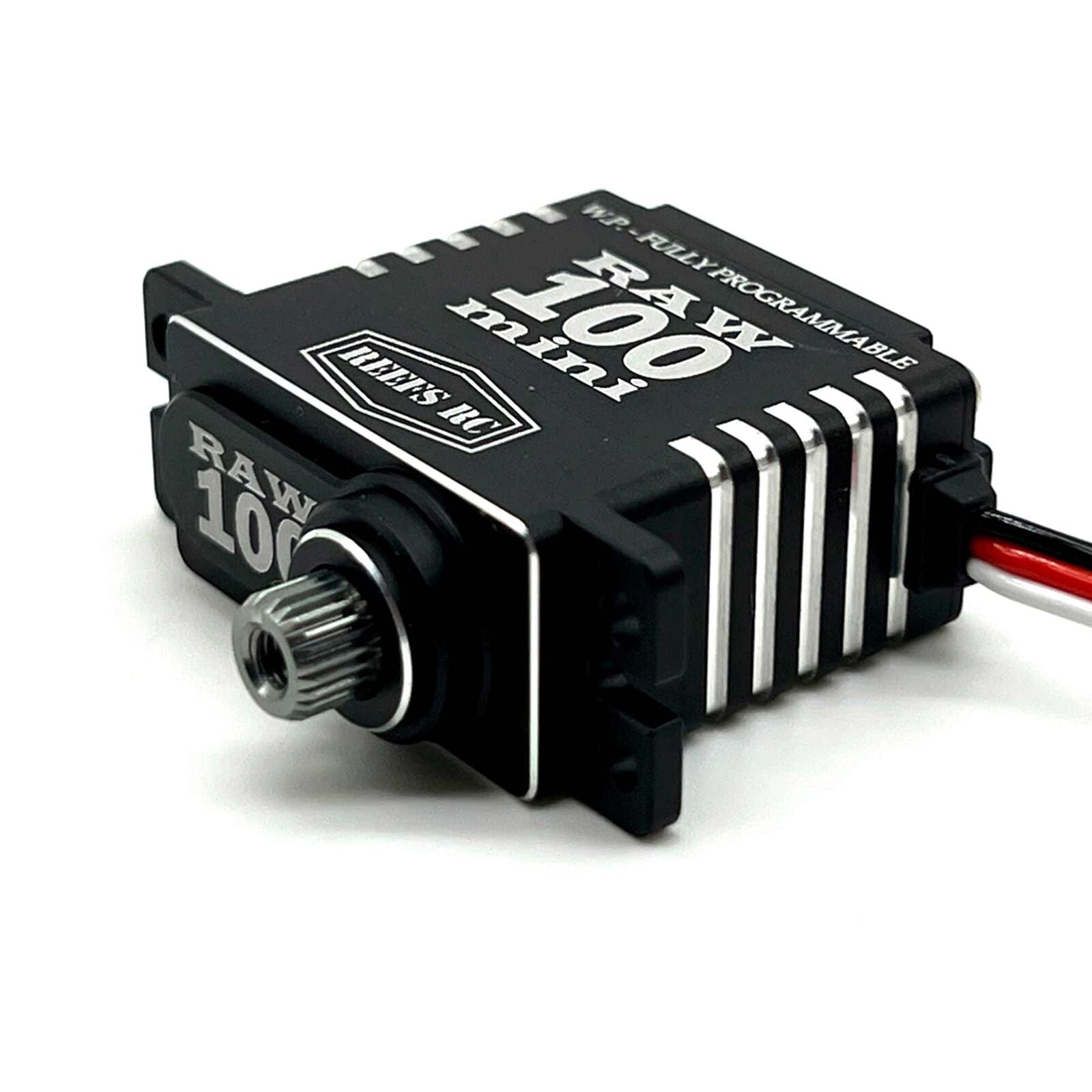

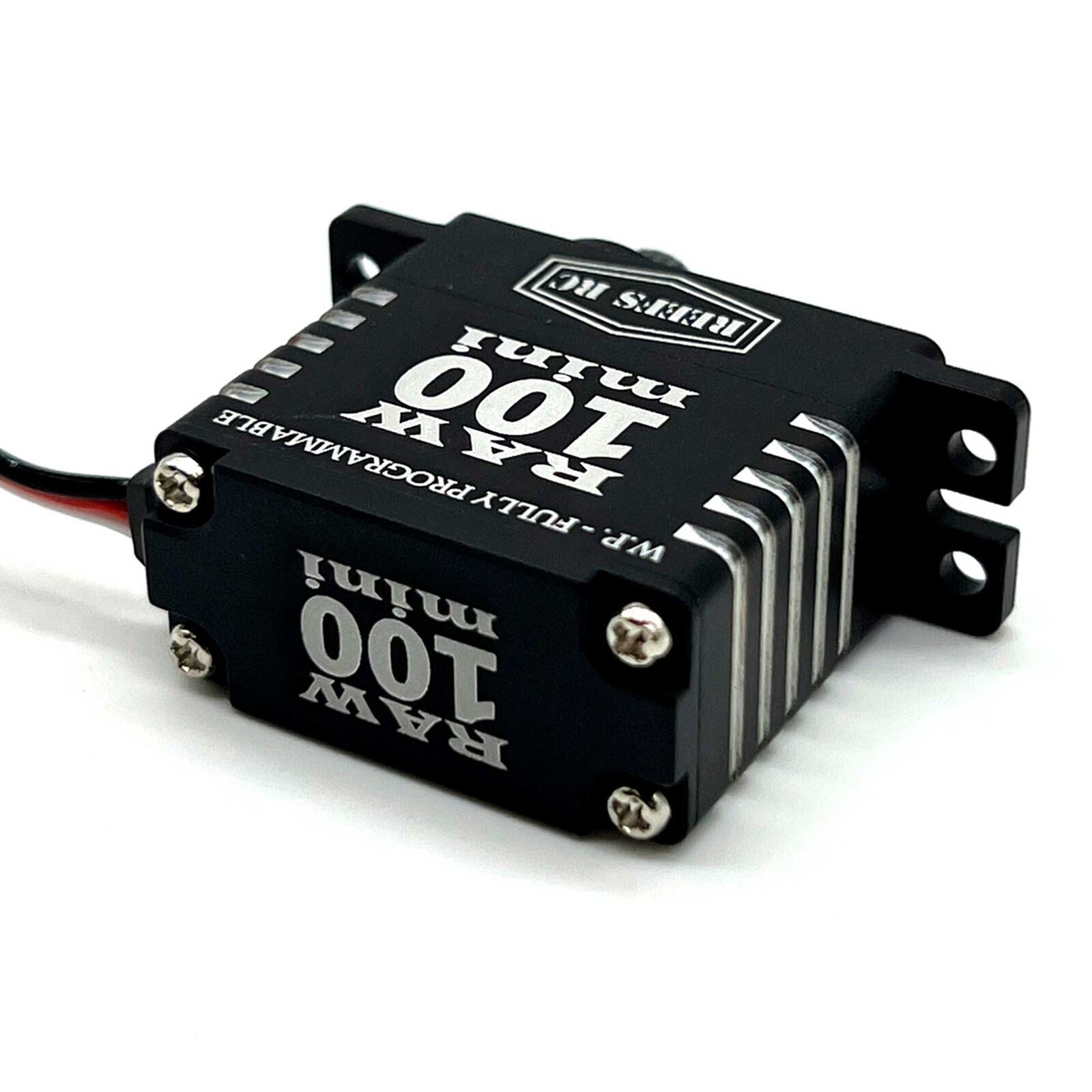

RAW 100 Mini Black Servo Programmable

The Reefs Servo Raw 100 Mini Digital Waterproof Servo is designed to deliver high torque in mini sizing. Using a coreless motor and programmable electronics this servo is able to produce up to 103oz-in at 8.4v! The full metal gear drive train and case allow for smooth operation.


Features:

  • High Torque High Speed
  • Mini Coreless Servo
  • Waterproof Design
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Optional Reefs Link required for Programming

Specifications:

  • Voltage: 6v-8.4v
  • Dimension (LxWxH): 1.16x0.55x1.14" (29.5x14x29mm)
  • Torque:
    • 6.0V: 85oz
    • 7.4V: 95oz
    • 8.4V: 103oz
  • Speed:
    • 6.0V: .11sec
    • 7.4V: .10sec
    • 8.4V: .08sec
  • Weight: 1.05oz (30g)
