Power 46 BL Outrunner Mtr,670K

Out of stock
SKU: EFLM4046A Barcode: 605482773871
$ 103.99 USD

Share to

Description
The Power 46 is designed to deliver clean and quiet power for .40 to 46-size sport and scale airplanes weighing 4 to 7 pounds (1.8–3.2 kg), 25- to 40-size 3D airplanes up to 5 pounds (2.2 kg), or models requiring up to 925 watts of power. It’s an especially good match for Hangar 9 .40-size trainers like the Alpha .40 (HAN2450), Arrow .40 (HAN2625) and warbirds like the T-34 Mentor 40 (HAN2425). Also a great match for sport planes like the Ultra Stick 40 (HAN1675 or HAN1690), Seagull Spacewalker 40 (SEA2050), and smaller sport 3D planes like the Twist 40 (HAN2650).
    Features
    • Equivalent to 40- to 46-size glow engine for planes weighing 4–7 lb (1.8–3.2 kg)
    • Ideal for 25- to 40-size 3D airplanes up to 5 lb (2.2 kg)
    • Ideal for models requiring up to 925 watts of power
    • High-torque, direct-drive alternative to inrunner brushless motors

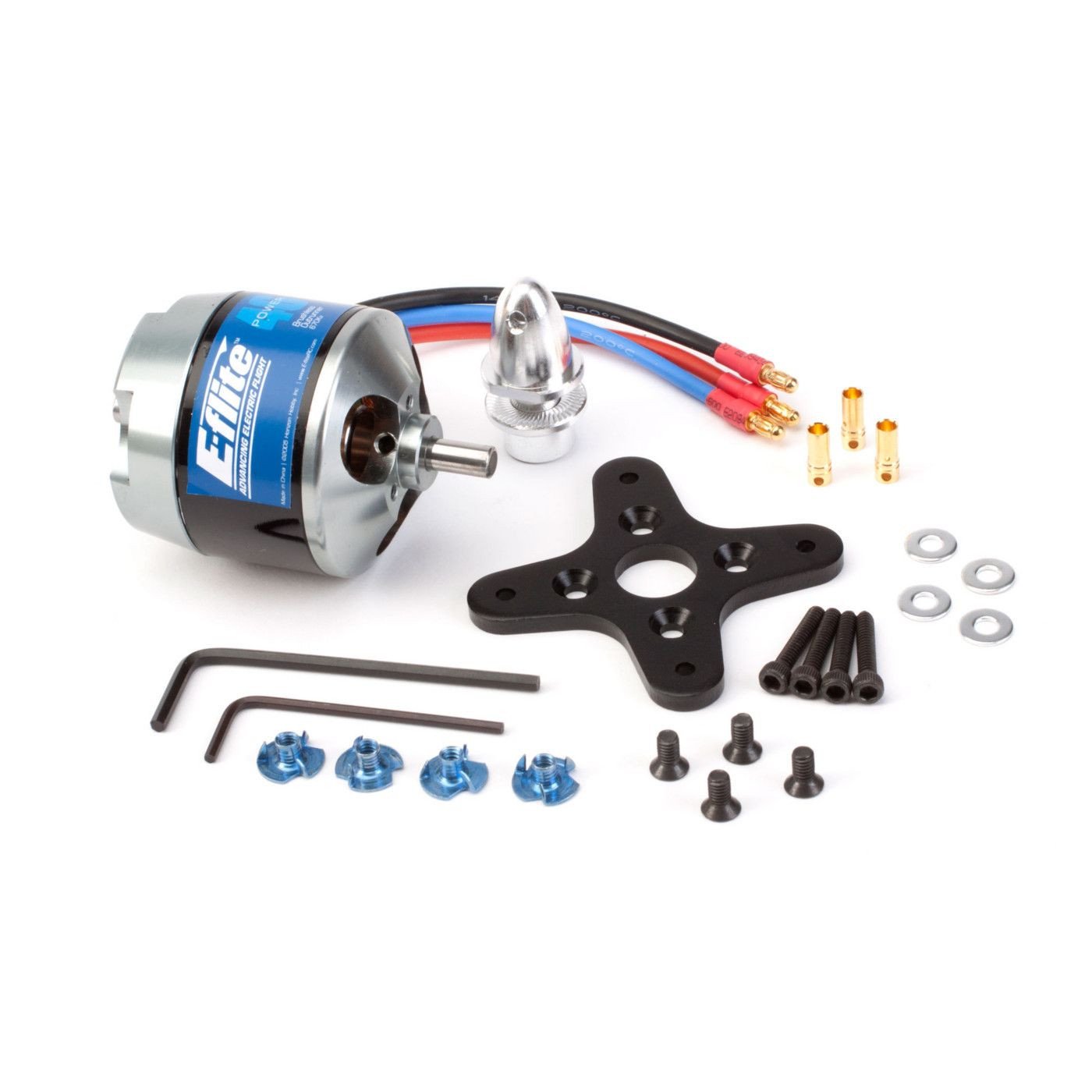

    • Includes mount, prop adapters and mounting hardware
    • External rotor design—6mm shaft can easily be reversed for alternative motor installations
    • Slotted 14-pole outrunner design
    • High-quality construction with ball bearings and hardened steel shaft
    • Quiet, lightweight operation
    Specifications
    Bearings or Bushings: One 6 x 15 x 5mm Bearing and Two 6 x 12 x 4mm Bearing
    Cells: 12–16 Ni-MH/Ni-Cd or 4–5S Li-Po
    Diameter: 50mm (2 in)
    Idle Current (Io): 3.90A @ 10V
    Motor Design: Outrunner
    Overall Diameter: 50mm (2.00 in)
    RPM/Volt (Kv): 670
    Recommended Prop Range: 12x8 to 14x10
    Resistance (Ri): .04 ohms
    Shaft Diameter: 6mm (.24 in)
    Size: Replacement for 40- to 46-size glow engines
    Voltage: 14.4–19.2V
    Wire Gauge: 14 AWG
    Needed to Complete
    • 60A brushless ESC
    • 4S–5S Li-Po or 12- to 16-cell Ni-MH/Ni-Cd
    • 12x8 to 14x10 prop
