| Description |
| Features |
- Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5–6 lb (1.6–2.7 kg)
- Ideal for 25- to 36-size 3D airplanes up to 4.5 lb (2 kg)
- Ideal for models requiring up to 800 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors

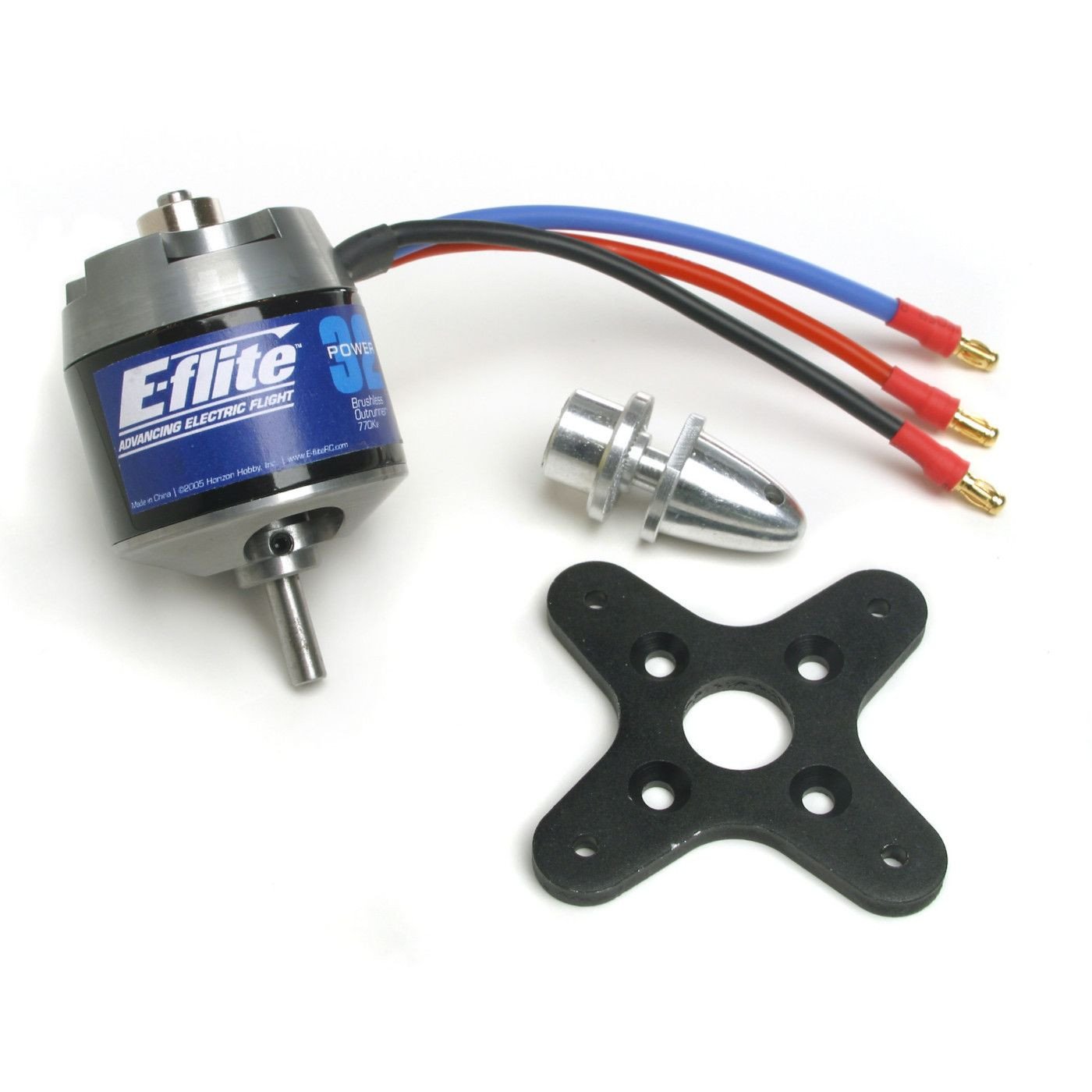

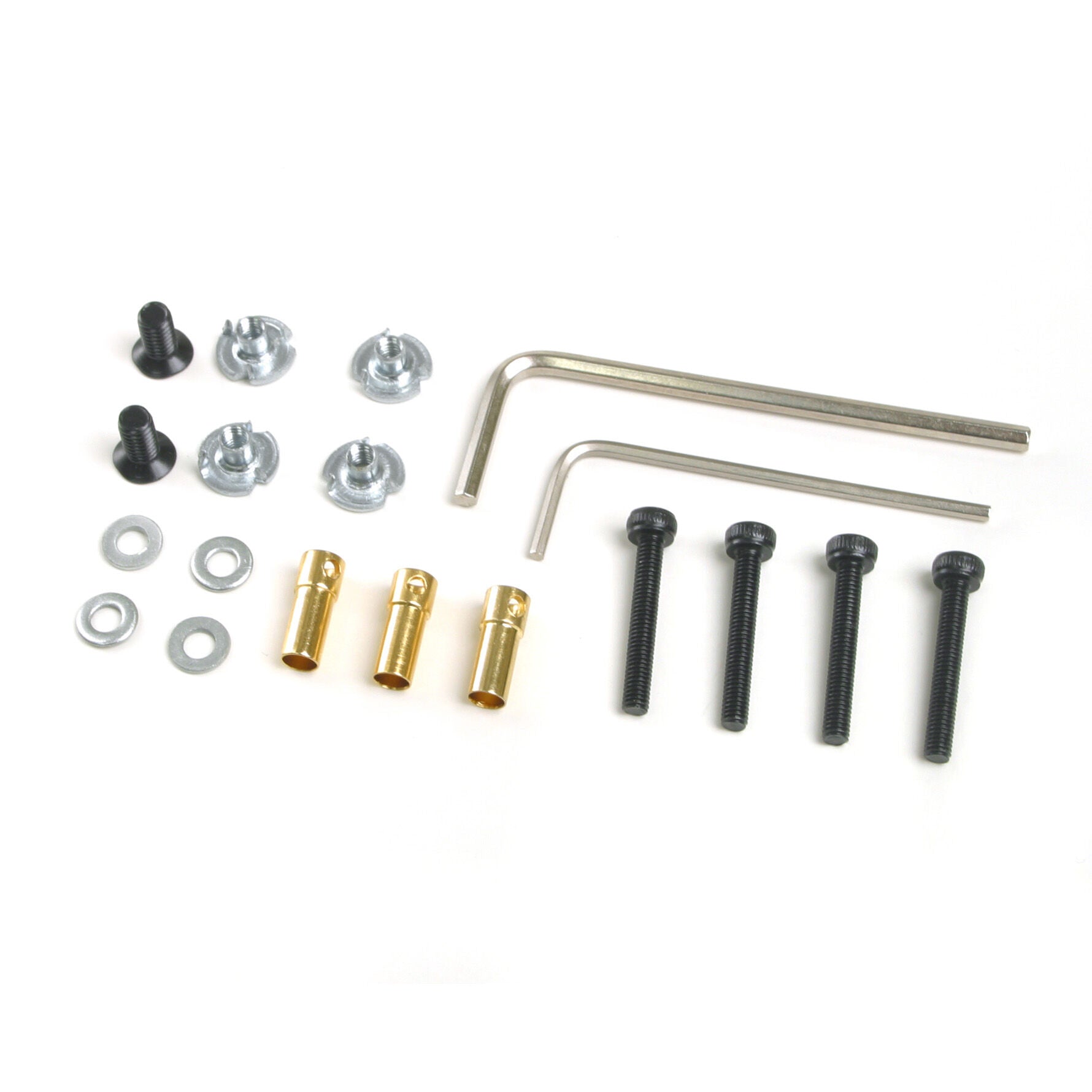

- Includes mount, prop adapter and mounting hardware
- Quite, lightweight operation
- External radial rotor design—5mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
| Specifications |
| Bearings or Bushings: | One 5 x 14 x 5mm Bearing and One 5 x 11 x 5mm Bearing |
| Cells: | 10–16 Ni-MH/Ni-Cd or 3–5S Li-Po |
| Idle Current (Io): | 2.40A @ 10V |
| Motor Design: | Outrunner |
| Overall Diameter: | 42mm (1.70 in) |
| RPM/Volt (Kv): | 770 |
| Recommended Prop Range: | 11x7 to 14x10 |
| Shaft Diameter: | 5mm (.20 in) |
| Size: | Replacement for a 30- to 36-size glow engine |
| Voltage: | 12–16.8V |
| Wire Gauge: | 14 AWG |
| Needed to Complete |
- 60A brushless ESC
- 3–5S Li-Po or 10- to 16-cell Ni-MH/Ni-Cd
- 11x7 to 14x10 prop; 10x10E tested on 5S in Sundowner 36
