| Description |
| Features |
- Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3–5.5 lb (1.4–2.5 kg)
- Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
- Ideal for models requiring up to 600 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors

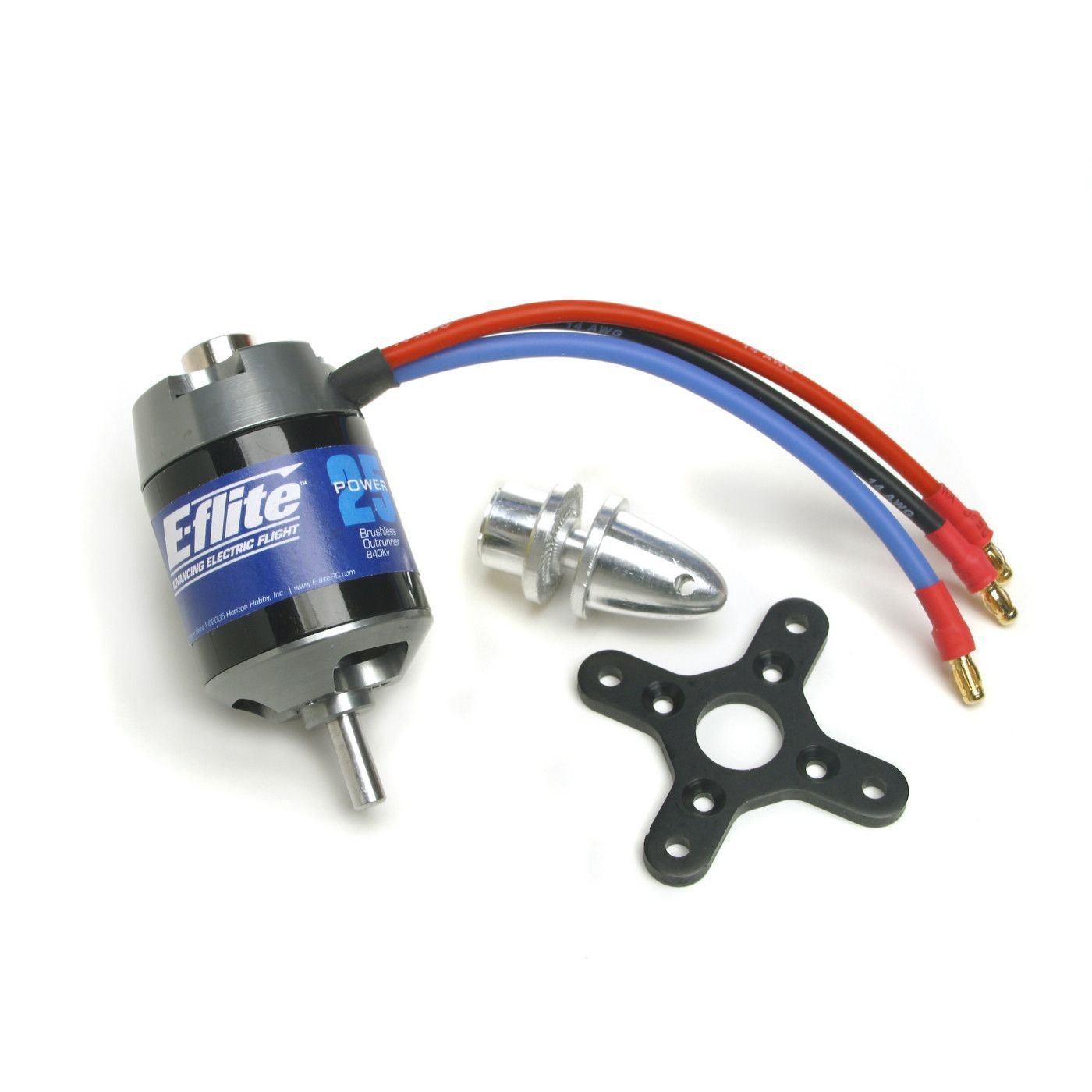

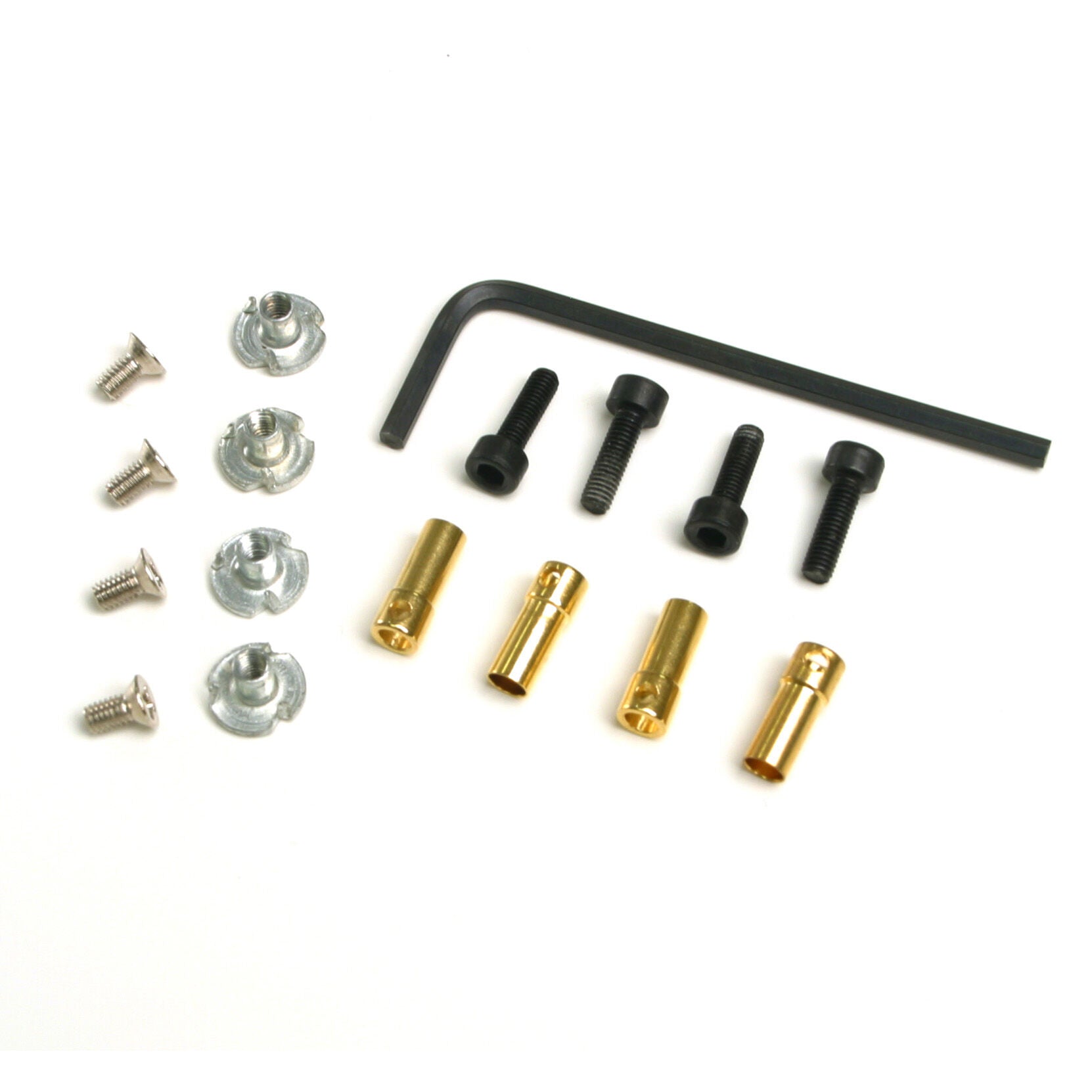

- Includes mount, prop adapter and mounting hardware
- External radial rotor design—6mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quite, lightweight operation
| Specifications |
| Bearings or Bushings: | One 5 x 14 x 5mm Bearing and Two 5 x 11 x 4mm Bearings |
| Cells: | 3S-4S Li-Po or 10–14 Ni-MH/Ni-Cd |
| Idle Current (Io): | 2.40A @ 10V |
| Motor Design: | Outrunner |
| RPM/Volt (Kv): | 870 |
| Recommended Prop Range: | 11x8 to 14x7 |
| Shaft Diameter: | 5mm (.20 in) |
| Size: | Replacement for 25-size glow engine |
| Voltage: | 12–16.8V |
| Wire Gauge: | 14 AWG |
| Needed to Complete |
- 40–45A brushless ESC
- 3S–4S Li-Po or 10- to 14-cell Ni-MH/Ni-Cd
- 11x8 to 14x7 prop
