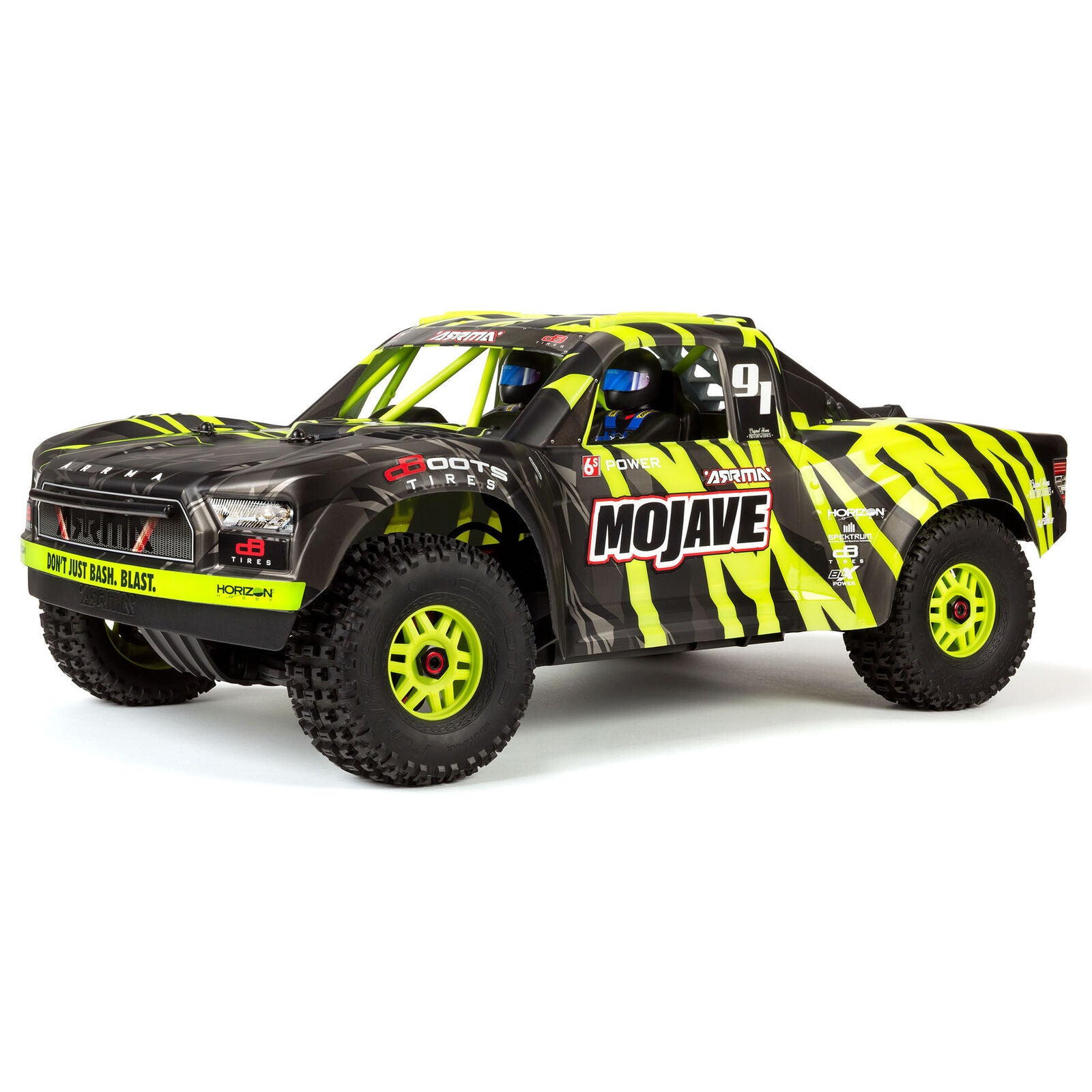

1/7 MOJAVE 6S V2 4WD BLX Desert Truck with Spektrum Firma RTR, Green/Black
Couldn't load pickup availability
Product Details
The 1/7 scale ARRMA® MOJAVE™ 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum™ SLT3™ 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.
Key Features
- Updated with Spektrum™ components and Smart compatible
- 60+ MPH (97km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the optional pinion gear included

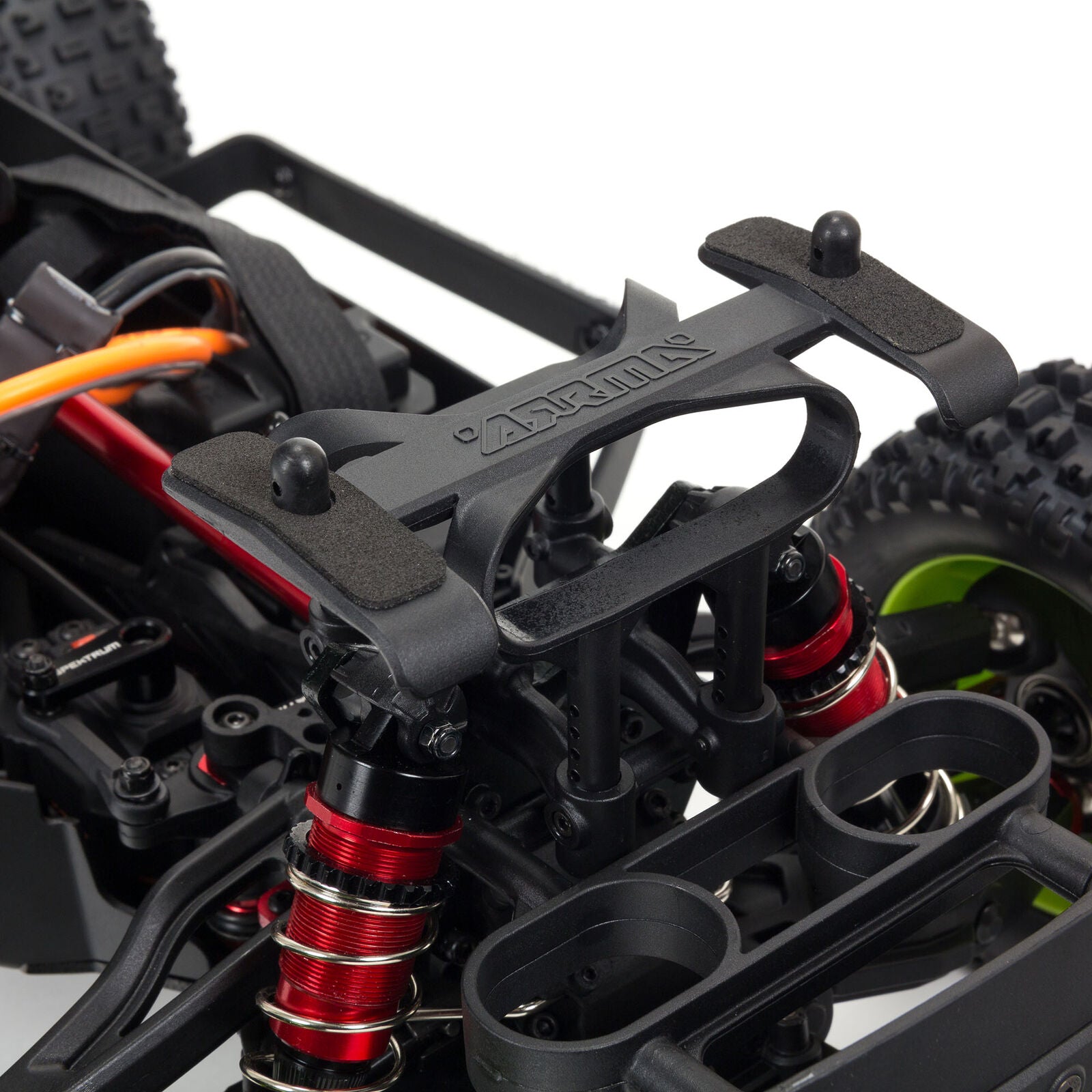

- EXB compatible front brace
- Large volume waterproof receiver box
- Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
In The Box
- (1) ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR
- (1) Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
- (1) Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
- (1) Spektrum ™ S652 Metal-Geared Digital Servo (installed)
- (1) Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
- (1) Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
- (1) Product Manual
In The Box
- (1) ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR
- (1) Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
- (1) Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
- (1) Spektrum ™ S652 Metal-Geared Digital Servo (installed)
- (1) Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
- (1) Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
- (1) Product Manual
Introduction
Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale brushless MOJAVE™ 6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it's ready for extreme performance right out of the box, whether you're thrashing through coastal sand dunes or blasting across concrete sidewalks
Features
- Ready-to-run
- Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
- Spektrum™ SR315 Dual Protocol 3-Channel Receiver
- Spektrum™ S652 Digital Servo
- Spektrum™ Firma™ 150A Smart ESC
- Spektrum™ Firma™ 4074 2050Kv Brushless Motor
- EXB compatible front brace
- Stronger rear brace mount
- Large volume waterproof* receiver box
- +1mm wheel hexes
- Stronger body mounts
- Anodized aluminum chassis
- Strong composite chassis side pods
- Center brace for maximum durability
- Center roll hoop interfaces with body roll cage for enhanced body durability
- Nerf bars for body and side impact support

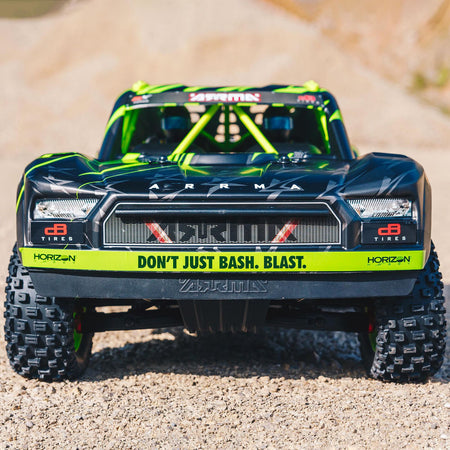

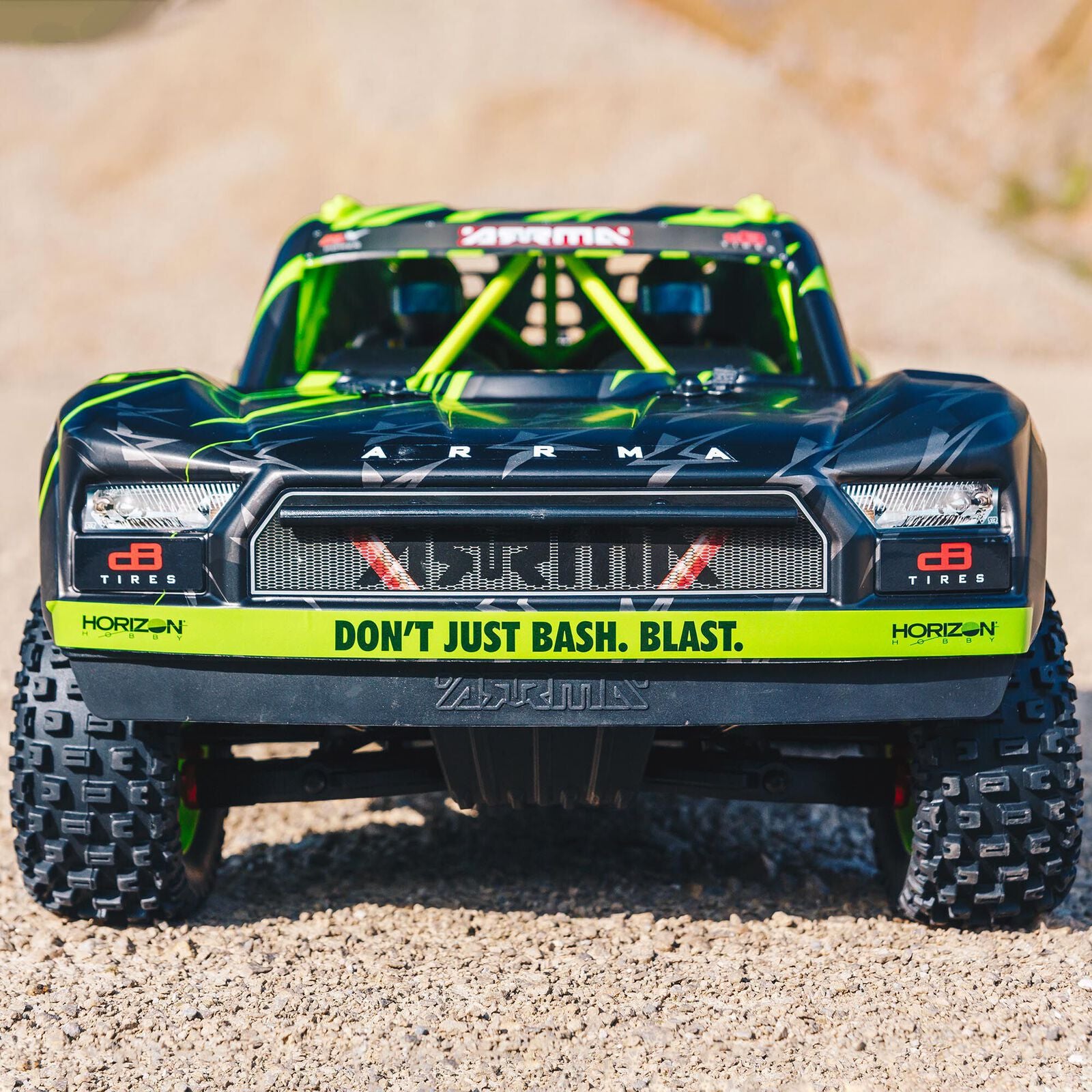

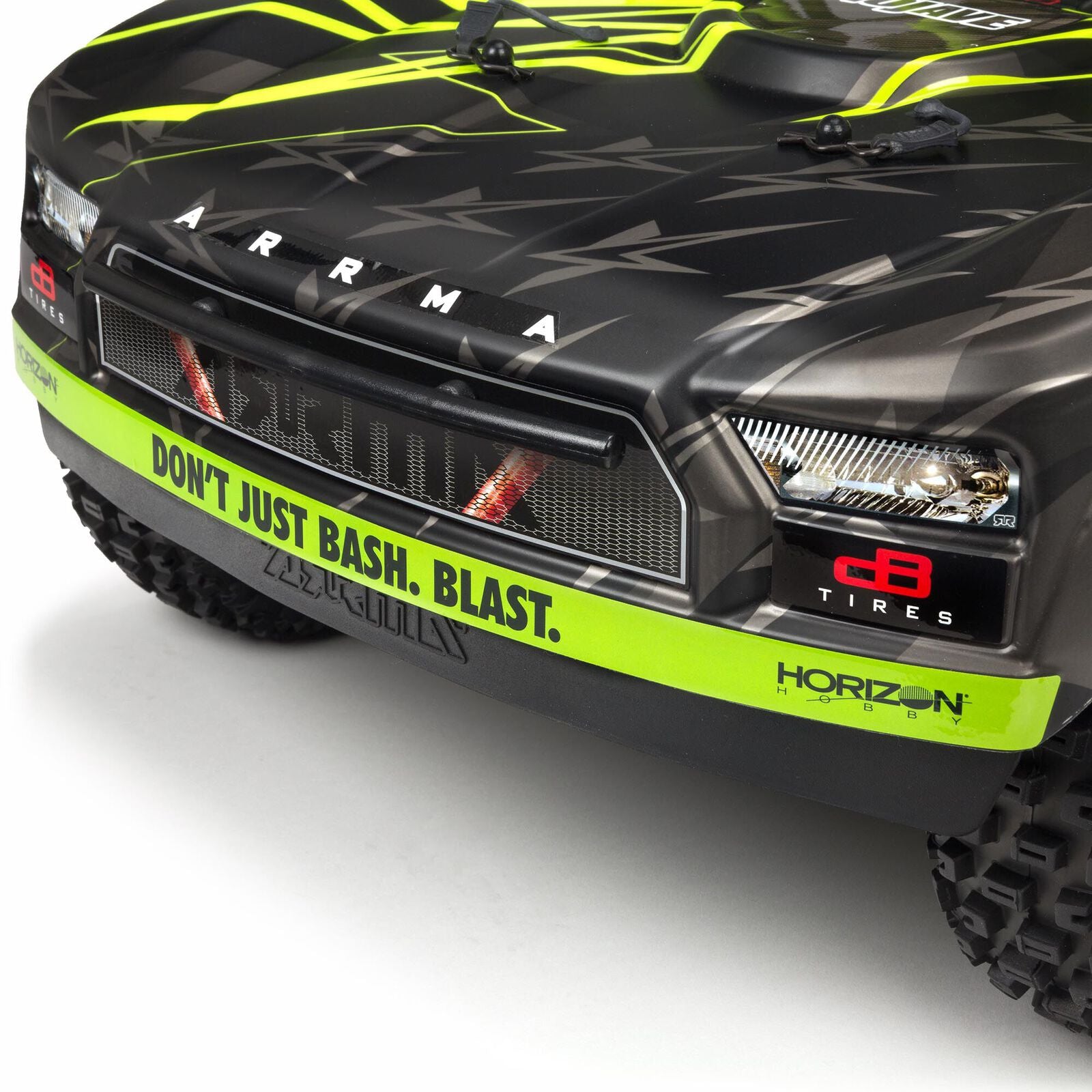

- Realistic front and rear bumper protection
- Independent suspension for superior handling
- Flexible front bumper valance
- Heavy-duty suspension arms with red-anodized aluminum strengthening cap

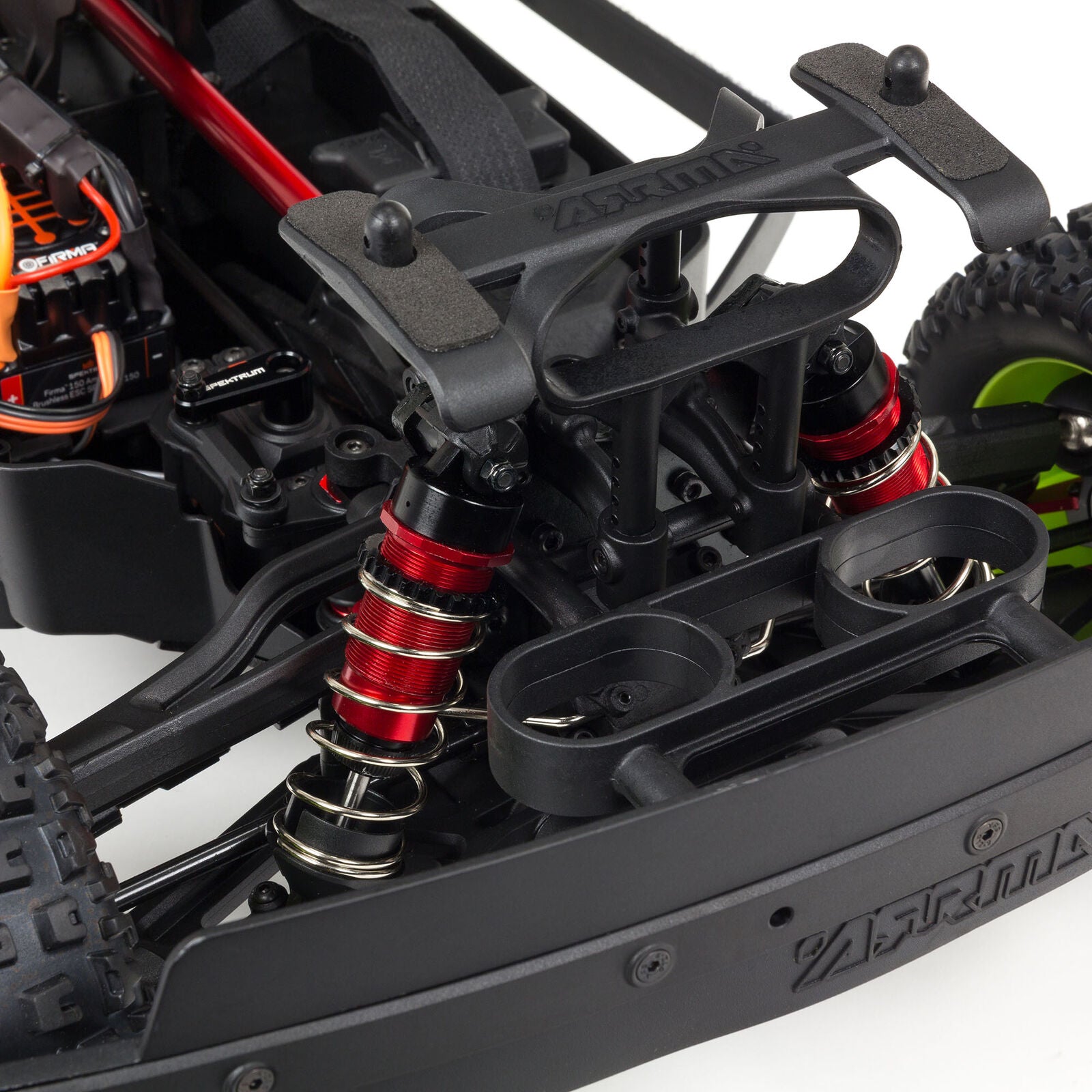

- Oil-filled adjustable shocks
- Black-anodized aluminum front and rear shock towers
- Durable steel driveshafts throughout
- Heavy-duty drivetrain
- All-metal diff outdrives and gearbox internals
- Never-loose red aluminum servo saver
- Never-pop ball ends
- 5-Bolt center diff removal
- Easy-access sliding motor mount for quick motor removal
- Super-durable wheel hubs for increased strength
- Color-coordinated multi split-spoke wheels
- Multi-terrain dBoots® FORTRESS™ tires
Overview
ARRMA® engineers have updated the MOJAVE™ 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.
The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

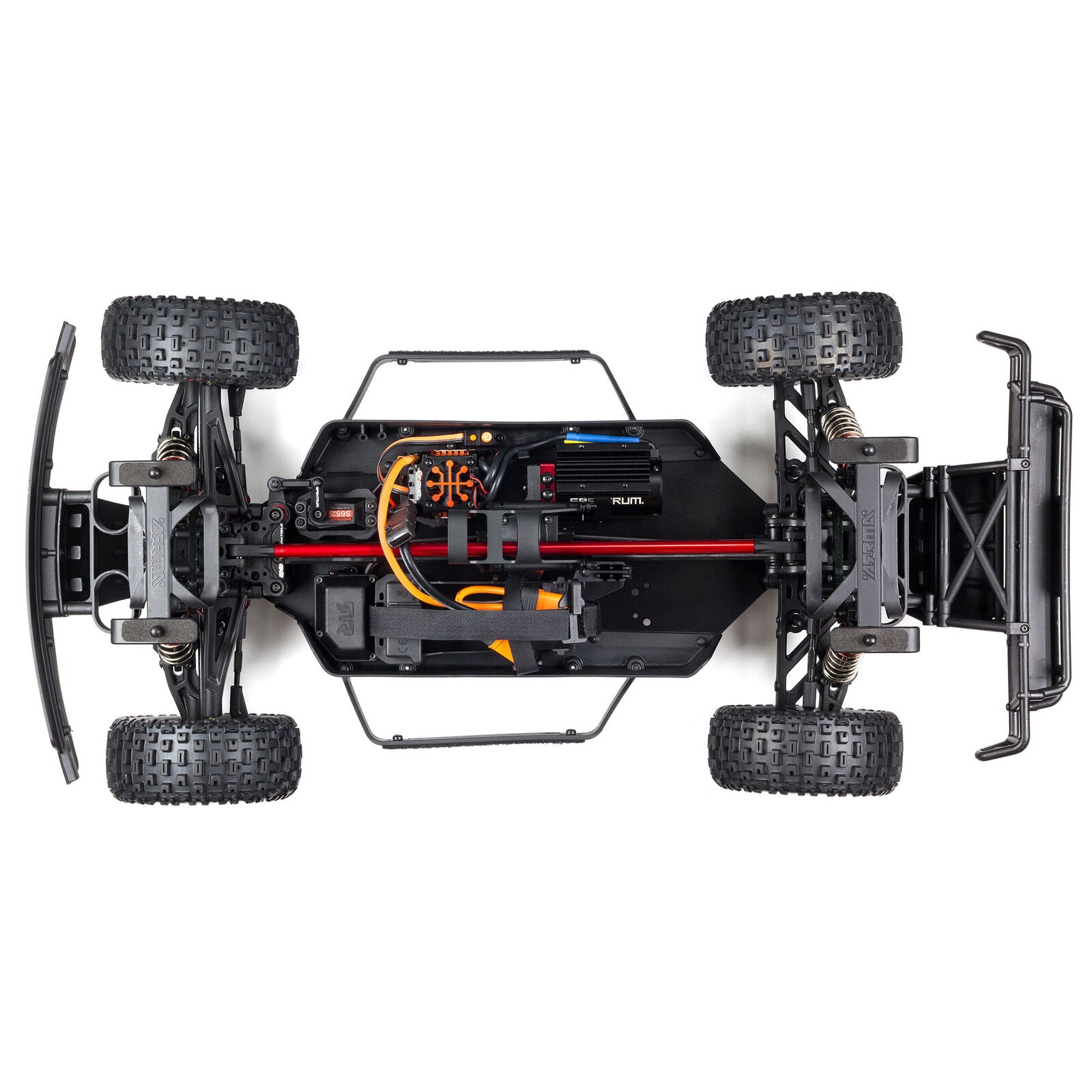

With the rugged construction of the MOJAVE™ 6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.
The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE™ 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.

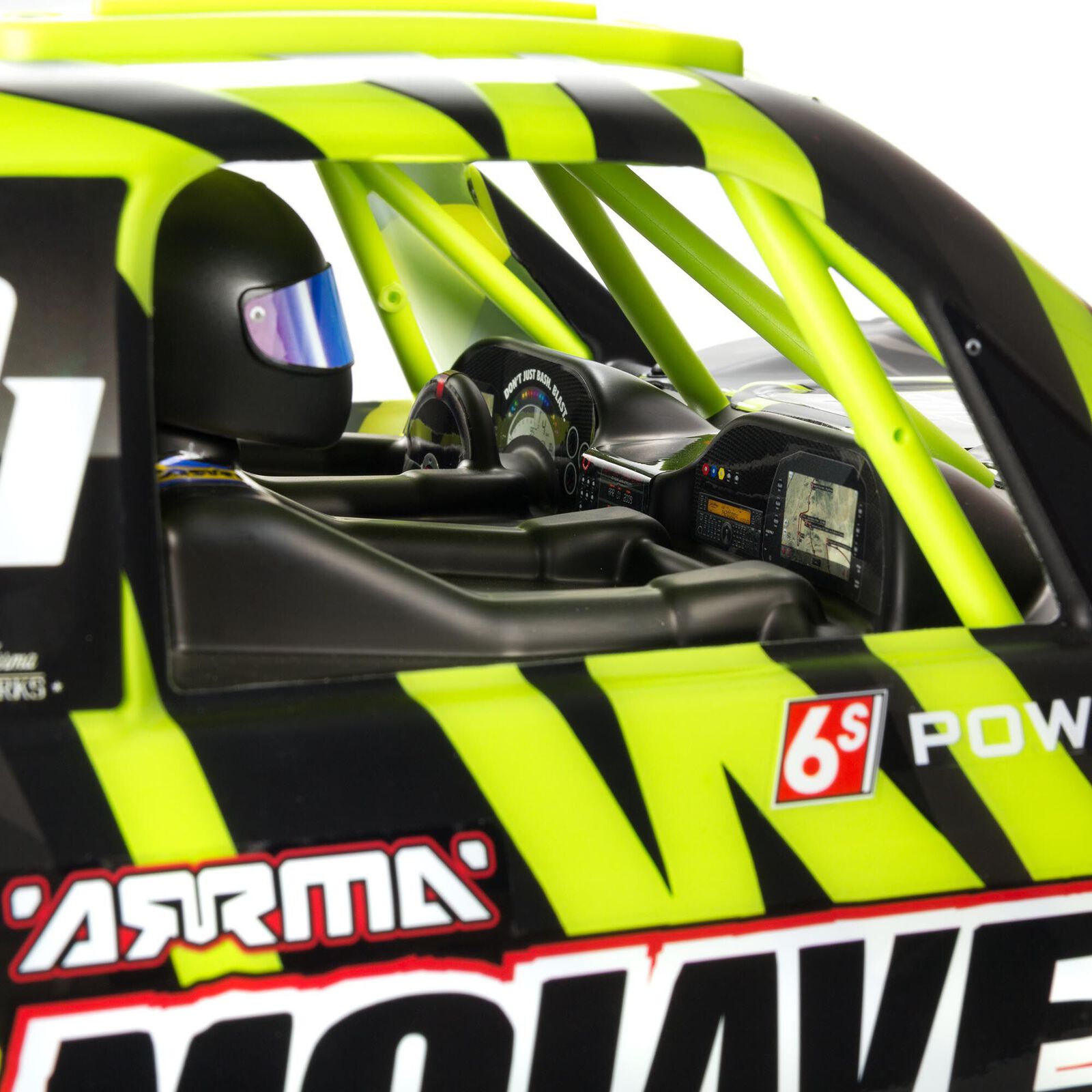

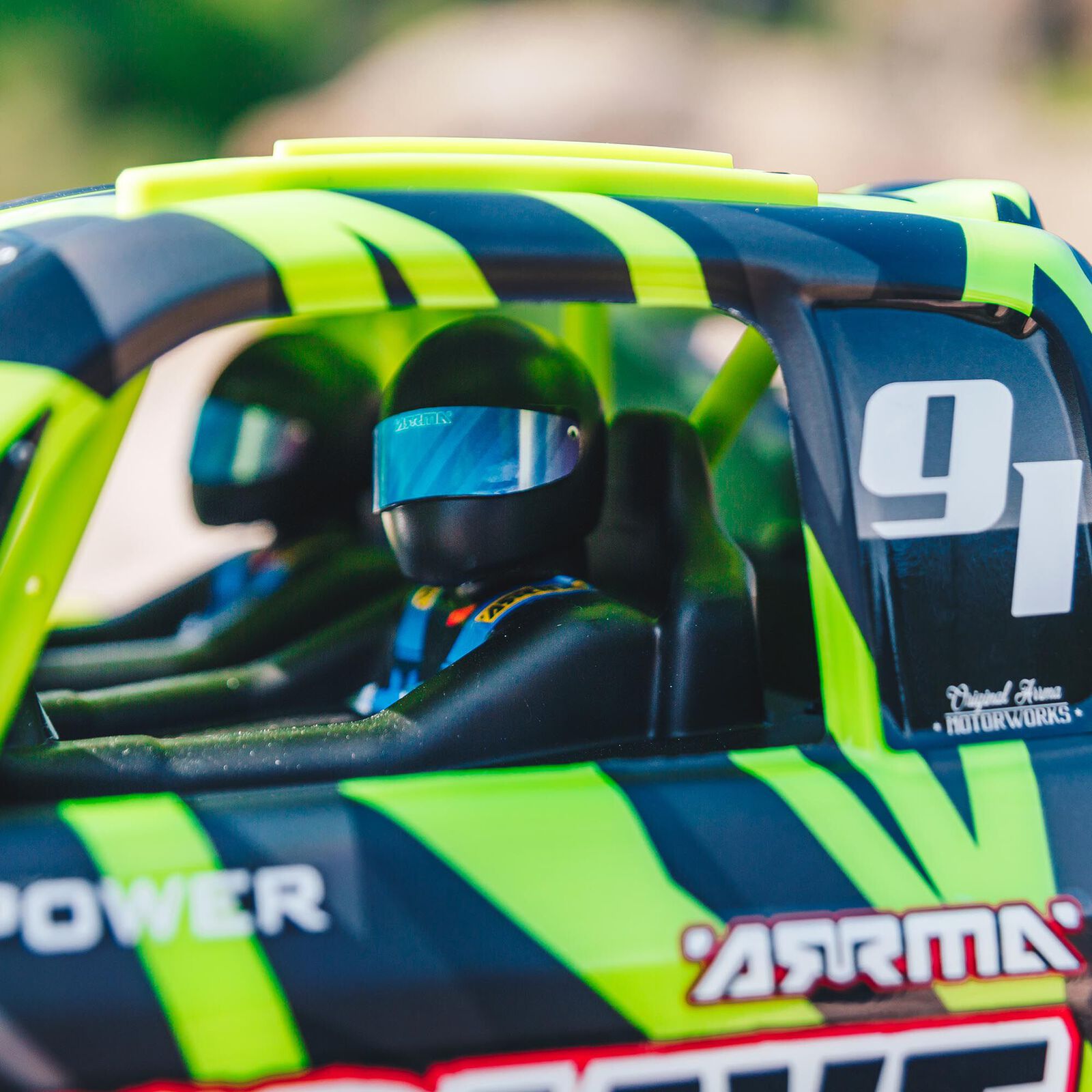

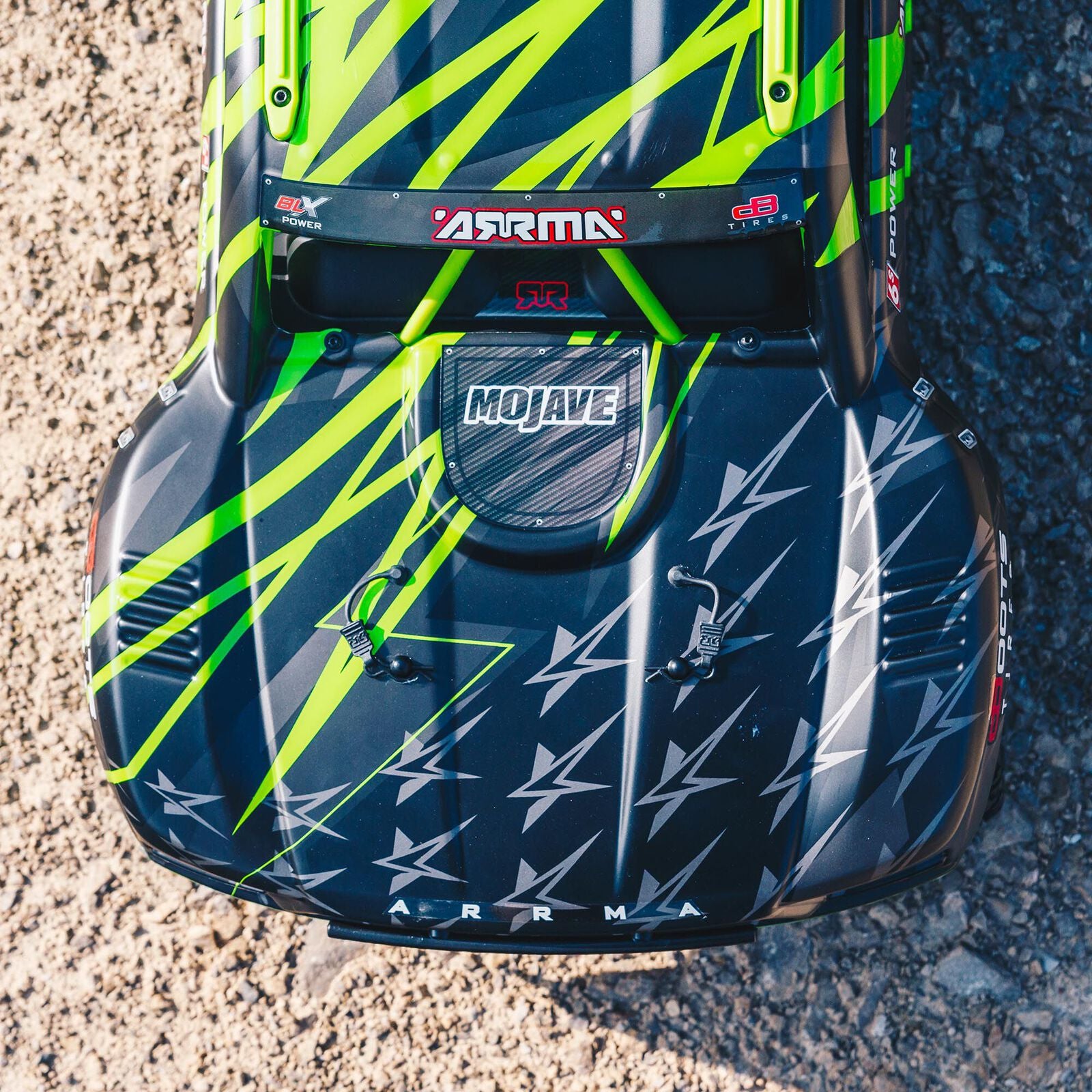

Multi-terrain dBoots® FORTRESS™ tires on multi split-spoke wheels give your MOJAVE™ 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.
Video Overview

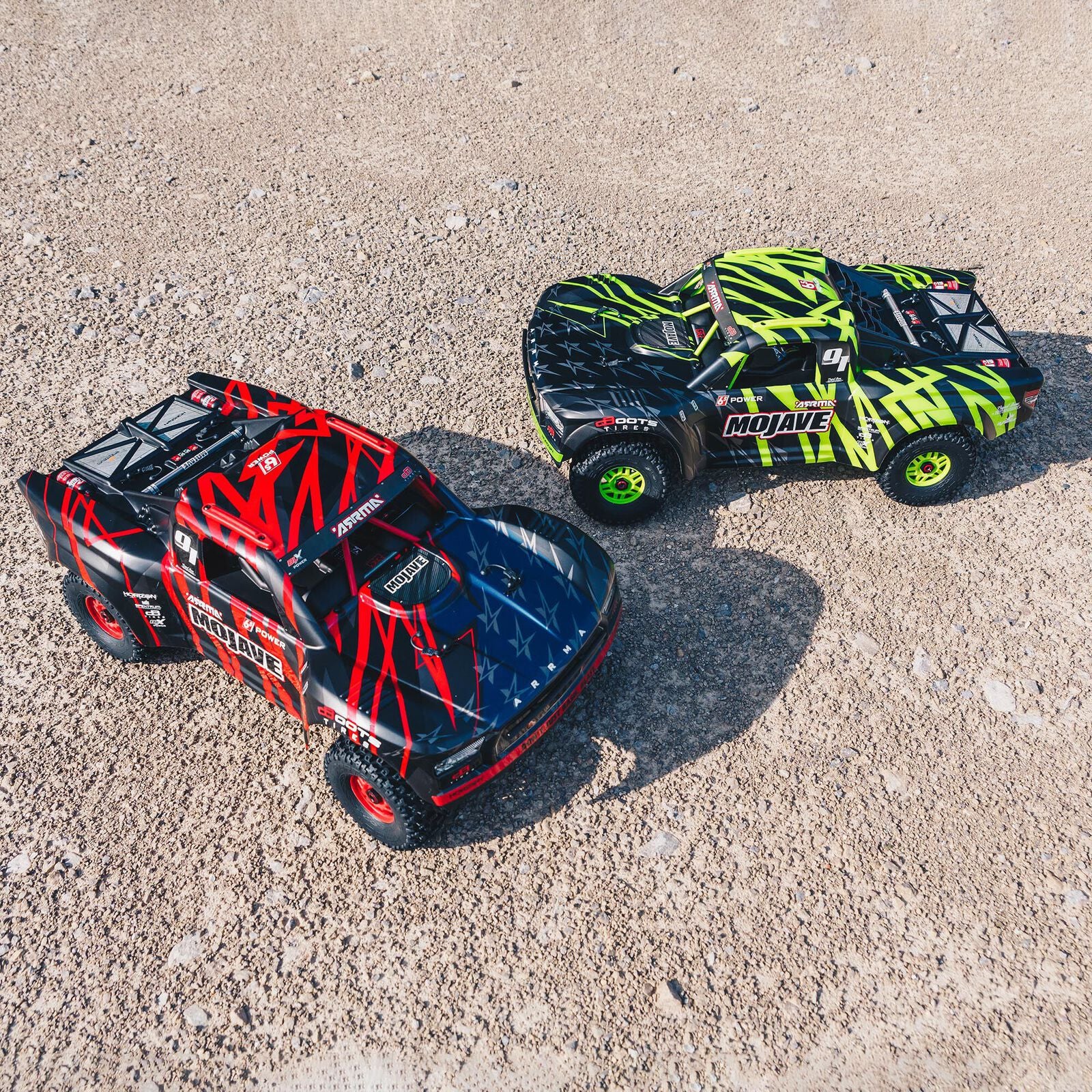

TWO BROTHERS, TWO COLORS
Each with color coordinated wheels, roll cage, and roof rails
FROM STRENGTH TO STRENGTH
Red anodized aluminum strengthening cap with pivot ball geometry
LONG RANGE
Independent suspension for superior handling
SIDE NERF BARS
Attached to body for side impact support
SAFE-D FIRST
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

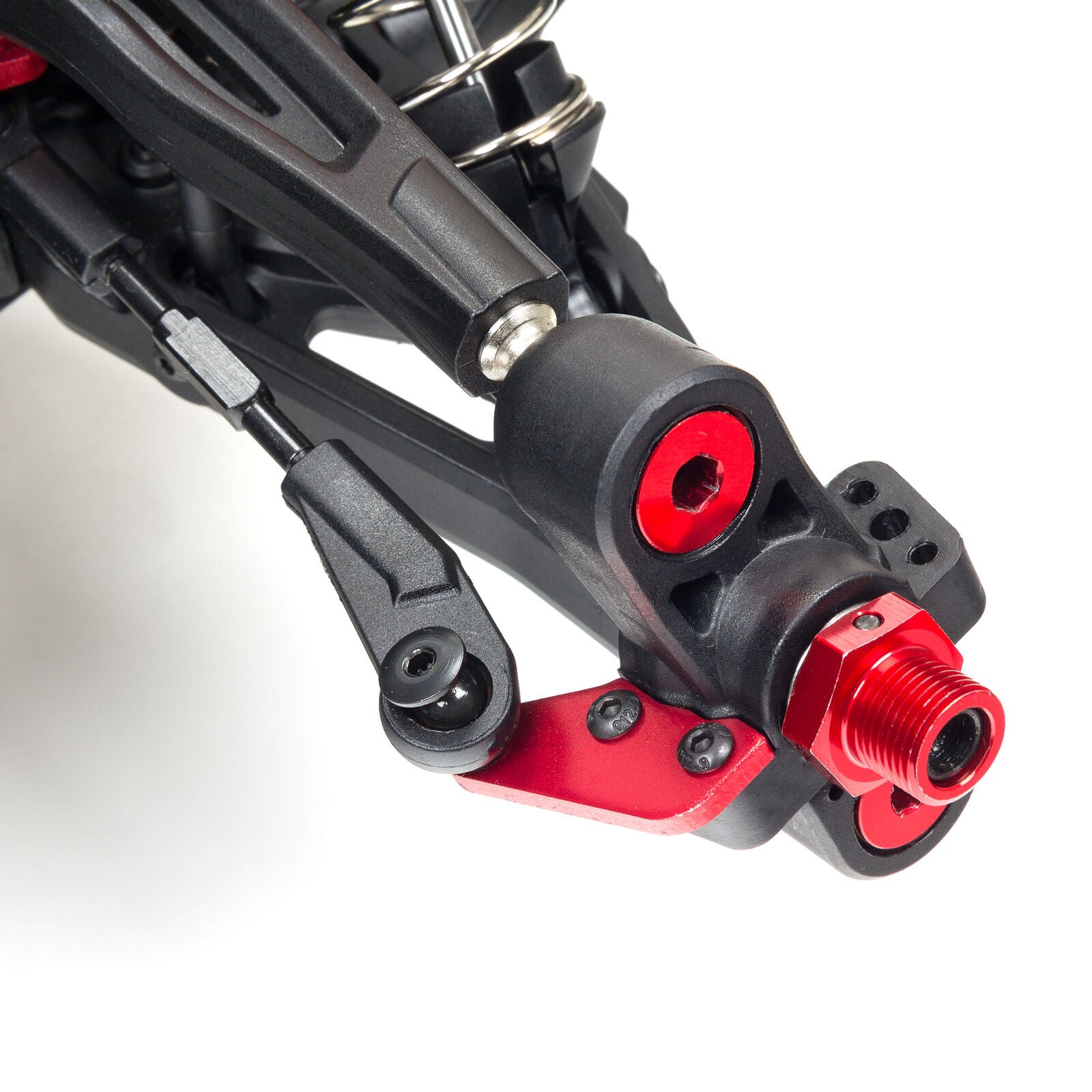

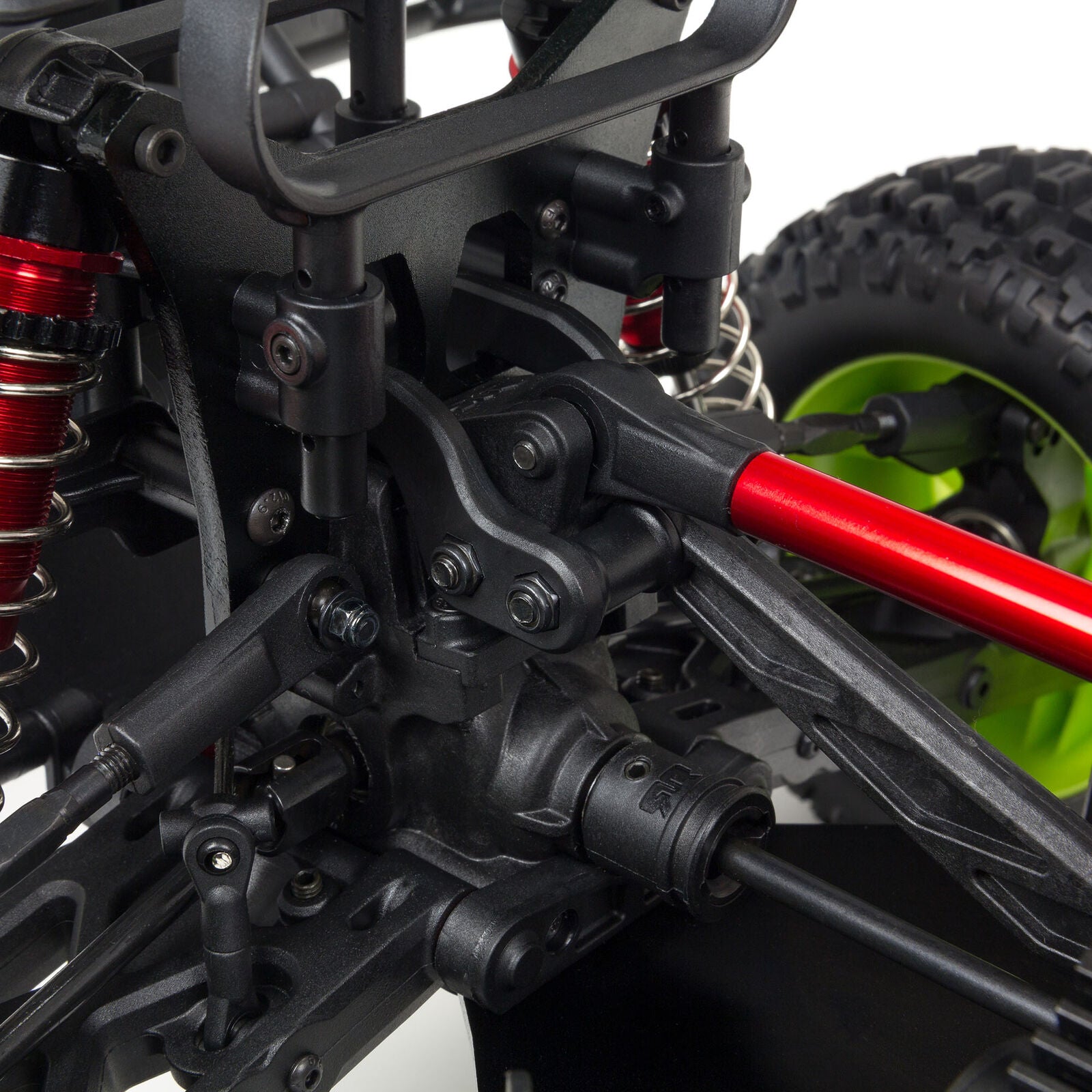

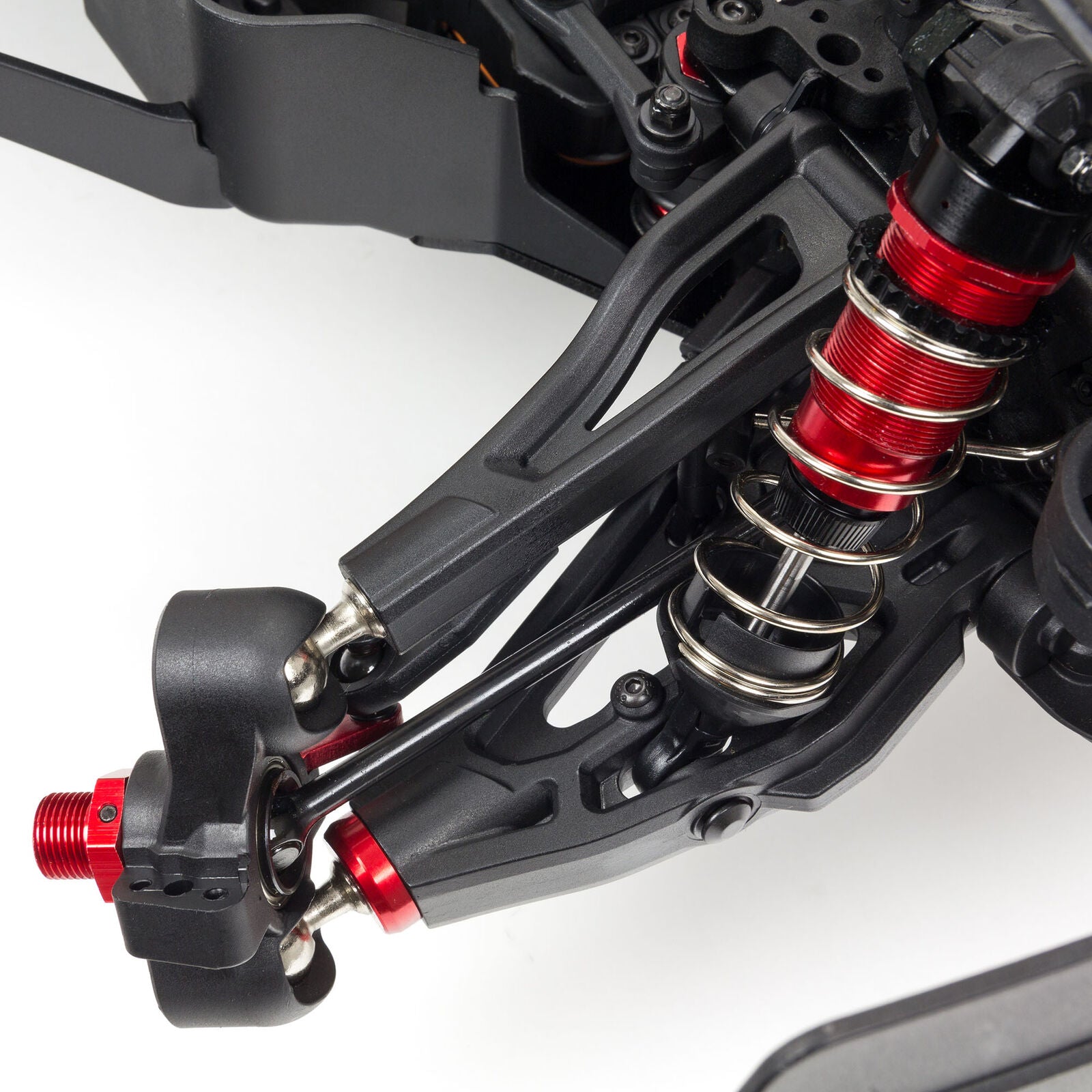

FRONT PIVOT BALL SUSPENSION
For precise handling at top speeds
QUICK MAINTENANCE
5 bolt center diff removal for easy access
SPEKTRUM® SMART TECHNOLOGY INCLUDED
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor
RUBBER SHIELDED BEARINGS
Longer life, less maintenance
GO LARGE
Large volume waterproof receiver box
OPTIONAL SPEED PINION INCLUDED
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

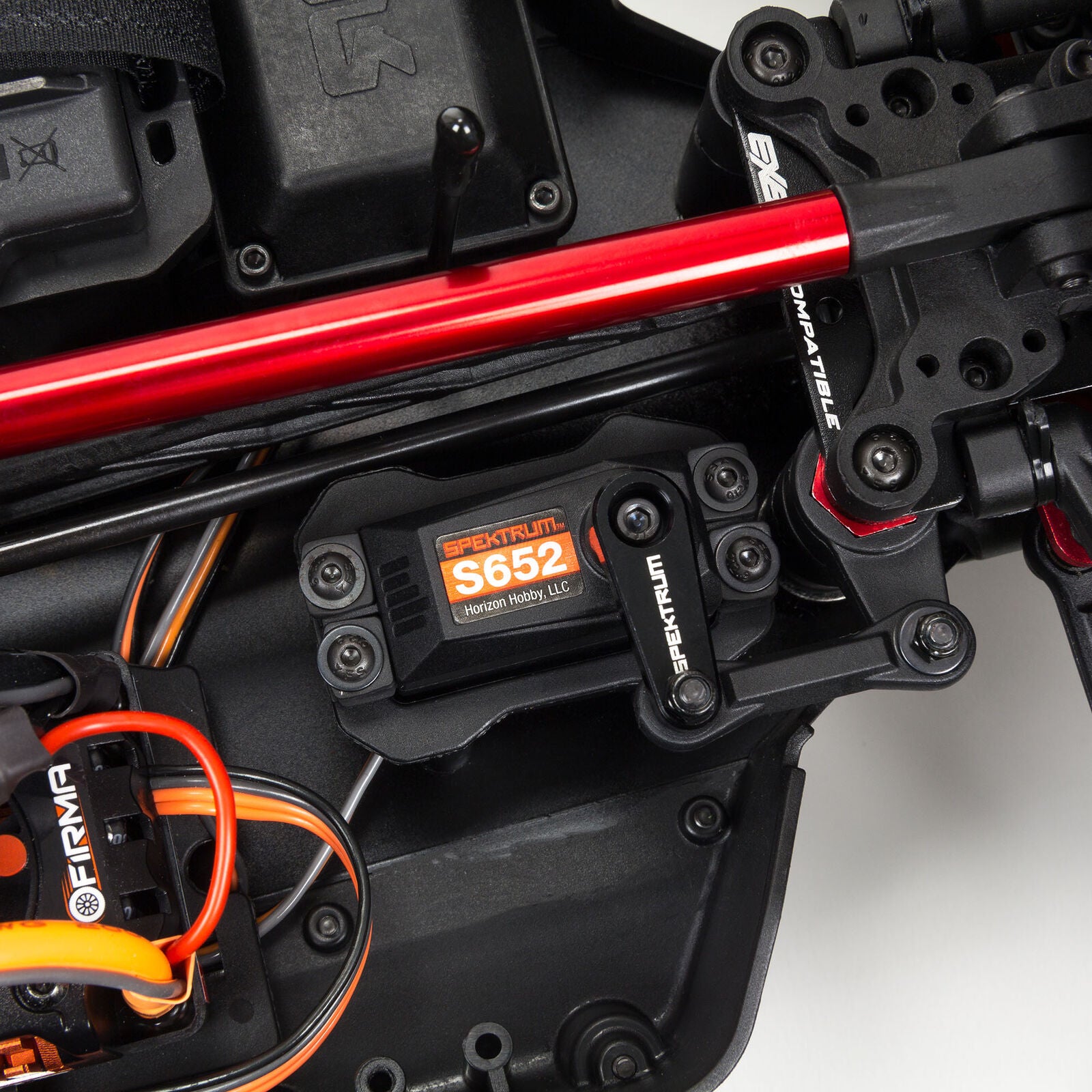

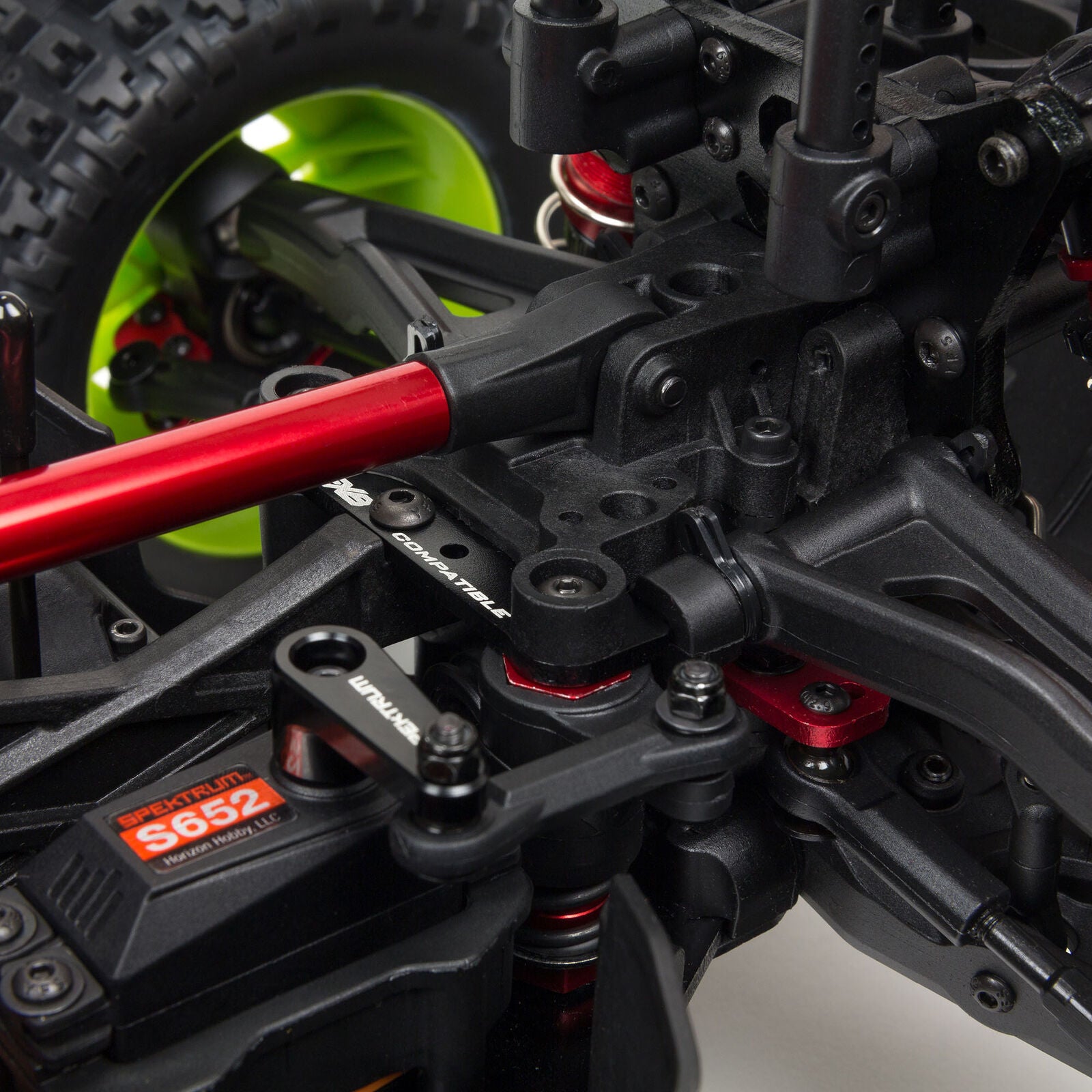

SPEKTRUM® SPMS652 DIGITAL SERVO
- All Steel Gears
- Waterproof*
- 19.08kg-cm/265oz-in Torque @7.4V
- 32% More Torque & 5% Faster than ADS-15M Servo

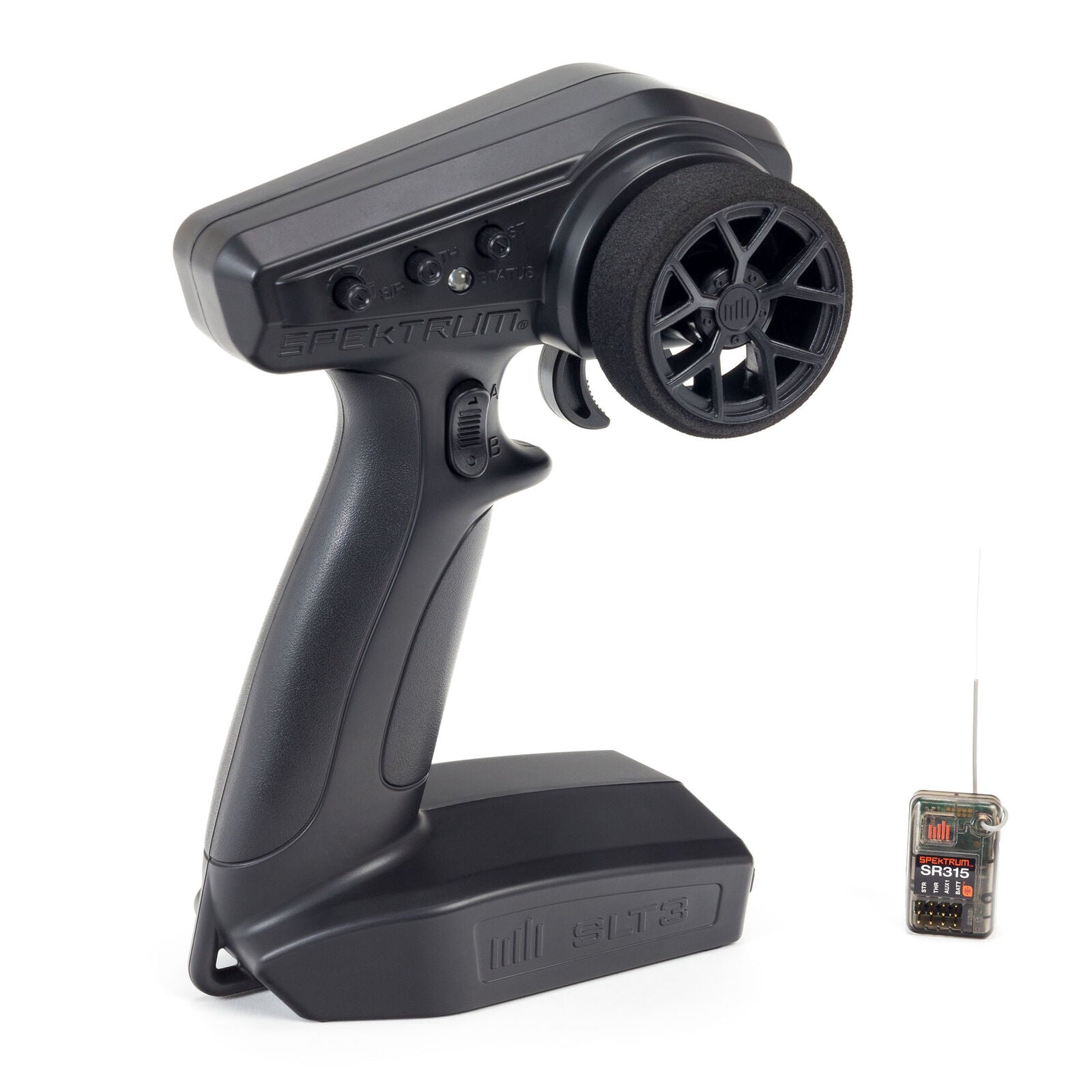

SPEKTRUM® SLT3® RADIO
- Superb SLT response rate
- 50% and 75% throttle limited switch - great for beginners
- Steering & throttle rate & trim adjustments with throttle and steering reversing
- Foam steering wheel grip
- Compatible with Tactic Receivers
SPEKTRUM® SR315 RECEIVER
- Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
- Fast reponse rate and outstanding range
- No tool binding and protocol switching
- SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
- 3-Channels

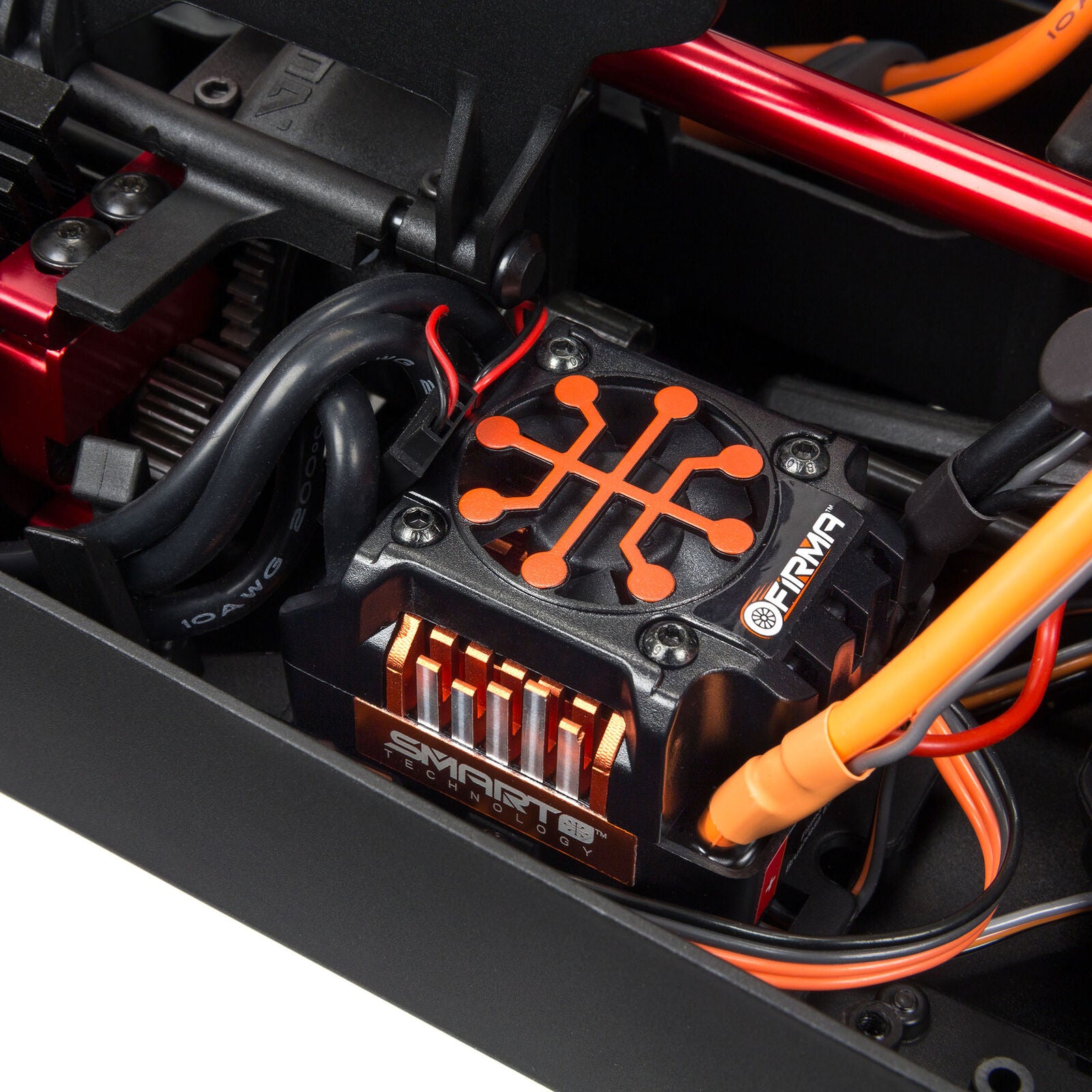

FIRMA™ 150A SMART Brushless ESC
- Waterproof* and dustproof design
- 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
- Spektrum® SMART Technology
- Fitted with reliable IC5® connectors (EC5™ compatible)
- Integrated fan for reduced heat during extreme running
- High quality 10awg wires
- Low voltage cut off and thermal overload protection
- User programmable punch, brake, BEC, reverse speed and motor timing settings

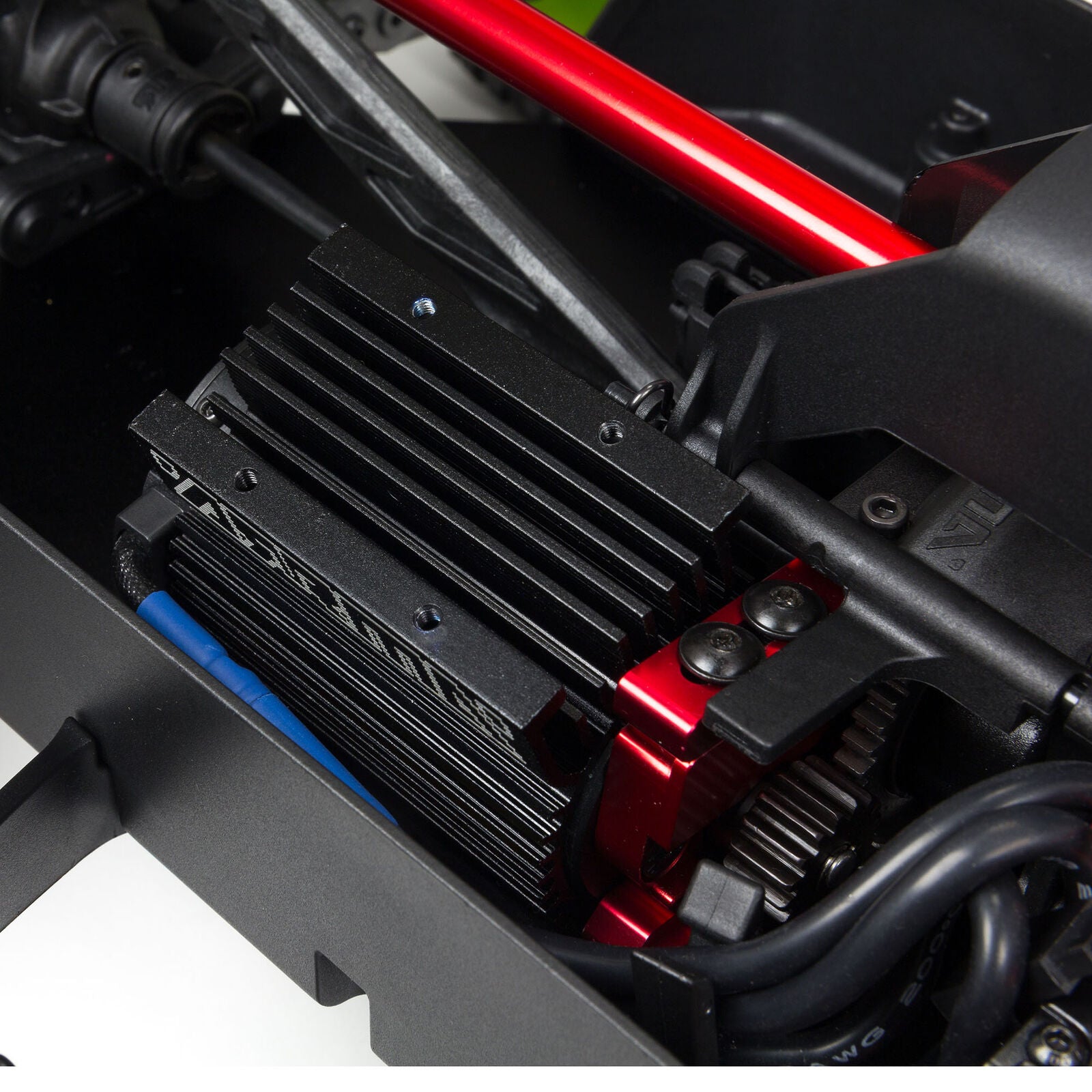

FIRMA™ 4074 2050Kv Brushless Motor
- 2050Kv 4074 size 6S brushless motor
- Beautifully etched aluminum can
- 4-pole construction for smooth and consistent power
- 4mm gold bullet connectors for reliable and efficient connection
- Black anodized aluminum motor can for increased heat dissipation
- Super strong 5mm shaft
- Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
Product Specifications
Manufacturer # | ARAD32GL |
Approximate Assembly Time | No assembly required |
Ball Bearings | Full set |
Battery | Sold Separately |
Body | Painted, decaled and trimmed |
Brakes | User programmable |
Charger | Sold Separately |
Chassis | 0.12" (3mm) 6061-T6 aluminum |
Completion Level | Ready-To-Run |
Differential | 3-gear |
Drivetrain | 4WD |
Drive Type | Forward/Brake/Reverse |
Final Drive Ratio | 13.44 |
Front Shock Spring Rate | 3.2 f-lb/in |
Front Track | 13.98" (355mm) |
Power Type | Electric |
Gear Pitch | 1.0MOD |
Internal Gear Ratio | 4.3 |
Motor Size | 4074 |
Motor Type | Brushless |
Pinion | 16T |
Product Height | 10.59" (269 mm) |
Product Length | 28.15" (715 mm) |
Product Weight | 11.88lbs (35mm) |
Product Width | 13.98" (355 mm) |
Radio | Included |
Rear Shock Spring Rate | 7.7 f-lb/in |
Rear Track | 13.98" (355mm) |
Receiver | Included |
Scale | 1/7 |
Servos | Included |
Shock Type | Aluminum body, oil-filled adjustable |
Speed | 60+ |
Speed Control | Included |
Spur Gear | 50T |
Suspension | Independent |
Tire Tread | dBoots FORTRESS |
Tire Type | Multi-surface |
Vehicle Type | Desert Truck |
Water-Resistant | Yes |
Wheel Type | 1/7 SC, 17mm Hex, Multi Split Spoke |
Wheel Width | 1.66" (42mm) |
