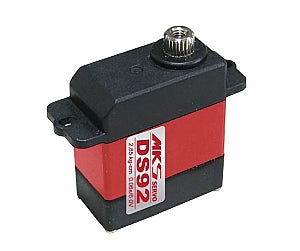

MKS DS92 Chrome-Titanium Gear High Speed Micro Digital Servo
Couldn't load pickup availability
If you Like it SHARE it
The MKS DS92 is a chrome-titanium gear high speed micro digital servo housed in a full CNC aluminum case milled to the highest tolerances. Running on 4.8–6.0V, it delivers 39.58 oz/in (2.85 kg/cm) at 6V with a blazing 0.06 sec/60° transit speed — making it one of the most accurate and responsive micro servos available for high-performance gliders, 450 class helicopter cyclic, and small aircraft rudder applications.
The DC motor with direct-drive potentiometer feedback delivers exceptional centering accuracy and tight, repeatable positioning. Chrome-titanium alloy gears provide durability in a lightweight package. The full CNC aluminum case adds rigidity and heat dissipation, and the servo is 360° modifiable for continuous rotation applications.
Key Features
- Full CNC aluminum case for rigidity and heat dissipation
- Chrome-titanium alloy gears for durability and precision
- 39.58 oz/in (2.85 kg/cm) stall torque at 6V
- 0.06 sec/60° transit speed at 6V — extremely fast micro servo
- 4.8–6.0V operating range
- Dual ball bearings for smooth, consistent operation
- 360° modifiable for continuous rotation
- Compact 23 x 12 x 27.25mm footprint, 17.45g
- Ideal for high-performance gliders, 450 class helis, and small aircraft
Specifications
| Part Number | DS92 | |
| Operating Voltage | 4.8 – 6.0V DC | |
| Stall Torque (4.8V) | 2.30 kg/cm — 31.94 oz/in | |
| Stall Torque (6V) | 2.85 kg/cm — 39.58 oz/in | |
| Speed (4.8V) | 0.075 sec/60° | |
| Speed (6V) | 0.060 sec/60° | |
| Motor Type | DC Motor | |
| Gear Type | Chrome-Titanium Alloy | |
| Bearing Type | Dual Ball Bearings | |
| 360° Modifiable | Yes | |
| Control System | +Pulse Width Control | |
| Working Frequency | 1500μs / 333Hz | |
| Dead Band | 0.001ms (default) | |
| Connector Wire Length | 20.0cm (7.86 in) | |
| Dimensions | 23 x 12 x 27.25mm (0.9 x 0.47 x 1.07 in) | |
| Weight | 17.45g (0.61 oz) | |
| Operating Temp Range | -10°C to +60°C | |
Compatibility
Ideal for high-performance gliders, 450 class RC helicopter cyclic, and small aircraft rudder applications requiring a fast, accurate micro servo. Verify receiver voltage output and servo bay dimensions before purchasing.
