HV777A+ MKS Coreless Titanium Gear High Torque Digital Servo (High Voltage)

In stock - 7 items available
SKU: HV777A+ Barcode: 4710150350271
Regular price $ 130.50

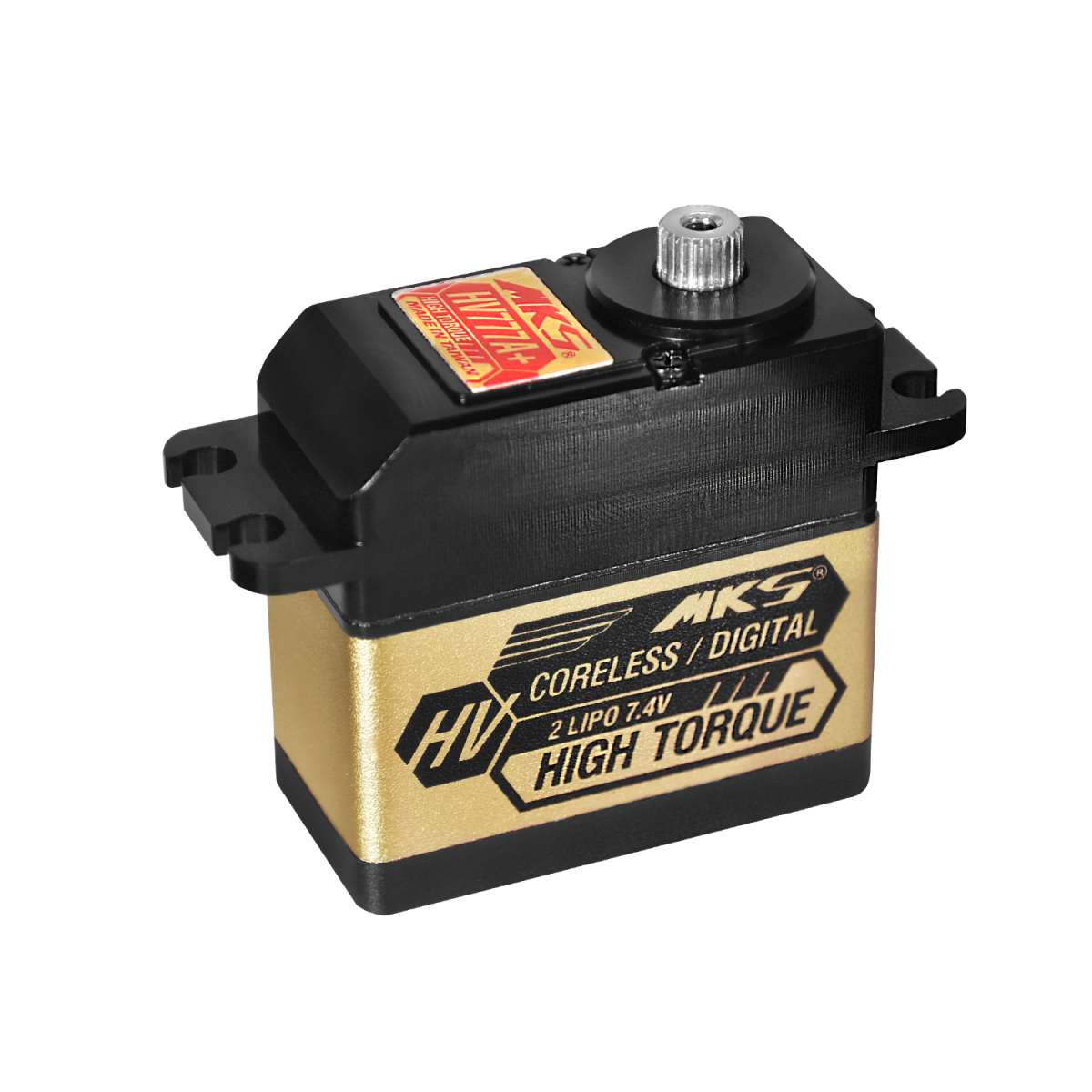

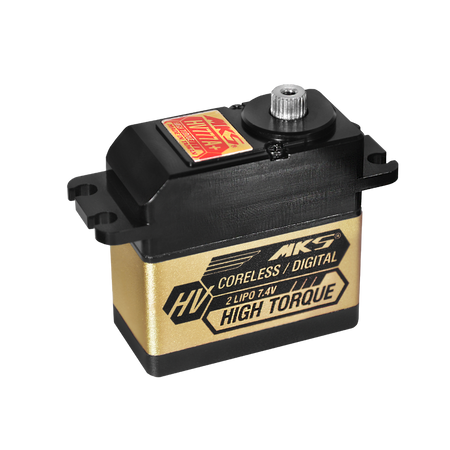

This is an MKS HV777A+ Coreless Titanium Gear High Torque Digital Servo with an Aluminum Upper Case.

Specifications:

  • Torque:
    • @6.0V: 409.7 oz-in (28 kg-cm)
    • @7.4V: 506 oz-in (36.5 kg-cm)
    • @8.2V: 561.1 oz-in (38 kg-cm)
  • Speed:
    • @6.0V: 0.13 s
    • @7.4V: 0.11 s
    • @8.2V: 0.10 s
  • Weight: 75.45 g
  • Dimension: 40x20x45mm
  • Working Voltage: 4.8 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
  • Working Frequency: 1520μs / 333hz
  • Dead Band: 0.0008 ms (Default)
  • Bearing: Double bearings
  • Motor: Coreless Motor
  • Gear: Titanium alloy gear
