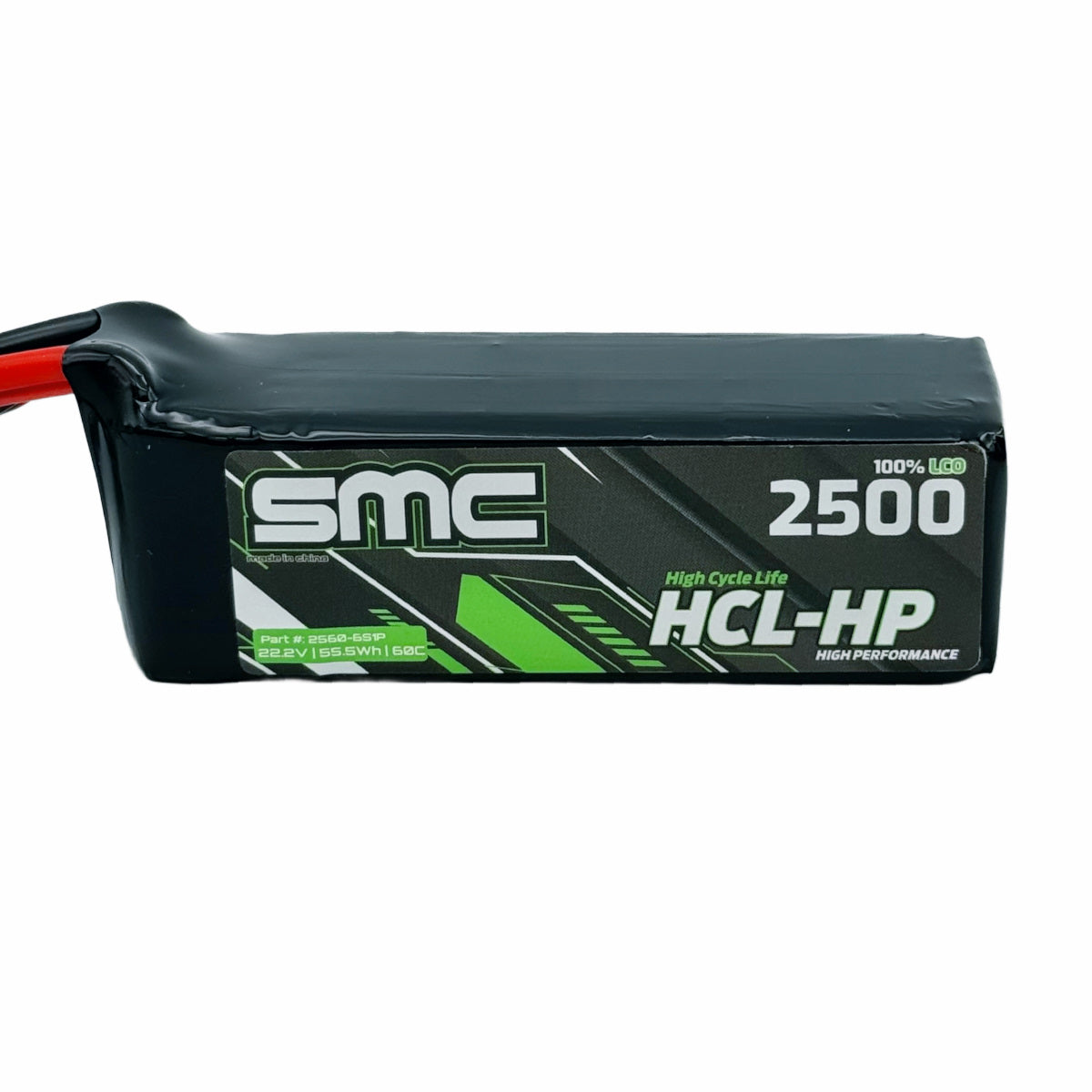

SMC Racing SMC2560-6S1P-EC5 HCL-HP 22.2V 2500mAh 60C Flight Pack EC5
Regular price
$ 36.95
Couldn't load pickup availability
If you Like it SHARE it
The SMC Racing SMC2560-6S1P-EC5 HCL-HP is a 22.2V 2500mAh 60C 6S flight pack LiPo built with 100% LCO (Lithium Cobalt Oxide) cathodes for maximum cycle life and performance. SMC's HCL-HP (High Cycle Life — High Performance) flight packs are engineered to deliver better performance per gram than competing packs. This pack uses an EC5 connector and G10 top and bottom plates for structural rigidity and protection.
Important: Standard LiPo cells — not LiHV. Charge at 4.20V per cell only. Do not use LiHV charge settings.
Key Features
- 100% LCO cathodes for maximum cycle life and performance
- 22.2V 6S configuration — 2500mAh true capacity (±5%)
- 60C continuous discharge rating
- EC5 connector for high-current applications
- G10 top and bottom plates for structural protection
- 12AWG wire for efficient power delivery
- Standard LiPo — charge at 4.20V per cell (not LiHV)
Specifications
| Part Number | SMC2560-6S1P-EC5 |
| Series | HCL-HP |
| Cell Type | LiPo (charge to 4.20V per cell) |
| Configuration | 6S1P |
| Voltage | 22.2V nominal |
| Capacity | 2500mAh (±5%) |
| Discharge Rate | 60C |
| Connector | EC5 |
| Wire Gauge | 12AWG |
| Protection | G10 top & bottom plates |
| Dimensions | 38 x 34 x 109mm |
| Weight | 313g |
| Charge Rate | 1C–5C recommended (4.20V/cell max) |
| Country of Origin | China |
