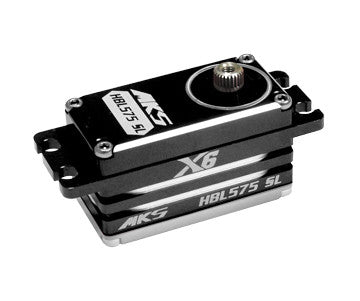

The MKS X6 HBL575SL Brushless Titanium Gear Low Profile Digital Servo is perfect for 1/10 scale surface applications that require high speed, low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry in a low profile package.

Features:

• Ideal for 1/10 surface applications
• High speed, incredible efficiency, and low power consumption
• Chrome-Titanium gears for precision and durability
• .10 / 138.87 oz-in @4.8V and .07 / 233.3 oz-in @ 7.4V!
• Low-profile dimensions make it perfect for vehicles that are low on space
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 0.0008ms Dead Band
• Superior Holding Torque
• Japanese Brushless Motor

Specifications:

• Torque:
• @4.8V: 138.87 oz-in (10 kg-cm)
• @6.0V: 184.70 (13.3 kg-cm)
• @7.4V: 233.30 (16.8 kg-cm)
• Speed:
• @4.8V: 0.10 s
• @6.0V: 0.08 s
• @7.4V: 0.07 s
• Weight: 53.51 g
• Dimension: 40.5x20.5x23.1mm
• Working Voltage: 3.5 ~ 7.4 V (Max)
• Working frequency: 1520μs / 333Hz
• Dead Band: 0.0008 ms (Default)
• Bearing: 2BB
• Motor: 4 Poles Japan High Quality Brushless Motor
• Gear: Chrome-Titanium alloy gear

NOTE: The working temperature is higher when operating at 7.4V. Please ensure that the servo has adequate ventilation, or install cooling fan to increase airflow.
