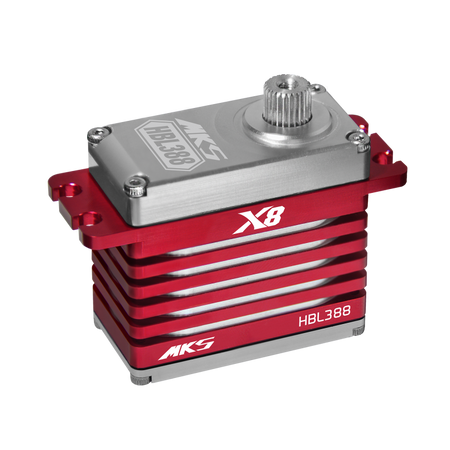

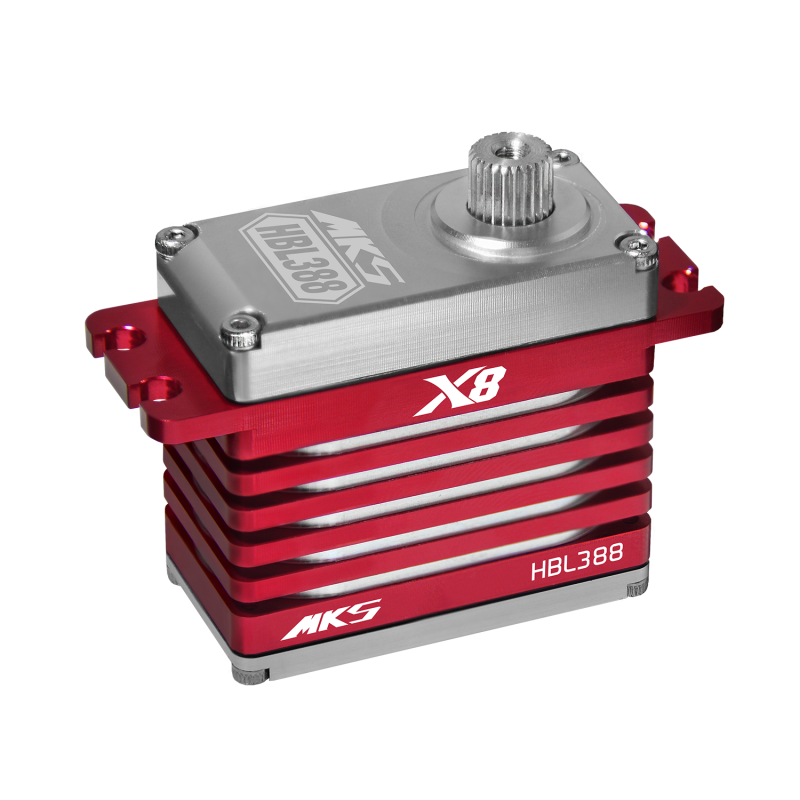

X8 HBL388 MKS Brushless Titanium Digital Servo (High Voltage)
Regular price
$ 224.99
Couldn't load pickup availability
| Dead Band | 0.0008ms (Default) | |
| Spline Size | 8mm 25tooth X8 | |
| Control System | +Pulse Width Control (PWM) | |
| Working Frequence | 1520μs / 333Hz | |
| Operating Voltage | 5 ~ 8.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (6V) | 0.19 sec/60° degrees at no load | |
| Operating Speed (7.4V) | 0.16 sec/60° degrees at no load | |
| Operating Speed (8.4V) | 0.14 sec/60° degrees at no load | |
| Stall Torque (6V) | 694.3 oz/in (50 kg/cm) | |
| Stall Torque (7.4V) | 833.2 oz/in (60 kg/cm) | |
| Stall Torque (8.4V) | 944.3 oz/in (68 kg/cm) | |
| Motor Type | Japanese-made Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12x8 mm Double bearings | |
| Gear Type | Metal Alloy Gear | |
| Connector Wire Length | 29 cm | |
| Dimensions | 43 x 22 x 39.65 mm | |
| Weight | 93.3g (3.29 oz) | |
