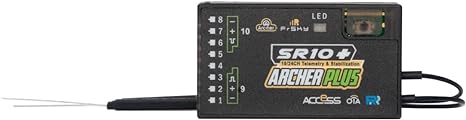

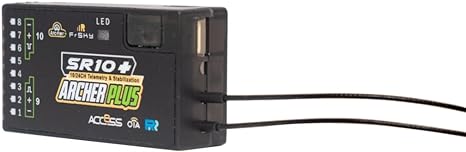

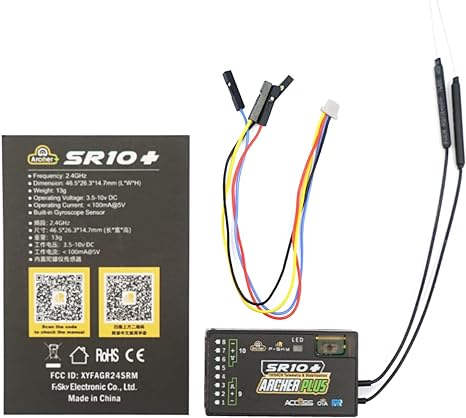

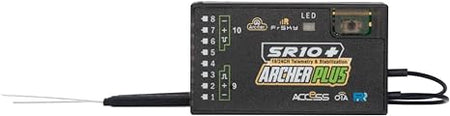

The FrSky Archer Plus SR10+ receiver is a receiver that is part of the Archer Plus Series. The Archer Plus Series receivers include new features such as an enhanced anti-RF-Interference capability for a more solid RF performance. The SR10+ receiver supports full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and range. It can also be used as a primary receiver in a redundant solution by setting a port as SBUS In and connecting to any other FrSky receiver equipped with an SBUS Out port
- The Archer Plus SR10+ are gyro-stabilized receivers with a built-in 3-axis gyroscope and 3-axis accelerometer and feature multiple flight modes (Auto-level, Stabilization, Knife-Edge, etc.) and configuration methods. The SR10+ receivers have 10 configurable channel ports, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port.
- The SR10+ supports full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and range. The SR10+ can be used as a Primary receiver in a redundant solution by setting a port as SBUS In and connecting to any other FrSky receiver equipped with an SBUS Out port.
- With the FBUS protocol, the Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos, ADV Sensors, etc.) as well as simplifying the builds setup.
- Enhanced Anti RF-Interference capability with more solid RF performance ● Smart-matched ACCESS & ACCST D16 modes ● Supports basic Black-Box function (Available later by updating the FW.) ● Built-in 3-axis gyroscope and 3-axis accelerometer sensor ● Multiple flight modes and configuration tools (ETHOS, LUA scripts, etc.) ● 10 configurable channel ports (PWM, SBUS, FBUS, or S.Port) ● Supports signal redundancy (SBUS In) ● Full control range with telemetry (S.Port or FBUS) ● Anti-interference capability in the spark-ignition process
- ● Over-The-Air (OTA) FW update ● External battery/device voltage detection●Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
