Kyosho KYO34415T2C Fazer Mk2 FZ02L 2015 Dodge Challenger SRT Hellcat B5 Blue Readyset

Kyosho KYO34415T2C Fazer Mk2 FZ02L 2015 Dodge Challenger SRT Hellcat B5 Blue Readyset pairs a detailed muscle-car body with a factory-assembled 1/10-scale, shaft-driven 4WD touring chassis.

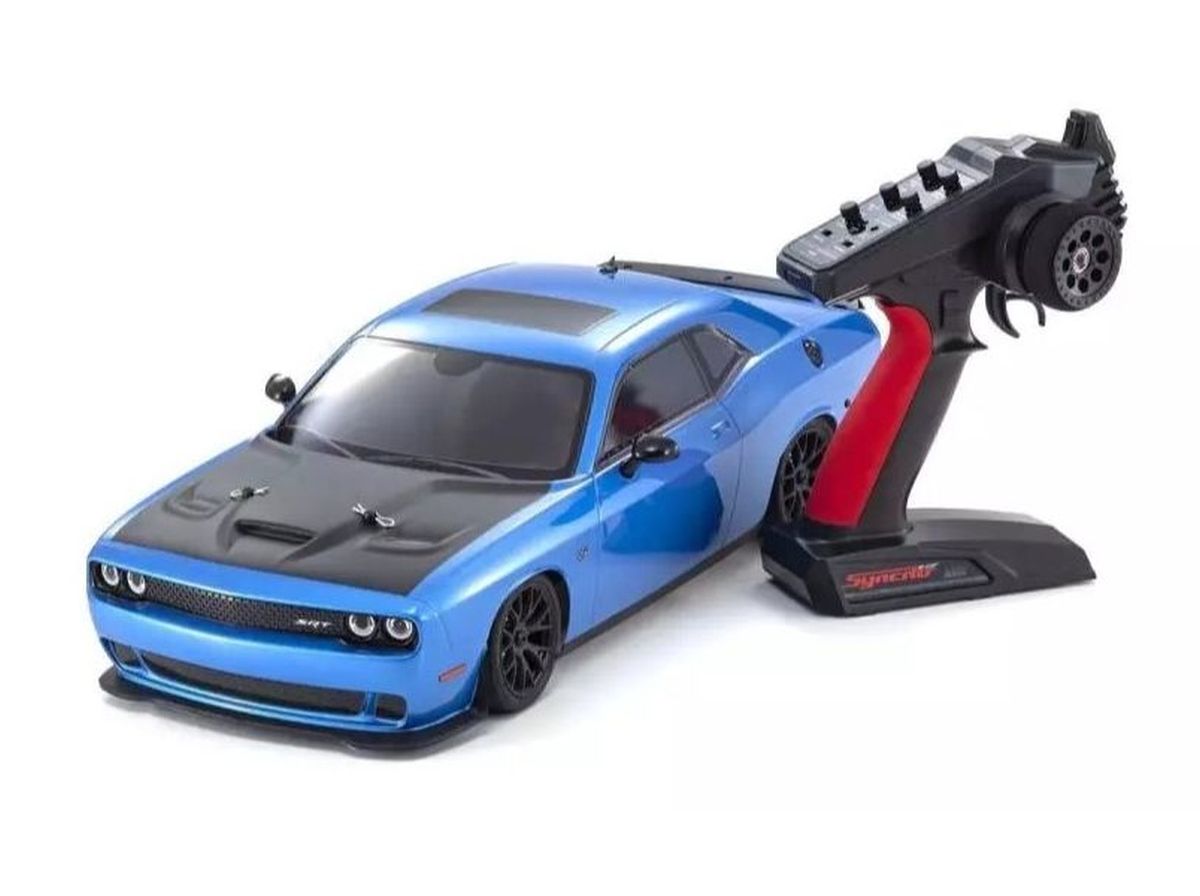

In The Box

• Completed chassis with installed radio equipment
• Factory-assembled, finished B5 Blue body
• Syncro KT-231P+ transmitter
• Hexagonal wrench and spanner
• Setting change parts

Needed to Complete

• Four AA batteries for the transmitter
• Chassis battery; manufacturer recommends a 7.2V NiMH battery
• Compatible battery charger
• Tools as required for setup and maintenance

The chassis battery, charger, and transmitter batteries are not included.

Fazer Mk2 Touring Chassis

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source.

Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0 mm, +5 mm) provide compatibility with 190 mm and 200 mm width body styles and allow the wheelbase to be adjusted to 260 mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition to the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

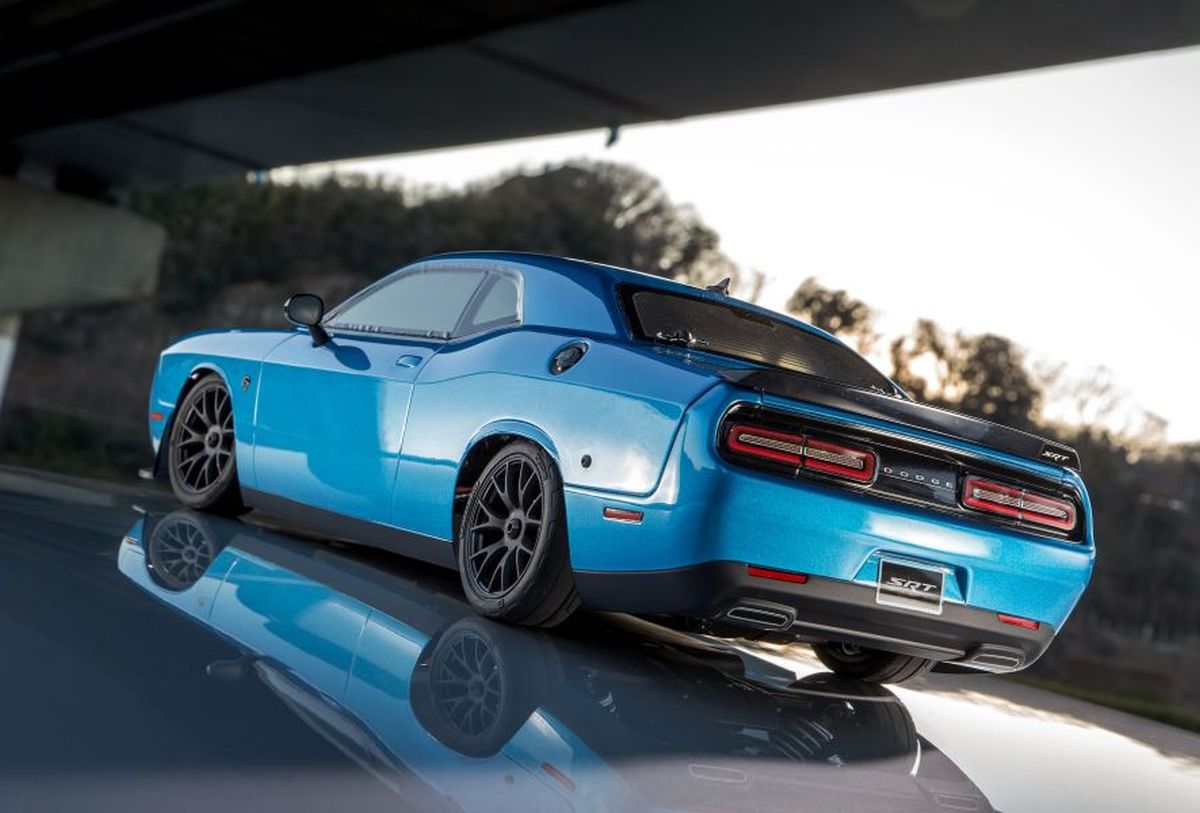

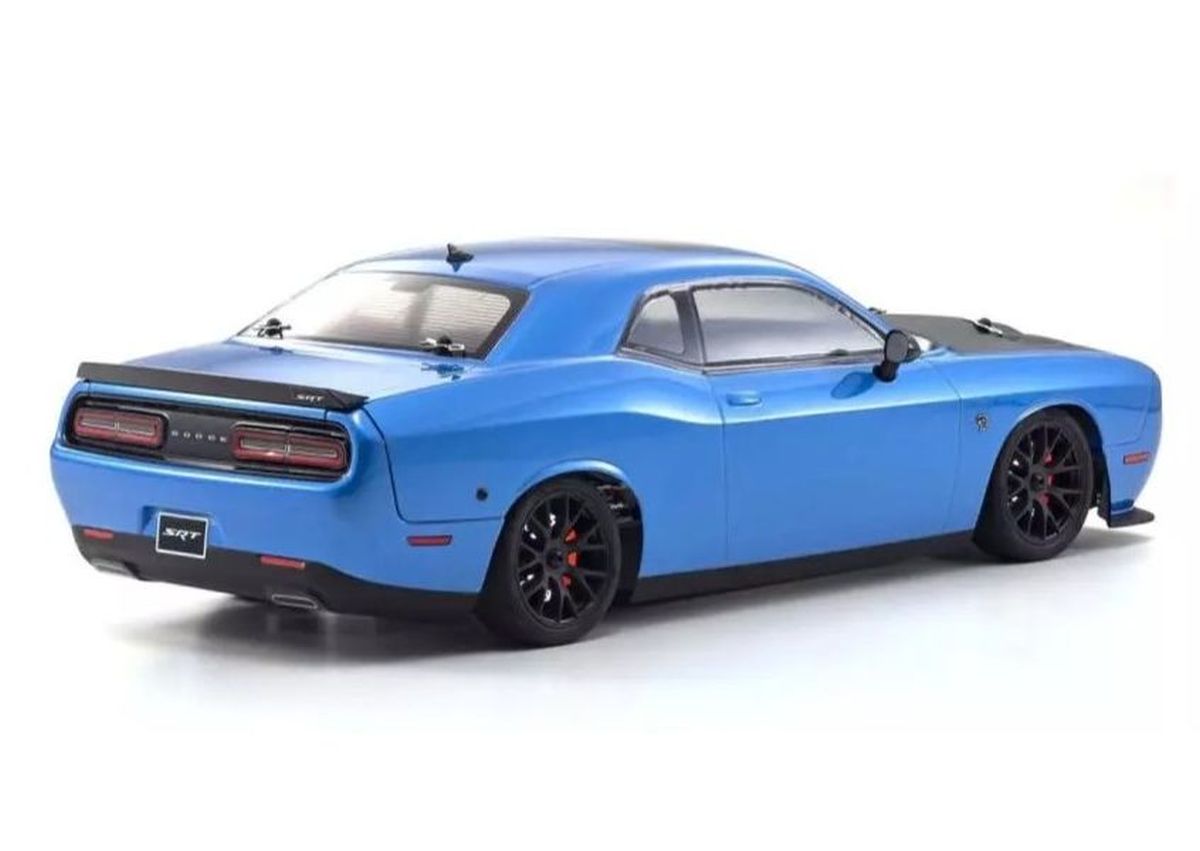

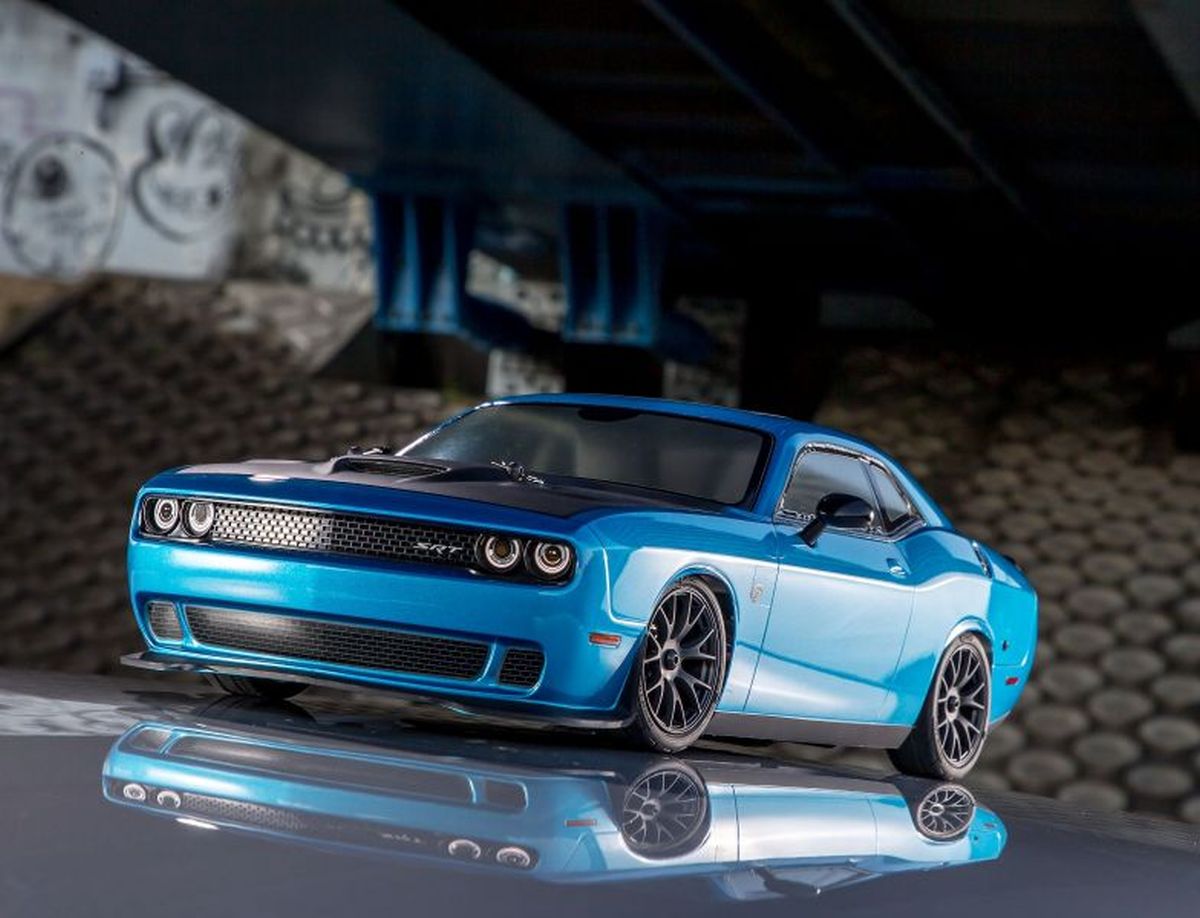

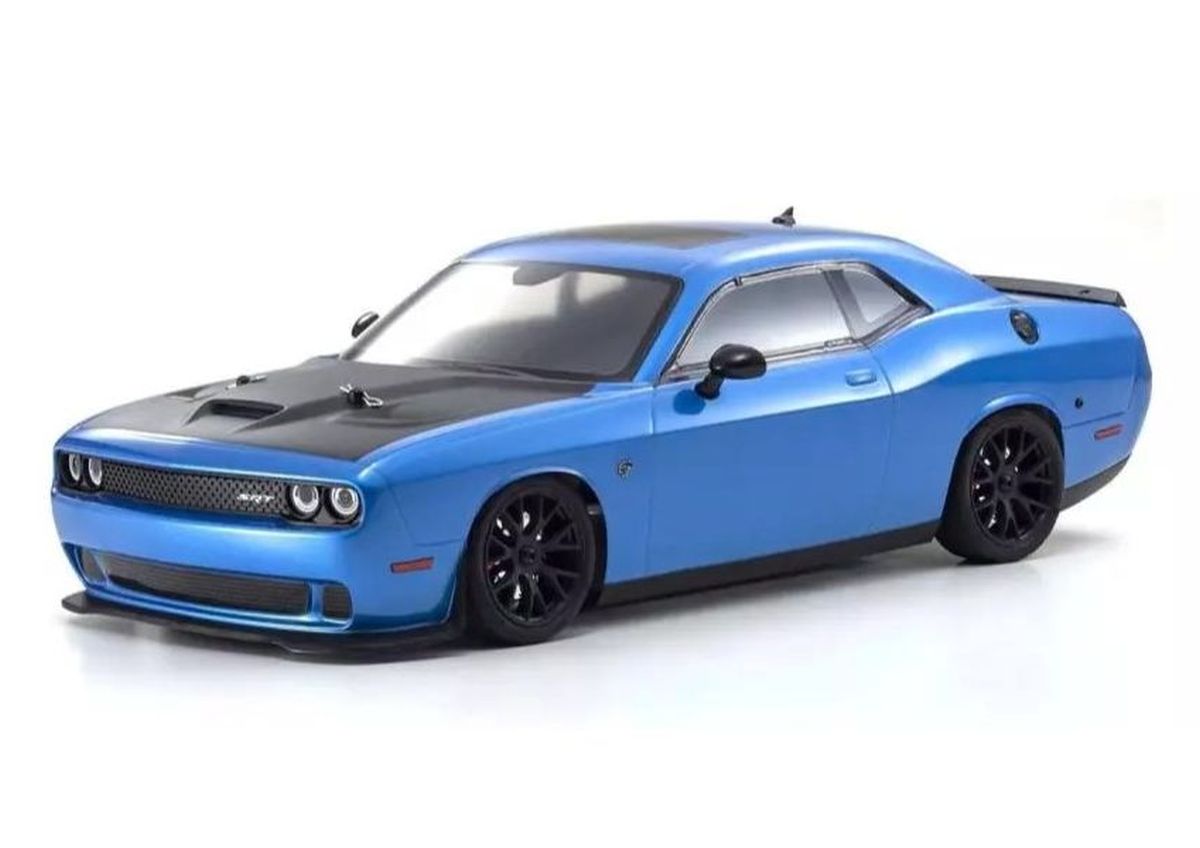

Dodge Challenger SRT Hellcat Body

Mounted on the FAZER Mk2 touring car chassis is the polycarbonate American muscle car body form of the Dodge Challenger SRT Hellcat. The full-size car’s supercharged 6.2L V8 is represented by the scale body styling; the R/C model uses the electric G14L motor.

Chassis Design and Maintenance

The simple, low-center-of-gravity upper-deckless chassis design features an electronic speed controller and receiver cover, as well as a one-piece gearbox that optimizes main chassis torsional rigidity and strength while reducing weight with lightweight, impact-resistant nylon.

A reduced number and variety of screws and parts simplifies maintenance, with frequently used screws consolidated to the same size. Most screws can be removed with a 2.0 mm hex wrench for easy disassembly. Front suspension geometry optimizes bump steer and scrub radius, while ball-connected steering knuckles provide reliable control movement. Interchangeable front and rear left-right hub carriers improve spare-parts utilization and maintenance efficiency.

Key Features

• Factory-assembled Readyset with finished body and transmitter
• Shaft-drive full-time 4WD FZ02L touring chassis
• Full ball bearings throughout the drive system to reduce drive loss
• KS202W waterproof steering servo
• Sealed differentials and transmission for reliable performance on dusty parking-lot surfaces
• Oil shocks and front and rear gear differentials
• Plated dummy brake discs and painted brake calipers for scale detail
• Hex-socket button screws for reliable tightening and streamlined maintenance
• Motor-mount holes matched to 29T through 37T pinions eliminate troublesome gear-backlash adjustment
• Optional parts available separately for further tuning

Compatibility

• Brake-disc wheel hubs offer 0 mm and +5 mm offsets for 190 mm and 200 mm body widths.
• The standard 274 mm wheelbase can be converted to 260 mm with separately sold parts for other compatible 1/10-scale bodies.

Specifications
