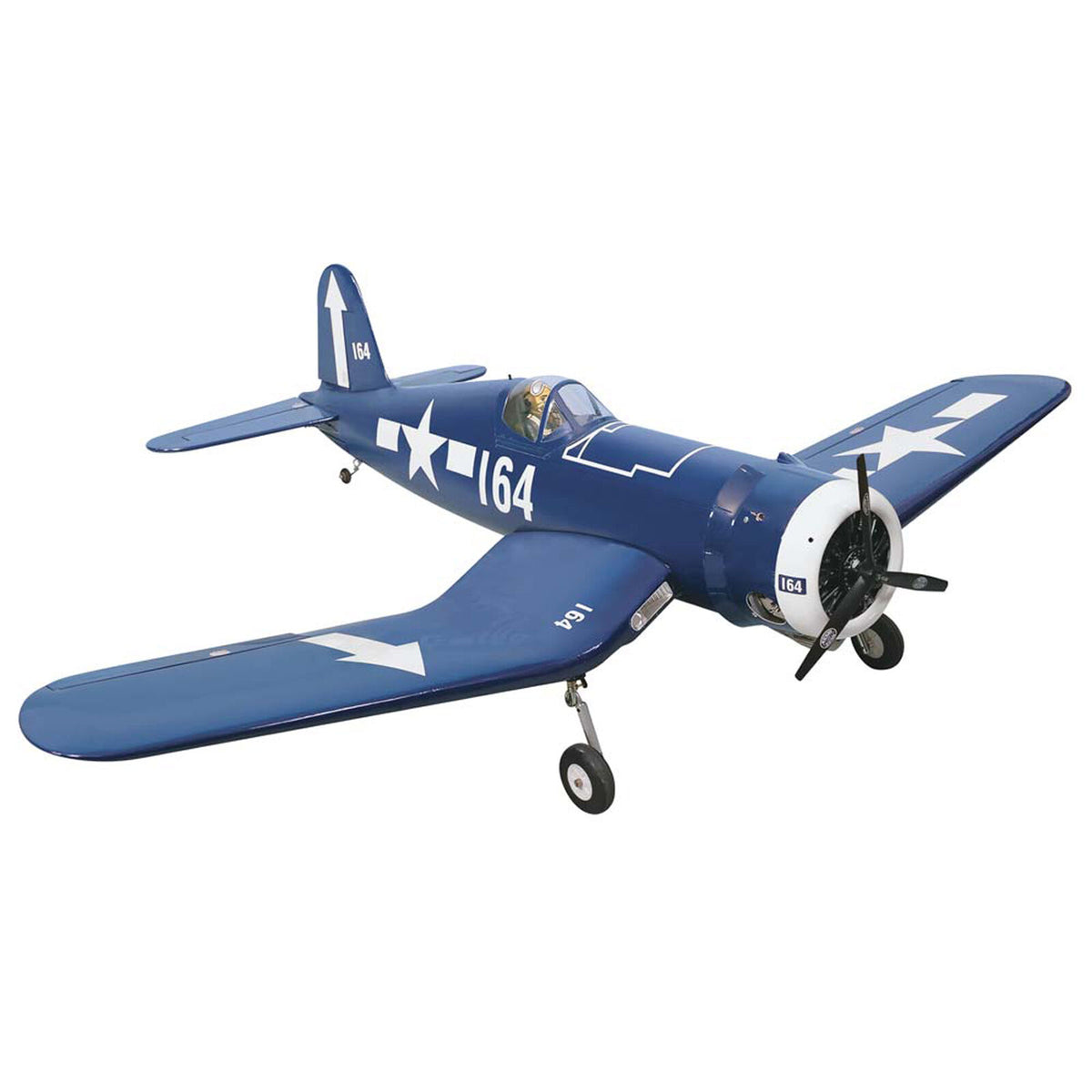

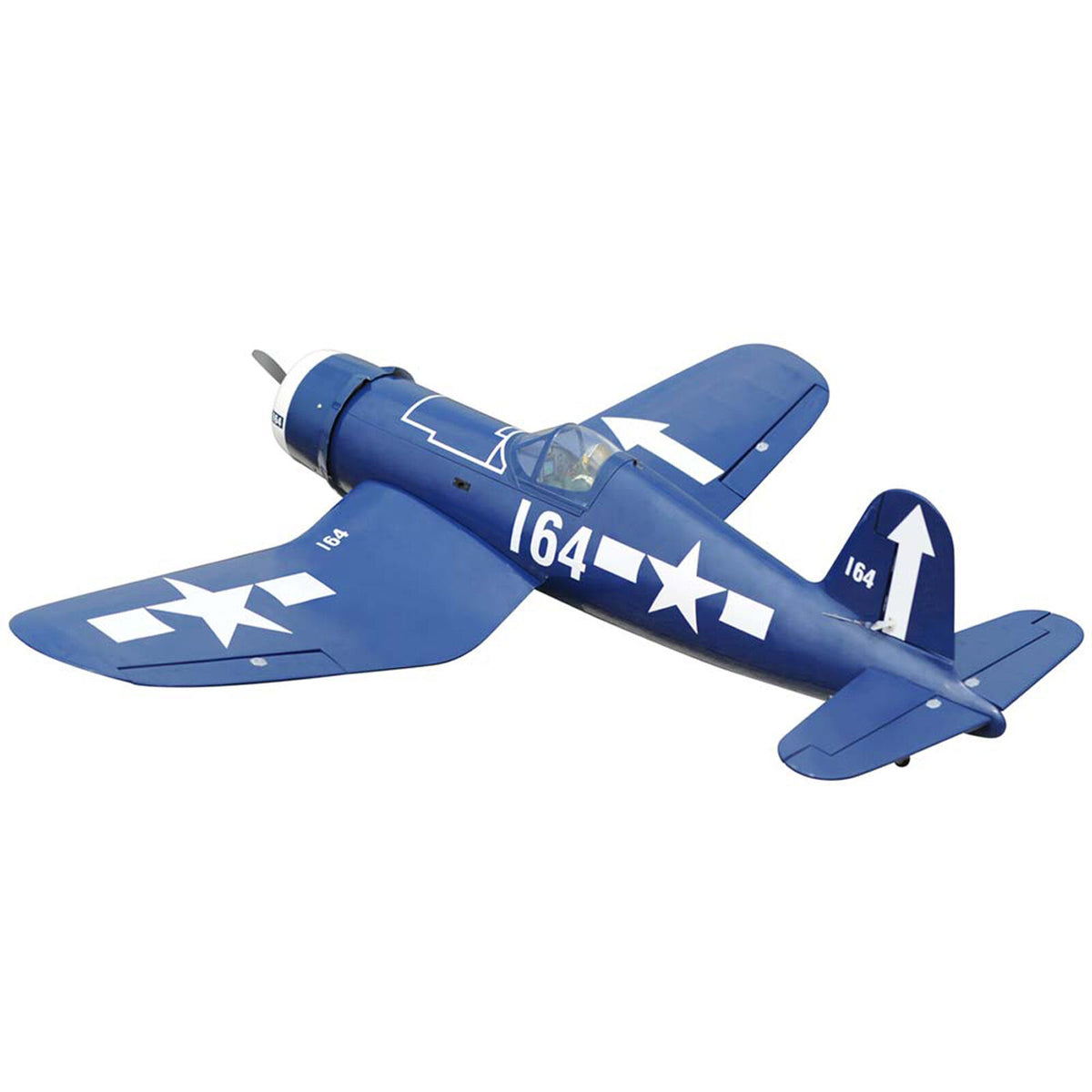

Phoenix Model PMMA1605 F4U Corsair .46-.55 GP/EP ARF 58.5"
The F4U Corsair was a force to be reckoned with to the Japanese during WWII. With its gull wing design, impressive looks and power, the Corsair was one of the most recognizable WWII aircraft. Phoenix Model has recreated this outstanding airplane to suit size .46–.55 glow engines. It was designed with the latest laser-cut technology. Craftsmanship really shows up on the Corsair’s gull-shaped wing. This superb-looking F4U has enough scale detail and features to keep any warbird enthusiast happy.

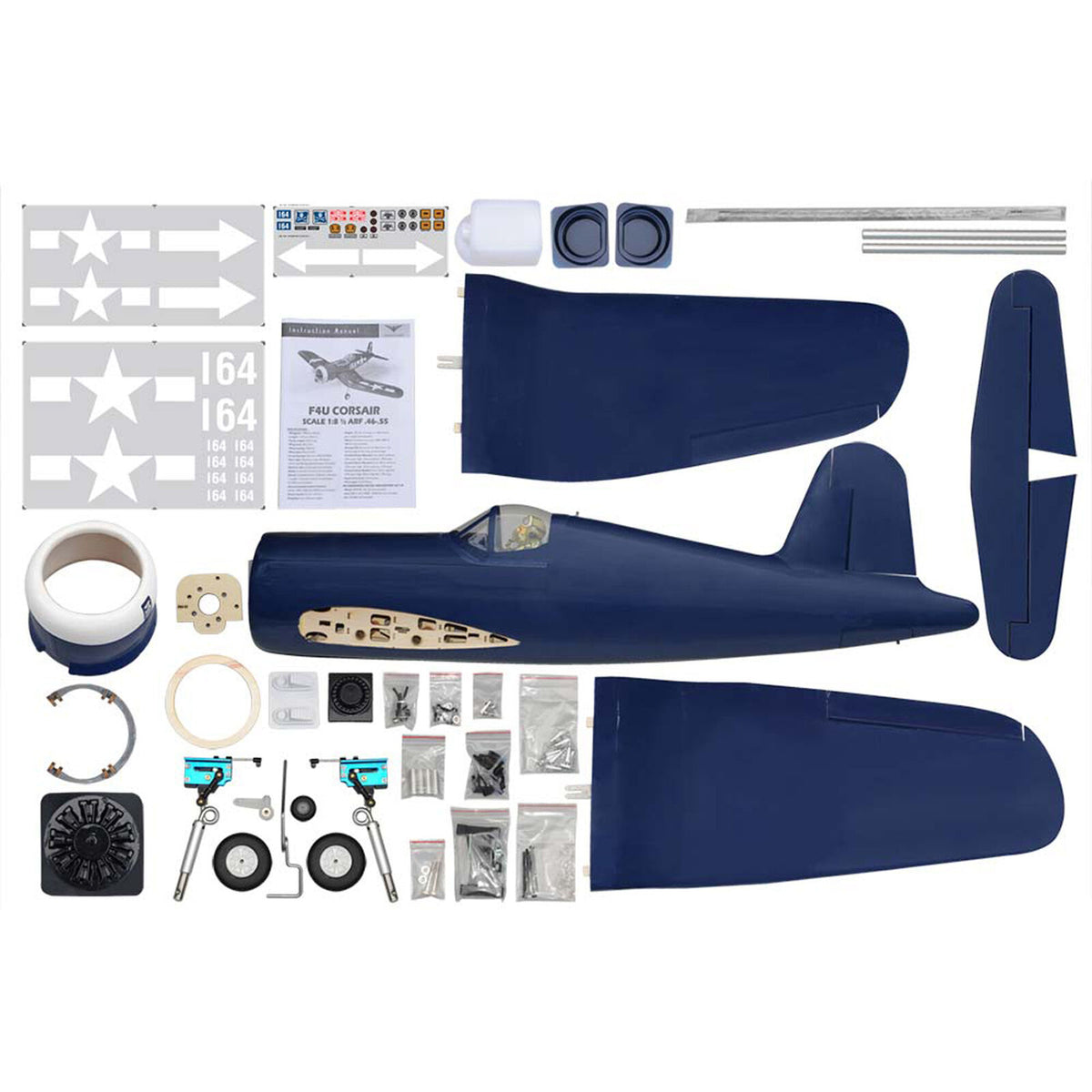

In The Box
- ARF F4U Corsair with landing gear.
- Wheels and wheel pants.
- Fuel tank and cowl.
- Product manual.
- Cockpit, instrument panel, pilot and hardware package.
Needed to Complete
- 6-channel minimum radio system with receiver.
- Five standard servos for a glow setup: two aileron, one elevator, one rudder and one throttle.
- Two mechanical retract servos, such as Futaba S3170G.
- Two 12–18-inch aileron servo extensions; length depends on receiver placement.
- 4.8–6V 800–1200 mAh NiMH receiver battery and compatible charger.
- Compatible glow engine or electric motor system and suitable propeller.
- For electric power: 6S 4000–5500 mAh LiPo battery, suitable charger and 50–80A ESC matched to the motor.
Key Features
- Designed for compatibility with both glow and electric power.
- Retractable gear with CNC suspension metal struts included.
- Full-depth cockpit, instrument panel and pilot included.
- Top-quality balsa/light plywood construction.
- Removable top hatch for easy flight-battery changes and radio setup.
- Scale outline enhanced by a lightweight fiberglass cowl.
- High-quality hardware package included.
- Two-piece wings with NACA airfoils and two aluminum joiner tubes.
- Dual-servo aileron control and Hangar 9 UltraCote covering.
- Plywood motor mount and two-piece composite plastic engine mount.
- Two 3-inch foam main wheels and a 1-inch rubber tailwheel.
- Approximately 12 fl oz (360 cc) fuel tank.
Specifications
| Manufacturer model | PH011 |
| Distributor SKU | PMMA1605 |
| Completion level | Almost Ready-To-Fly (ARF) |
| Wingspan | 58.5 in (1485 mm) |
| Length | 44.5 in (1127 mm) |
| Flying weight | 105.82–116.40 oz (3000–3300 g), equipped |
| Estimated shipping weight | ~160 oz; verify before shipping |
| Wing area | 38.2 dm² |
| Wing loading | 75 g/dm² (manufacturer specification) |
| Landing gear | Mechanical 90-degree rotating retracts with spring suspension; retract servos not included |
| Engine option | .46–.55 cu in two-stroke or .52 cu in four-stroke glow, not included |
| Electric motor option | 1000–1400 W, 480 KV brushless outrunner; Rimfire .46–.55 recommended |
| Electric flight battery | 6S 4000–5500 mAh LiPo, not included |
| ESC | 50–80A, matched to motor; not included |
| Minimum radio | 6-channel, not included |
| Servos | Five standard servos for glow setup plus two mechanical retract servos; not included |
| Servo mount | 16 × 33.5 mm |
| Receiver battery | 4.8–6V 800–1200 mAh NiMH, not included |
| Propeller | Match selected engine or motor; not included |
| Spinner | Corsair-style, not included |
| Experience level | Intermediate |
| Retail box | 1044 × 395 × 213 mm |
