MAX SPEED & POWER
for Xtra Large sized vehicle

EZRUN MAX Sensored brushless motor Series

• Sensored brushless technology
• Designed for SPEED & POWER
• • Compared with the previous generation, it has added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.

  • It has perfect compatibility when it is matched with Hobbywing EZRUN MAX4 or MAX5 G2, MAX6 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.

  • The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.

  • CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.

  • The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor

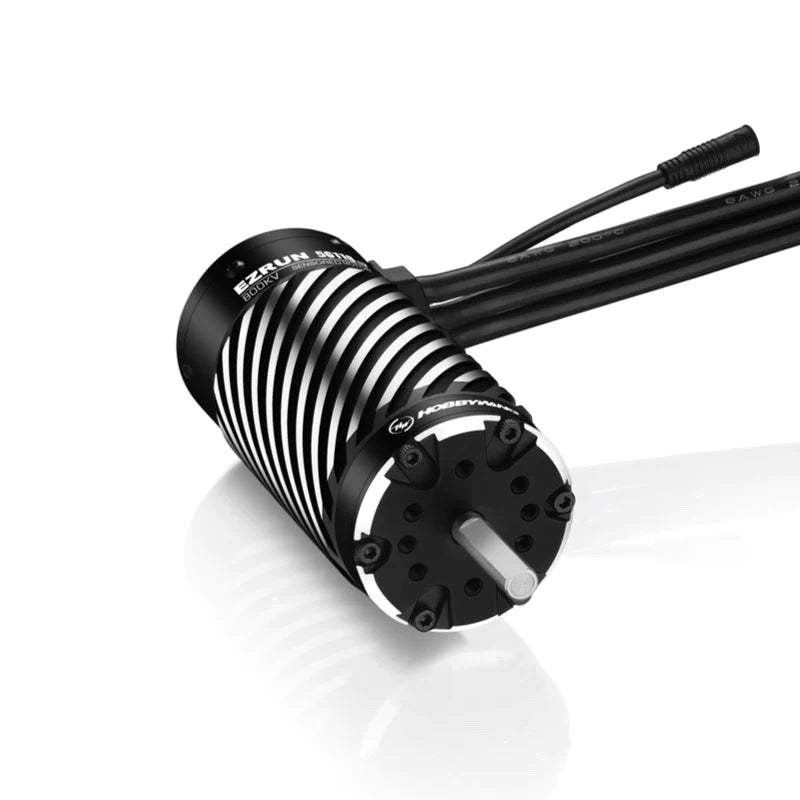

  MAX56118 SD G2 brushless motor
  ;;


Features:

• 4-pole rotor design for more torque with strong explosive force
• Detachable motor design for easy maintenance
• Waterproof sensor interface
• Explosion proof rotors
• Spiral CNC shell

Specifications:

• Input Voltage: 8-12S LiPo
• KV: 800kV
• Pole: 4
• Motor Diameter: 2.20" (56mm)
• Motor Length: 4.69" (119.2mm)
• Shaft Diameter: 0.31" (8mm)
• Shaft Length: 1.18" (30mm)
• Front Bearing size: D22*D8*T7
• Rear Bearing size: D19*D5*T6
• Weight: 1277g
