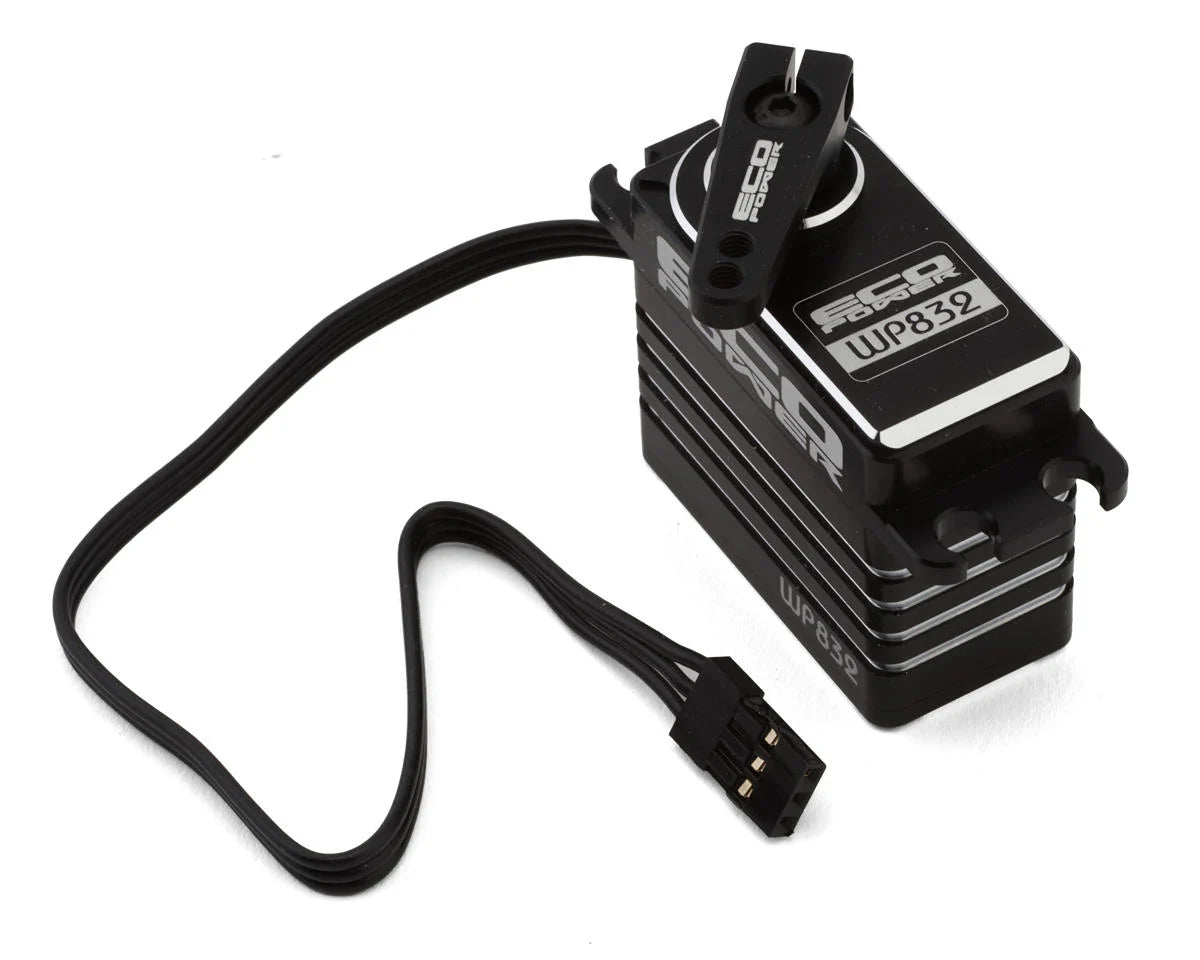

EcoPower ECP-832 Mid Profile High Torque Brushless Rock Crawling/Bashing Servo HV Waterproof Metal Case

In stock
SKU: ECP-832 Barcode: 694485083056
Regular price $ 99.99

The EcoPower ECP-832 Mid-Profile Servo brings together brushless motor technology and high-voltage circuitry for exceptional holding power, speed, and precision in bashing and rock crawling applications. The brushless motor delivers greater efficiency and extended lifespan compared to traditional coreless motors, while full steel gears resist wear under high-stress conditions. Housed in a full aluminum black case, the servo is both rugged and waterproof — ready for mud, rain, and rough terrain. Includes an aluminum single-arm clamping servo horn and a complete set of mounting washers. Lifetime Gear Warranty backed by AMain Hobbies.

Key Features

  • Brushless motor for greater efficiency, higher torque, and longer lifespan
  • High-voltage (HV) circuitry for maximum performance
  • Full steel gear train for exceptional durability under high-stress use
  • Fully waterproof construction for all-terrain confidence
  • Full aluminum black case — rugged and functional
  • Mid-profile design fits a wide range of 1/10 and 1/8 bashing and crawling chassis
  • Includes aluminum single-arm clamping servo horn and mounting washers
  • Lifetime Gear Warranty backed by AMain Hobbies

Compatibility

  • 1/10 and 1/8 bashers and rock crawlers
  • HV-capable receivers and ESCs recommended for full performance

Specifications

Part Number ECP-832
Motor Type Brushless
Gear Material Full steel
Case Material Full aluminum (black)
Voltage High voltage (HV)
Waterproof Yes
Profile Mid profile
Includes Aluminum single-arm clamping servo horn, mounting washers
Application Rock crawling / bashing (1/10, 1/8)
Country of Origin China
Weight ~4.0 oz


Application 1:10 Scale
Operating Voltage 6.0V - 8.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 7.4V 0.09/60° sec
Operating Speed @ 8.4V 0.08/60° sec
Dynamic Torque @ 7.4V 832oz-in (59.9 kg-cm)
Dynamic Torque @ 8.4.0V 883oz-in (63.5 kg-cm)
Motor Type Brushless Digital
Output Shaft 25T
Gears Steel
Weight 63g
Pulse/Frequency 1520s / 333hz
Dimensions 39.6x20x40mm
Length (Bottom to Mount) 24.5mm
