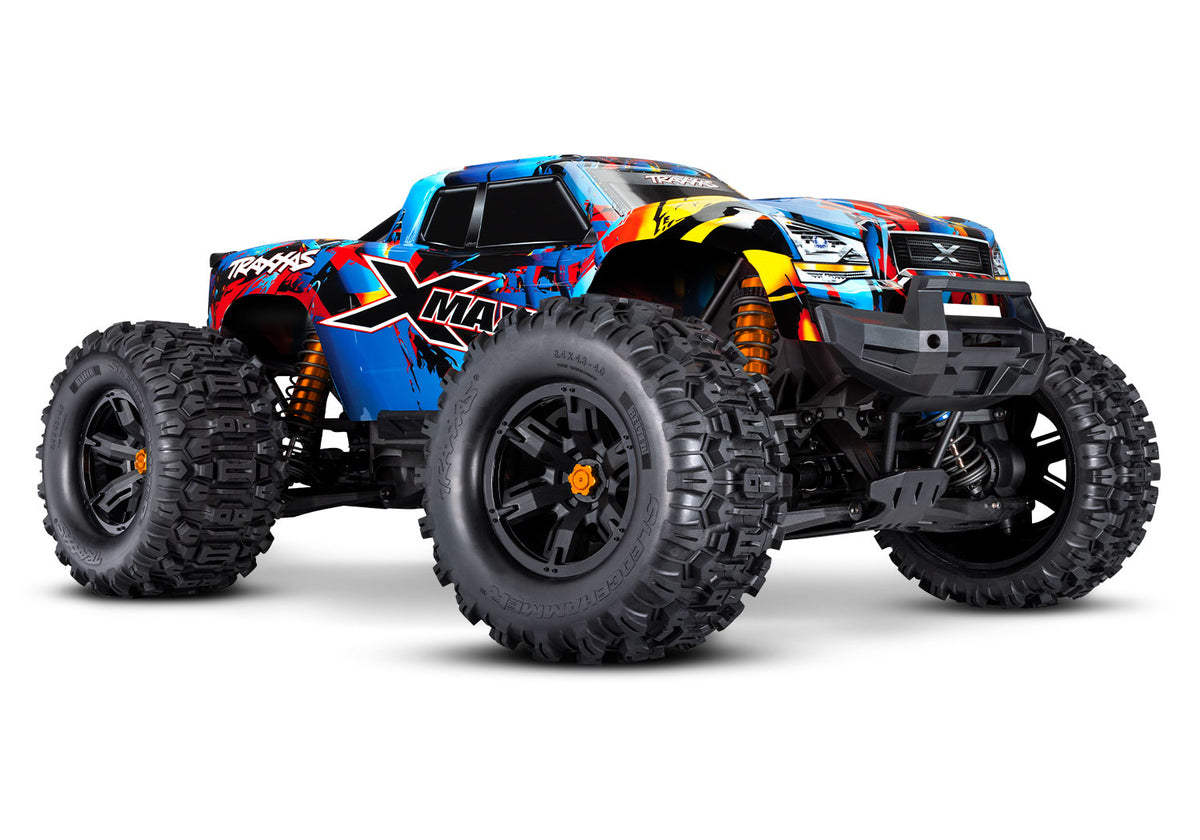

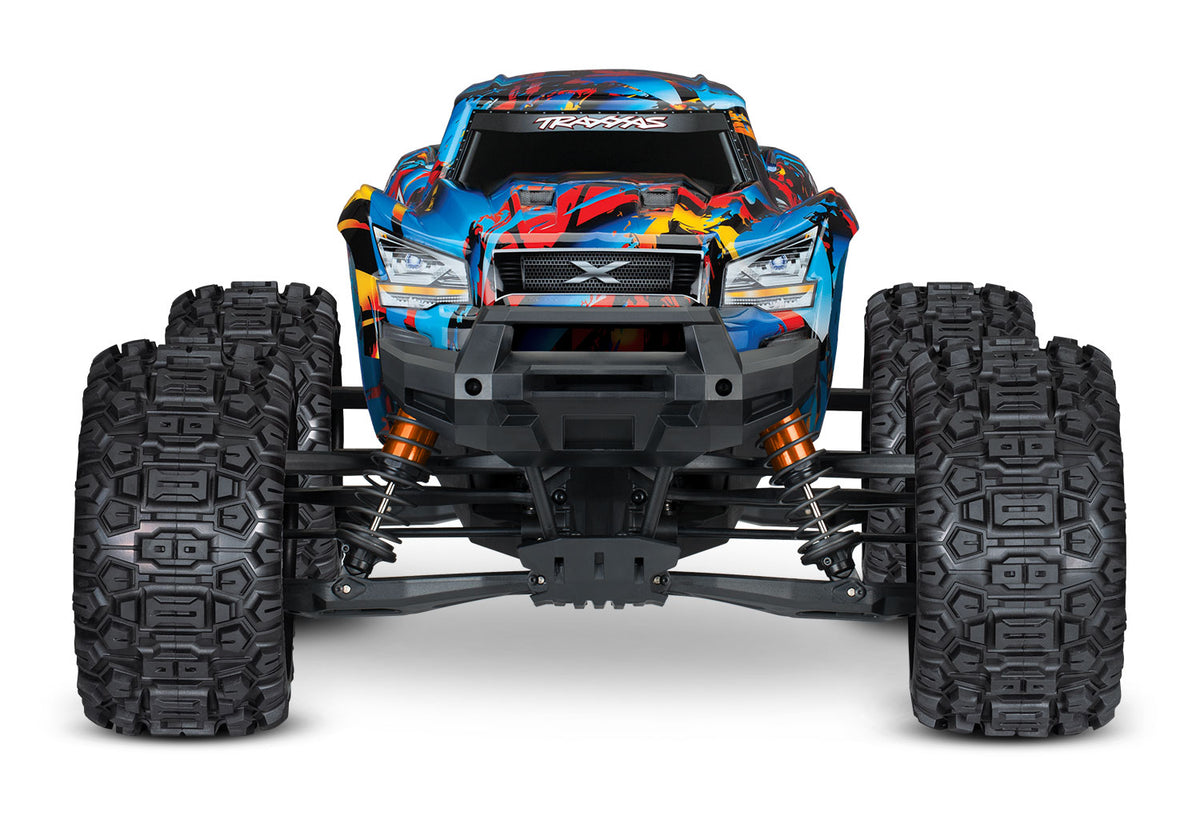

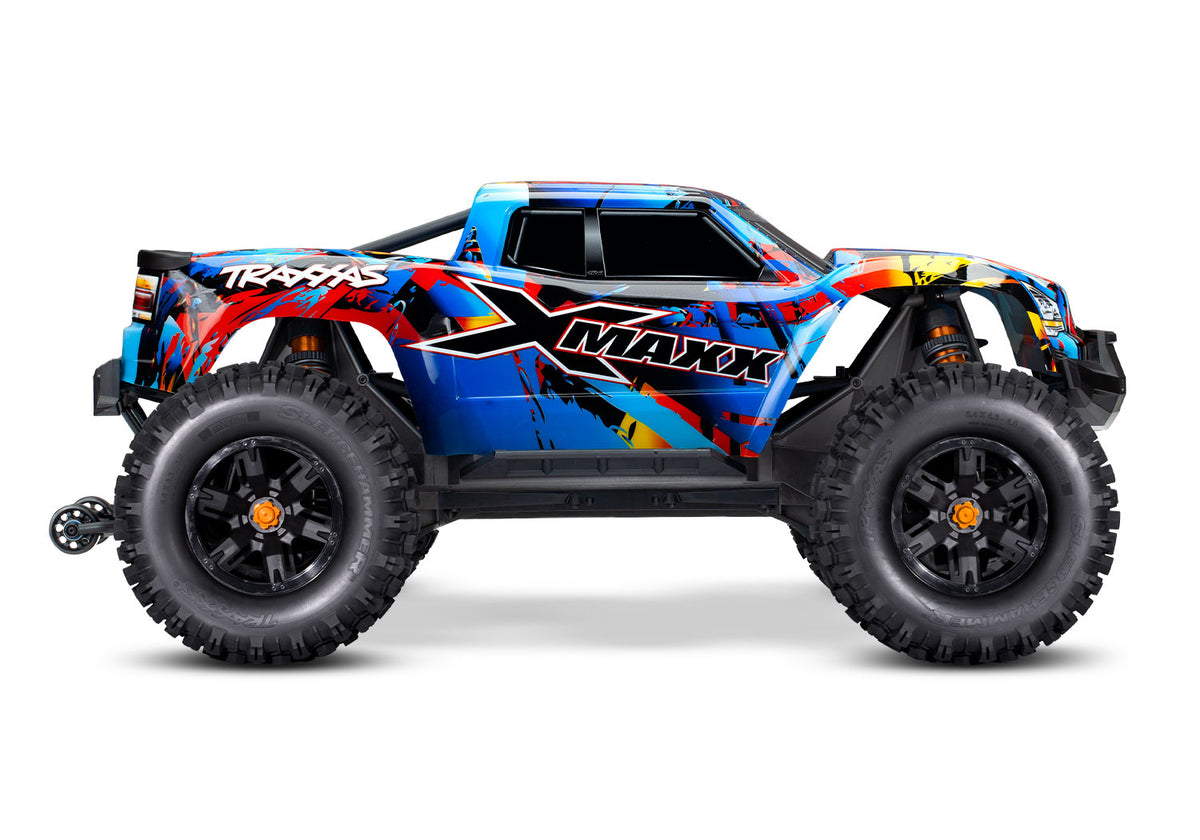

Traxxas 77096-4-RNR X-MAXX 8S Monster Truck Belted Tires

77096-4-RNR X-MAXX 8S Monster Truck with Belted Tires is the ultimate ready-to-race basher from Traxxas, delivering massive power and all-terrain capability right out of the box. Powered by an 8S brushless system and rolling on factory-installed Sledgehammer belted tires, this truck is built for serious speed and durability on any surface.

In The Box

• X-MAXX 8S Monster Truck, fully assembled and Ready-to-Race
• TQi 2.4 GHz radio system
• Velineon 1200XL brushless motor
• Velineon VXL-8s ESC
• Wheelie bar

Needed to Complete

• Two 4S LiPo battery packs for 8S operation
• Compatible LiPo charger
• AA batteries for the transmitter

Feature Image Grid

VXL-8s Waterproof Electronic Speed Control

The VXL-8s ESC is 8S LiPo compatible with a built-in cooling fan, real-time telemetry via TRX Link, machined heat sinks, 10-gauge silicone wire, integrated protection circuits, and LED status lights.

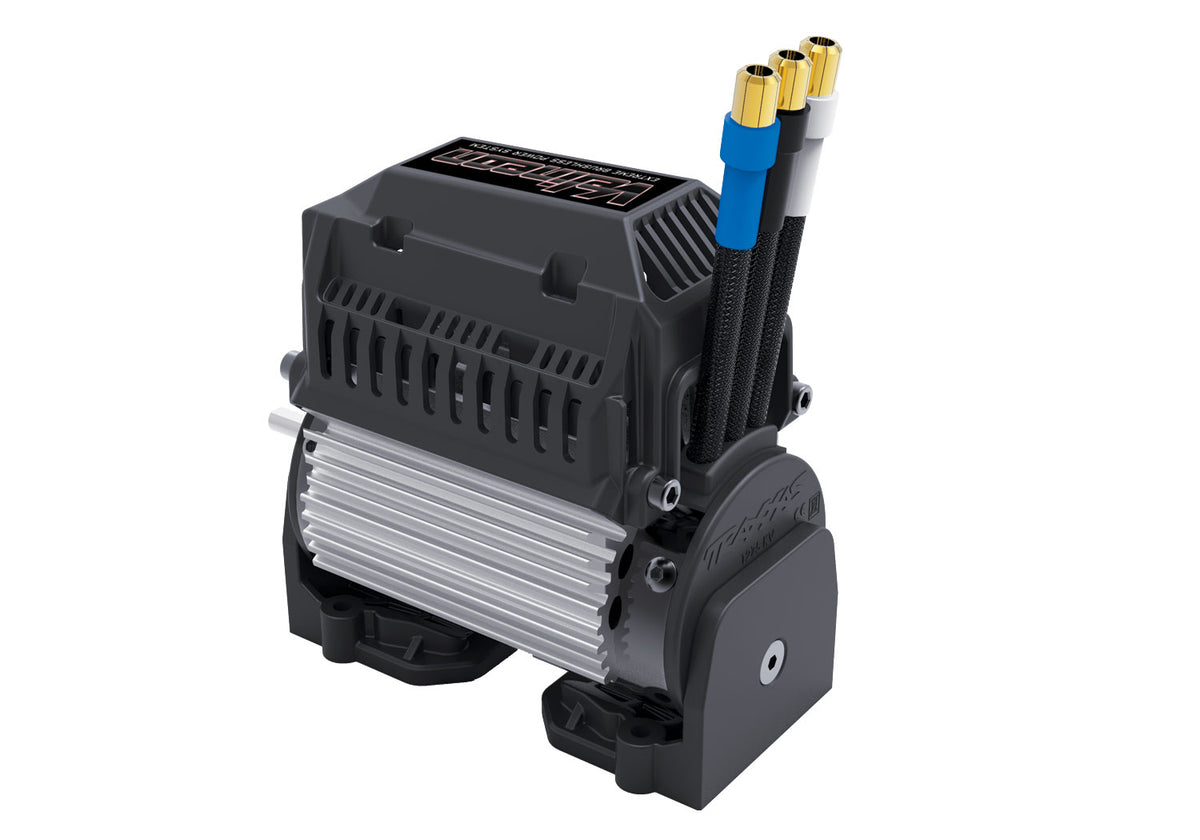

Velineon 1200XL Brushless Motor

The Big Block Velineon 1200XL brushless motor delivers 4-pole 1275 Kv power through a 5 mm output shaft, with an aluminum slip-on heat sink and dual motor cooling fans for sustained high-performance runs.

TRX Stability Management

TSM helps prevent spinouts and loss of control, adjustable from off to 100% assistance directly from the transmitter.

TQi 2.4 GHz High Output Radio System

TRX Link enabled with fail-safe security and integrated telemetry ports. Automatically stores and loads settings for up to 30 TRX Link-enabled models. Features a multi-function knob, adjustable dual rates and exponential, and installed BEC voltage and motor temperature sensors.

Clipless Body Mount System

Quick one-hand installation and removal using a pivoting rear latch mechanism. The system eliminates body posts and clips entirely.

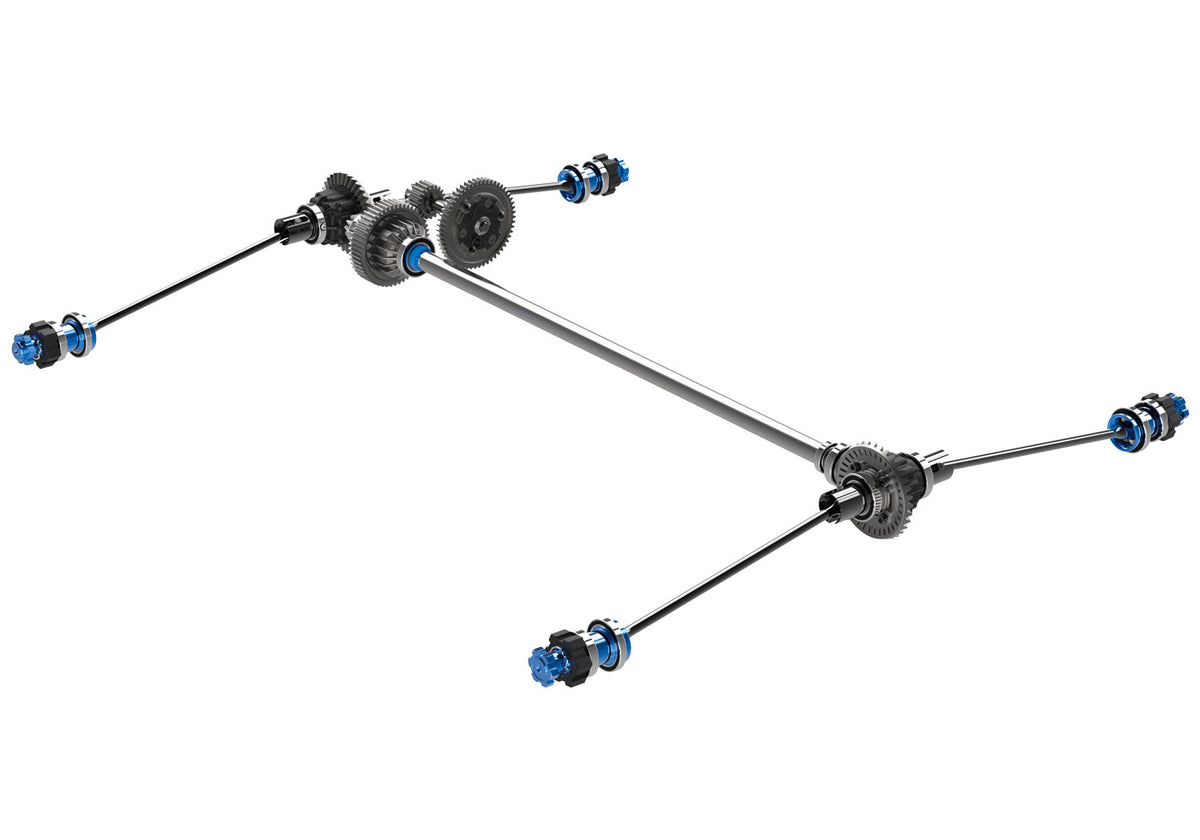

Driveline

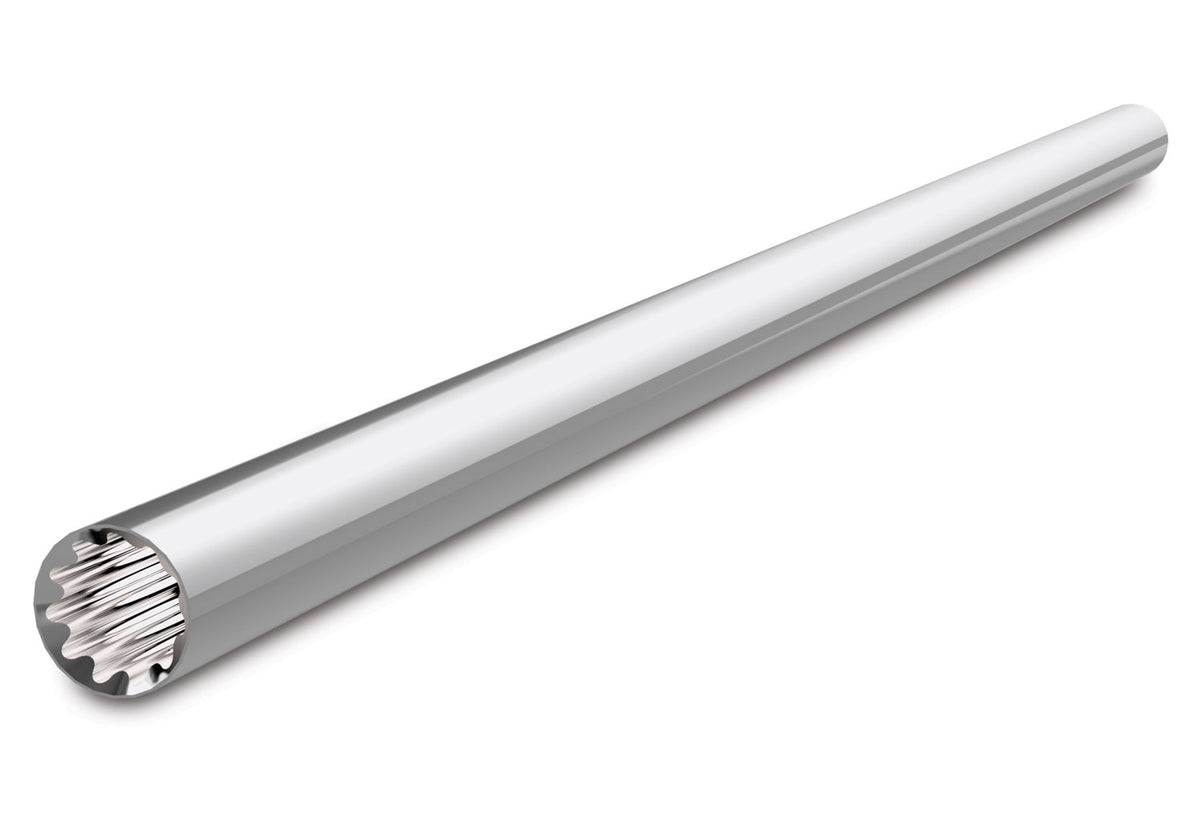

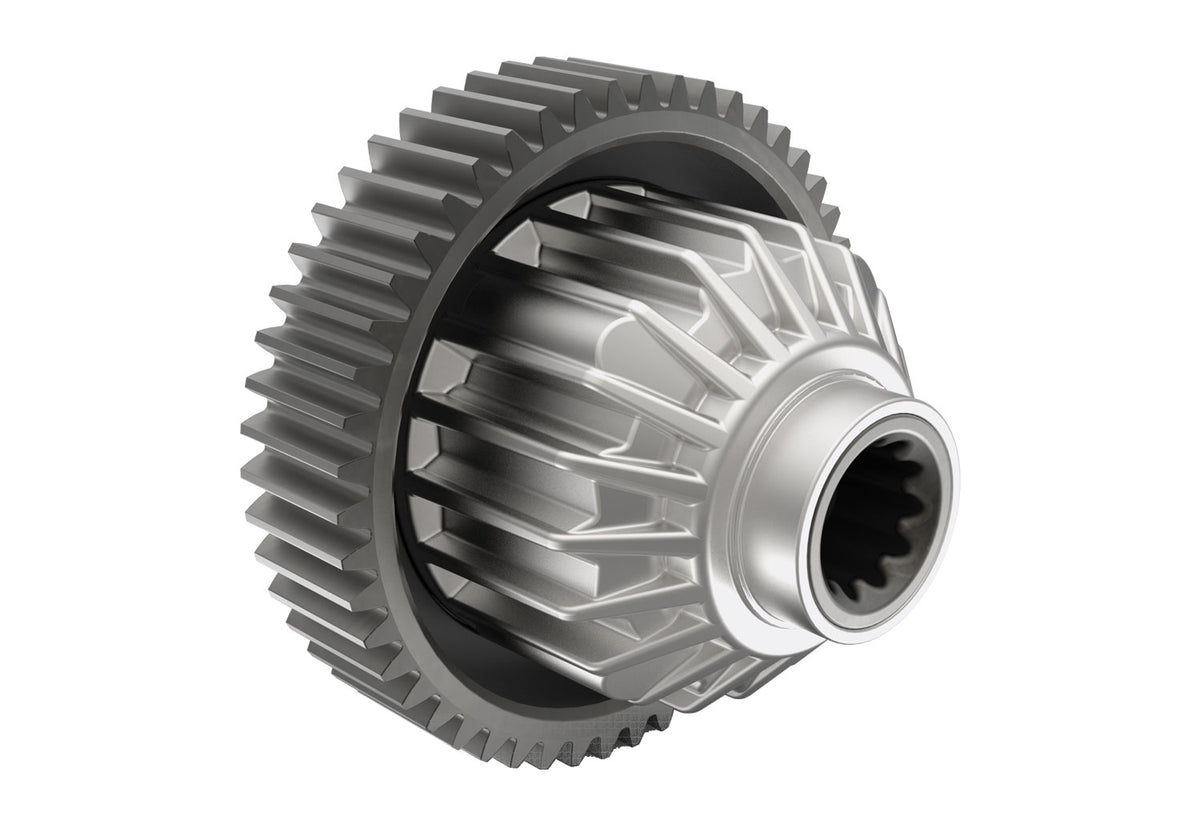

Full-time shaft-driven 4WD with Heavy-duty Cush Drive and steel spur gear. Torque-Biasing Center Drive absorbs shocks and distributes power. Sealed silicone fluid-filled differentials, overdrive gearing pre-installed, a splined aluminum center driveshaft, fully machined aluminum stub axles, and 24 mm splined wheel hexes provide durable power delivery.

Suspension

All critical suspension points feature double-shear strength with high-strength steel pins throughout. The suspension includes 4 mm machined pivot balls, fixed high-strength camber and toe links, steel upper and lower tie bars, and full-contact sealed bearings in exposed locations.

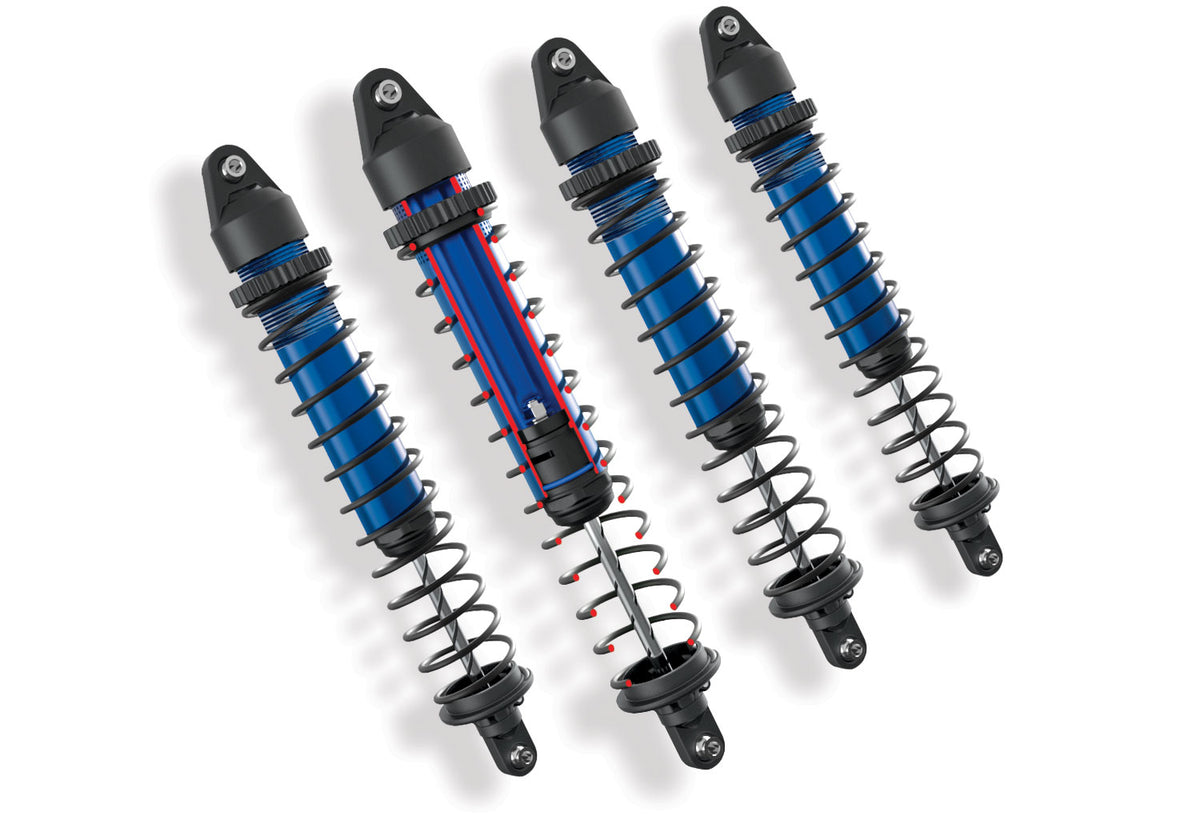

Large-Scale GTX Shocks

Machined aluminum threaded bodies feature an extra-large bore and 5.2 mm damper shafts. Each shock includes a lower seal cartridge with integrated wiper seal, adjustable upper spring retainer, and lower spring perch bolted on.

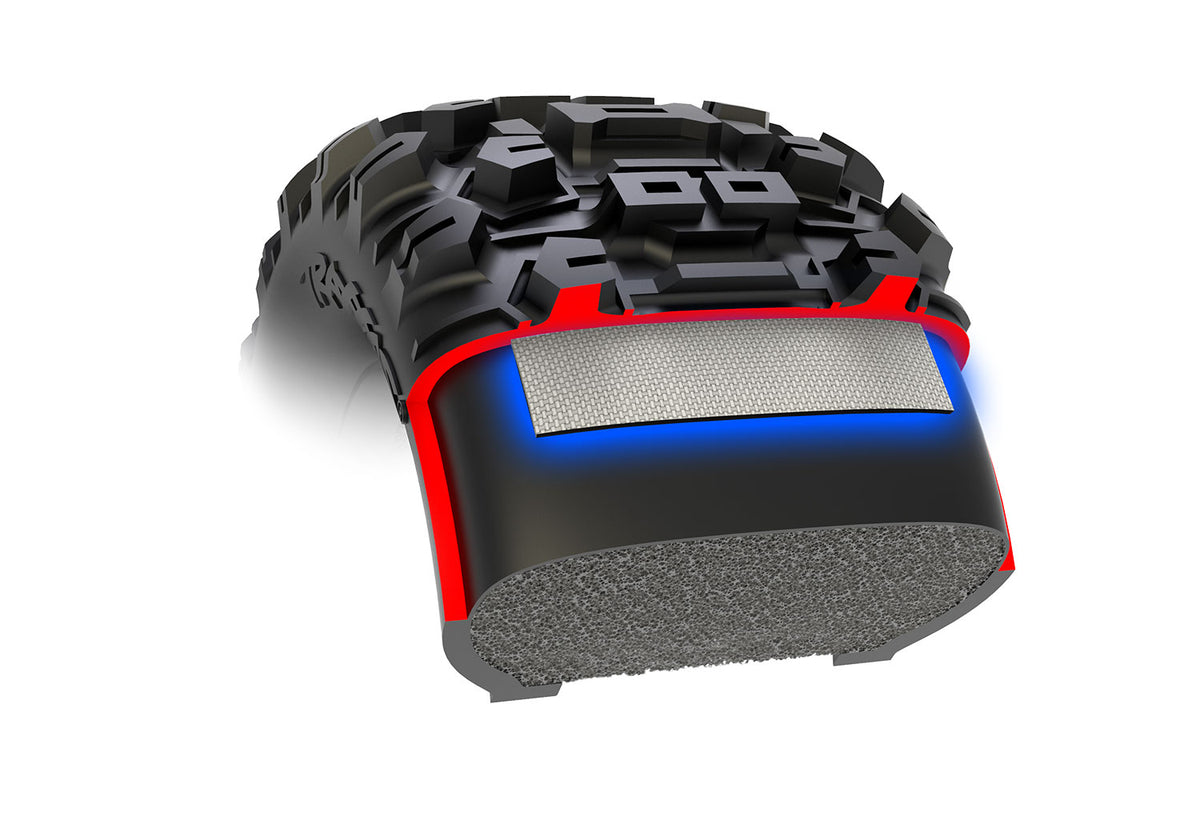

Wheels and Tires

Massive 8.4-inch Sledgehammer belted tires virtually eliminate ballooning at high speeds. The open tread-block design uses a 2-piece foam insert with high-strength glue and bead design, mounted on large dual-diameter wheels.
