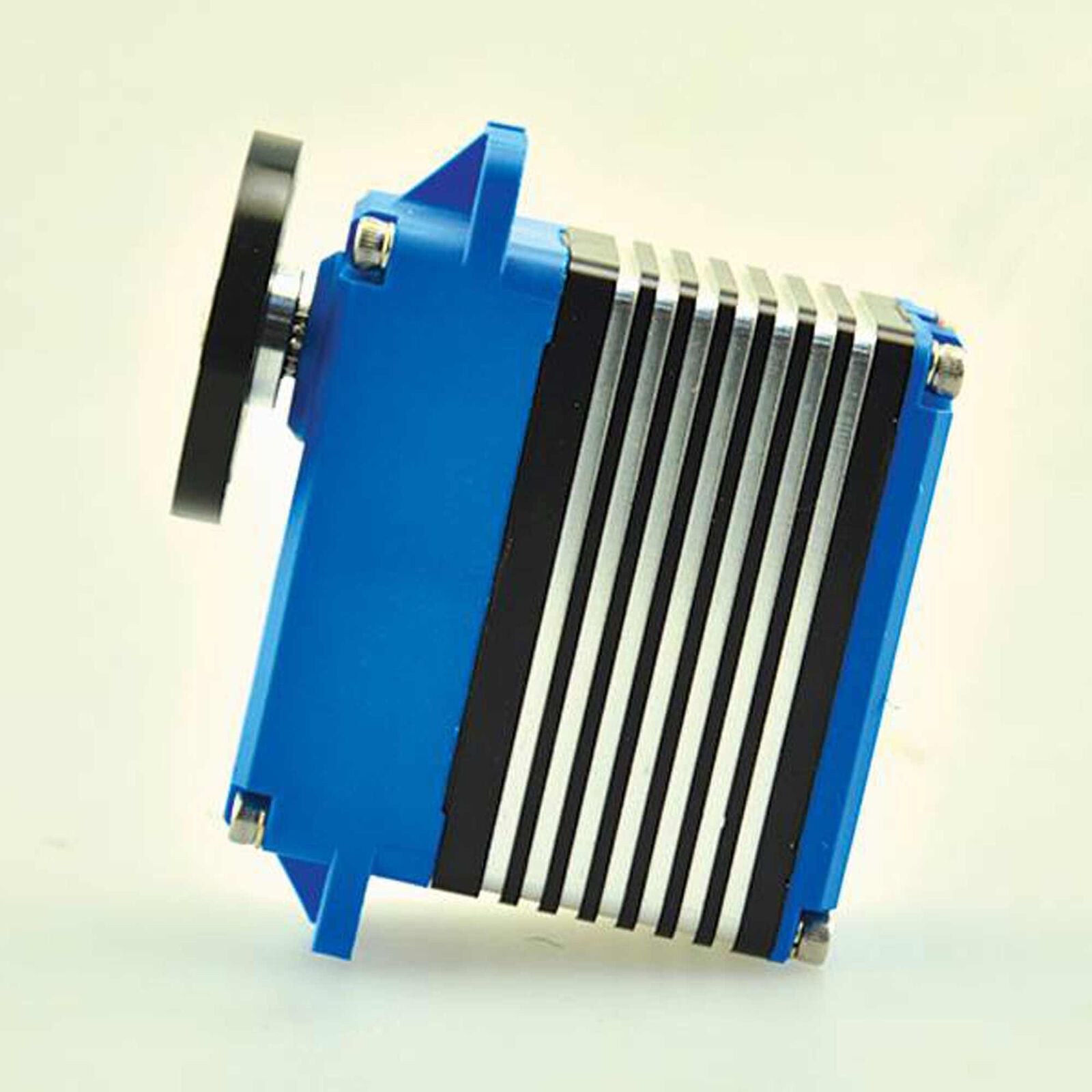

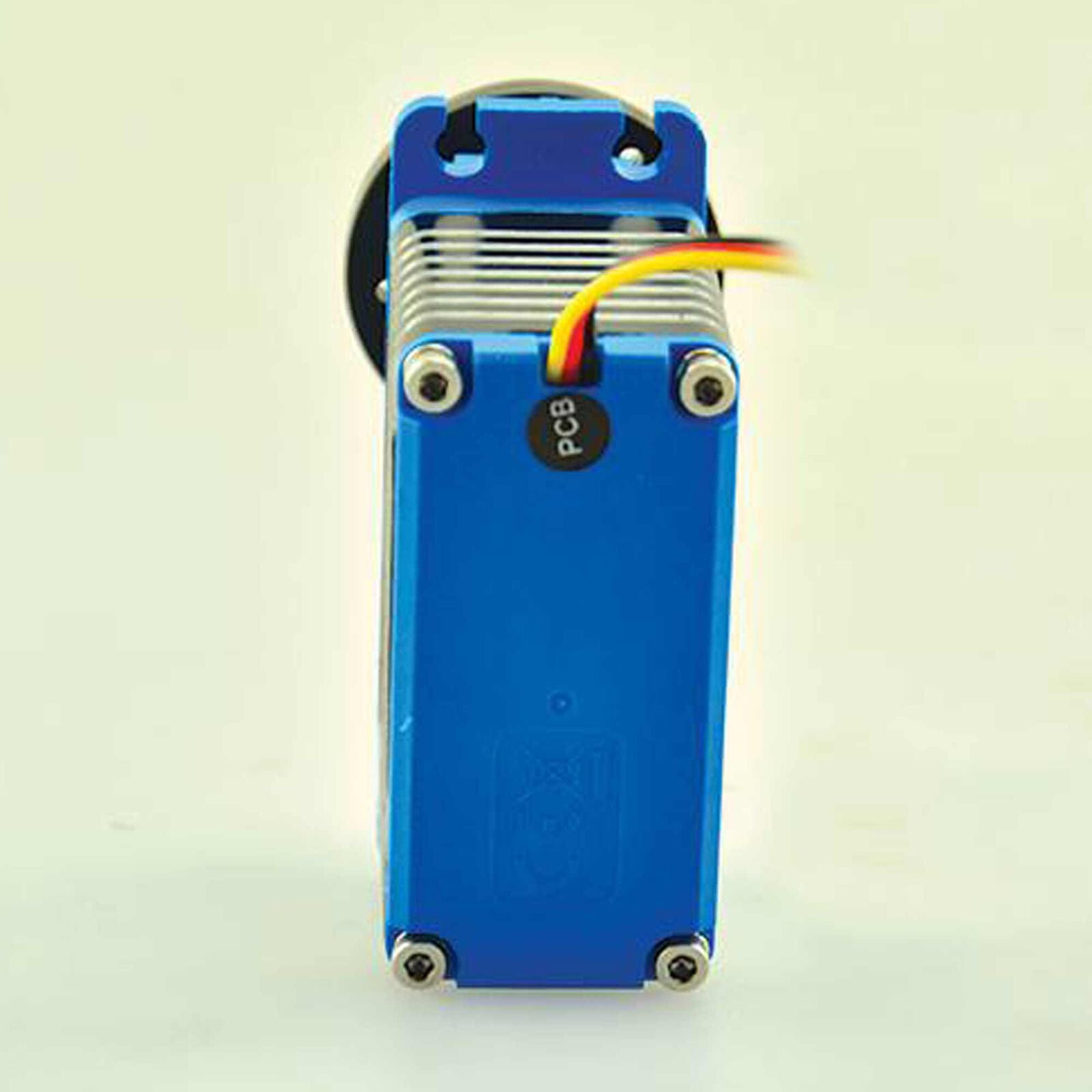

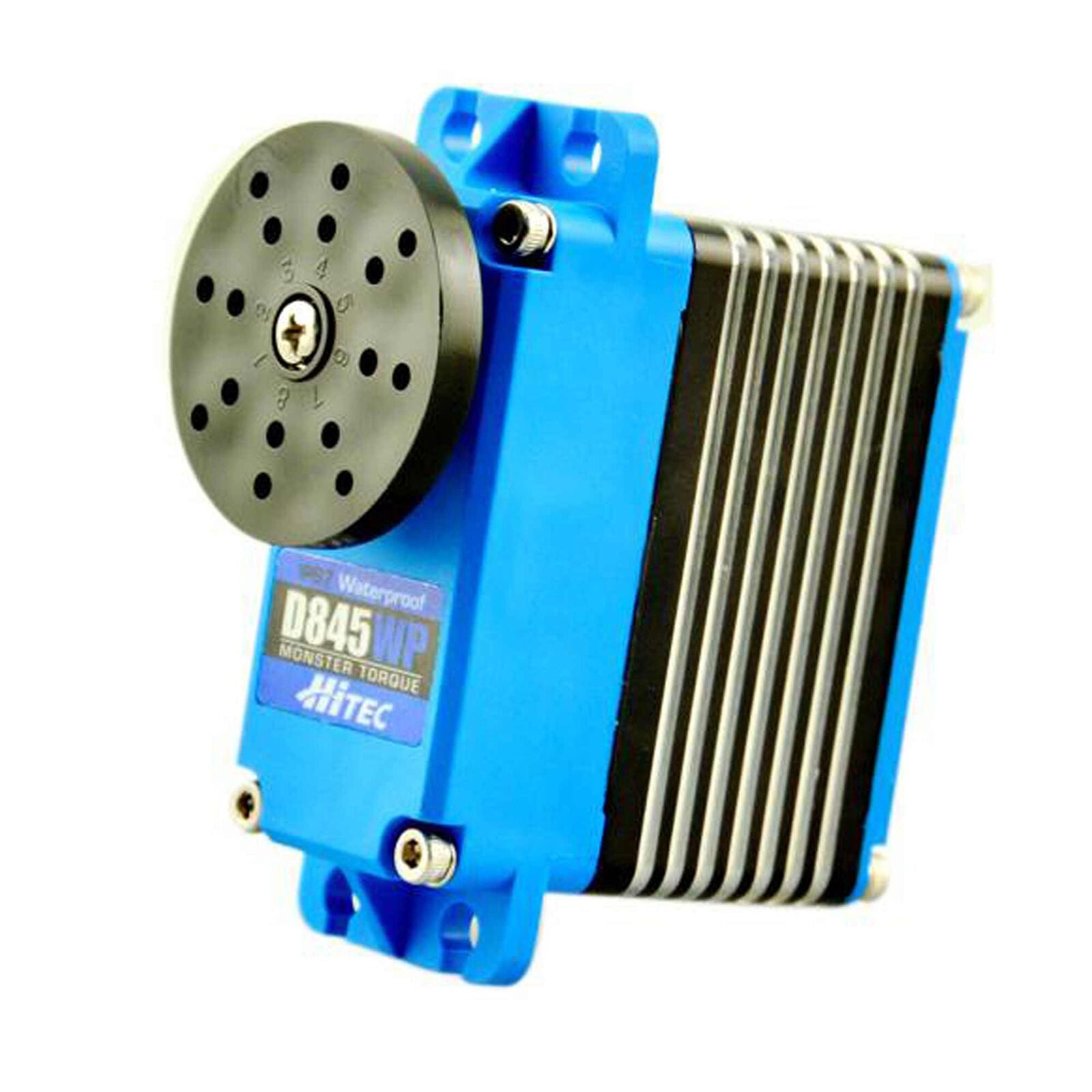

32-Bit Monster Torque WP Steel Gear Servo, D845WP

The D845WP servo is a IP-67 rated servo capable of being truly waterproof, dust resistant, and ready for 1/5th-scale Rock Crawlers and Off-Road Trucks. As with our entire “D” line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D845WP produces the mighty torque and reliability required to take bashers to the next level.

• Speed: @4.8V .26sec/60' / @7.5V .17sec/60'

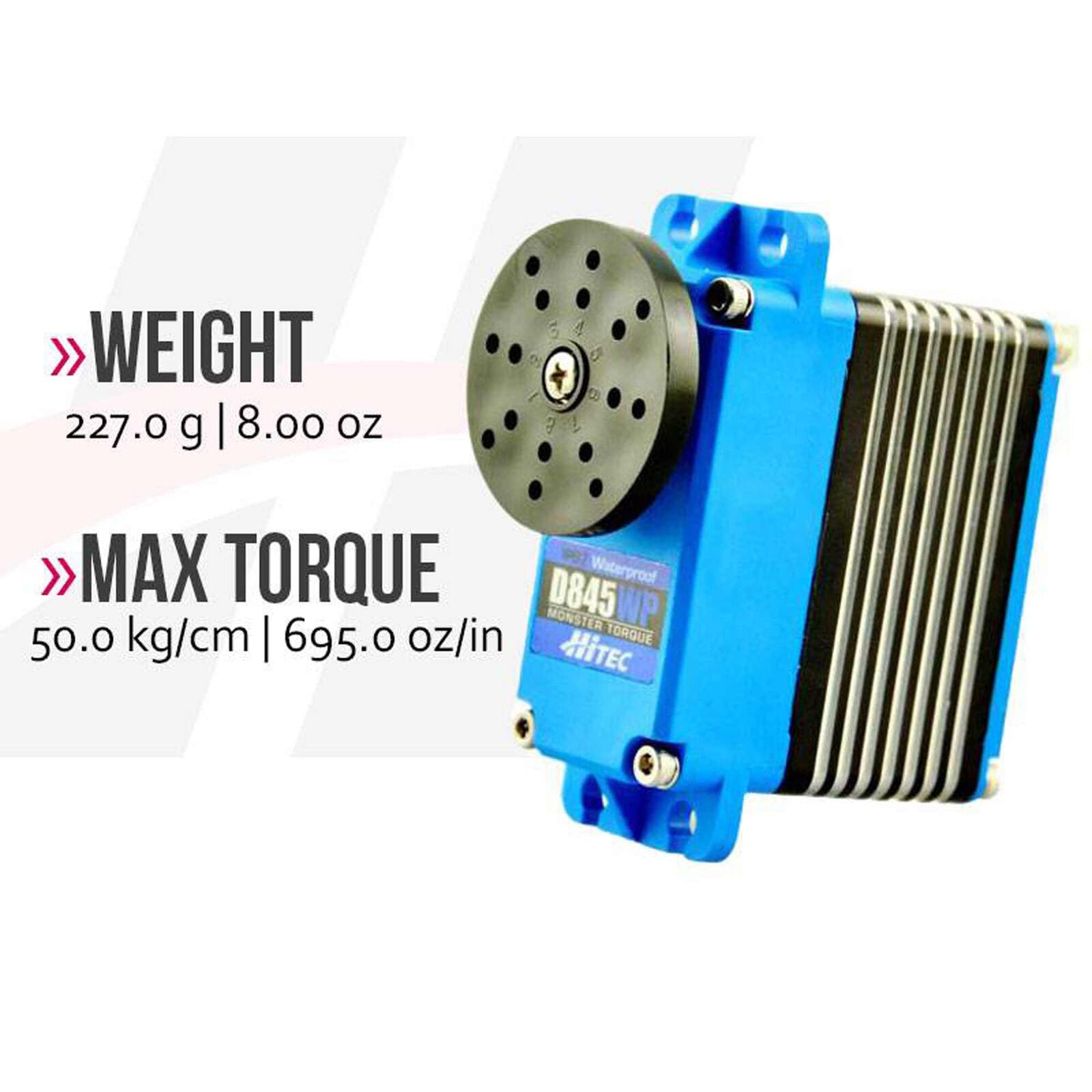

• Torque: @4.8V 452oz/in / @7.4V 695oz/in
• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• IPD 67 Rated Water Resistant and Waterproof Proof Case

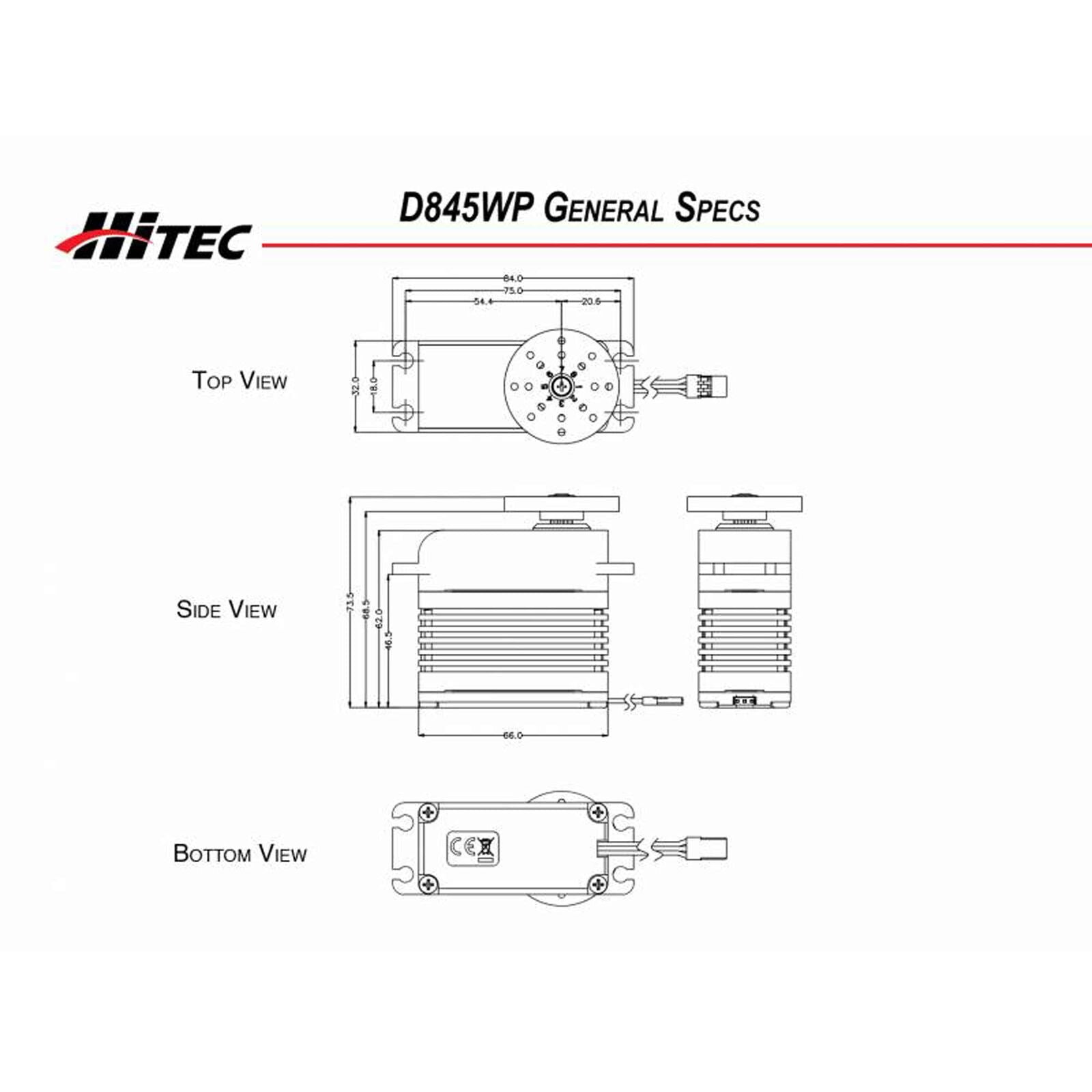

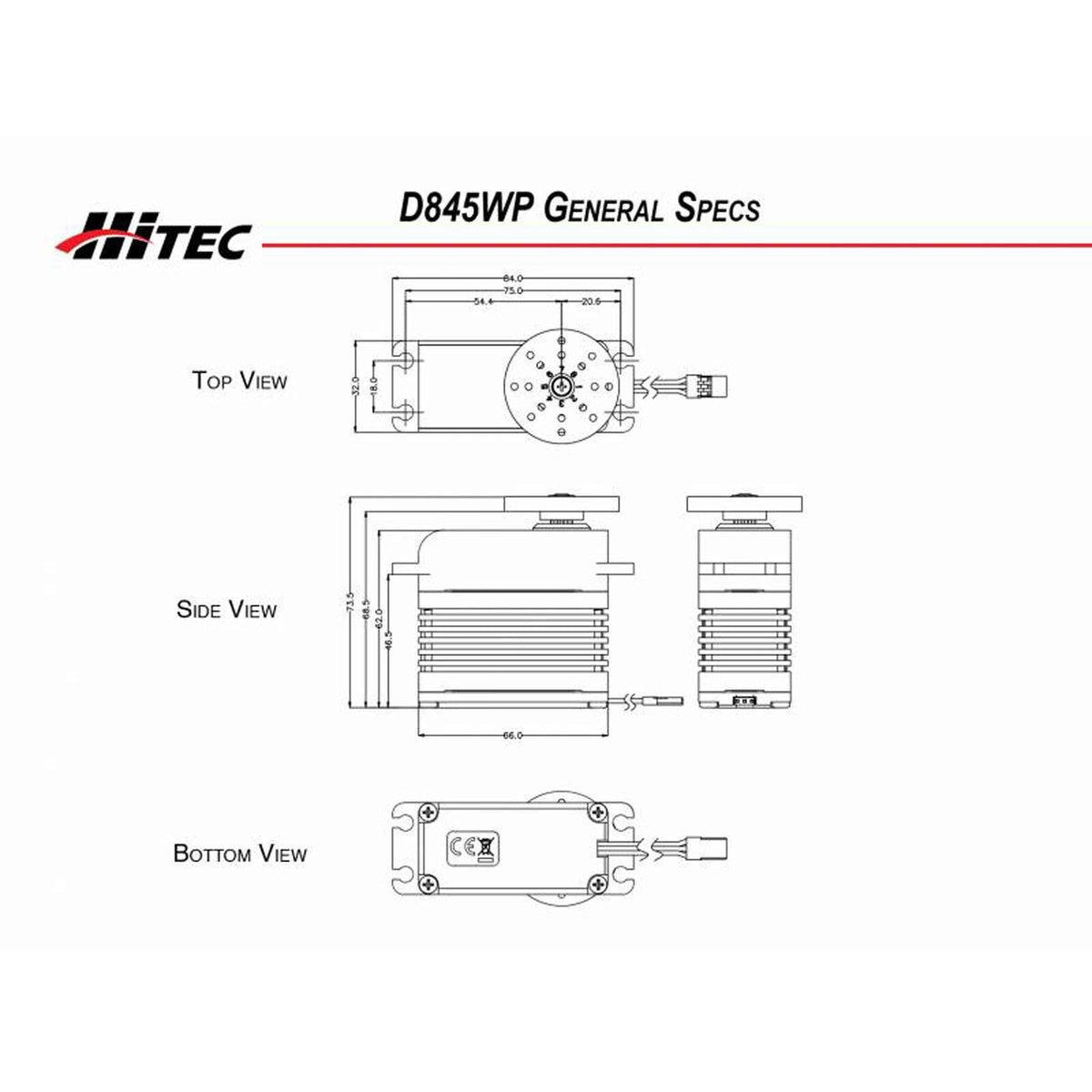

D845WP Giant Scale Digital Monster Torque Waterproof Steel Gear Servo Product Specs
