108164-1 Traxxas Mini Slash 4X4 1/16 Scale Short Course Truck –Yellow

In stock
SKU: 108164-1-YLW Barcode: 020334076779
$ 289.95

Share to

The Traxxas Mini Slash 4X4 in Orange (part number 108164-1) delivers real short course action in a compact and rugged 1/16 scale platform. Powered by the XL-2.5 waterproof ESC and Titan® 12T 550 motor, this 4WD mini truck offers big performance in a small package, reaching speeds of 30+ mph with 2-cell LiPo power (sold separately).

Built tough with independent suspension, sealed drivetrain, and officially licensed body styling, the Mini Slash 4X4 is ready to tear up the backyard, track, or street—rain or shine.

Due to the Online Sales restrictions Implemented by Traxxas®
This Item is only available for in-store pick-up
  • 30+ mph Top Speed
  • BL-2s™ Waterproof Electronic Speed Control
    • Heat sink accepts accessory cooling fan (3340)
    • Three programmable drive profiles
      • Sport Mode - forward / brake / reverse
      • Race Mode - forward / brake
      • Training Mode™ - 50% forward / brake / 50% reverse
    • Traxxas EZ-Set® one-button setup
    • Built-in two-stage low-voltage detection

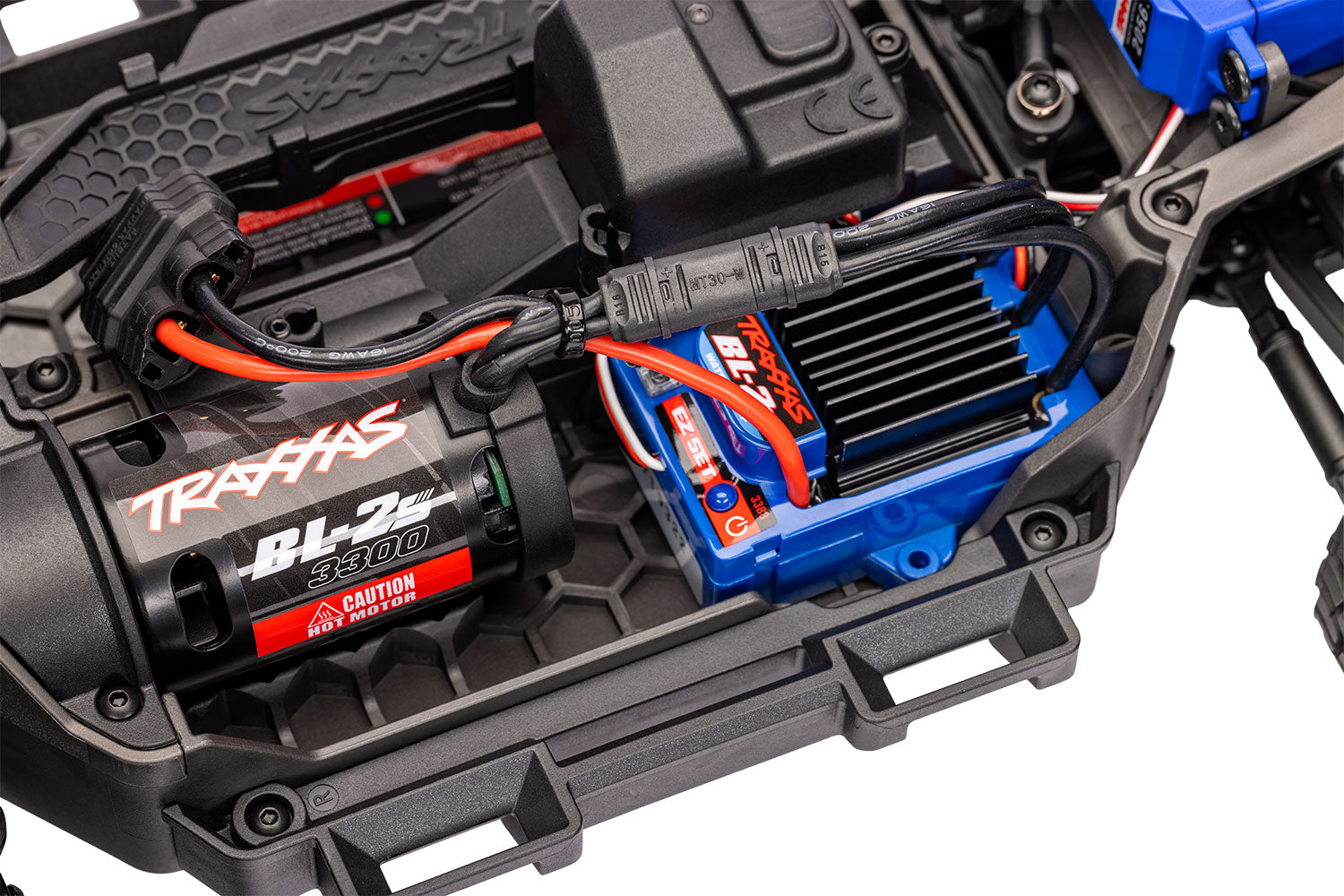

  • BL-2s™ Brushless Motor
    • Integrated cooling fan
    • Low-maintenance design
    • Efficient ball bearings
    • 3300 Kv
  • Battery and Charger Included
    • High-capacity 2-cell LiPo battery
      • 7.4 volts
      • 3500 mAh for extended run time
    • 2-amp USB-C charger
    • iD® technology for faster, safer charging
  • TQ™ 2.4 GHz Transmitter
    • Full-size 2-channel transmitter
    • All-day comfort with precise long-range control

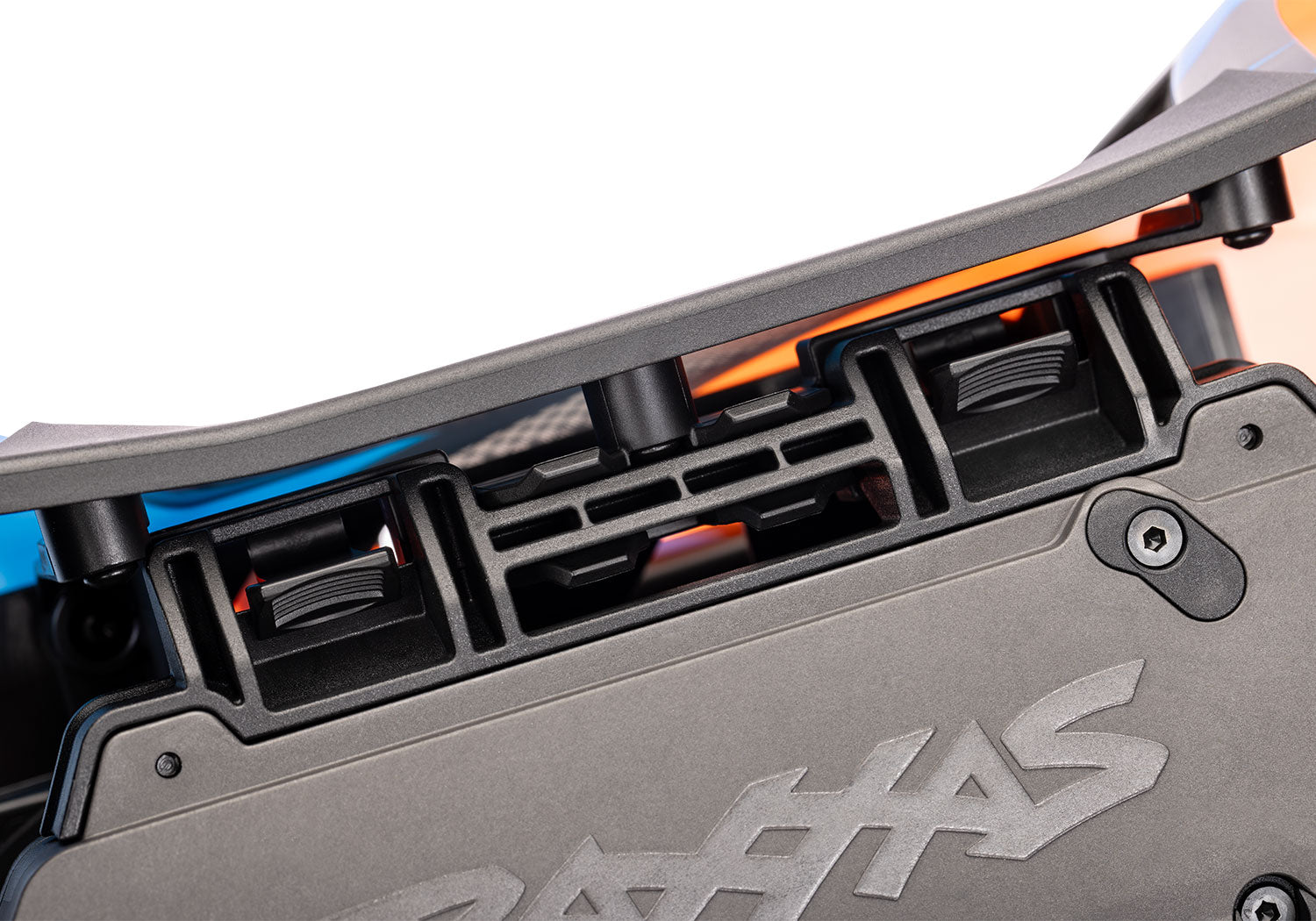

  • Clipless Body

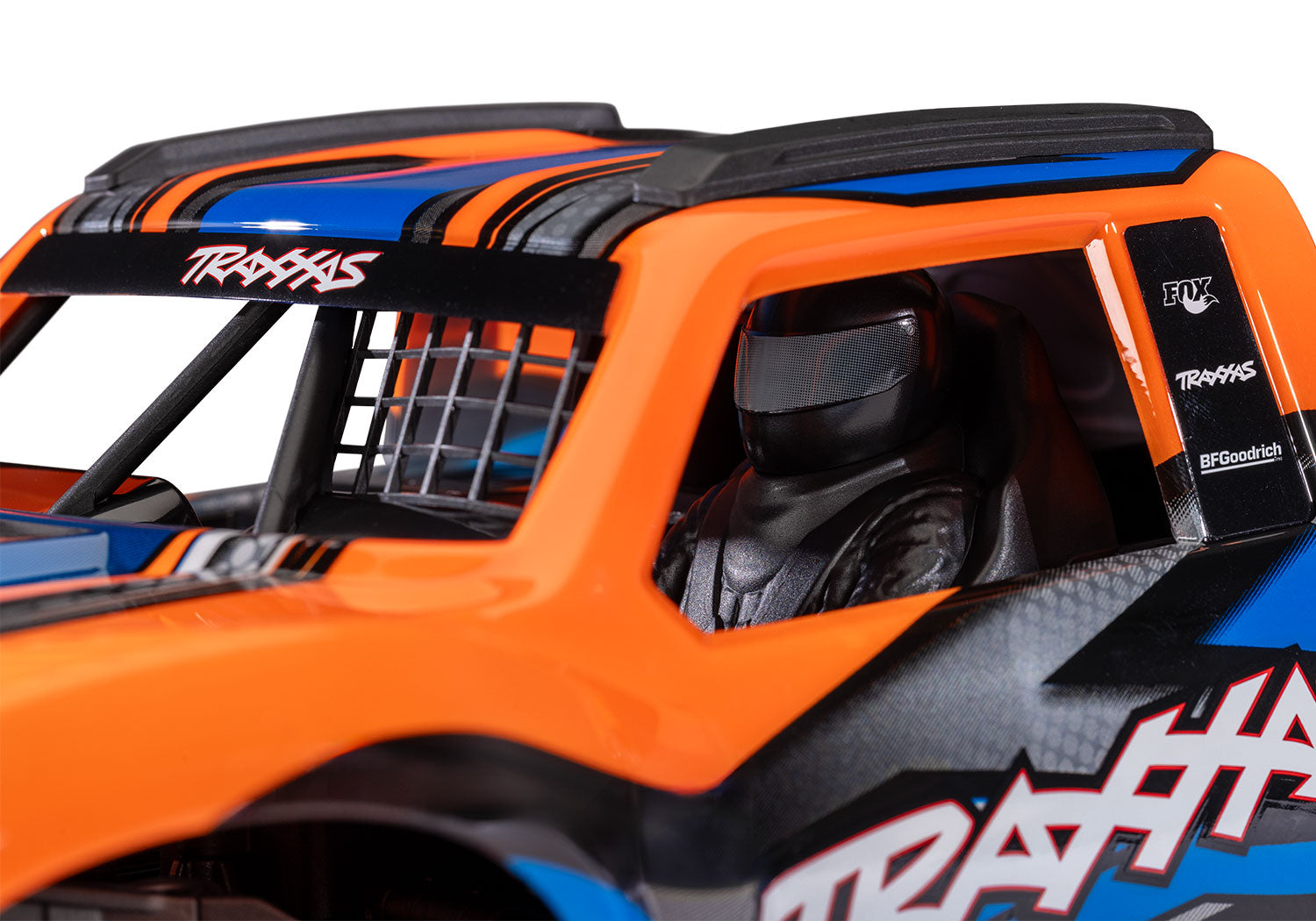

    • Realistic injection-molded interior
      • Driver figure and replica netting
      • Integrated cooling channels for ESC and motor
    • Quick and easy installation and removal
    • Nerf bar channels for side body support
    • Reinforced for extra protection against tearing
  • 1/10 Scale 4X4 Driveline
    • Full-time shaft-driven 4-wheel drive
    • 1/10 scale extreme-duty telescoping driveshafts
    • Direct drive (no transmission)
    • Fixed gear mesh system
    • Large 32-pitch gears
    • Sealed planetary steel-gear differentials
    • Fixed gear mesh system

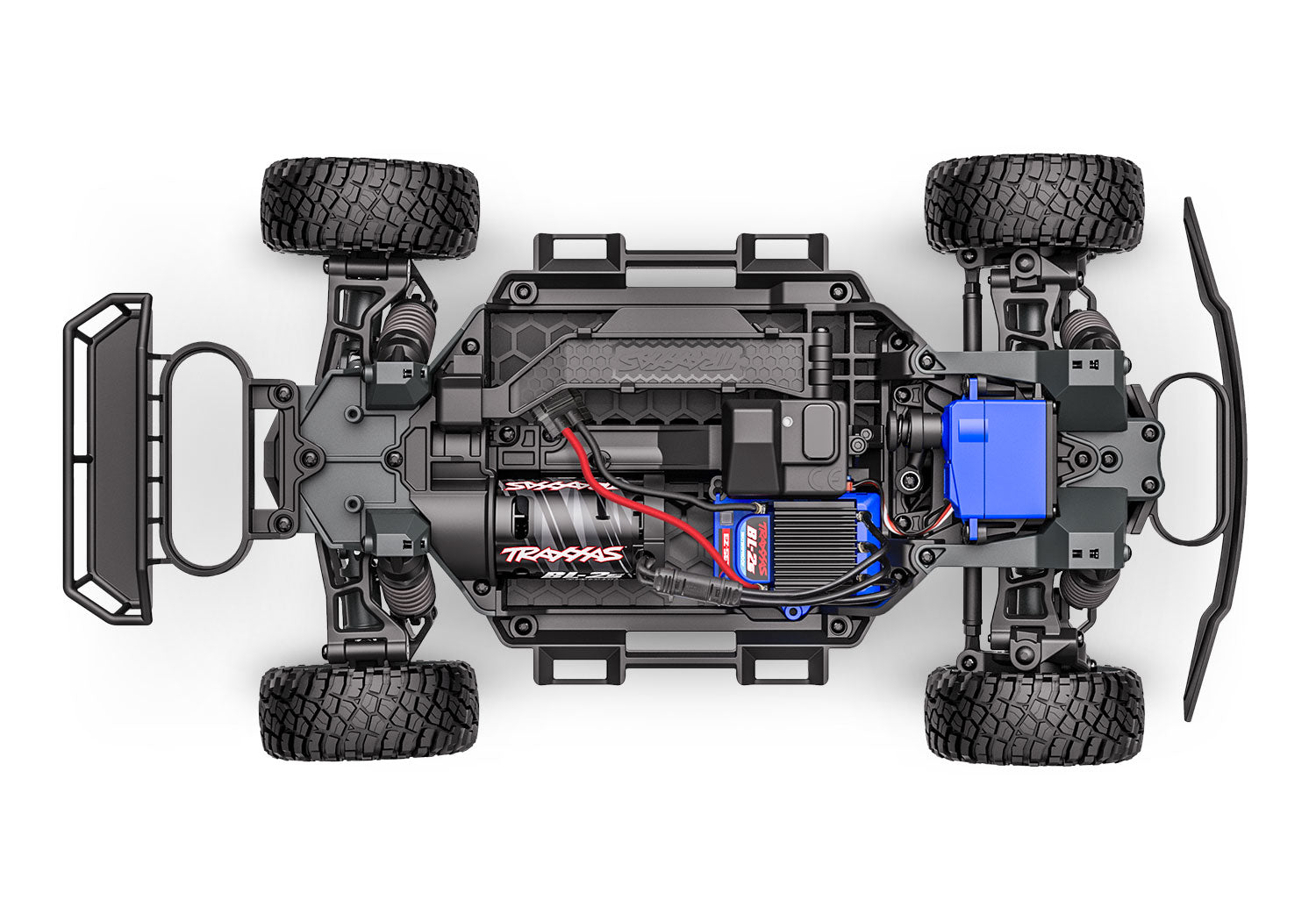

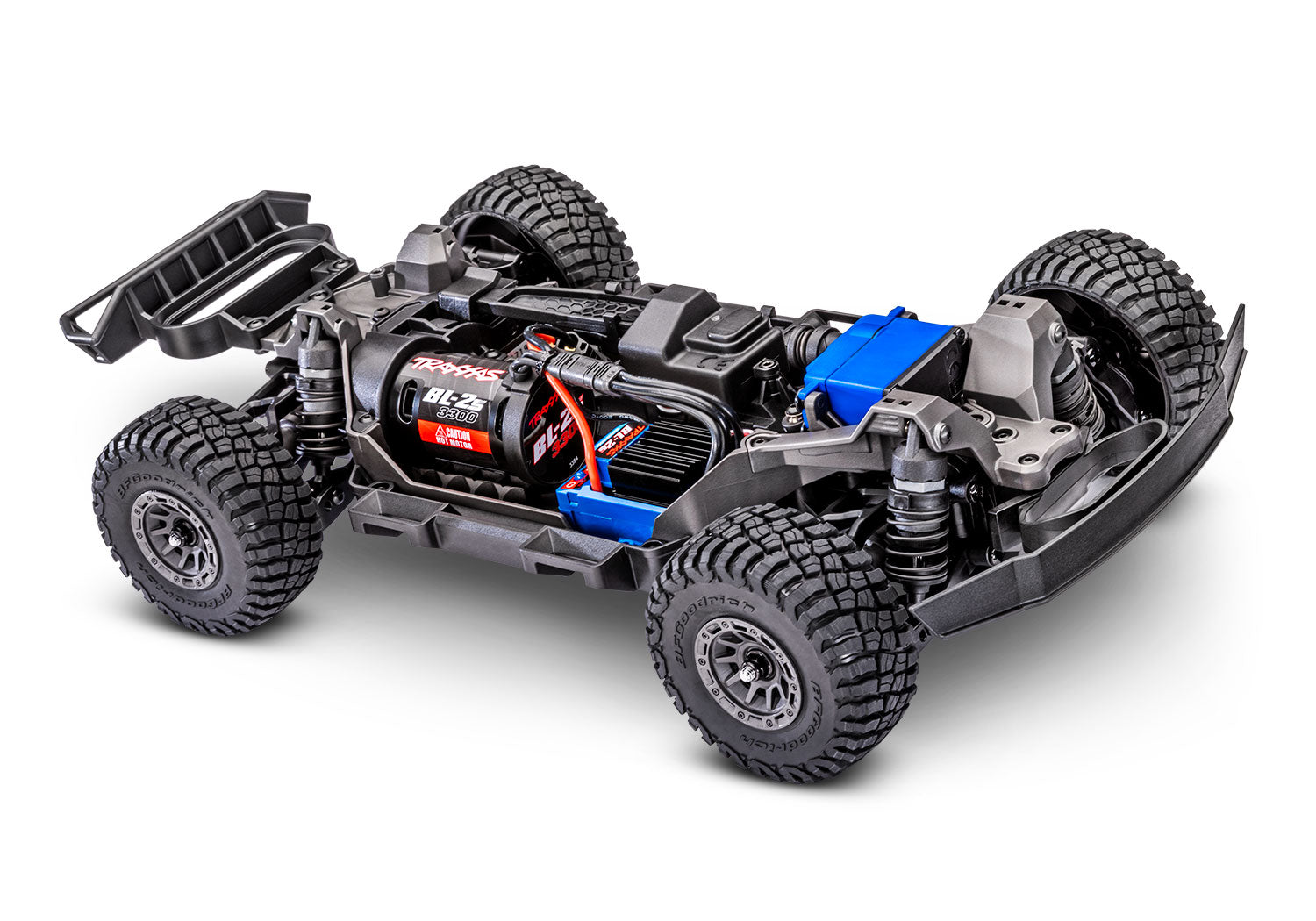

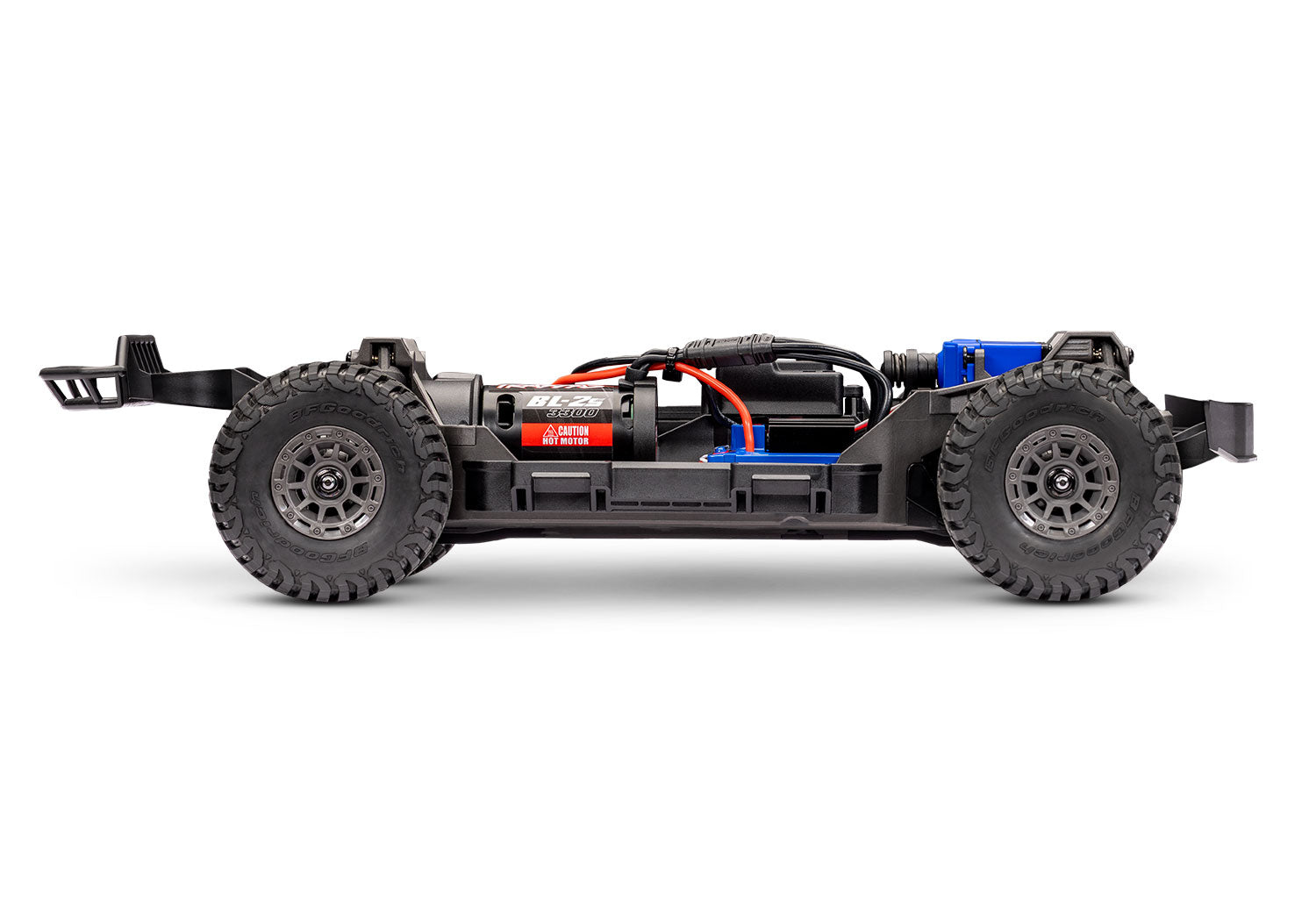

  • New Extended Mini Chassis
    • Modular chassis with interlocking front and rear bulkheads
    • Longer 235 mm wheelbase
    • Absorbs and distributes impact energy
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt
  • Easy Battery Access
    • Battery is protected deep in the chassis
    • Modular strap with removeable spacer for tall batteries
    • Battery hold-down pivots for easy access
    • More secure than conventional retention systems
  • Steering
    • 1/10 scale 2056 waterproof high-torque servo
    • Heavy-duty double-shear bellcranks
    • Cam-operated servo saver
  • Suspension
    • Heavy duty, double-shear suspension arms
    • Dual wishbone design
    • Extra tough outer suspension components
  • Oil-Filled Ultra Shocks™
    • Same construction as 1/10 shocks
    • Large oil capacity
    • Easy to tune

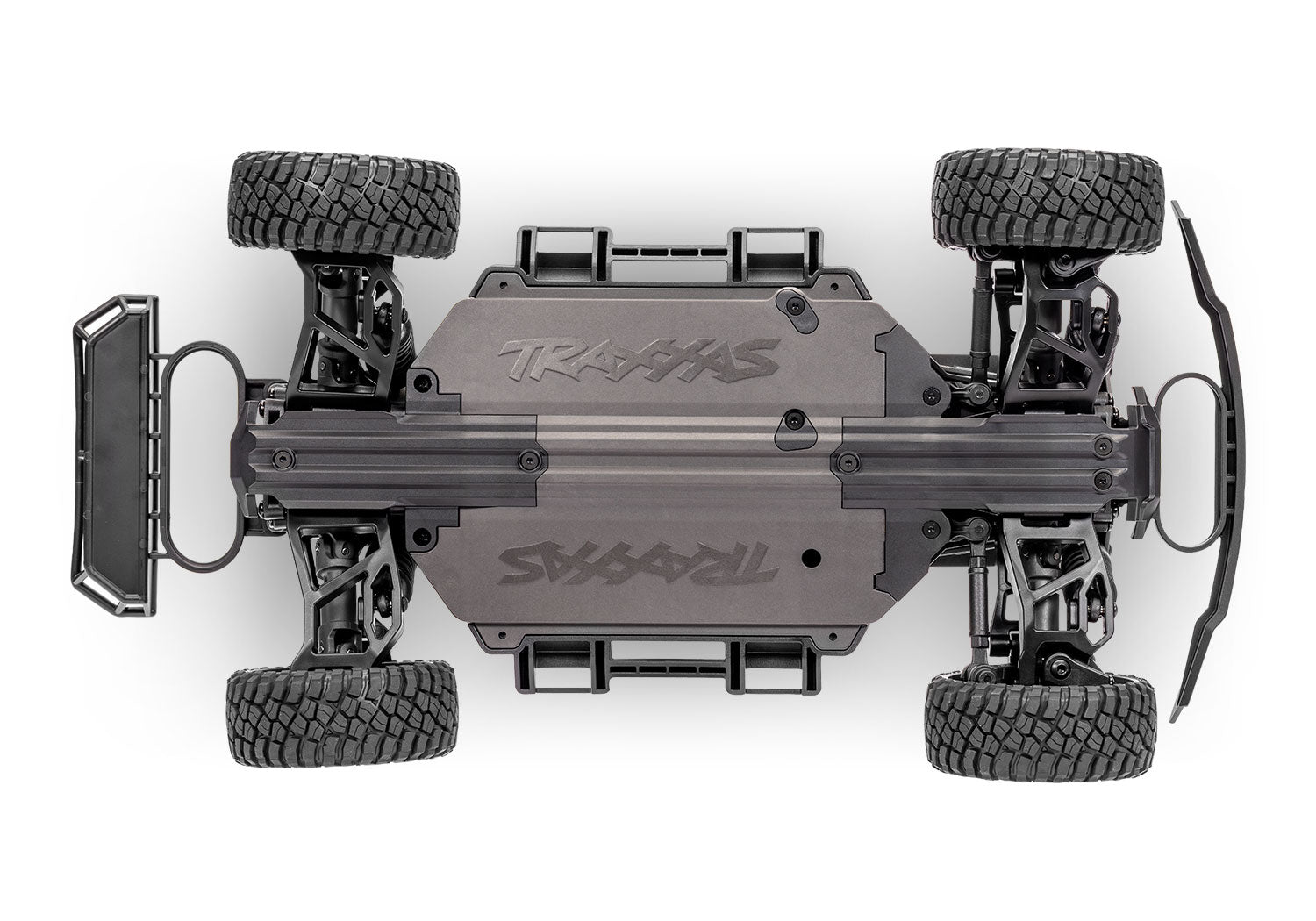

  • Bumpers and Skid Plates
    • Full-width front bumper
    • High-angle front skid plate
    • Rugged interlocking skid plates
    • Smooth undertray eliminates snags

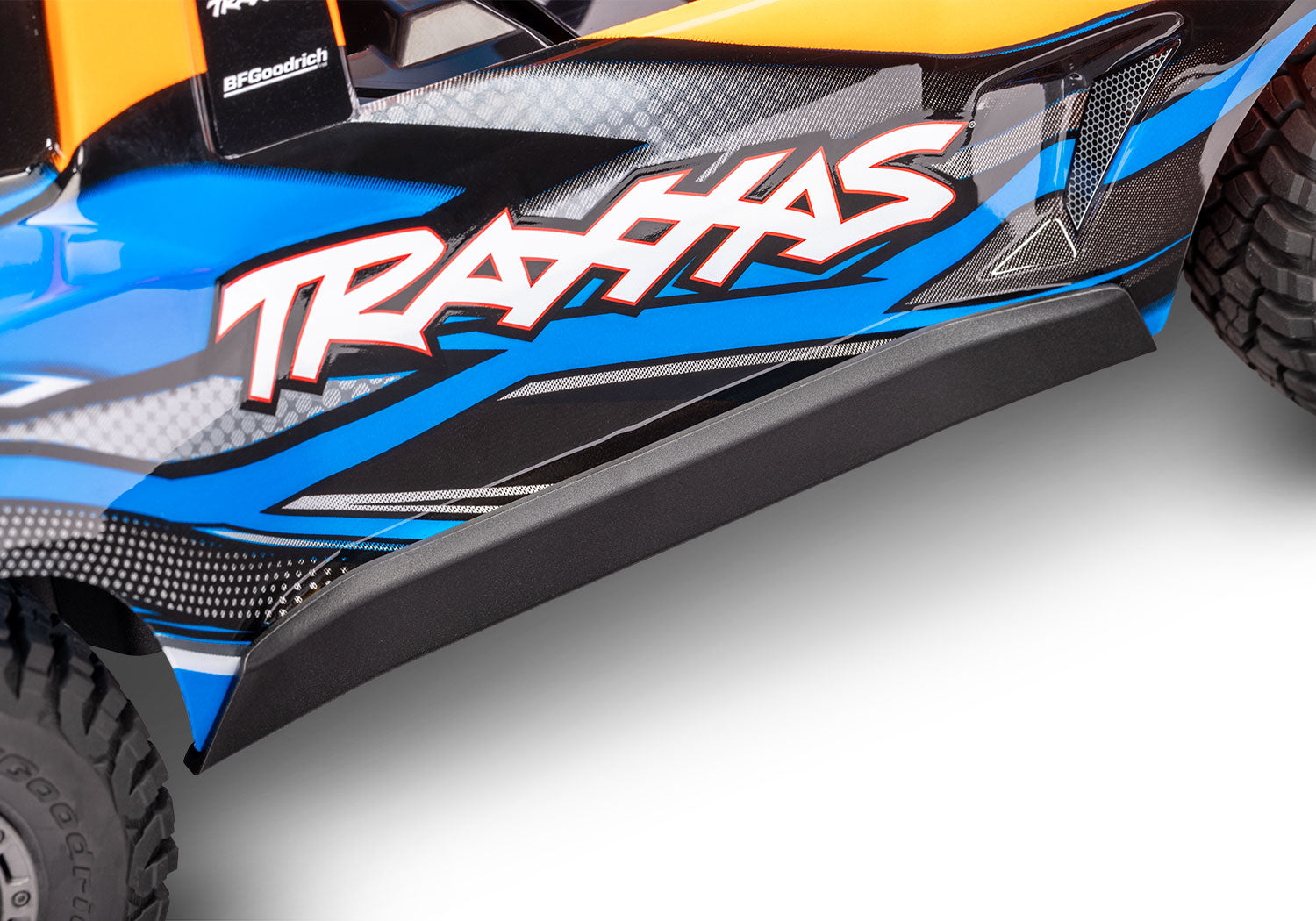

    • Integrated nerf bars for side impact resistance

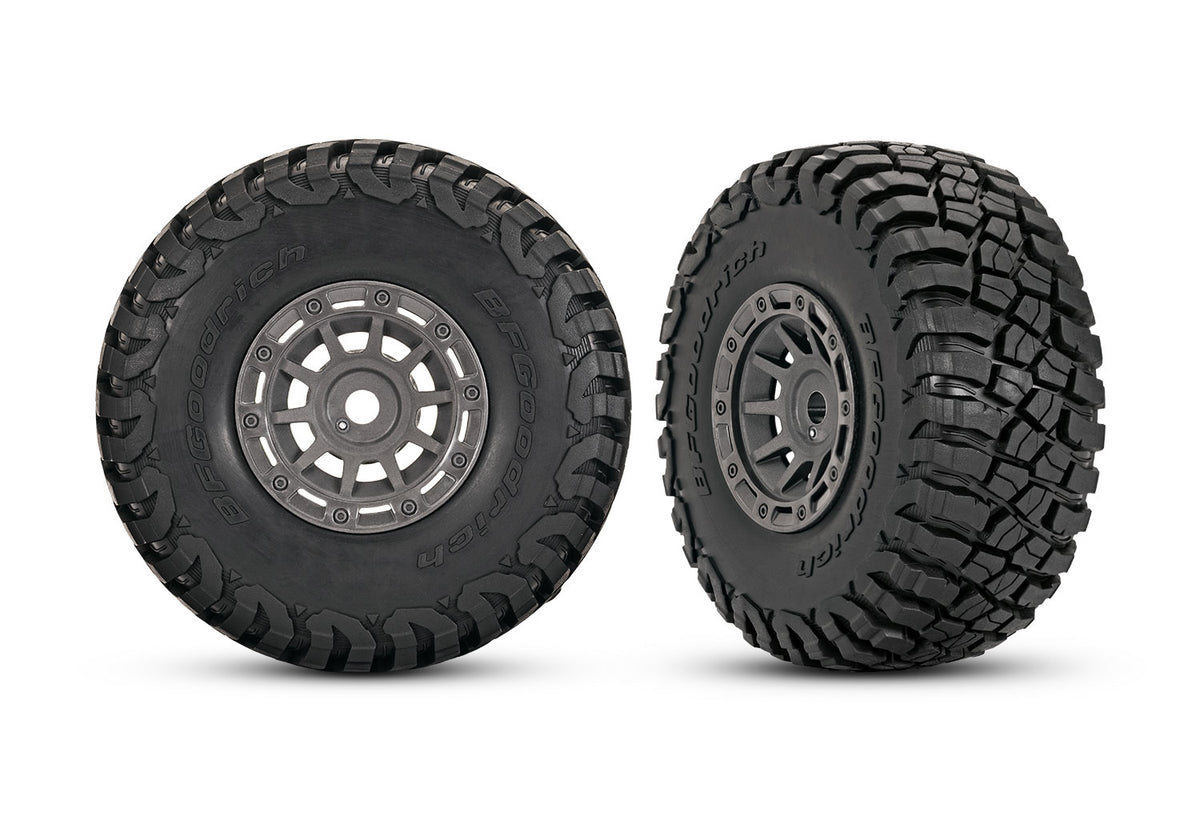

  • Wheels and Tires
    • Licensed BFGoodrich® Mud Terrain™ T/A® KM3 tires
      • Internal ribbed design with no foam inserts
      • High-traction rubber compound
    • Replica Maxx Slash wheels
  • Hex Hardware with Rust-Resistant Black Oxide Coating
  • Sealed Ball Bearings
  • Side Specs

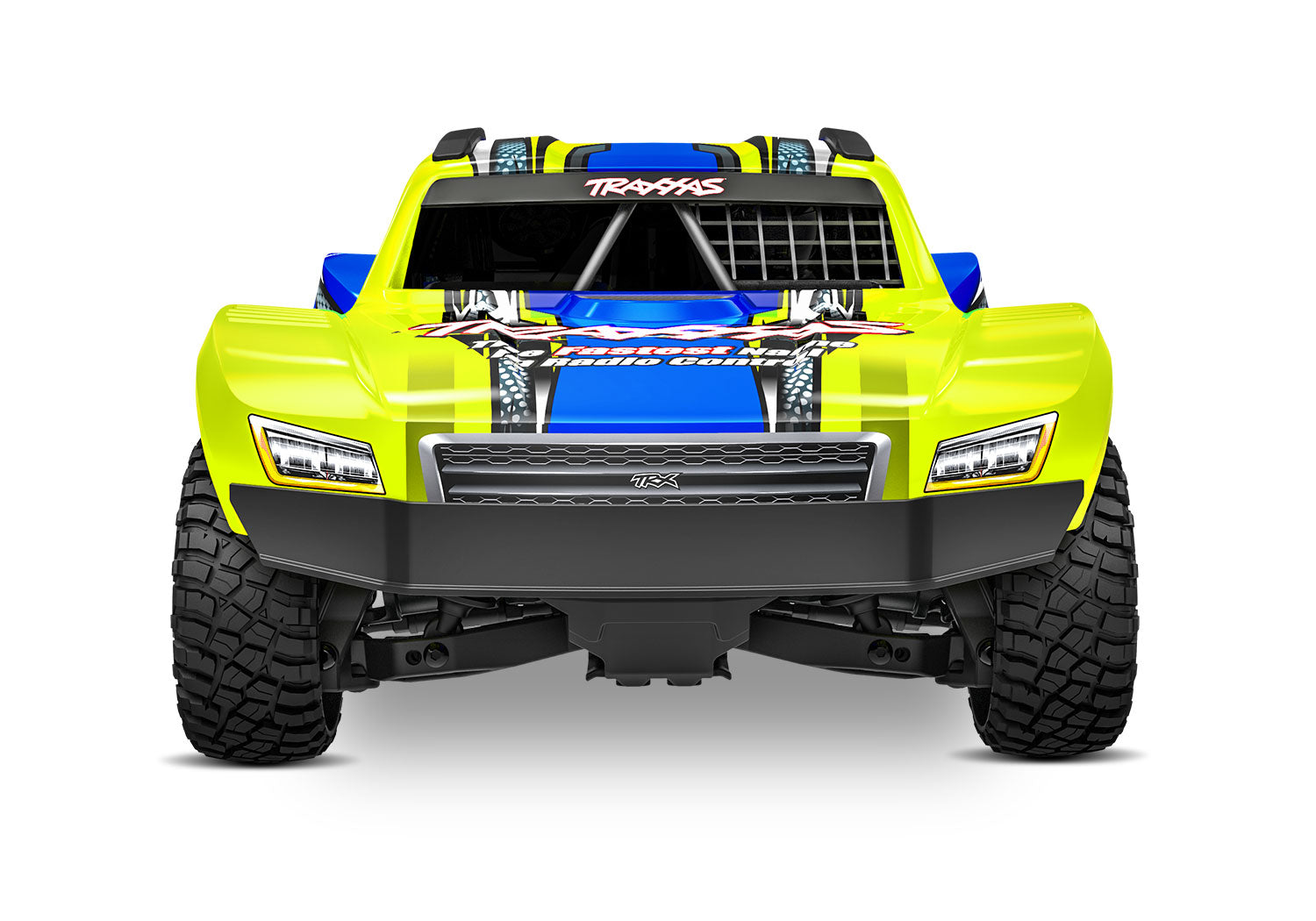

    Front Specs
    Model Name: Mini Slash 4X4
    Model Type: Short course truck
    Top Speed: 30+
    Skill Level: 1
    Scale: Mini
    Length: 16.06 inches (408 mm)
    Width: 8.46 inches (215 mm)
    Height: 5.63 inches (143 mm)
    Weight: 3.62 pounds (1.64 kg)
    Track: 7.28 inches (185 mm)

    MOTOR SPECS

    Motor Specs
    Motor Name: BL-2s 3300 Kv
    Motor Type: Sensorless brushless
    Motor Weight: 7.51 ounces (213 g)
    Motor Length: 3.15 inches (80 mm)
    Motor Diameter: 1.42 inches (36 mm)
    Motor Shaft Size: 3 mm
    Motor Connector Type: Traxxas Quick Connect Motor Plug

    ESC SPECS

    ESC Specs
    ESC Name: BL-2s Electronic Speed Control
    ESC Type: Brushless
    ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
    ESC Weight: 3.07 ounces (87 g)
    BEC Voltage: 6 volts
    Thermal Protection: Two-stage thermal shutdown
    Ports: Auxiliary fan
    Battery Connector: Traxxas High-Current Connector
