101177-4 Ford Raptor R 4X4 Ultimate Orange and Black

In stock
SKU: 101177-4-FOX2 Barcode: 020334070128
$ 649.95

Share to

  • Officially Licensed Ford® F-150® Raptor R™ Clipless Pro Scale® Body
    • Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
    • LED lighting in front and rear bumpers
    • Body reinforcements to prevent pull-through damage

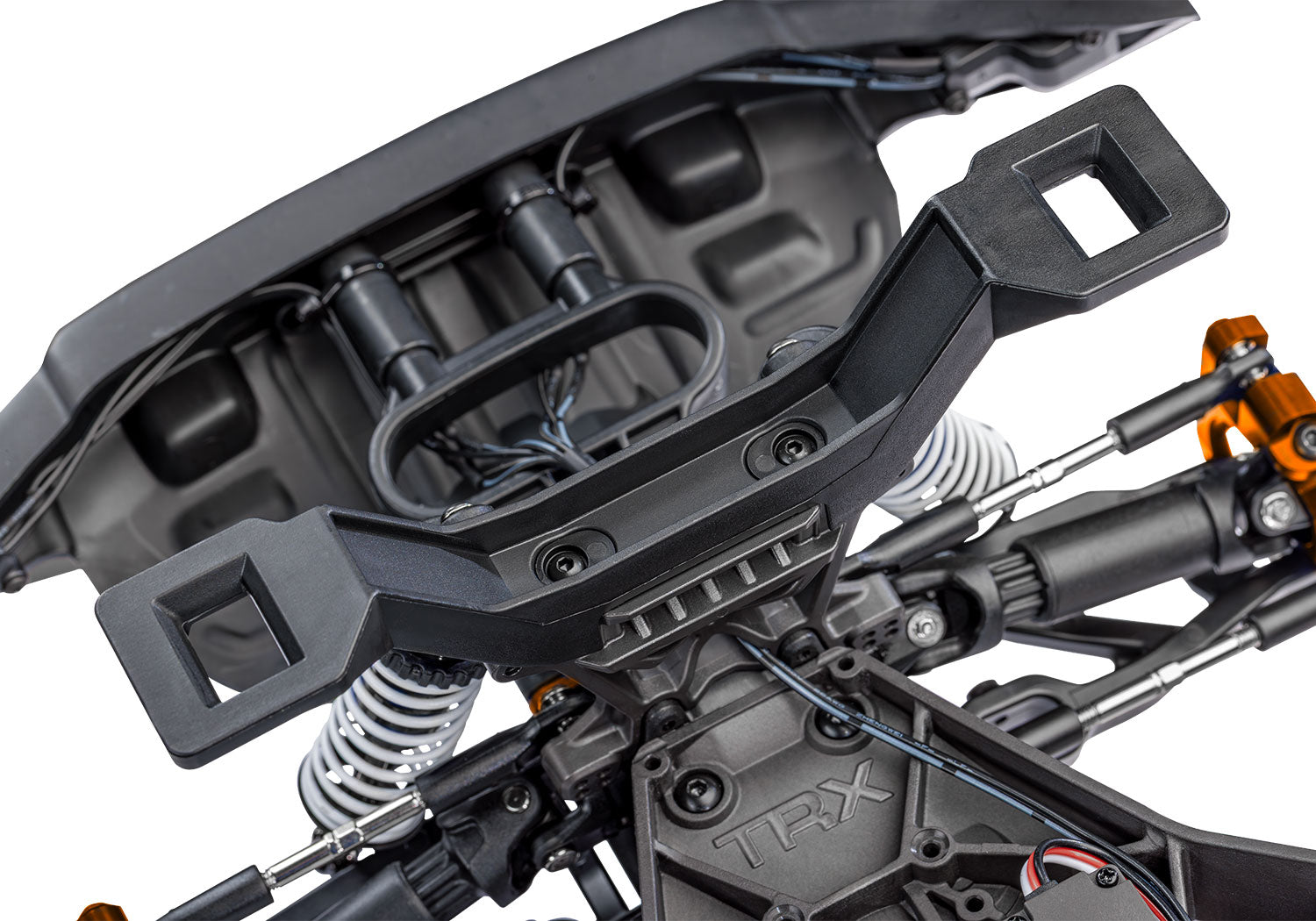

  • Clipless Body Mounting
    • Holds tight for intense action
    • Quick and easy removal
    • Smooth appearance with no body posts or clips

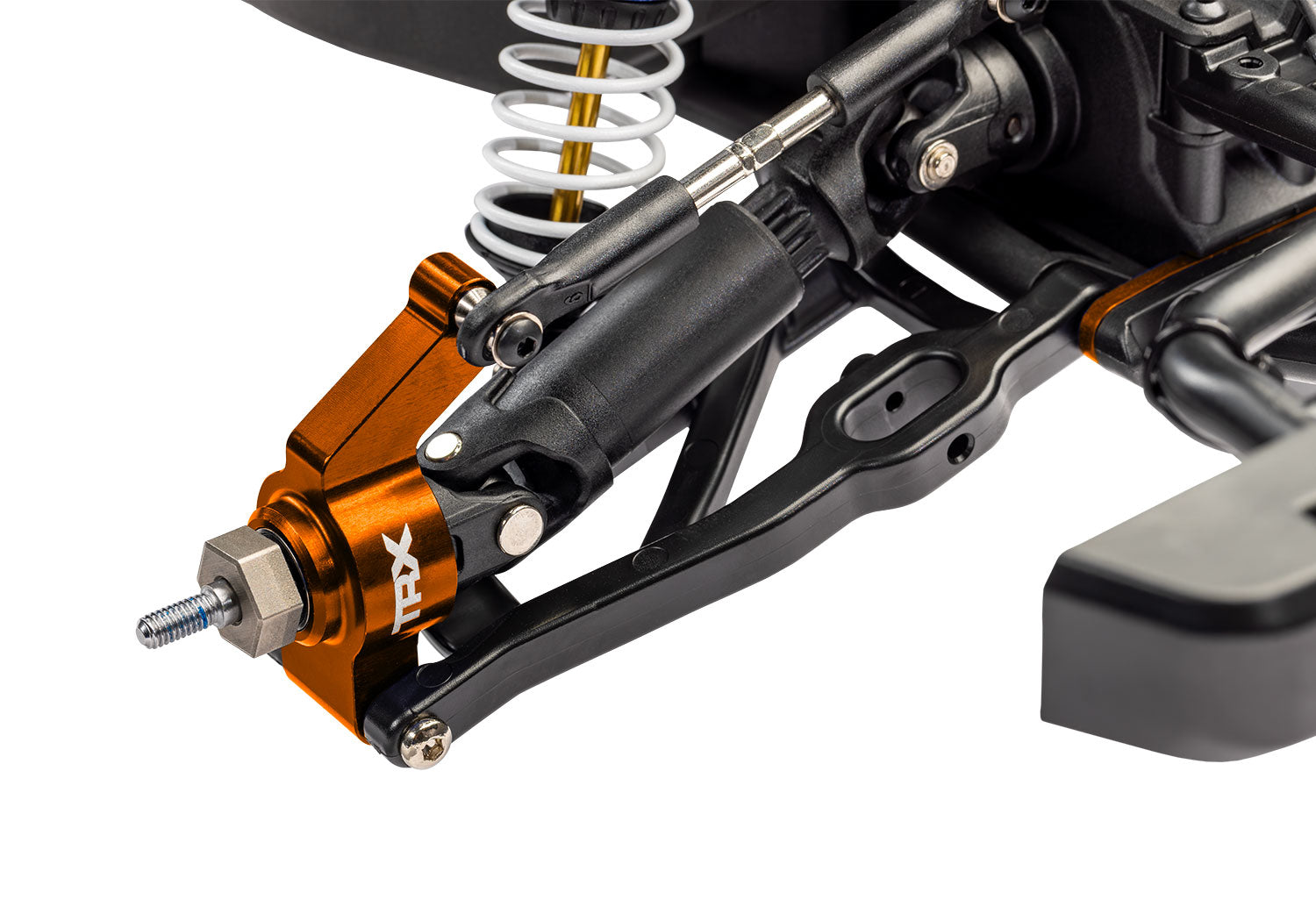

  • Color-Matched Aluminum Suspension Parts
    • 6061-T6 aluminum C-hubs
    • 6061-T6 aluminum steering blocks
    • 6061-T6 aluminum rear hub carriers

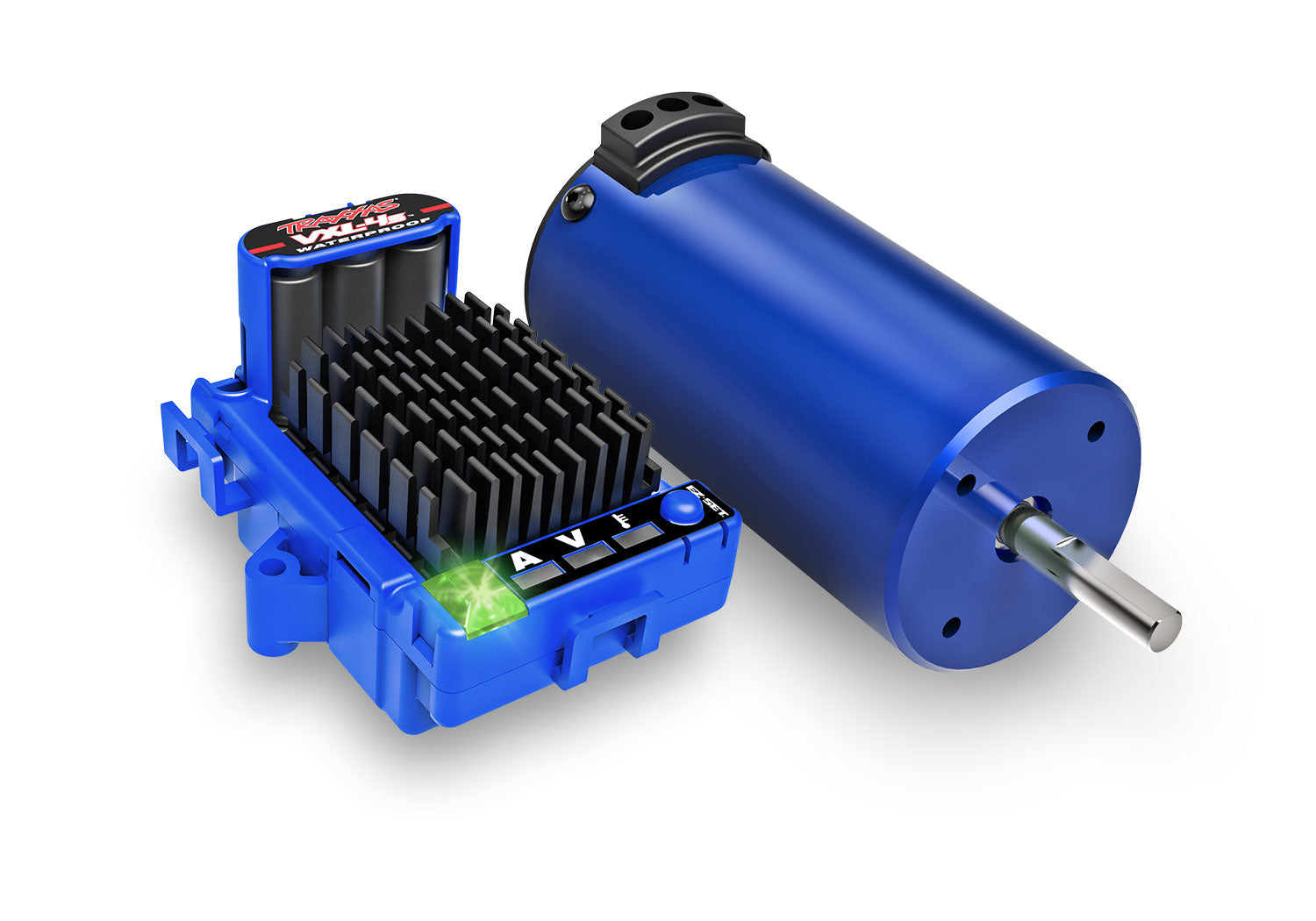

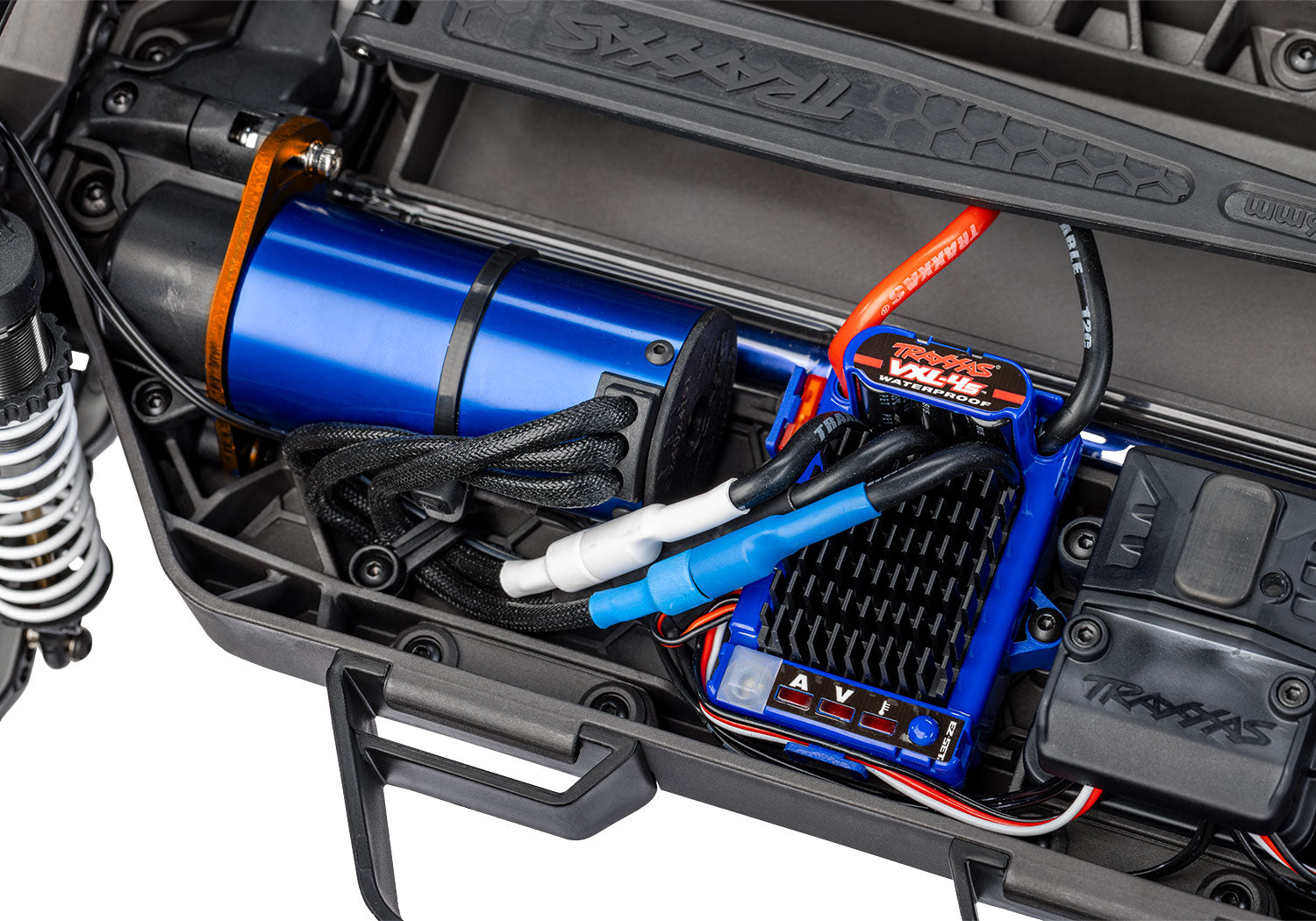

  • VXL-4s™ Waterproof Electronic Speed Control
    • 2s–4s LiPo compatible
    • Real-time telemetry via Traxxas Link™
    • Selectable 7.4-volt high-voltage BEC
    • Large Heat sink accepts accessory cooling fan (3340)
    • Three Programmable Drive Profiles
      • Sport Mode - Forward / Brake / Reverse
      • Race Mode - Forward / Brake
      • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
    • Traxxas EZ-Set® one-button setup
    • Integrated protection circuits
    • LED status lights
  • Velineon® 540XL Brushless Motor
    • Long format brushless motor
    • 4-pole 2400 Kv
    • 5 mm output shaft
    • Low-maintenance design
  • TQi™ 2.4 GHz Radio System with Wireless Module
    • Factory-installed telemetry sensors
    • TQi 2-channel high-power transmitter
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Programmable multi-function knob

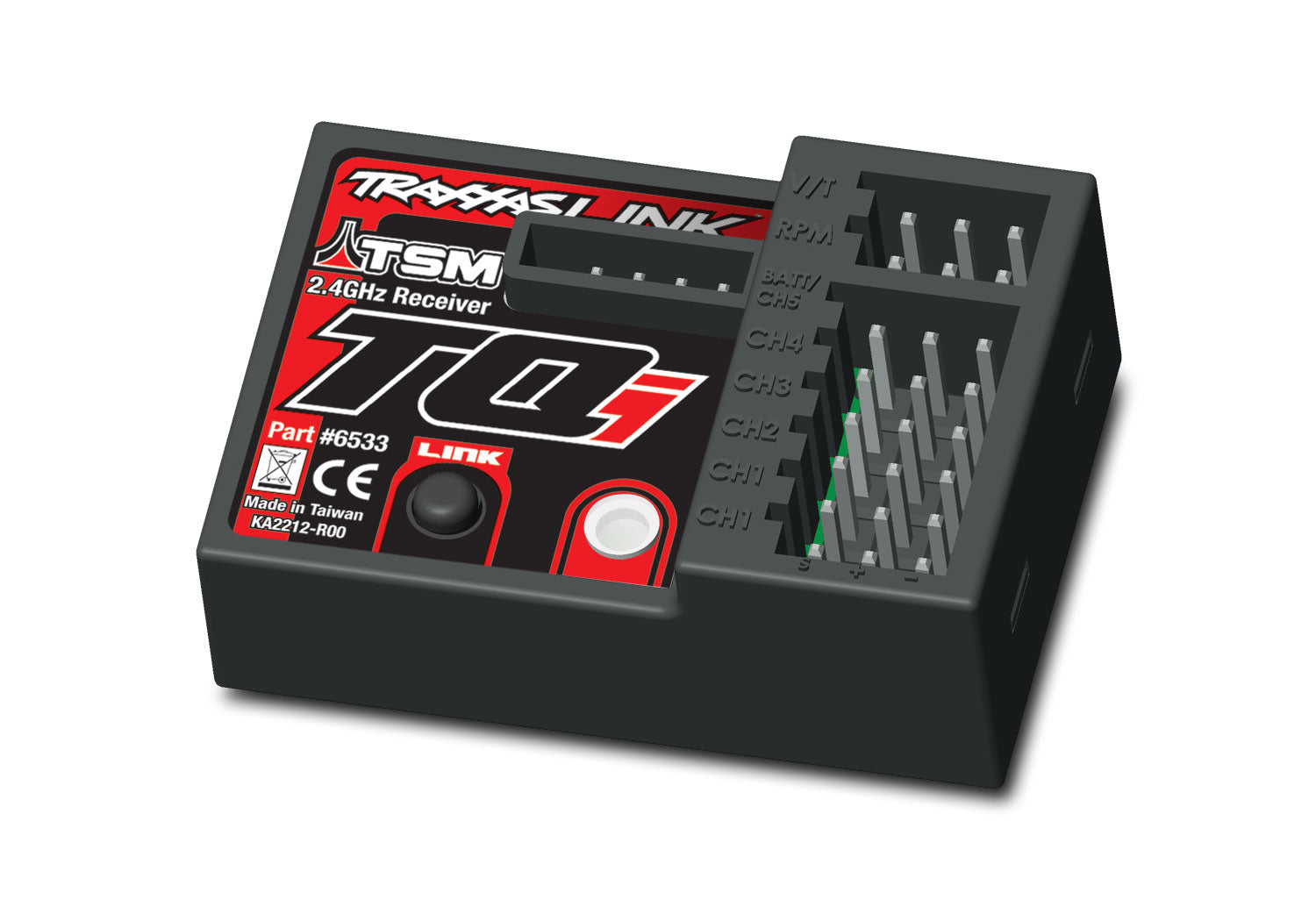

    • 5-channel micro receiver (6533) with fail-safe security
    • Patented waterproof receiver box with easy-access plug
  • Traxxas Stability Management (TSM)®
    • Improves straight line acceleration and braking on low-traction surfaces
    • Maintains steering composure to allow throttle-on powerslides
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter

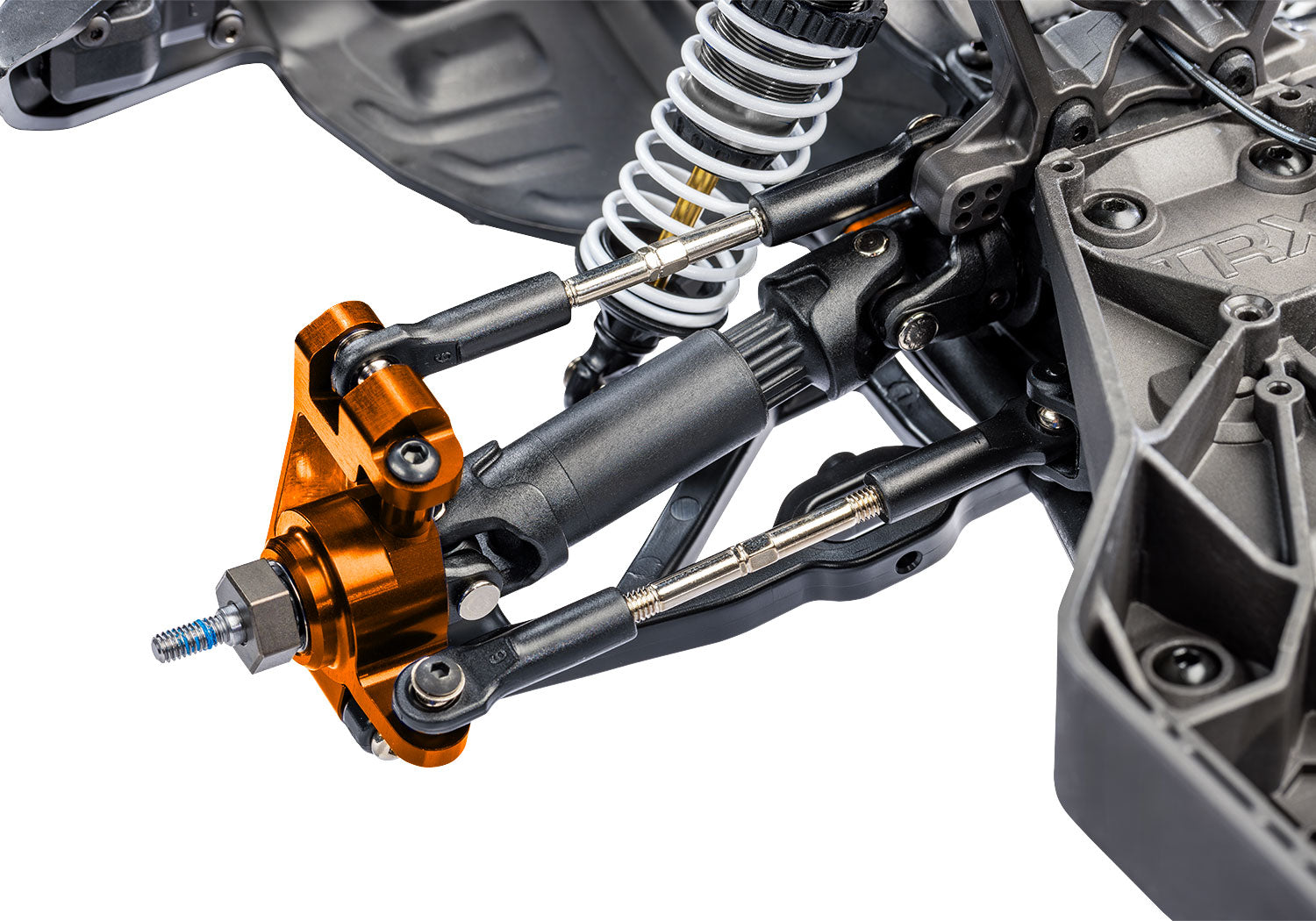

  • Suspension
    • Heavy-duty suspension arms
    • Adjustable 4 mm steel toe and camber links

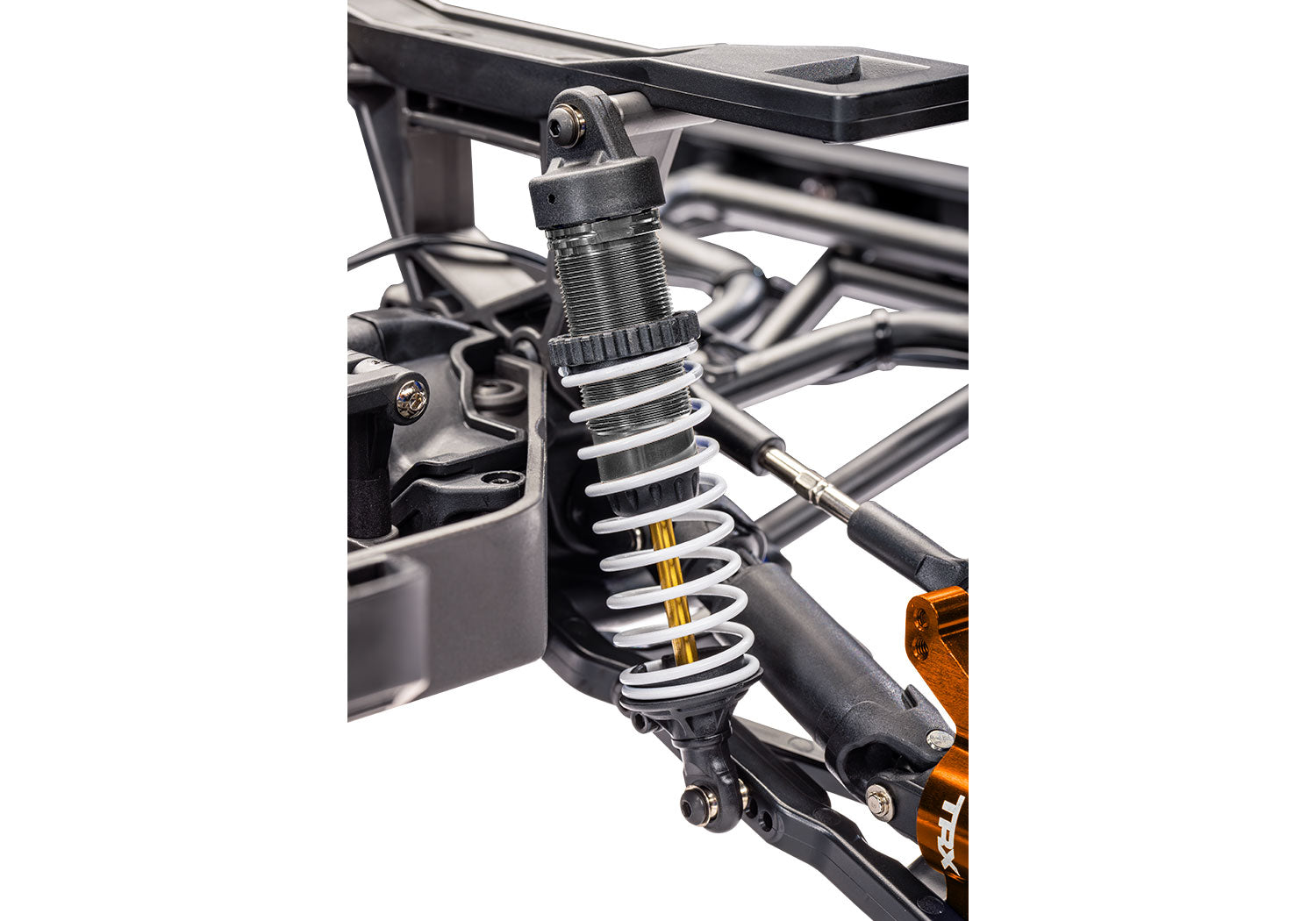

    • Aluminum oil-filled GTR shocks
      • 70% more oil capacity than standard Ultra Shocks™
      • Threaded bodies with adjustable spring collars
      • TiN-coated shock shafts to reduce friction

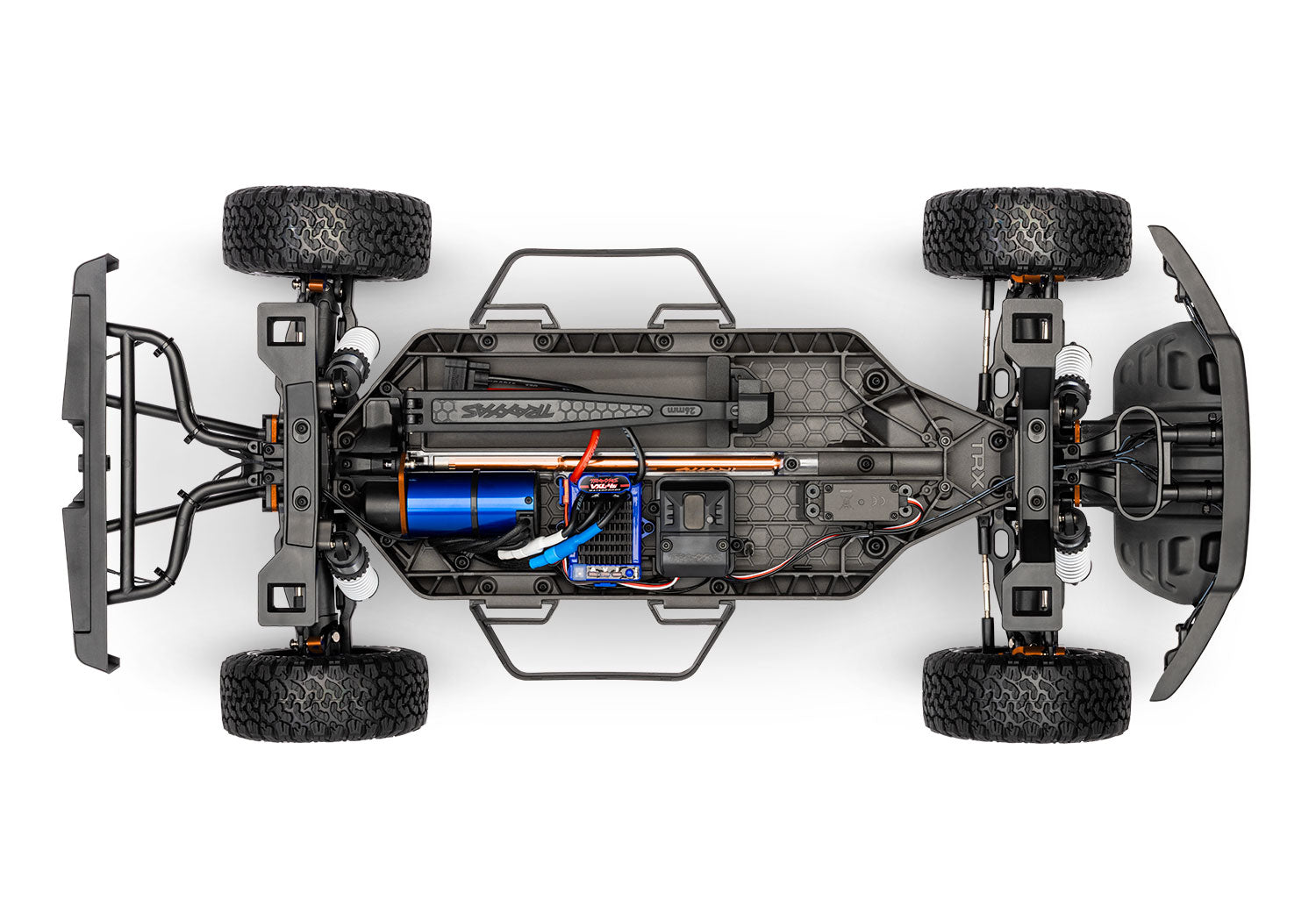

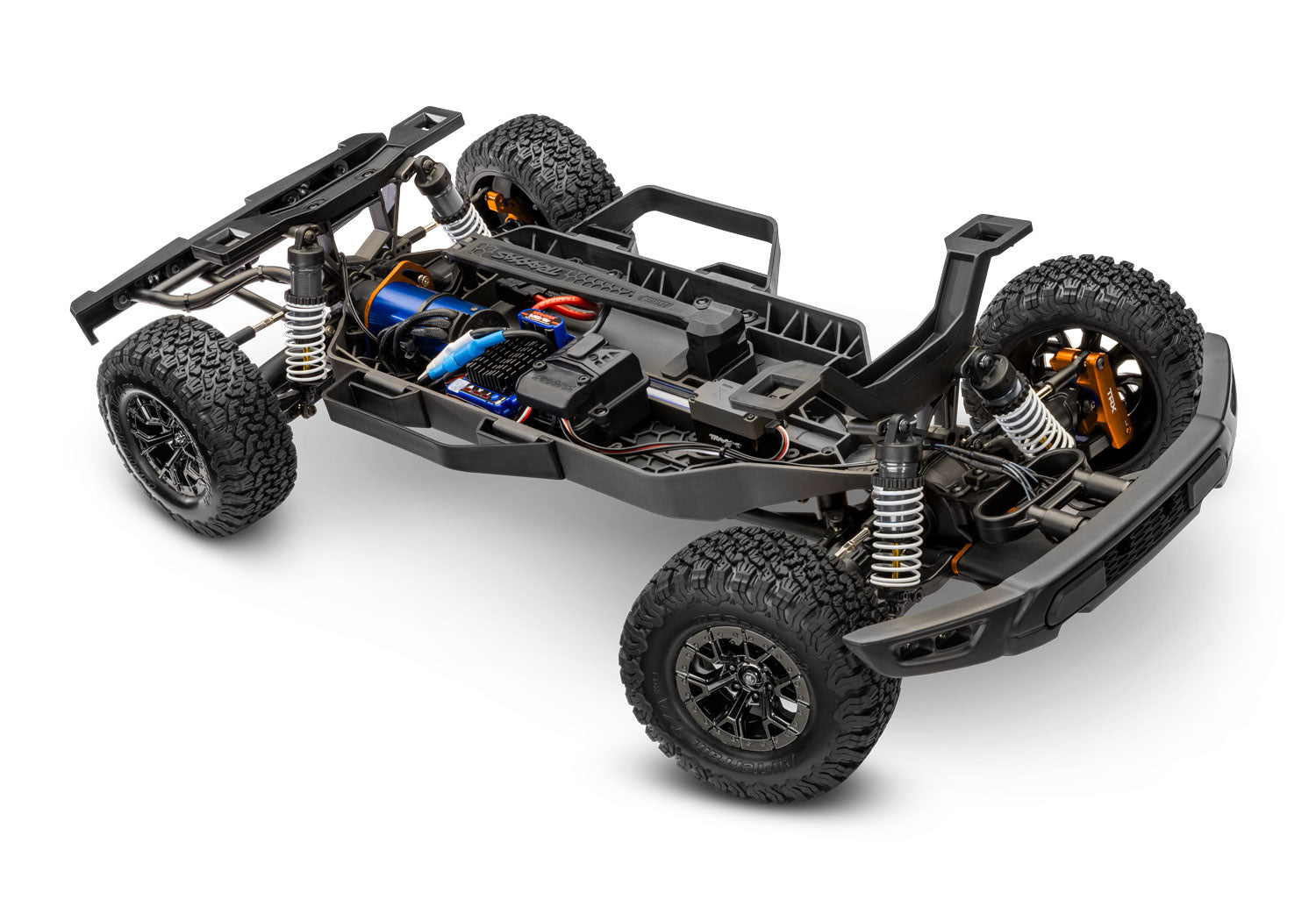

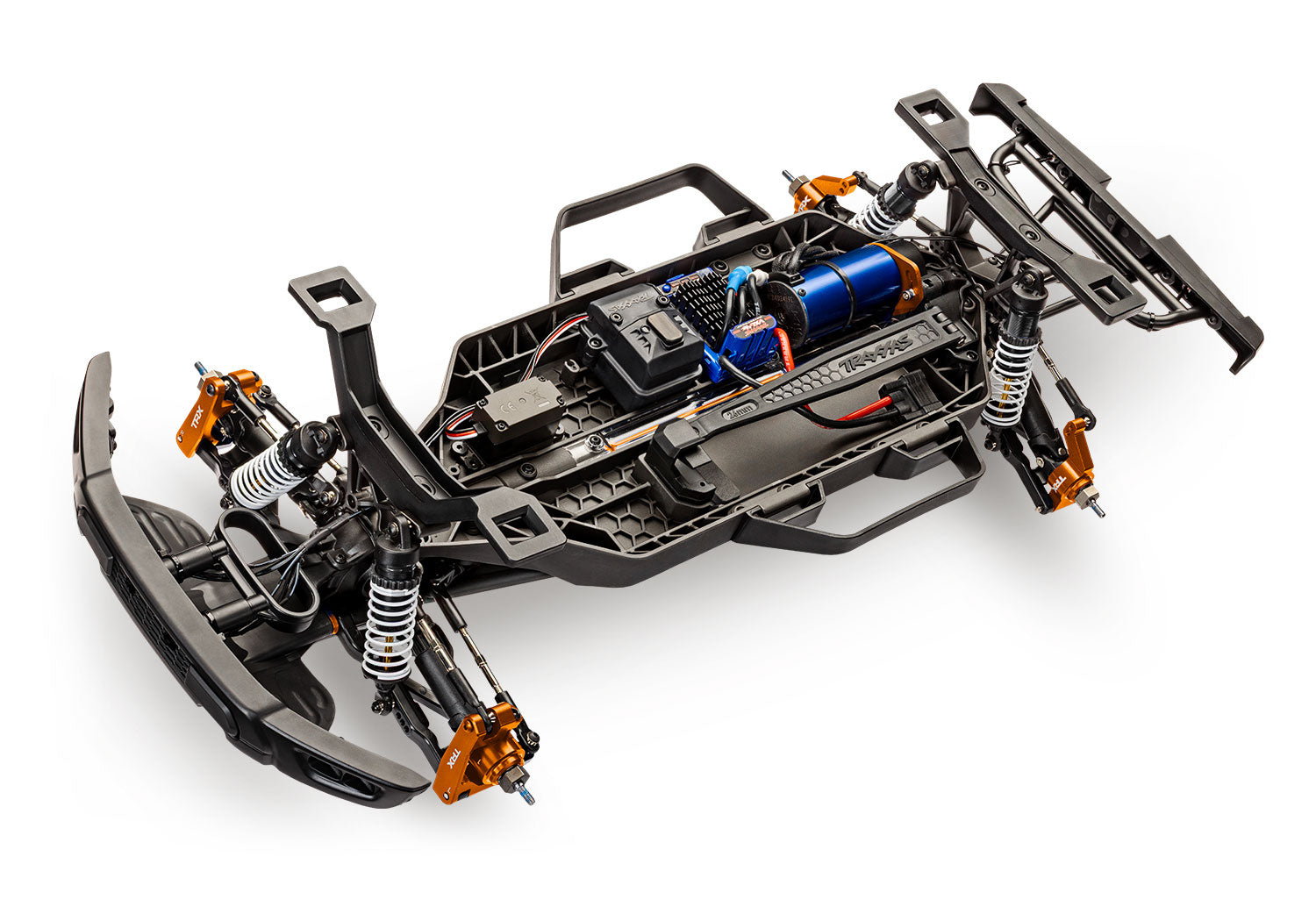

  • Chassis

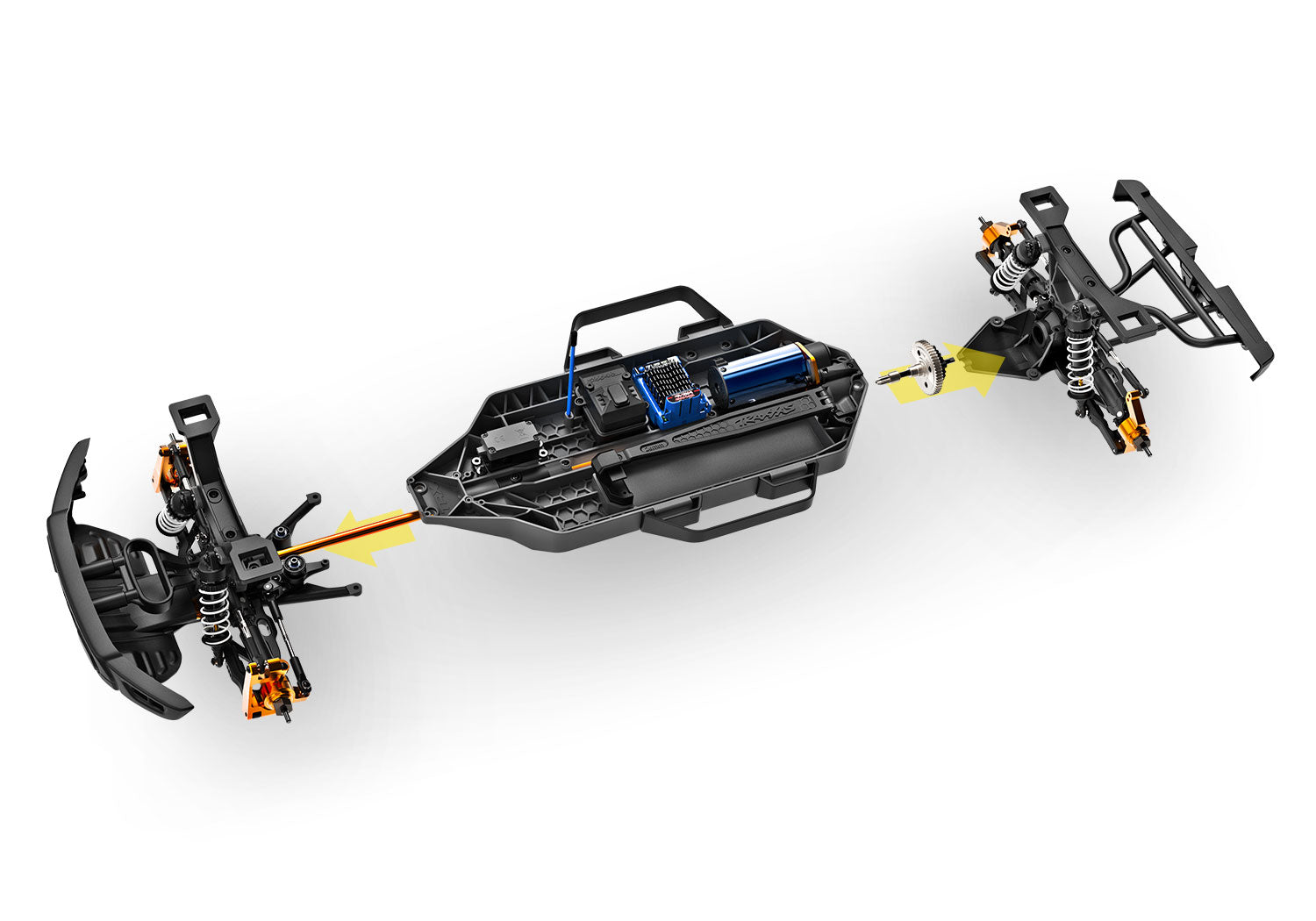

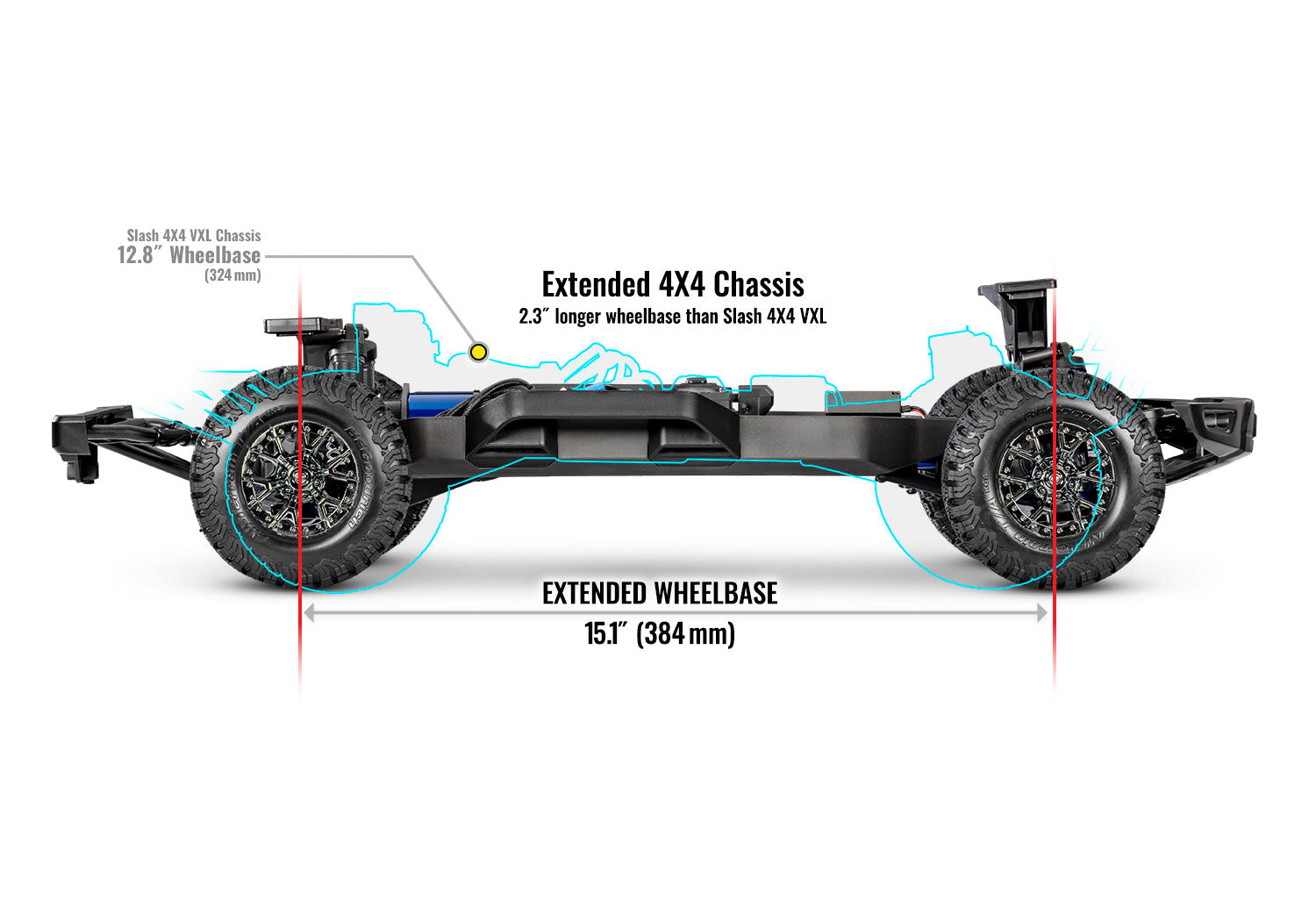

    • Extended modular composite tub design
    • Heavy-duty front & rear shock towers

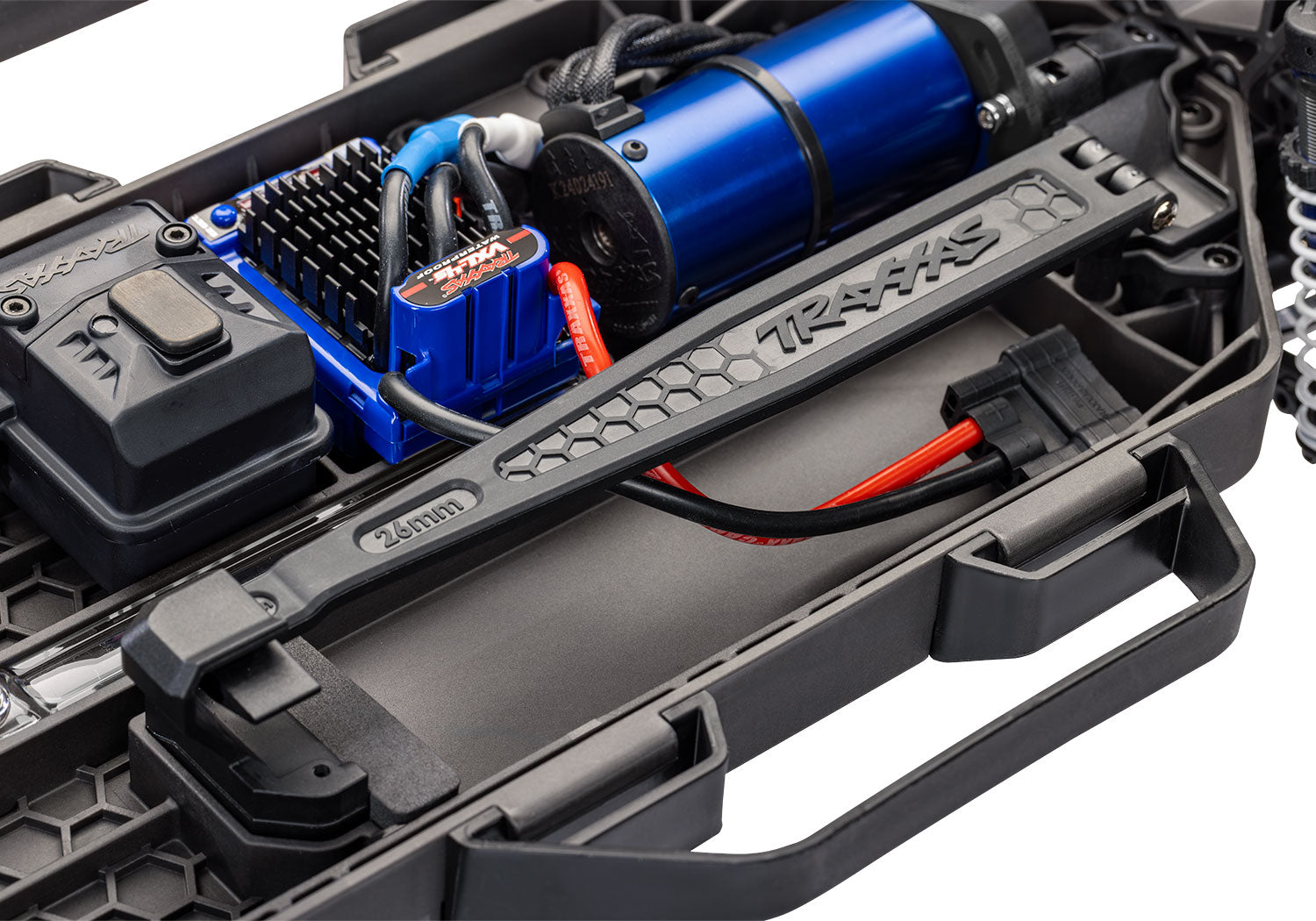

    • Secure battery hold-down latch
    • Side nerf bars for impact resistance
  • Steering

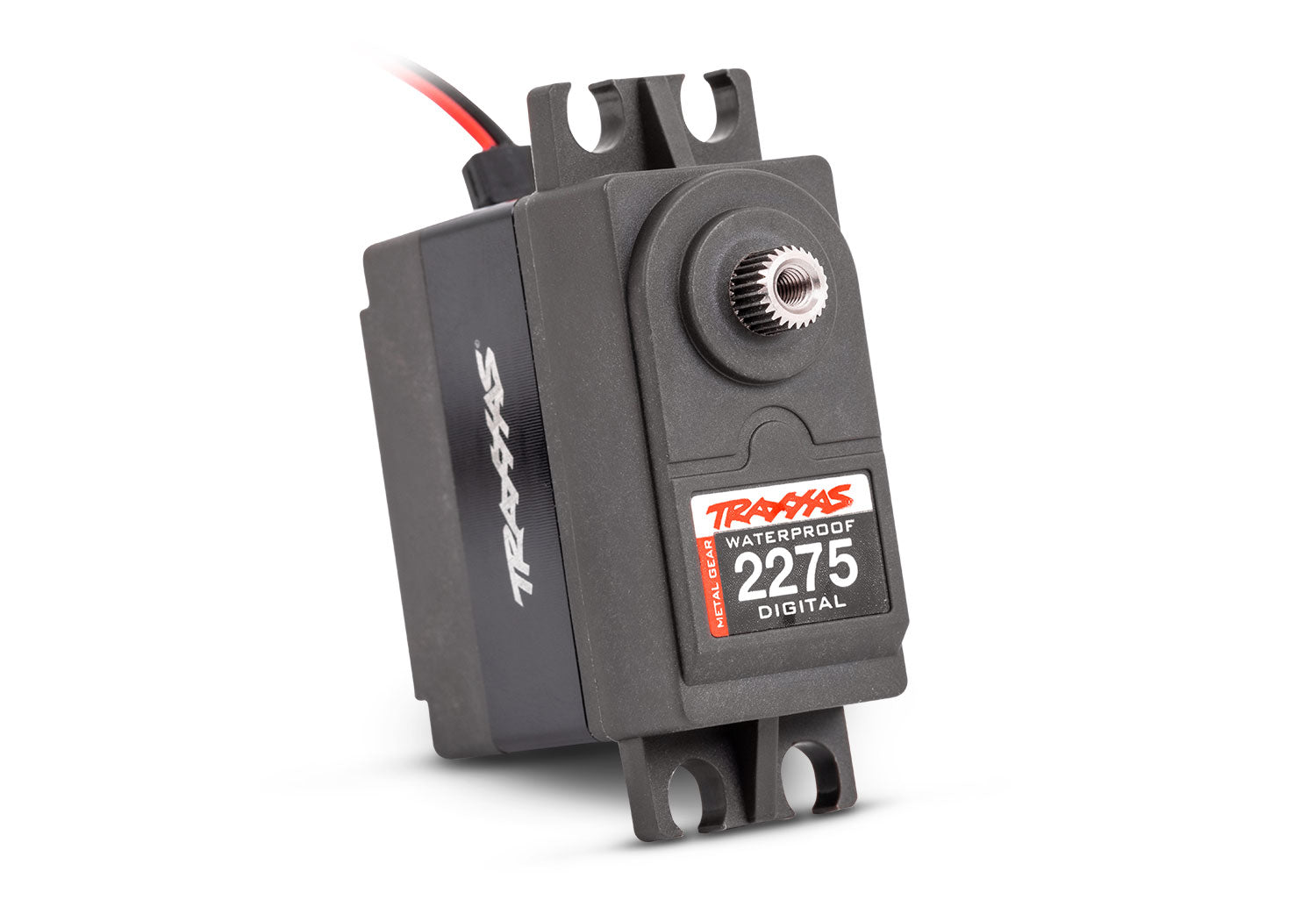

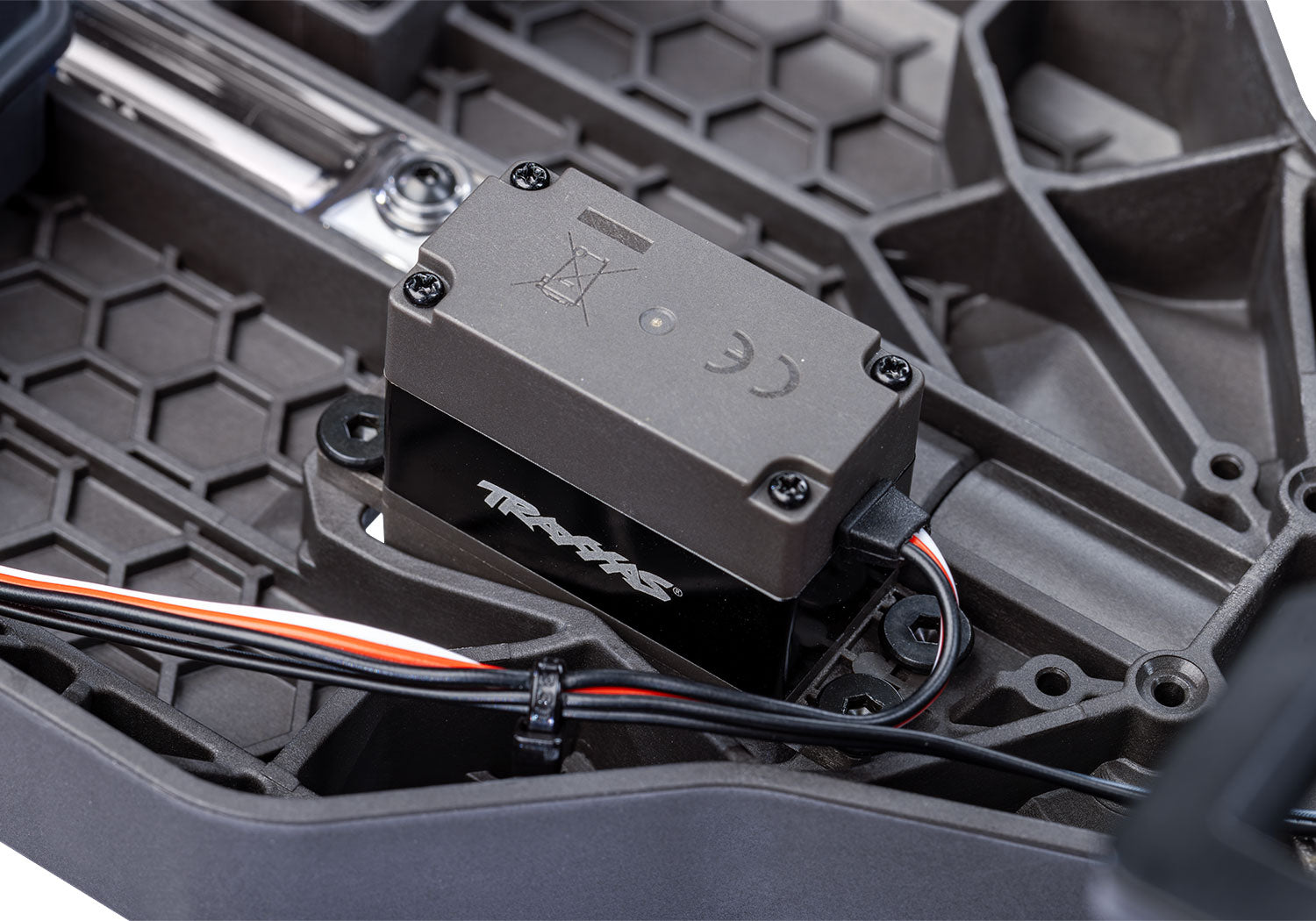

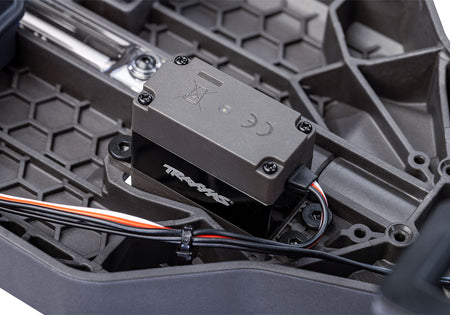

    • 2275 waterproof metal-gear servo
      • 347 oz-in torque @ 6.0 volts
      • Aluminum center case w/ full bearings

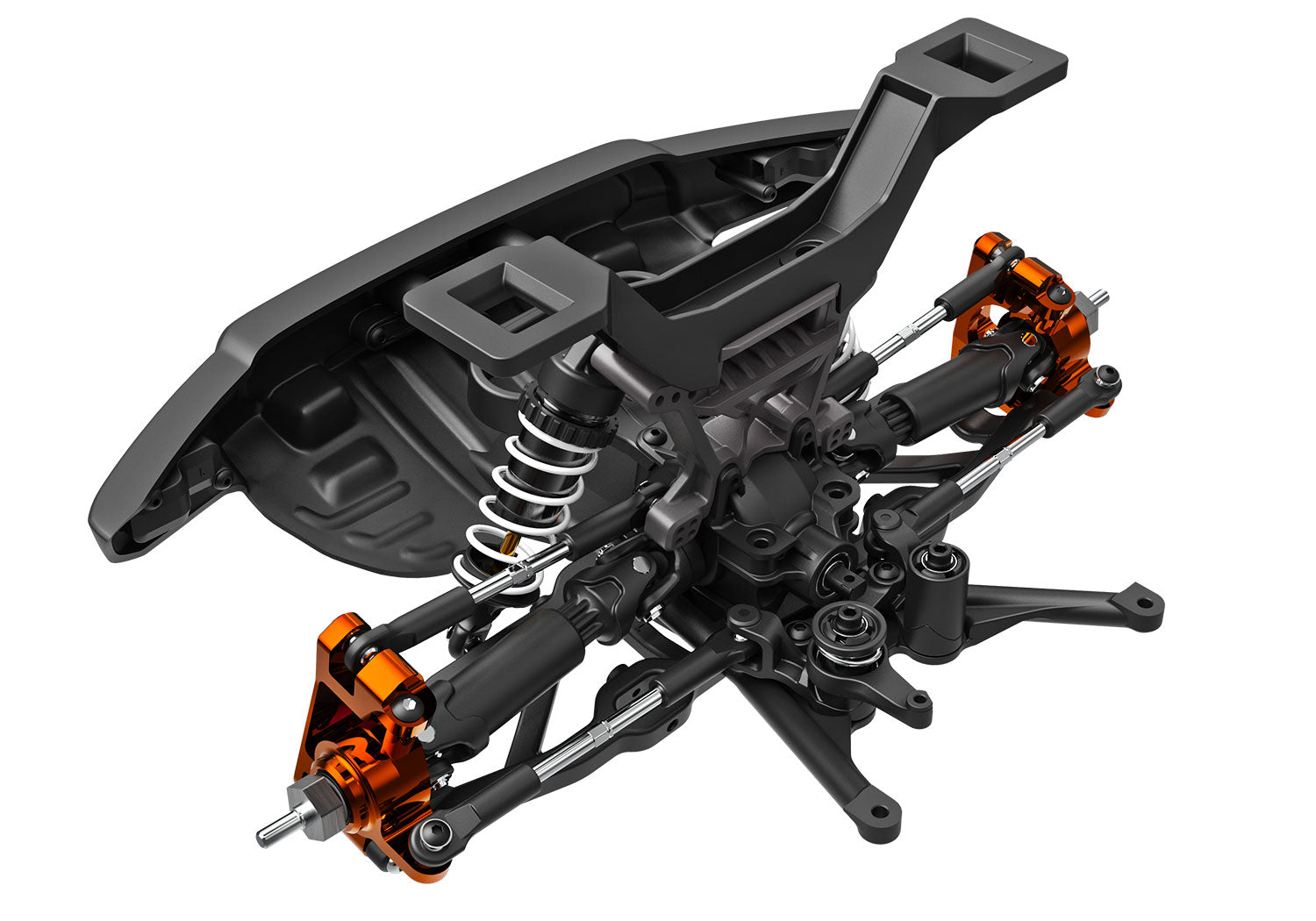

    • Dual bellcrank design with integrated servo saver
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Center differential with 20-million weight oil

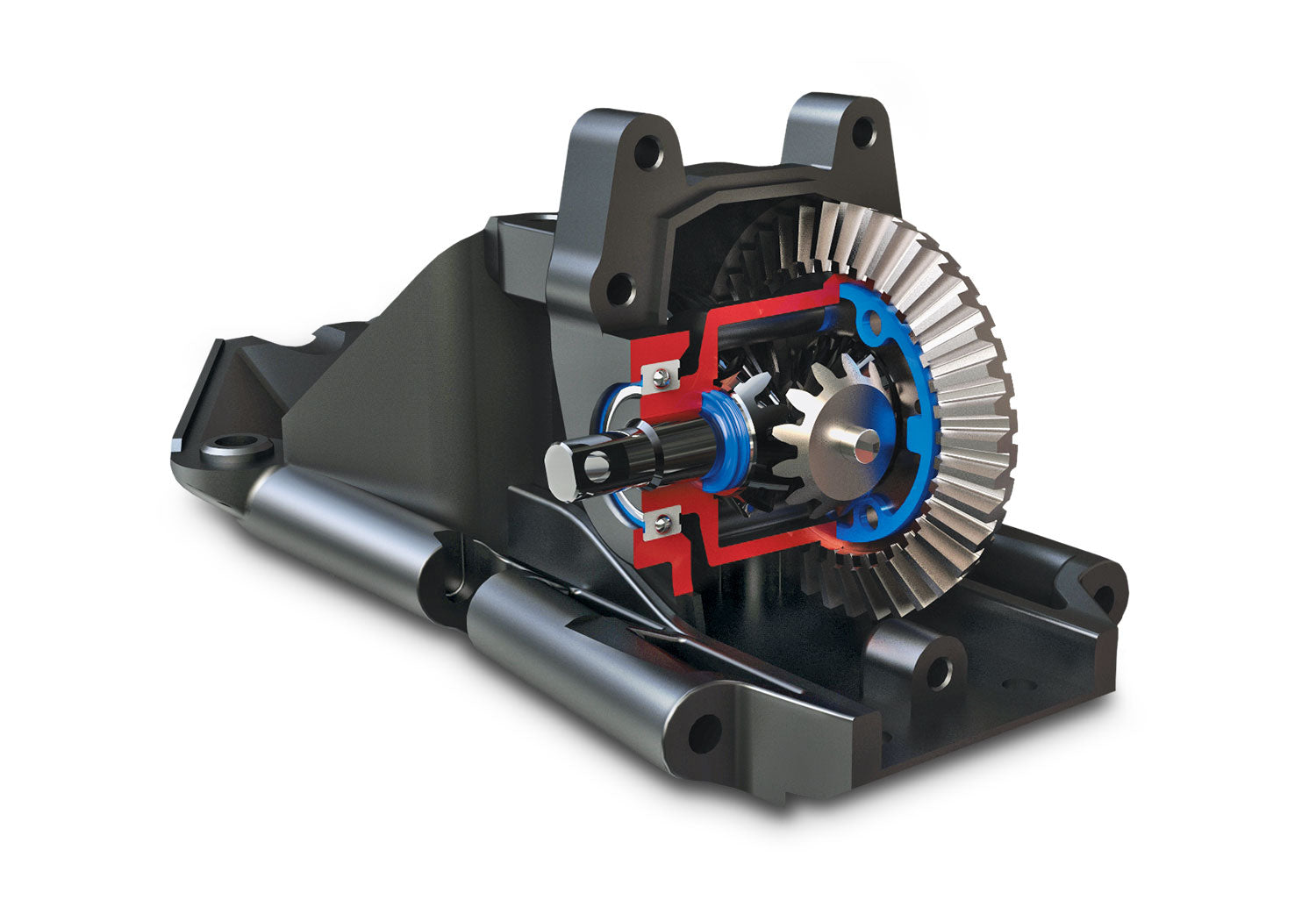

    • Oil-filled, steel gear front and rear differentials
    • Steel 32-pitch spur gear
    • Anodized-aluminum center driveshaft

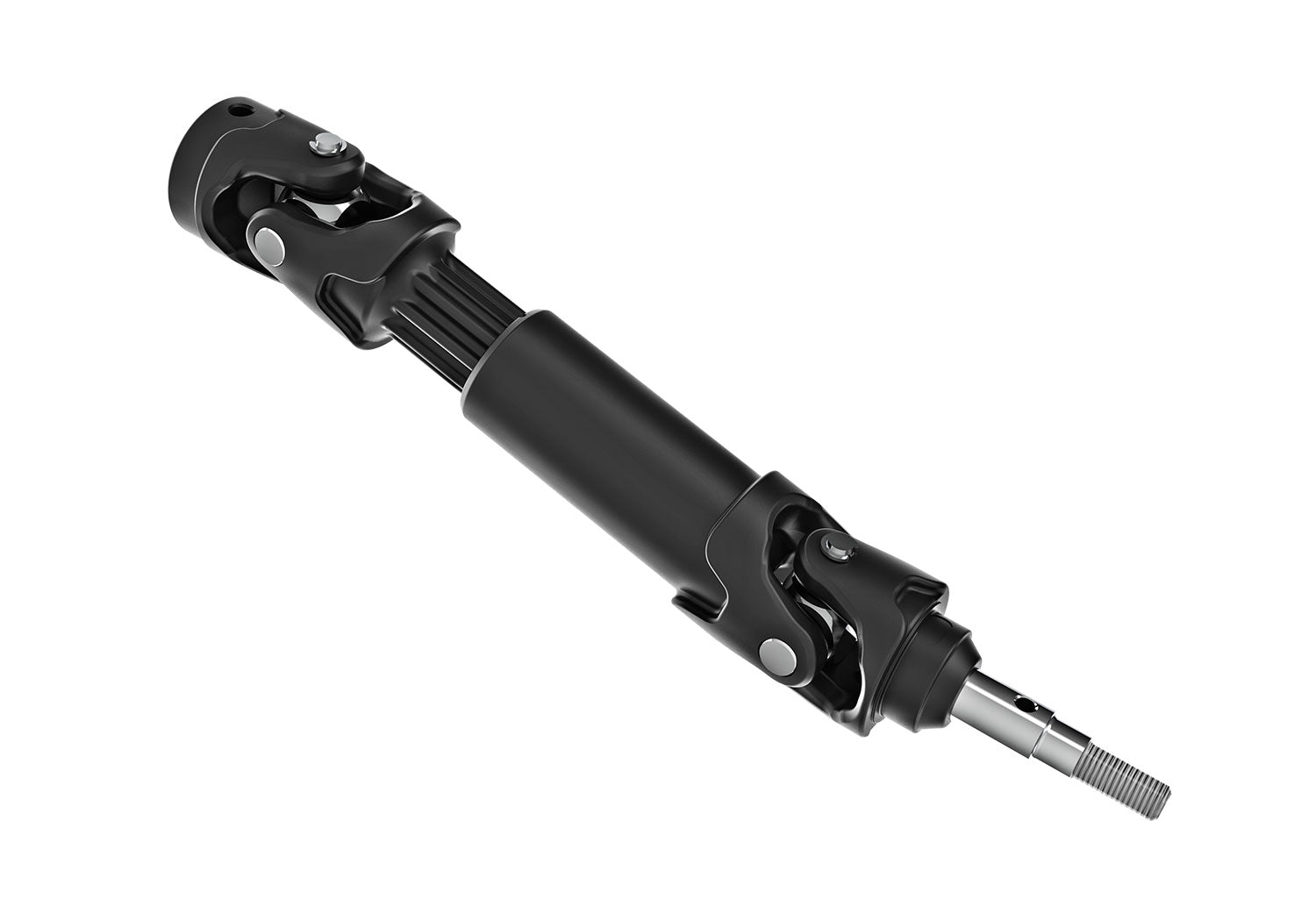

    • Maxx-duty driveshafts
      • Oversize diameter
      • 6 mm axles

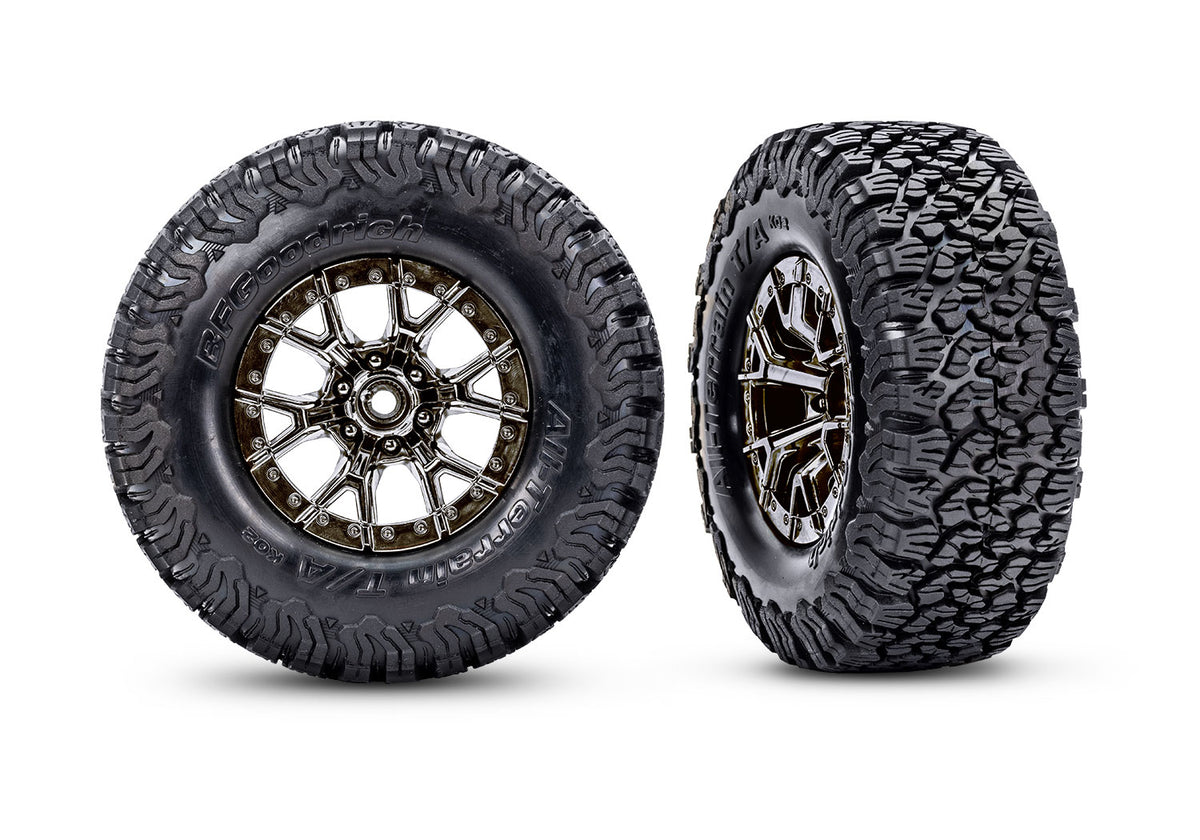

  • Wheels and Tires
    • Licensed Ford® replica option wheels
      • 2″ outer diameter, 3″ inner diameter

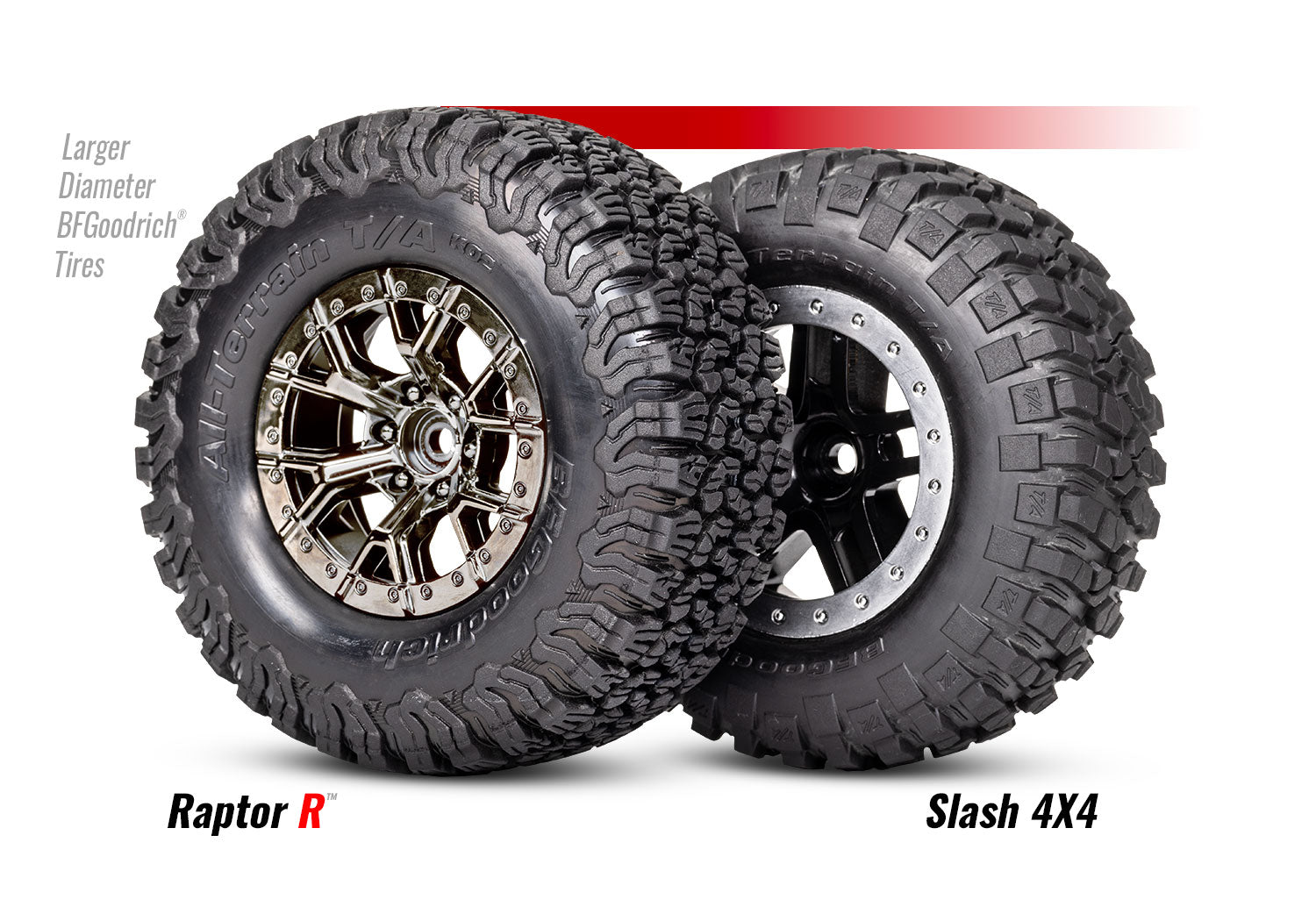

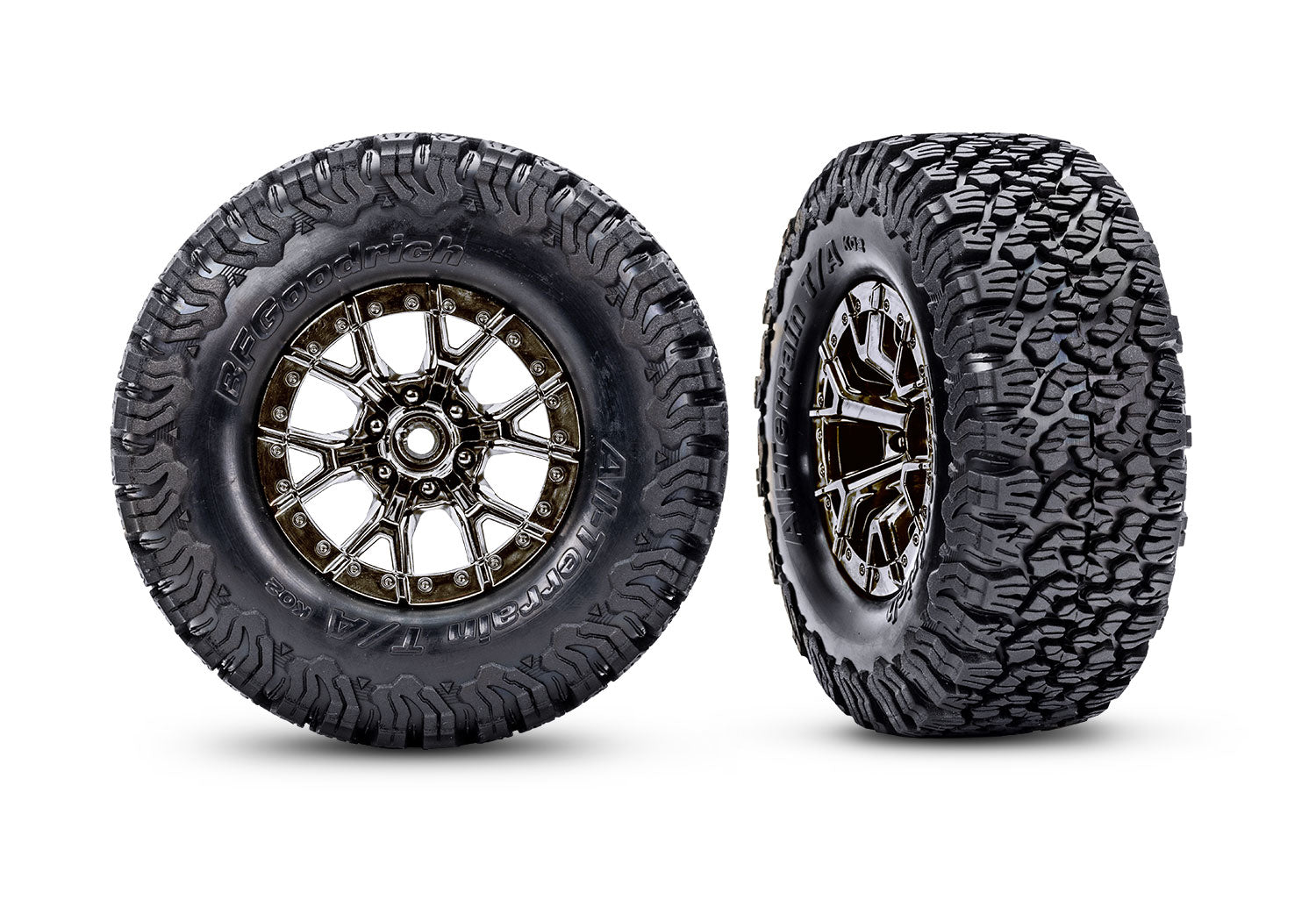

    • Licensed BFGoodrich® All-Terrain T/A® KO2 tires
      • Large 114 mm diameter
    • Sealed Ball Bearings
    • Hex hardware with Rust-Resistant Black Oxide Coating

    • MODEL SPECS

      Side Specs
      Front Specs
      Model Name: Ford Raptor R 4X4 Ultimate
      Model Type: Short Course Truck
      Model Speed: 60+ mph with 4s LiPo (sold separately)
      Model Skill Level: 2
      Scale: 1/10
      Weight: 6.62 pounds (3.00 kg)
      Length: 24.98 inches (637 mm)
      Width: 11.63 inches (289 mm)
      Front Track: 11.63 inches (289 mm)
      Height: 8.91 inches (226 mm)
      Rear Track: 11.63 inches (289 mm)

      MOTOR SPECS

      Motor Type: 540XL 2400 Kv sensorless brushless
      Weight: 11.18 ounces (317 g)
      Length: 3.58 inches (91 mm)
      Diameter: 1.41 inches (36 mm)
      Shaft Size: 5 mm
      Connector Type: Traxxas 6.5 mm bullet connectors

      ESC SPECS

      Velineon VXL-4s
      Input Voltage (cells): 2s-4s LiPo (7.4 V - 16.8 V)
      Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
      Weight: 4.20 ounces (119 g)
      BEC Voltage: Selectable 6.0 or 7.4 volts
      Motor Connectors: Traxxas 6.5 mm bullet connectors
      Battery Connectors: Traxxas High-Current Connectors
      Thermal Protection: Two-stage thermal shutdown
      Ports: RX input, auxiliary fan connector



      Ford F-150 Raptor R (101177-4) Gold

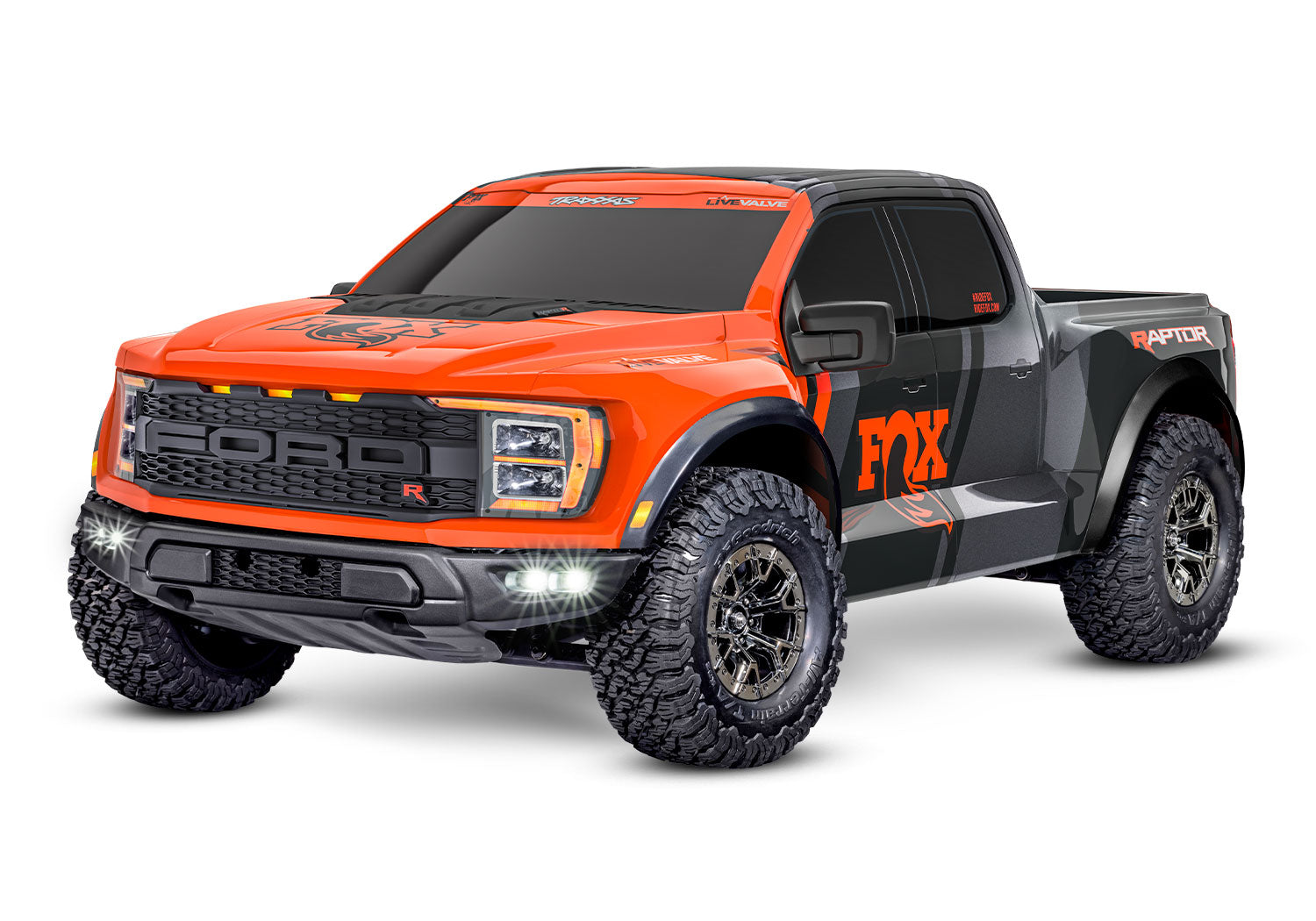

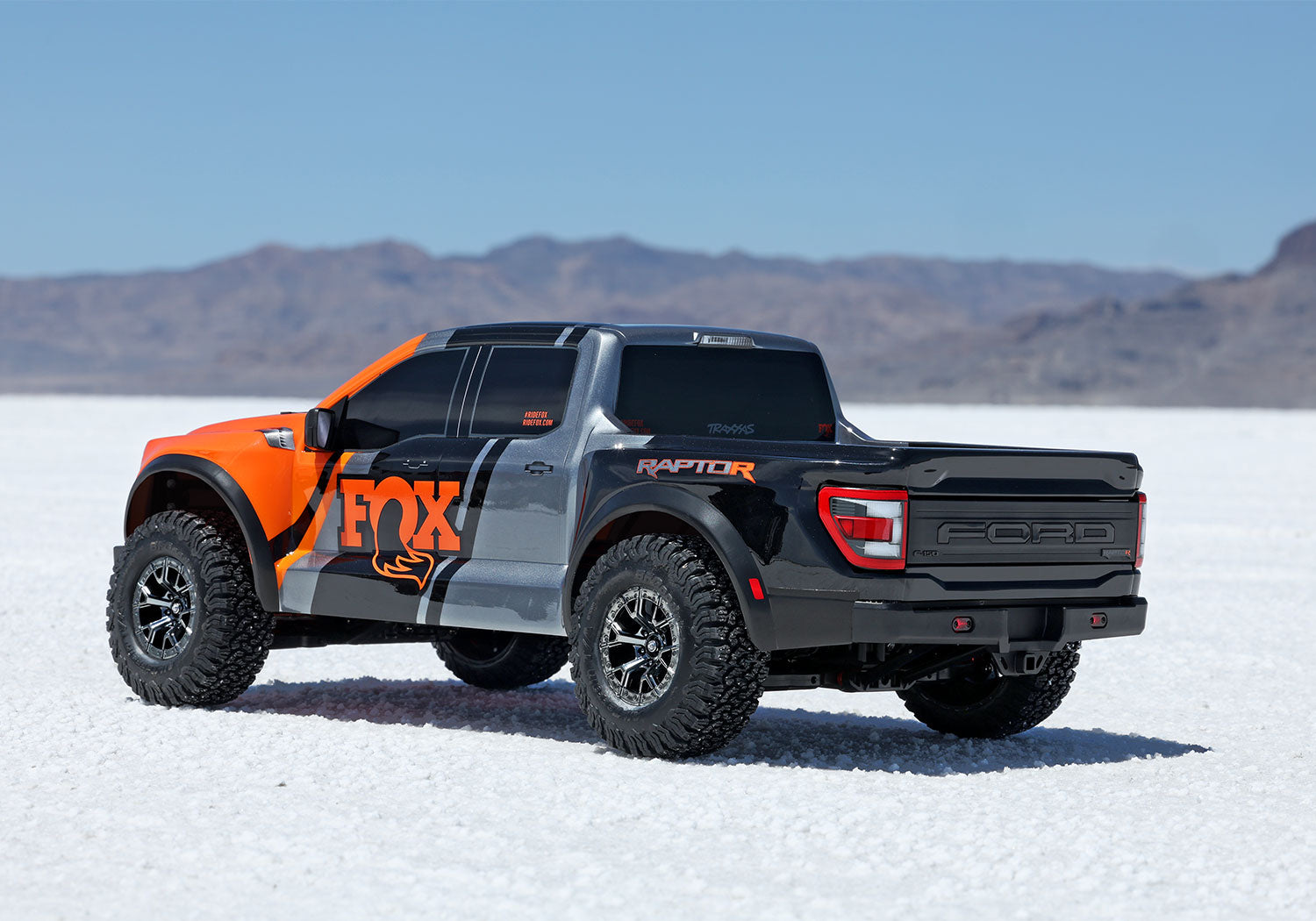

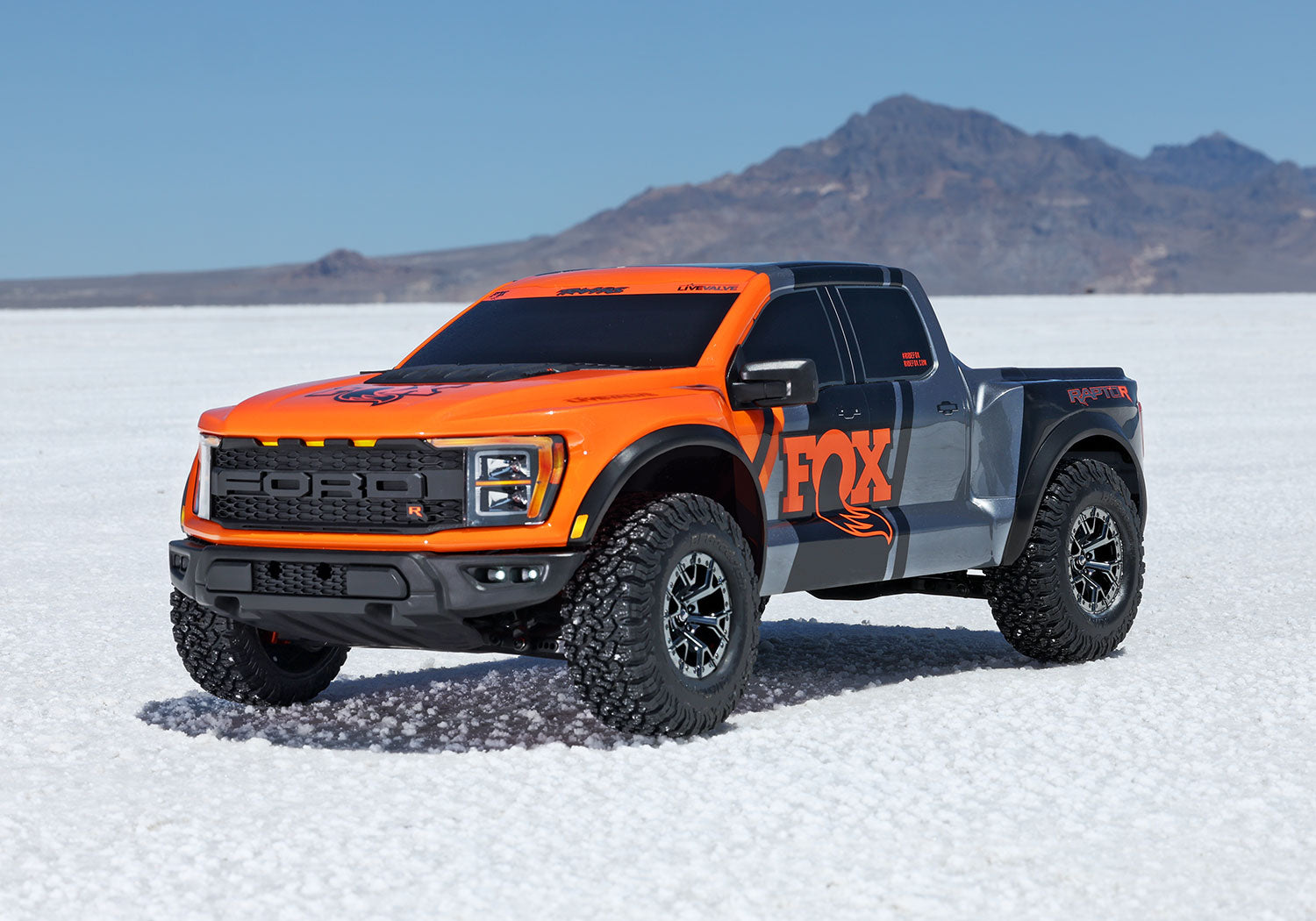

      Ford F-150 Raptor R (101177-4) Fox
      MODEL 101177-4: Ford® Raptor R™ 4X4 Ultimate: 1/10 scale 4X4 short course truck, fully assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system w/ wireless module, Traxxas Stability Management (TSM)®, VXL-4s™ speed control, Velineon 540XL brushless motor, and clipless painted Pro Scale® body.

      What’s In The Box:

      • Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
      • Quick Start Guide
      • TQi 2.4 GHz radio system w/ wireless module
      • High quality maintenance tools

      What You’ll Need:

      • Batteries

        Raptor R requires a single 2s, 3s, or 4s LiPo battery with iD®.

      • Charger

        Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.

      • AA Alkaline Batteries

        Four AA alkaline batteries for the transmitter.
