Traxxas 4-Tec 2.0 VX3 AWD Brushless Chassis W/O Body

In stock
SKU: 83424-4-R5 Barcode: 020334052841
(0)
$ 299.95

If you Like it SHARE it

MODEL SPECS
Side Specs
Front Specs
Name: 4-Tec 2.0 Brushless Chassis
Type: On-Road Car
Top Speed: 50+ mph
Skill Level: 1
Scale: 1/10
Length: 14.94 inches (379 mm)
Width: 7.9 inches (200 mm)
Height: 2.43 inches (62 mm)
Weight: 2.83 lbs (1.28 kg)
Front Track: 7.7 inches (196 mm)
Rear Track: 7.9 inches (200 mm)
MOTOR SPECS
Name: Velineon V3300 (patent pending)
Motor Type: Sensorless brushless
Weight: 7.48 ounces (212 g)
Length: 3.15 inches (80 mm)
Diameter: 1.53 inches (39 mm)
Shaft Size: 3 mm
Connector Type: 3.5 mm Bullet
ESC SPECS
Name: VX3 Electronic Speed Control
ESC Type: Brushless
Voltage Range: 2-cell or 3-cell LiPo (NiMH not supported)
Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight: 4.20 ounces (119 g)
BEC Voltage: 6.0 volts
Motor Connectors: 3.5 mm bullet
Battery Connectors: Traxxas High-Current Connector



  • 35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
  • Adjustable Body Mounts and Chassis
    • Body posts adjust forward and backward, left and right
    • Wheelbase can be lengthened or shortened by 3 mm
    • Accommodates most 200 mm bodies
    • Replica brake discs with red calipers
  • Velineon® VX3 Waterproof Electronic Speed Control
    • Three programmable drive profiles
      • Sport Mode - forward / brake / reverse
      • Race Mode - forward / brake
      • Training Mode™ - 50% forward / brake / 50% reverse (patented)
    • Traxxas EZ-Set® one-button setup
    • Real-time telemetry via Traxxas Link™
    • High-Resolution Linear Braking
    • Compatible with 2s and 3s LiPo batteries (NiMH not supported)
  • Velineon V3300 Brushless Motor
    • Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
    • 3300 Kv optimized for power and efficiency in 1/10th scale vehicles
    • 3 mm output shaft
    • Internal & external cooling fans for longer run times
    • Low-maintenance design
    • Efficient, high-speed ball bearings
  • TQi™ Sport 2.4 GHz 2-Channel Radio System
    • Removable grip adapter
    • High-output signal delivers outstanding range
    • Simple one-button programming
    • 30-model memory
    • 3-channel micro receiver with fail-safe security
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Maintains steering composure to allow throttle-on powerslides
    • Never dulls throttle or slows the truck
    • Activated or deactivated directly from the transmitter
    • Large aluminum heat sink with cooling fan
  • Steering
    • 2057 waterproof, metal-gear servo
      • Full metal gear train for improved durability
    • Integrated servo saver for increased precision
  • Low Center of Gravity (Low CG) Chassis
    • Positions weight low for improved handling
    • Smooth underside resists drag and snags
    • Modular interlocking chassis pieces
      • Improves rigidity and tightens tolerances
      • Allows for easy maintenance
  • Adjustable Battery Hold Down
    • Easy, secure battery installation
    • Swivels to allow different height batteries
    • Locks securely without pins or parts to lose
  • High Performance Suspension
    • Captured links won’t pop off
    • Geometry tuned for precise handling
    • Dual rear camber link mounts
  • Driveline
    • Full-time shaft driven 4-wheel drive
    • Steel center driveshaft with center bearing support
    • Direct drive
    • Sealed differentials
  • Springs and Shocks
    • Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
    • Red powder coated shock springs feature a responsive spring rate
  • Wheels and Tires
    • Black chrome multi-spoke wheels with lug nut detail
    • High-performance street tires with long-wearing compound
    • Staggered street tires are larger in the rear
    • Brake calipers can be mounted in forward or trailing edge positions
  • Rubber-Sealed Ball Bearings

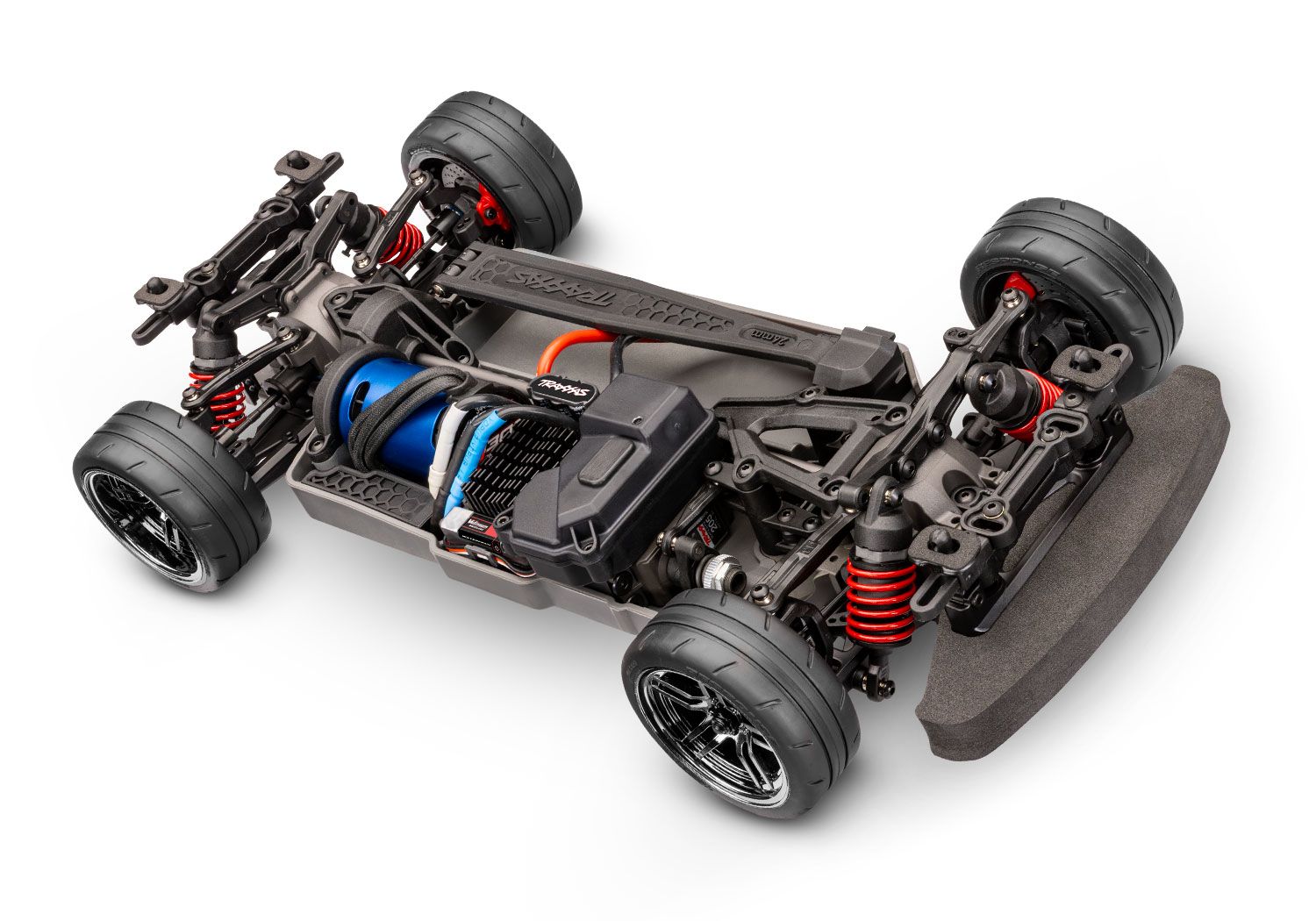

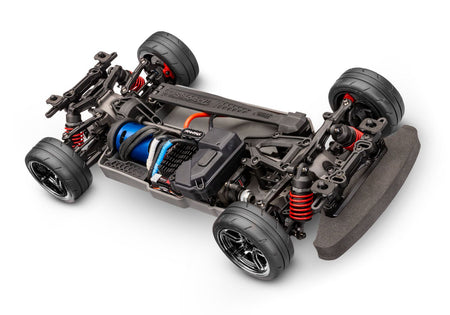

Front Three-Quarter View

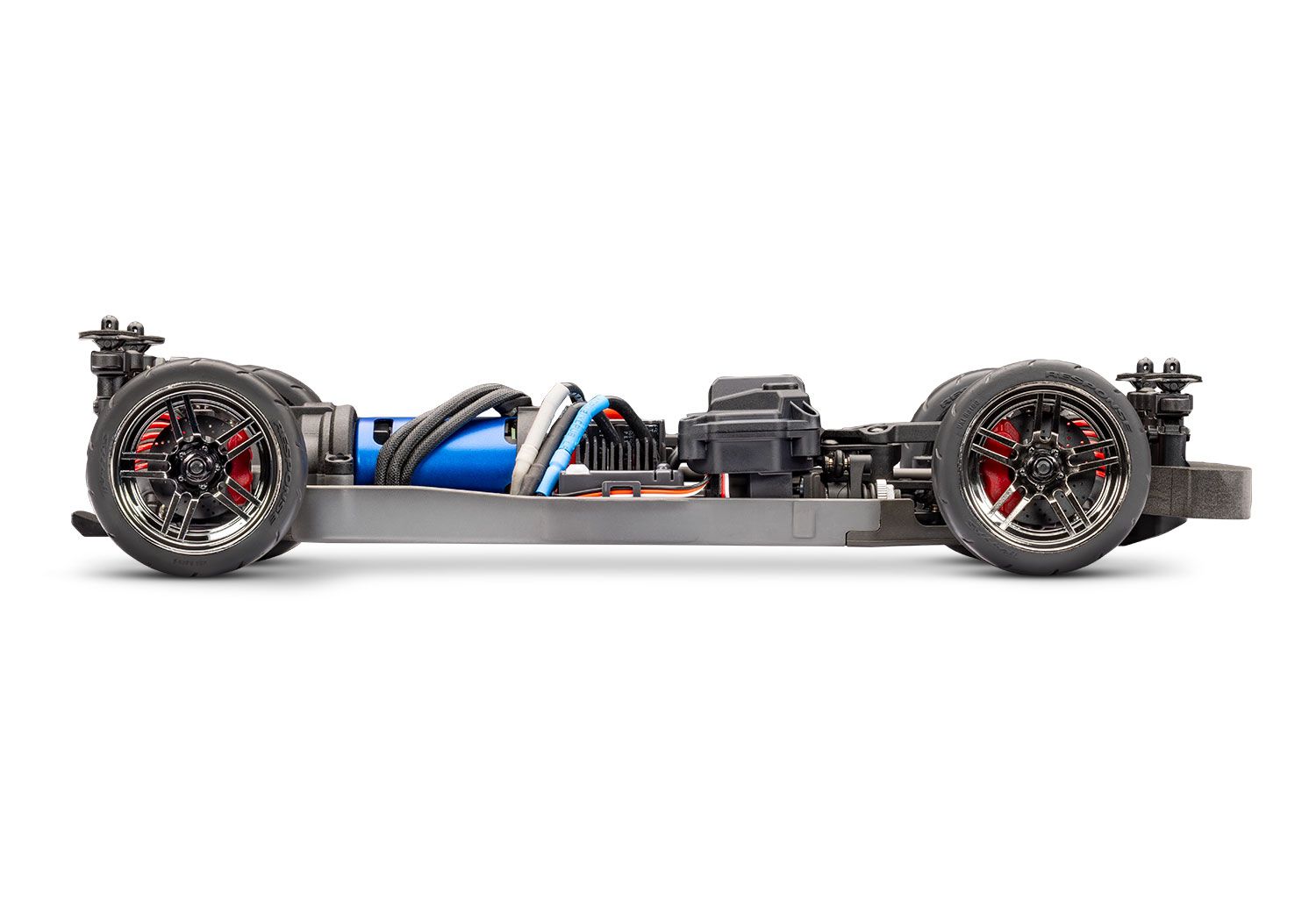

Side View
MODEL 83424-4: 4-Tec® 2.0 Brushless: 1/10 scale AWD chassis, waterproof and fully-assembled with Velineon 3s brushless power system and TQi™ Sport 2.4 GHz radio system with TSM.
What’s In The Box:
  • 4-Tec 2.0 Brushless Chassis
  • TQi Sport 2.4 GHz Radio System
  • High Quality Maintenance Tools
What You’ll Need:
  • Body

    Standard 200 mm body

  • Battery Pack

    4-Tec 2.0 Brushless requires a single 2-cell or 3-cell LiPo battery (NiMH not supported)

  • Charger

    The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.

  • Alkaline Batteries

    Four AA alkaline batteries for the transmitter
