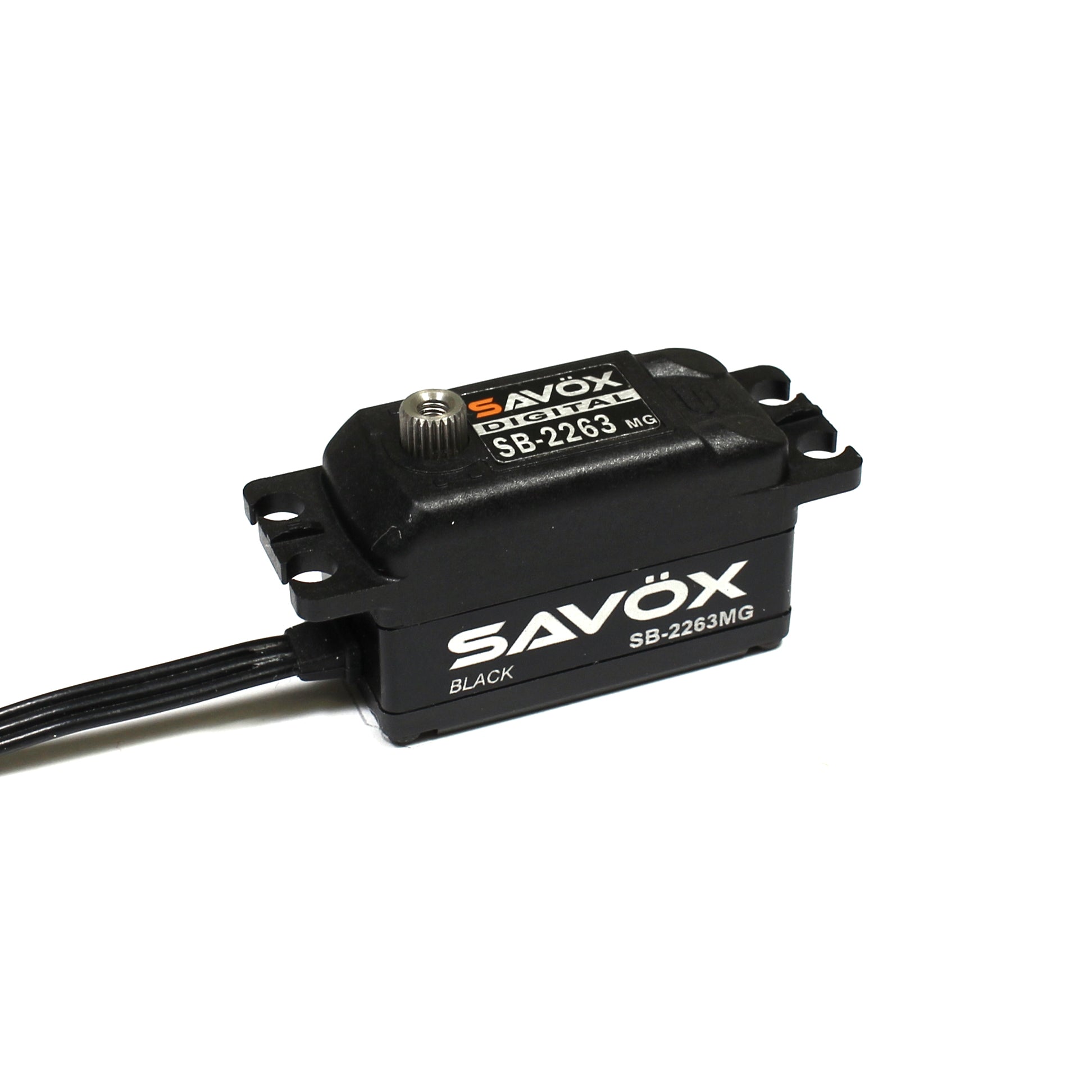

Savox SAVSB2263MG-BE Black Edition Low Profile Brushless Digital Servo, 0.076sec / 138.9oz @ 6.0V
Couldn't load pickup availability
If you Like it SHARE it
Savox SAVSB2263MG-BE Black Edition Low Profile Brushless Digital Servo, 0.076sec / 138.9oz @ 6.0V is a control servo for compatible RC installations.
Key Features
- Metal gear train ensures durability under harsh situations.
- Sleek black design with laser etching and a shorter 200mm black lead wire
- Torque @ 4.8v - 8.0kg/111.1oz-in
- Torque @ 6v - 10.0kg/138.9oz-in
- Speed @ 4.8v - 0.10 sec/60 deg
- Speed @ 6v - 0.076 sec/60 deg
- Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
- Weight: 48g
Details and Use
Savox Black Edition Low Profile Brushless Digital Servo SAVSB2263MG-BE is a high speed, brushless, low profile servo that features an all black color for a stealth look in RC cars. It has a metal gear train that ensures durability under harsh situations and a sleek black design with laser etching and a shorter 200mm black lead wire. It also has a super high 12 bit (4096) resolution.
The SB2263MG-BE is a high speed, brushless, low profile servo that features an all black color for a stealth look in RC cars.
*Replacement for SAVSB2261MG*
Specifications
| Catalog SKU | SAVSB2263MG-BE |
| Manufacturer Part Number | SB2263MG-BE |
| Dimensions L x W x H (mm) | 40.8 x 20.2 x 25.4 |
| Weight | 48g |
| Nominal Voltage | 6.0 V |
