Home » 64077-3-BLUEX XO-1 AWD Supercar No Battery W/TSM

64077-3-BLUEX XO-1 AWD Supercar No Battery W/TSM

In stock
SKU: 64077-3-BLUEX Barcode: 020334644114
$ 749.95 USD

Share to

XO-1 AWD Supercar No Battery W/TSM

  • Computer-Optimized Supercar Body
    • Large 1/7 scale size for increased stability
    • Thick 1 mm polycarbonate body with high-impact ProGraphix® paint
    • Functional aerodynamics
      • New front splitter design with channels to hold the body in place
      • High-downforce canards for high-speed stability
      • New high-downforce rear wing for improved balance
      • NACA motor cooling duct with rear hot air vent
      • Rigid foam bumpers maintain body shape at speed
  • Extreme Power System
    • 100+mph capable with two 3s LiPo batteries and included accessories
    • 0-60 mph in 2.3 seconds and 0-100 mph in 4.9 seconds
    • Mamba Monster Extreme Power System by Castle Creations
      • 6s LiPo capability
      • Integrated capacitor bank
      • Low-Voltage LiPo protection
    • Traxxas Big Block 1717 brushless motor
      • 1650 kV
      • Finned can design for improved cooling
      • Oversize premium bearings
      • Largest motor ever fitted to a Ready-to-Race® RC on-road car
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking
    • Never dulls throttle or slows the car
    • Adjusts from off to 100% assistance from the transmitter

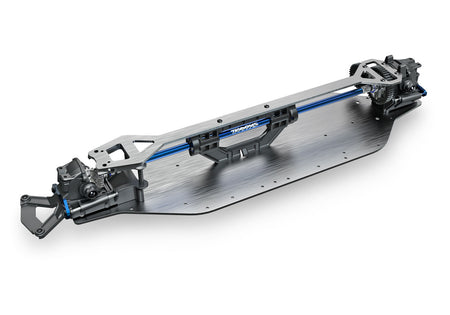

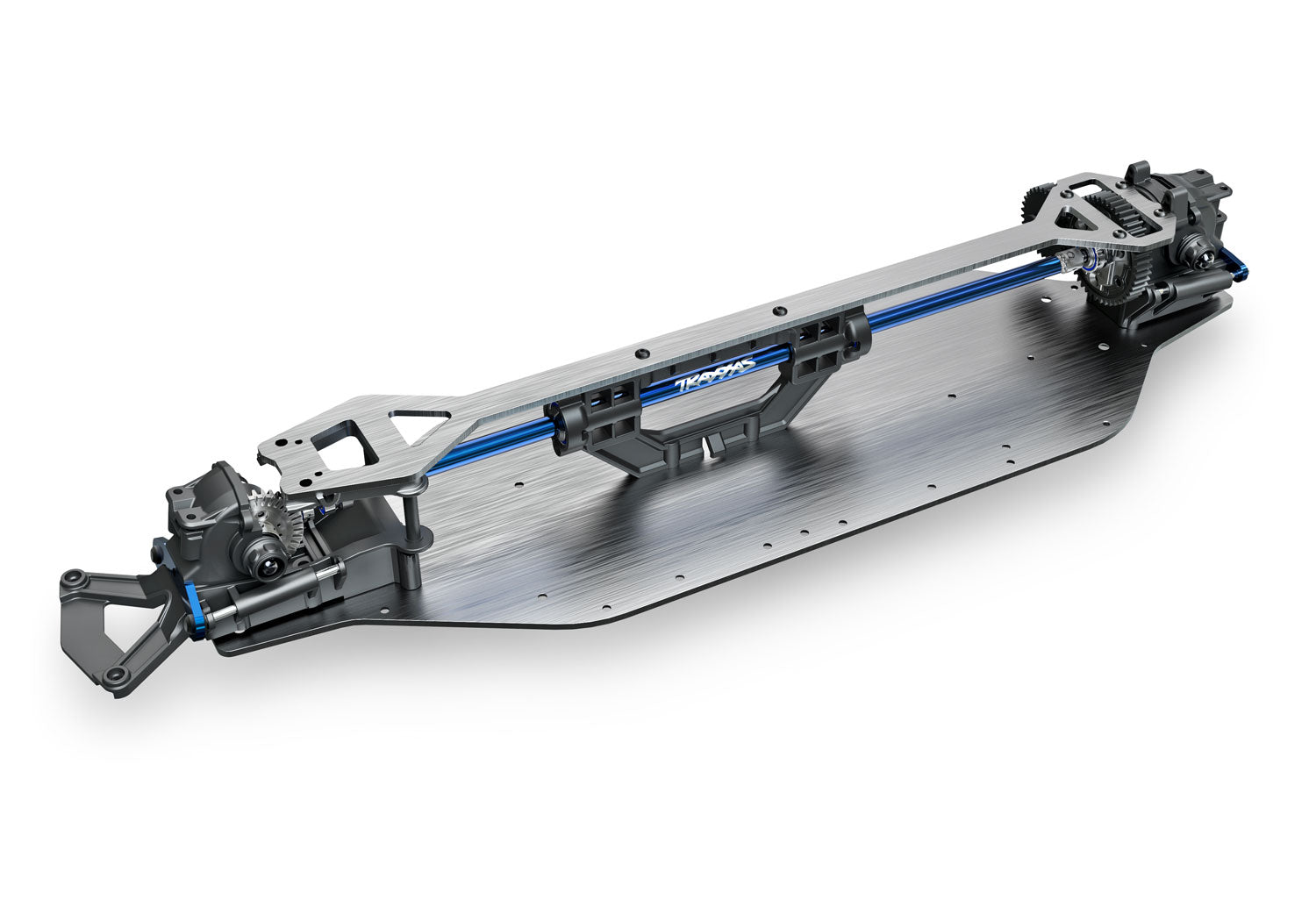

  • Chassis
    • 3 mm Dark titanium-anodized 6061-T6 aluminum upper and lower chassis plates
    • Dual scalable snap-lock battery compartments
    • Keys into front and rear bulkheads for completely smooth undertray
  • TQi™ 2.4GHz High Output Radio System with Wireless Module
    • Includes 6511 Traxxas Link Wireless Module
    • TQi 2-channel transmitter
      • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
      • Programmable multi-function knob
      • Adjustable steering and throttle percentage (dual rates)
      • Adjustable steering and throttle sensitivity (exponential)
      • Adjustable steering and throttle end points
    • 5-channel micro receiver (6533) with fail-safe security
    • Patented waterproof receiver box with easy-access plug
    • Installed telemetry sensors for real-time speed, RPM, and voltage data
  • Steering
    • Digital high-torque ball bearing 2075 servo
    • Metal bellcrank with integrated cam-style servo saver
  • Suspension
    • Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
      • White powder-coated performance-tuned springs
    • Blue-anodized 6061-T6 aluminum caster blocks
    • Blue-anodized 6061-T6 aluminum steering blocks
    • Blue-anodized 6061-T6 aluminum axle carriers
    • Blue-anodized 6061-T6 aluminum shock towers
    • Heavy-duty 4 mm steel turnbuckles
    • Impact-resistant heavy-duty suspension arms
  • Drivetrain
    • Machined aluminum motor mount
      • Precise gear mesh settings
      • Ultimate strength
      • Efficient heat transfer
    • Steel CV Driveshafts
      • Oversize 6 mm axles
      • Silicone dust boots
      • Hardened steel shafts
    • Extruded-aluminum center driveshaft
  • Transmission
    • Large Mod-1 pinion and spur gears
    • Exclusive Cush Drive™ absorbs drivetrain shocks
  • Differentials
    • Sealed silicone-filled limited-slip design
    • Heavy-duty reinforced carrier
    • 5 mm output shafts
  • Chassis
    • 3 mm Dark titanium-anodized 6061-T6 aluminum upper and lower chassis plates
    • Dual scalable snap-lock battery compartments
    • Keys into front and rear bulkheads for completely smooth undertray
  • Wheels and Tires
    • Heavy-duty 17 mm splined blue-anodized aluminum hex hubs and wheel nuts
    • 118+ mph-rated belted slick tires with contoured foam inserts
    • Contoured, molded tire inserts
    • Large 2.8” black chrome Split-Spoke wheels with keyed 17 mm hubs
  • High-quality sealed ball bearings
  • Precision Hex Hardware
  • Hex hardware with rust-resistant black oxide coating
  • Requires Battery and Charger (Sold Separately)

Model Specs

Model Name: XO-1 w/TSM
Model Type: On-Road Cars
Model Speed: 100+ mph
Model Skill Level: 10
Scale: 1/7
Weight: 8.6 pounds (3.9 kg)
Length: 27 inches (686 mm)
Width: 13 inches (329 mm)
Front Track: 11.81 inches (300 mm)
Rear Track: 11.81 inches (300 mm)

Motor Specs

Motor Name: Traxxas Big Block
Motor Type: 1650 kV sensorless brushless
Motor Weight: 23.44 ounces (665 g)
Motor Length: 3.5 inches (89 mm)
Motor Diameter: 1.81 inches (46 mm)
Motor Shaft Size: 5 mm
Motor Connector Type: 6.5 mm bullet

ESC Specs

ESC Name: Castle Creations Mamba Monster Extreme ESC
ESC Type: Brushless
ESC Case Size: 6 mm W x 85 mm D x 43 mm H
ESC Weight: 4.27 ounces (121 g)
Motor Connectors:

6.5 mm bullet
