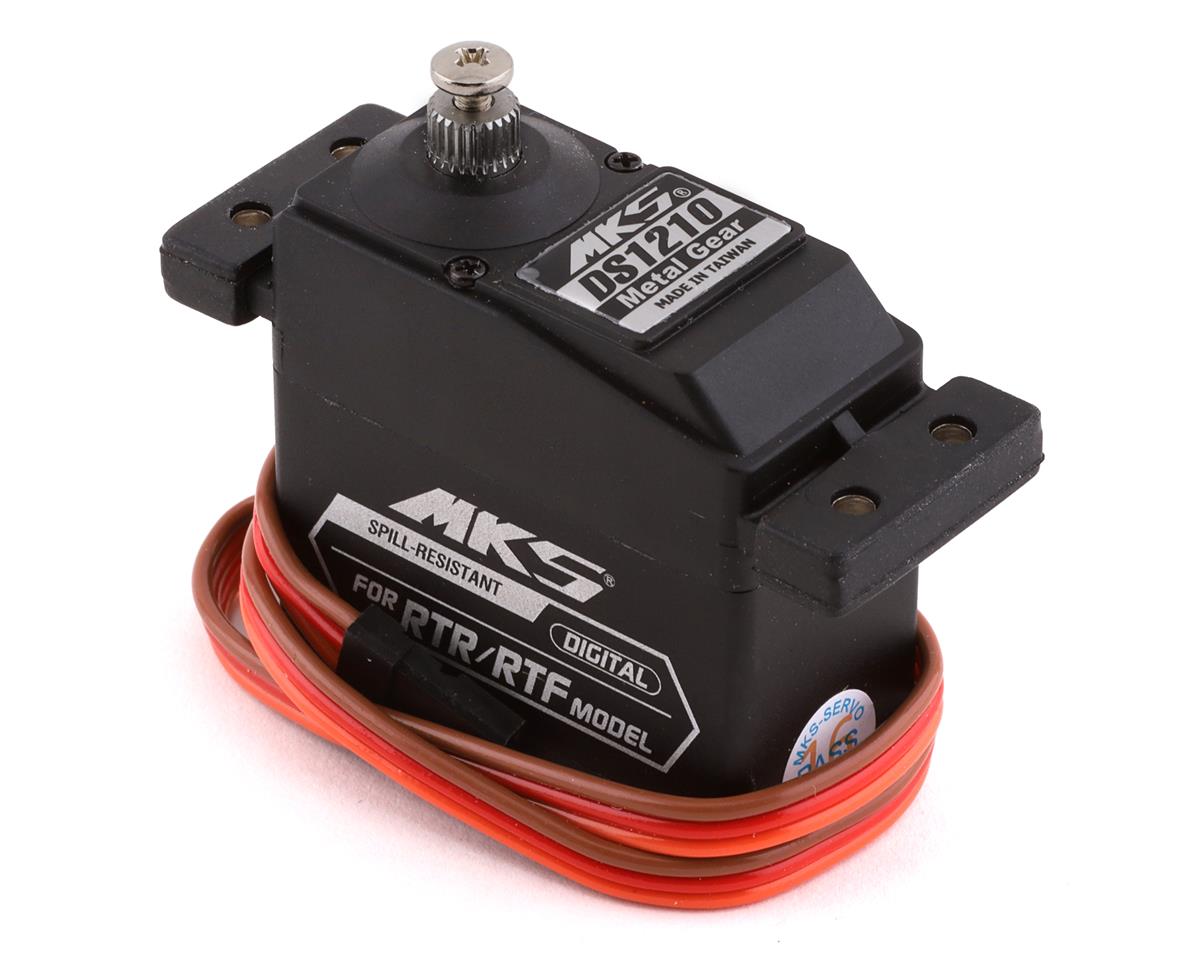

DS1210 MKS Metal Gear Standard Digital Servo

This is the MKS DS1210 Titanium Gear Standard Digital Servo. The DS1210 is a low cost water resistant, titanium gear servo that is well suited to surface and aircraft applications, and is an excellent choice as an upgrade for RTR and RTF models.

DS1210 Specifications:

• Dead Band: 0.002ms (Default)
• Control System: +Pulse Width Control
• Working Frequency: 120Hz
• (RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8~6.0V DC
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.15 sec/60° degrees at no load
• Operating Speed (6V): 0.12 sec/60° degrees at no load
• Stall Torque (4.8V): 111.79 oz/in (8.05 kg-cm)
• Stall Torque (6V): 138.87 oz/in (10 kg-cm)
• 360° Modifiable: NO
• Motor Type: DC Motor
• Potentiometer Drive: Direct Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Metal gear
• Programmable: NO
• Connector Wire Length: 15.0 cm (5.9 in)
• Dimensions: 40x20x40.30mm
• Weight: 56g (1.97 oz)
