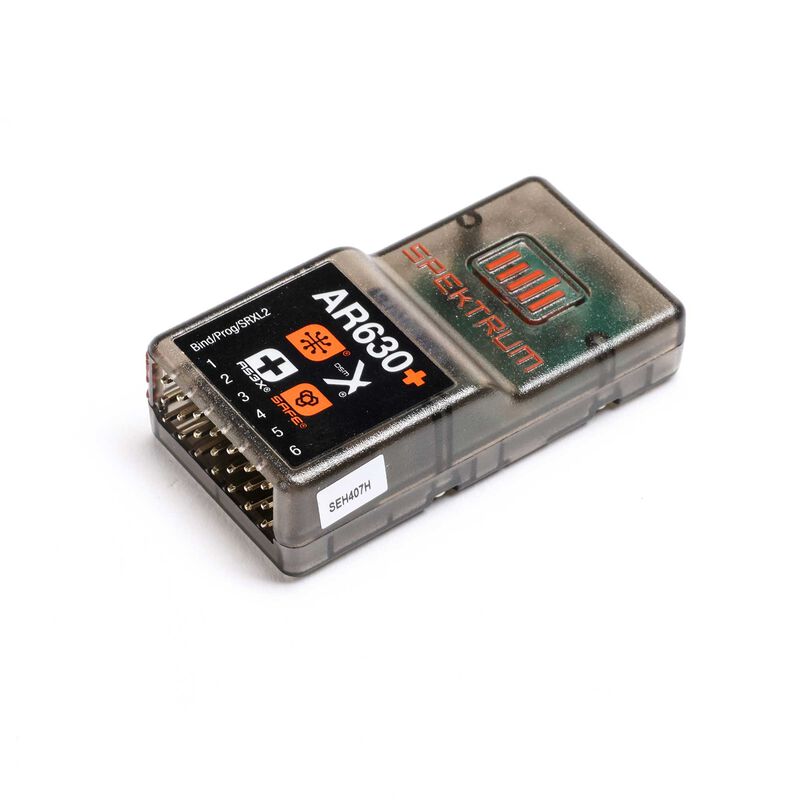

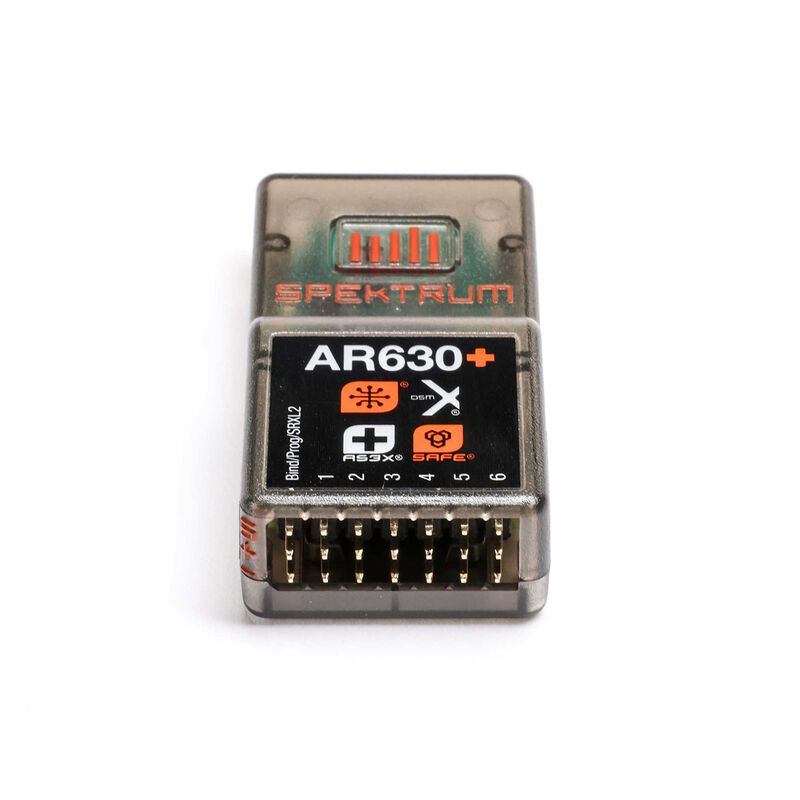

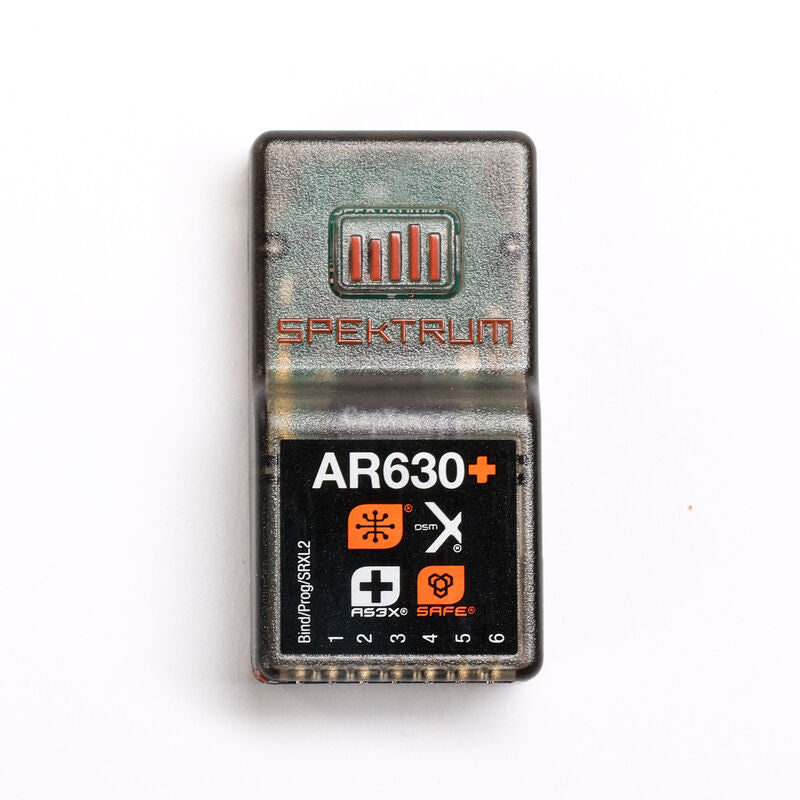

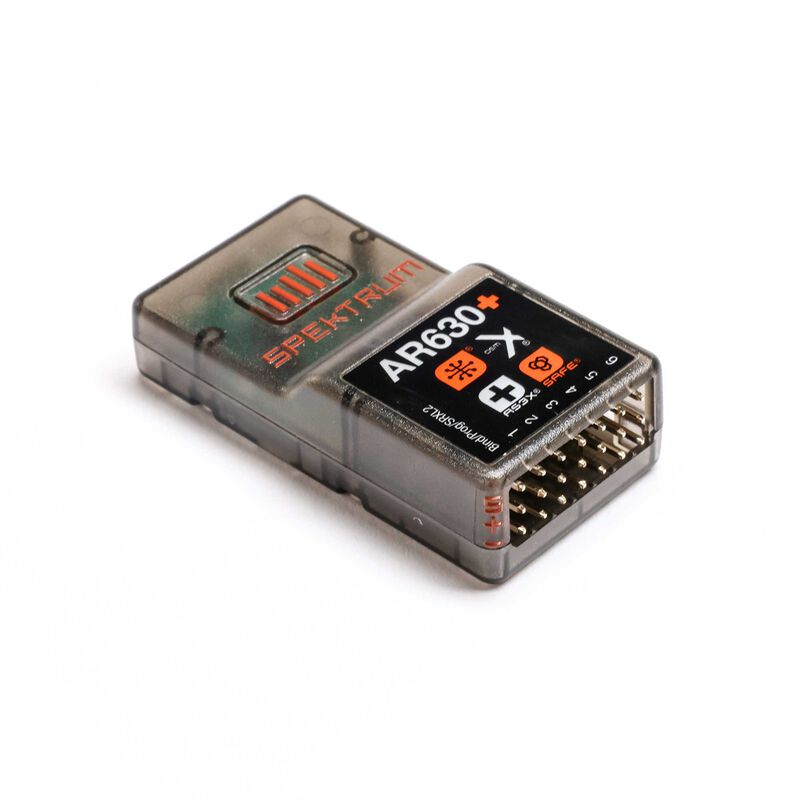

Spektrum SPM-1030 AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver The Spektrum™ AR630+ 6 Channel AS3X+ Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR630+ is a full-range 6-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy and data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want. *Please note – Using this receiver in turbine-powered aircraft models is not recommended
Key Features
- Antenna-less design for easy installation and increased performance
- Built-in AS3X+ Stabilization System with SAFE flight envelope protection
- AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
- Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need for modules, links, and wires
- DSMX protocol receiver with DSM2 backward compatibility
Compatibility
- Application: Air
- Radio protocol: DSMX/DSM2
In The Box
- (1) Spektrum AR630+ AS3X+ / SAFE Receiver
- (1) Product Manual
Needed to Complete
- (1) Spektrum Telemetry Capable Transmitter
Important Information
For Smart to function, you must have a Smart ESC paired with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. See www.spektrumrc.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR630+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.
Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters.
To enjoy the full benefits of Smart™ Technology, use the AR630+ receiver with a Smart ESC and a telemetry-capable Spektrum DSMX® transmitter. The AR630+ features fly-by telemetry and will send vital telemetry data such as current, voltage, temperature, and RPM directly to your transmitter. However, it is not compatible with Spektrum telemetry sensors.
Specifications
| Part Number | SPM-1030 |
| Application | Air |
| Band | 2.4GHz |
| Bind Method | Bind Button |
| Channels | 6 |
| Dimensions | 1.85 x 0.98 x 0.51 in (47 x 25 x 13 mm) |
| Failsafe | Yes |
| Forward Programming | Yes |
| Input Voltage | 3.5 - 9V |
| Integrated Variometer | No |
| Modulation | DSMX/DSM2 |
| Product Application | Air |
| Product Height | 0.51" (13 mm) |
| Product Length | 1.85" (47 mm) |
| Product Weight | 0.34 oz (9.5 g) |
| Product Width | 0.98" (25 mm) |
| Range | Full |
| Remote Receiver Ports | 0 |
| Resolution | 2048 |
| Serial Out | SRXL2 |
| Technology | AS3X+, SAFE |
| Telemetry | Yes |
| Telemetry Range | Fly-By |
