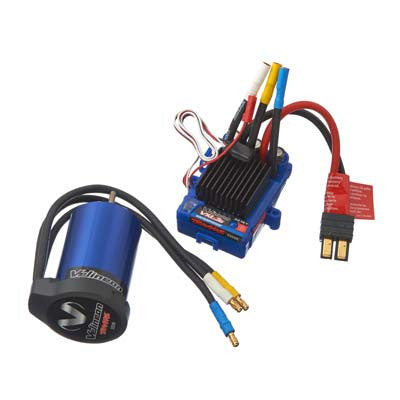

Velineon VXL-3s Brushless Power System, Waterproof

The ultimate upgrade! The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.

Specifications:

• VXL-3s
• Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
• Supported motors:
• Brushed/Brushless/Sensorless brushless
• Motor Limit: None Continuous current: 200A
• Peak current forward & reverse: 320A
• Braking Current: 320A
• BEC voltage 6.0V DC
• BEC current: 2.5A w/6-cell NiMH
• Transistor type: MOSFET
• On-resistance: 0.00075 ohms Max (0.006/8 FETs)
• PWM frequency: 12,000Hz
• Battery connectors: Traxxas High-Current Connector
• Motor connectors: TRX 3.5mm bullet connectors
• Motor/battery wiring: 12-gauge Maxx Cable
• Input Harness Wire: 26 gauge, 3.9" (100mm)in length
• Low voltage detection: 2-Stage indicators, switchable (on or off)
• Thermal protection: 2-stage thermal shutdown
• Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
• Weight: 3.17oz (90g)
• Velineon 3500 Motor
• Type: Sensorless brushless
• RPM/volt: 3500 (10-turn)
• Magnet type: Ultra High-Temperature, sintered neodymium
• Connection type: TRX 3.5mm bullet connectors
• Wire Size: 12-gauge
• Maxx Cable w/solder tabs
• Current Ratings: 65A constant; 100A peak/burst
• Max RPM: 50,000
• Diameter: 1.42" (36mm) (540 size)
• Length: 2.165"(55mm)
• Weight: 8.75oz (248g)
